Detail Information

Name:	Semi-automatic Americal Pallet Pneumatic Nailing Table	Wood Pallet Length:	600-1300mm
Wood Pallet Width:	800-1700mm	Operational Mode:	Pneumatic Operation
Operating Mode:	Semi-automatic	Air Pressure:	0.5-0.8MPA
Production Efficiency:	30-50pcs/Hour	Number Of Beams:	3P、4P
Number Of Nail Guns:	BOSTITCH CN70	Weight:	440kgs
Size:	22509801900mm	After-sales Service Provided:	Online Support,Free Spare Parts,commissioning And Training
Highlight:	Pneumatic Wood Pallet Making Machine , Pneumatic Wood Pallet Nailing Machine , Stringer Wood Pallet Nailing Machine

Product Description

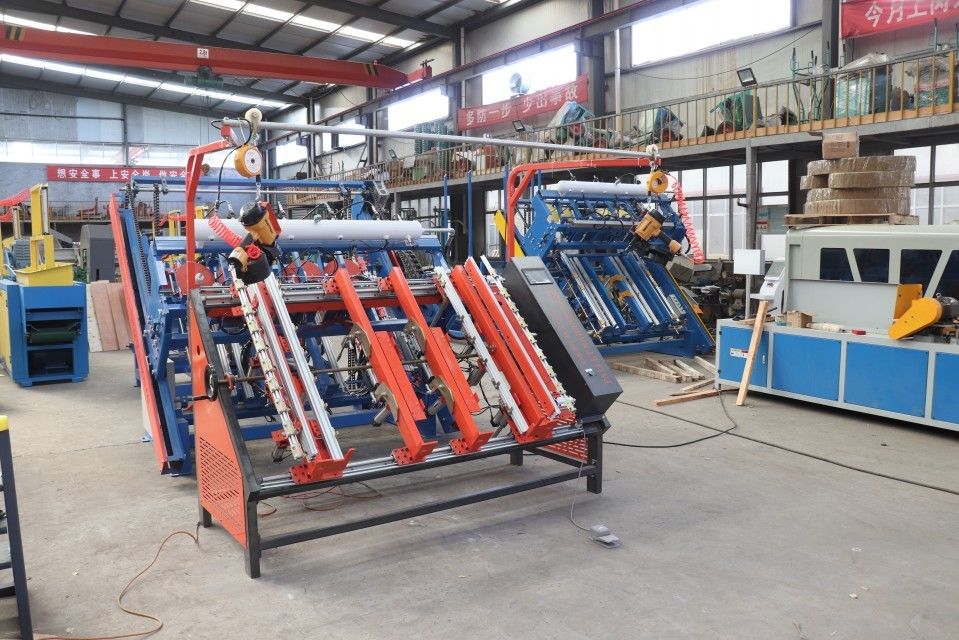

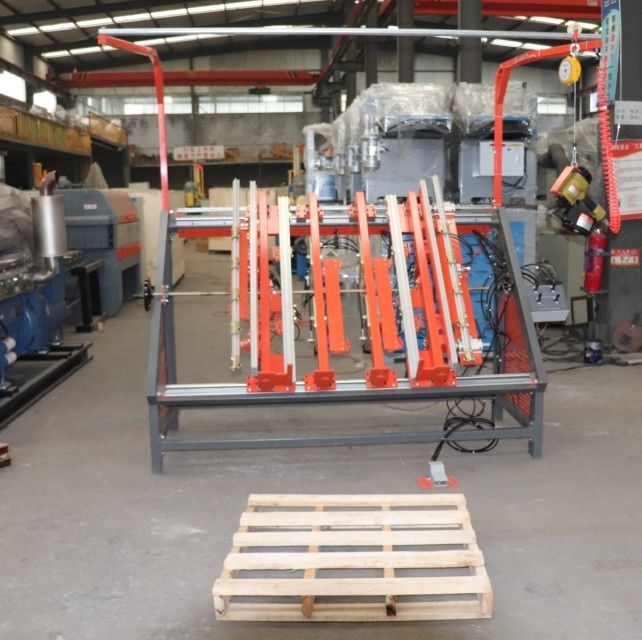

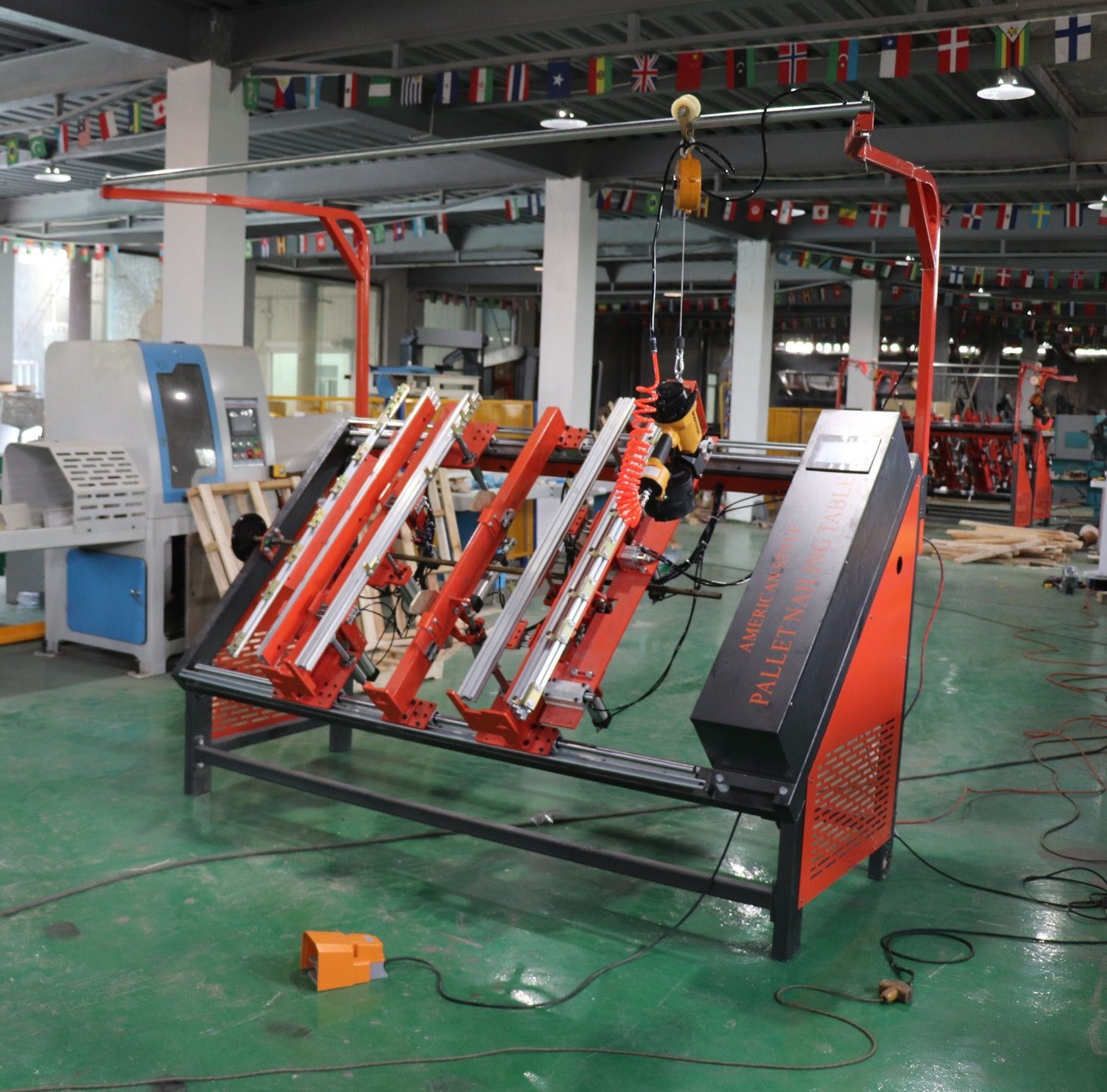

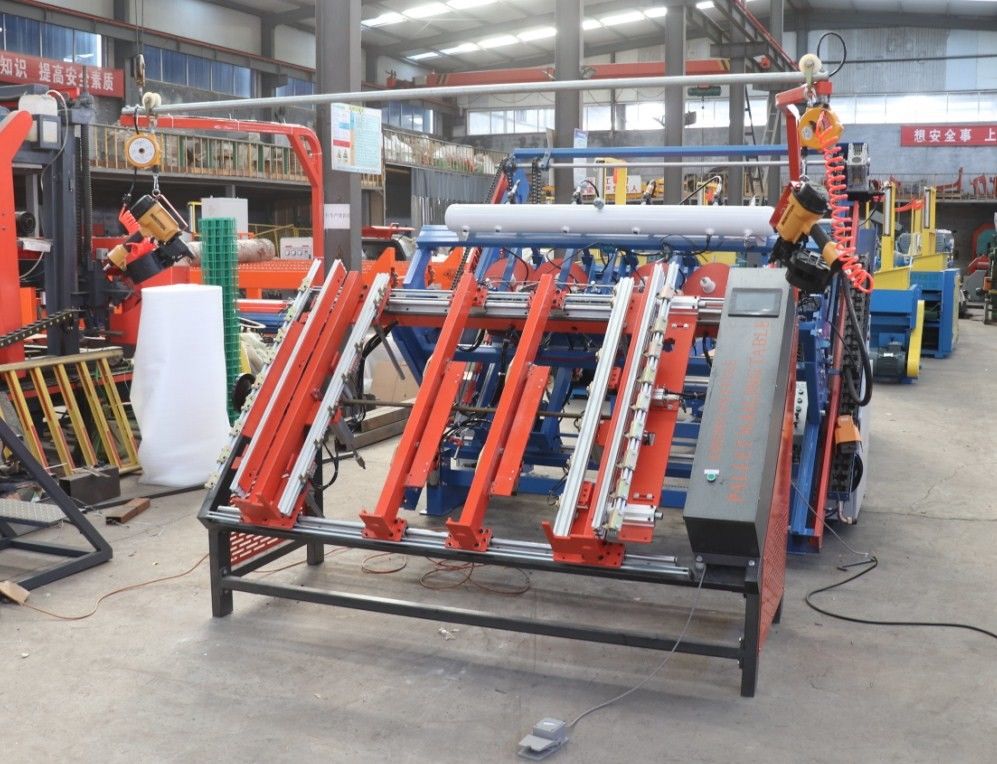

A universal pneumatic nailing table, Pneumatico PT-1700 features an adjustable working top, pneumatic clamping of support elements (blocks or stringers), and pneumatic lift of the pallet towards the operator.

Technical specifications:

Weight: 440 kg
Operating pressure: up to 8 bar
Material: structural steel

Dimensions of the pallets:

Width: 700 – 1700 mm
Length: 1300 mm

Instruction:

Easy to use One operator can build 210-230 pallets within 8 hours
Compact design Total footprint 3.3 m² (35.5 ft²)
Universal Adjustable worktop allows production of:

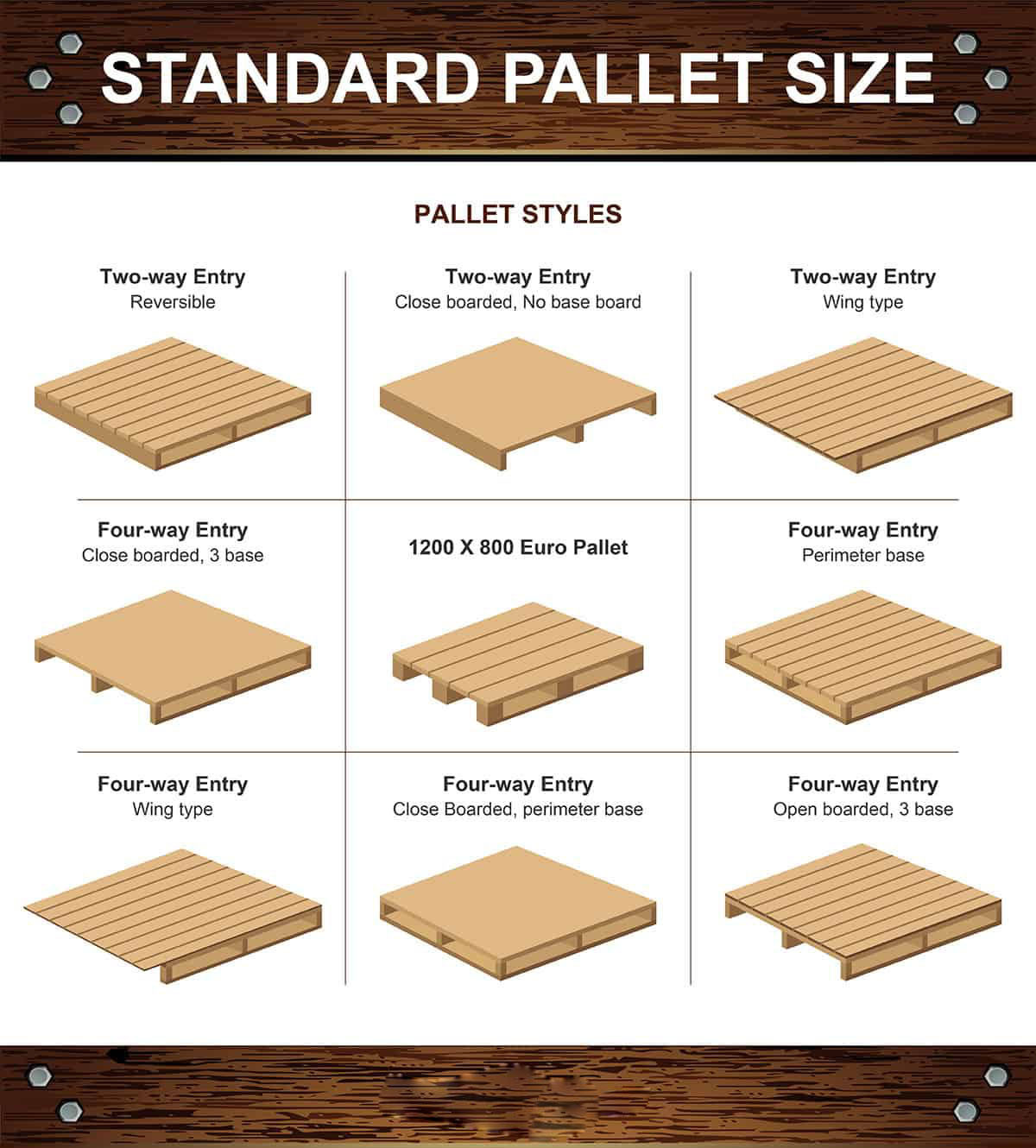

Pallets on 2, 3, 4, or 5 stringers
Efficient Quickly switch to any size pallet
Pneumatic clamp Easily centers the blocks
Pneumatic lift Raises pallet to minimize operator lifting

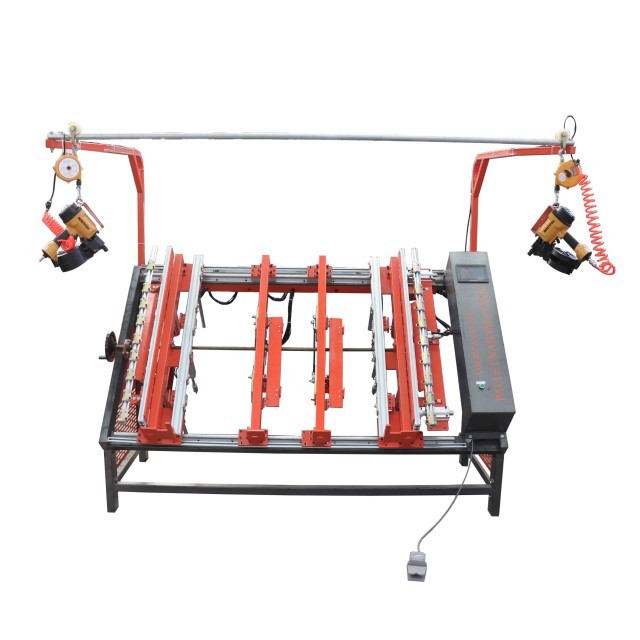

Overhead roller track Nail guns can move freely during work
Bottom template Template to build pallet legs
Adjustable steel clinch plates Galvanized and hardened steel plates for clinching nails
Unique Diagonal table adjustment reduces work by 50%
Only 2 Allen keys required to adjust the table

Technical data:

Model	PT-1700
Wood Pallet Length	700-1300mm
Wood Pallet Width	700-1300mm
Operation Mode	Pneumatic Operation
Air Pressure	0.5-0.8MPA
Production Efficiency	30-50pcs/h
Number Of Beams	3P,4P
Number Of Nail Guns	BOSTITCH CN70
Operating Mode	Semi-Automatic
Weight	440kg

Images

Pneumatic USA Type Wood Pallets Nailer Wood Pallet Making Machine Stringer Wood Pallet Nailing Machine 0
