Place of Origin: | Shandong Province, China |
---|---|
Brand Name: | SH |
Certification: | ISO9001 |
Model Number: | DS700 D1300,DS2000 |
Minimum Order Quantity: | 1 SET |
Price: | US $8,700 - 14,800 / Set |

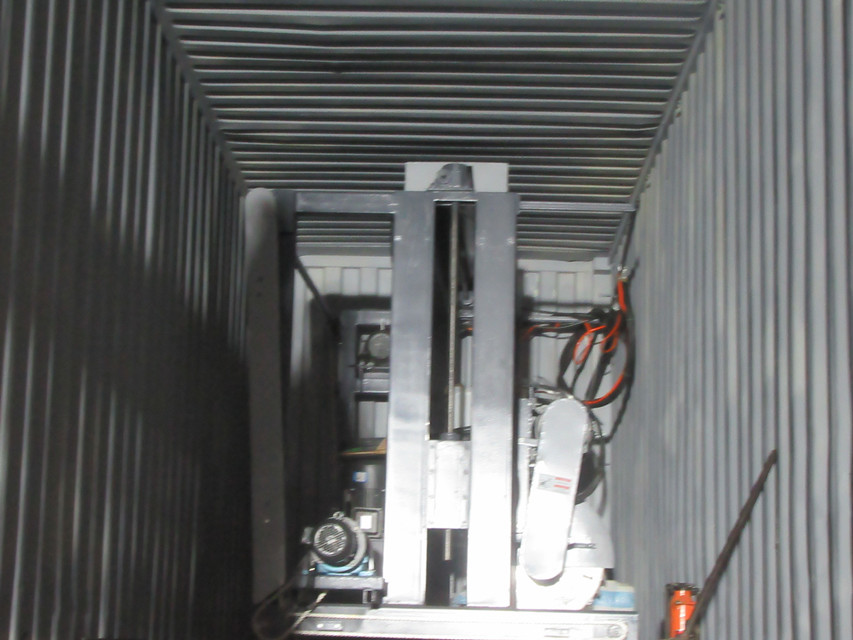

Packaging Details: | container loading |
Delivery Time: | within 15 days |
Payment Terms: | T/T or L/C at sight, Western Union |
Supply Ability: | 500sets/year |
Condition: | New | Type: | Circular Saw |
---|---|---|---|
Voltage: | 380v,3phase,50hz Or As Customer Needs | Use: | Wood Cutting |
Warranty: | 12 Months | Usage: | Square Timber Cut |
Controlling System: | PLC Automacit Control | ||
Highlight: | 300mm x 210mm Circular Sawmill,Wood Log Timber Circular Sawmill,Double Swing Blades Circular Sawmill |

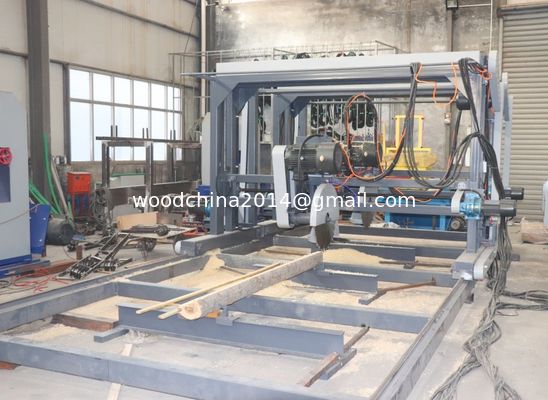

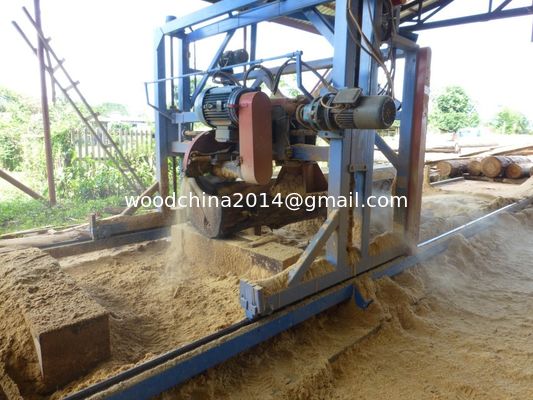

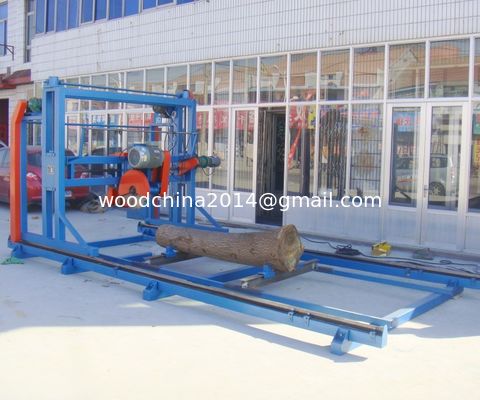

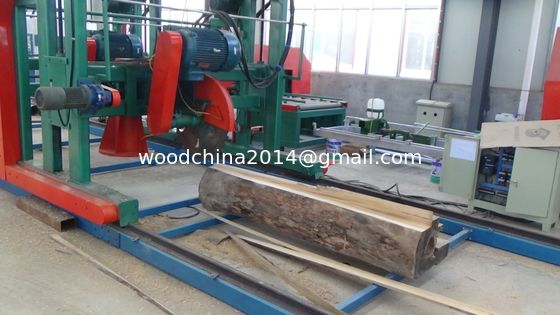

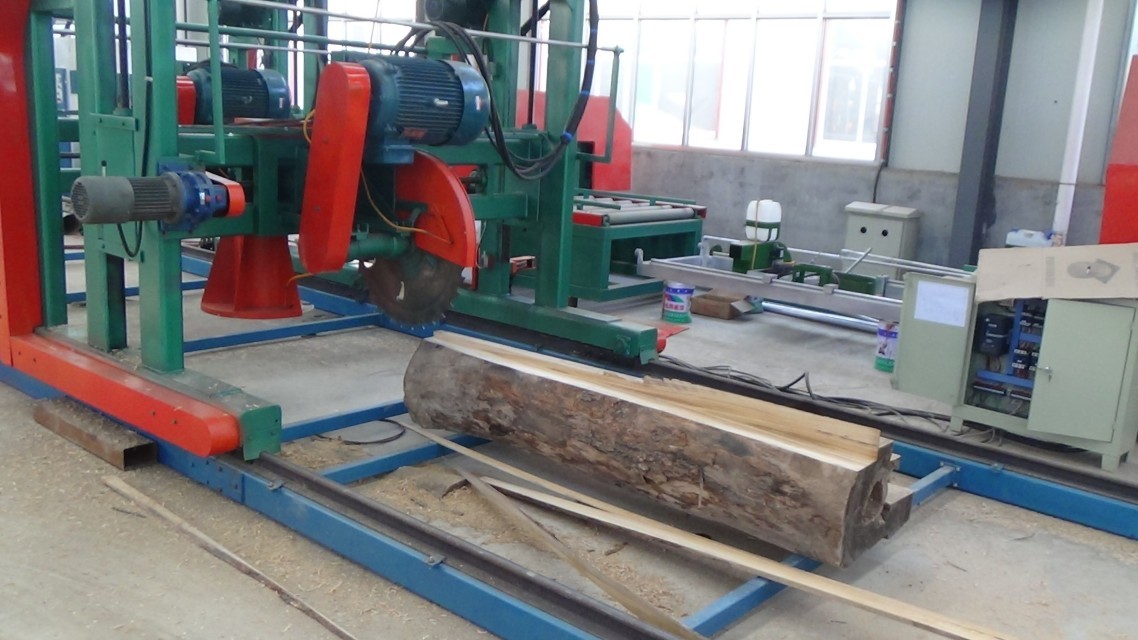

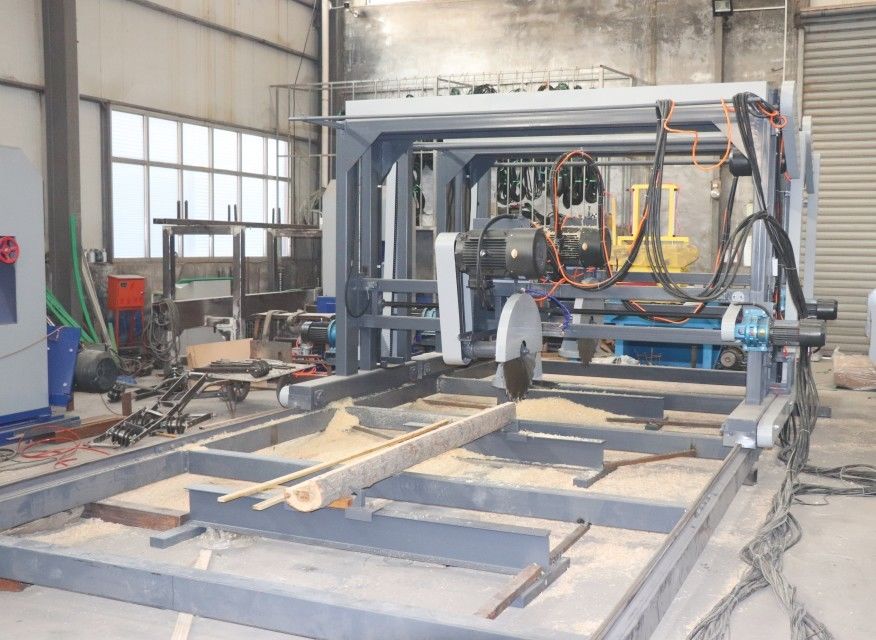

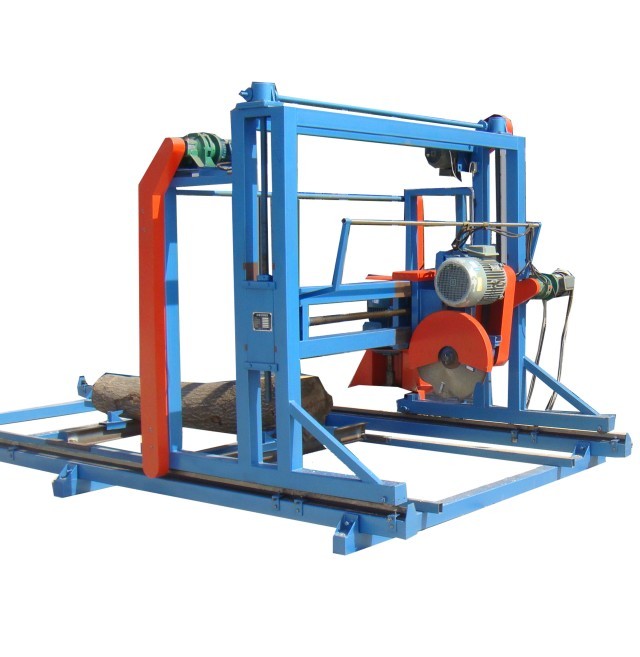

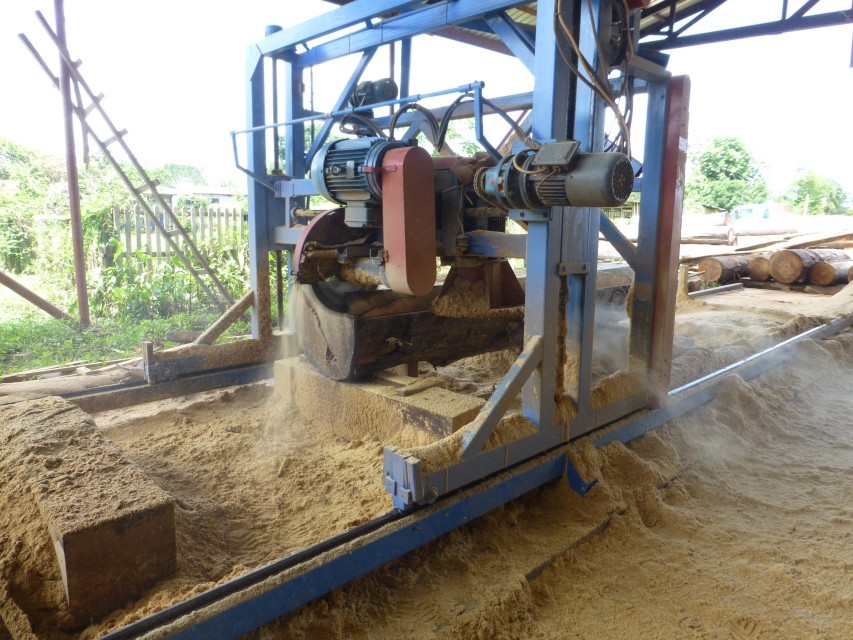

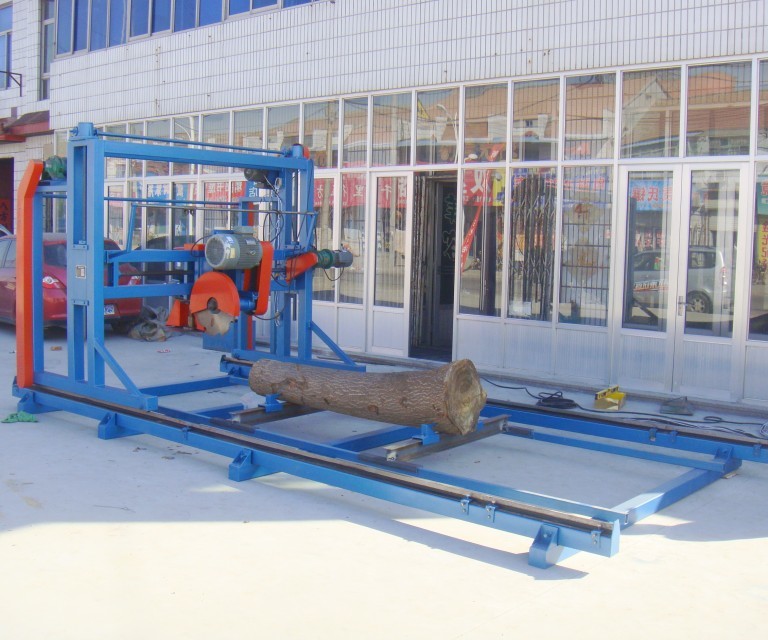

Double Blades Angle Circular Saw Mill
Technical Parameter | DS700 | DS1300 | DS2000 |
Max Sawing Wood Diameter | 700MM | 1300MM | 2000MM |
Max Sawing Wood Size | 150*150MM | 210 * 210MM | 300*210MM |
Saw Blade Diameter | 2*424MM | 2*546MM | 1x760mm,1x546mm |
Motors Power(KW) |
11KW*2, 1.1KW*3 |
15KW*2, 1.1KW*3 |
22KW*1,15KW *1 1.1KW*3 |
Max Swing Wood Length | 6 Meters | 6 Meters | 6 Meters |
Machine weight | 1500KG | 2000KG | 3000KG |
Optional Parts: Pneumatic Log Clamping
