Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	AEPN-1300

Minimum Order Quantity:	1 SET Wood Pallet Nailing Machine
Price:	US $4,800 - 21,500 / Set
Packaging Details:	iron frame packings or luo packings
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year

Get Best Price Contact Now

Detail Information

Name:	Wood Pallet Nailing Machine	Wood Pallet Length:	700-1300mm
Wood Pallet Width:	800-1300mm	Working Mode:	Automatic Feeding And Stacking
Voltage And Power:	220V/ 2kw Servo Motor	Number Of Coil Nail Guns:	3pcs Or 4pcs
Air Pressure:	0.8MPA	Nail Gun Speed:	7times/second
Production Capacity:	1- 2tray/minute	Weight:	2000kg
Highlight:	Euro Wood Block Pallet Making Machine , Assembly System Pallet Making Machine , 4 Stringer Pallet Making Machine

Product Description

Machine to make wood pallets, Automatic Wood Pallet Nailing Machine for Euro trays

Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System 0

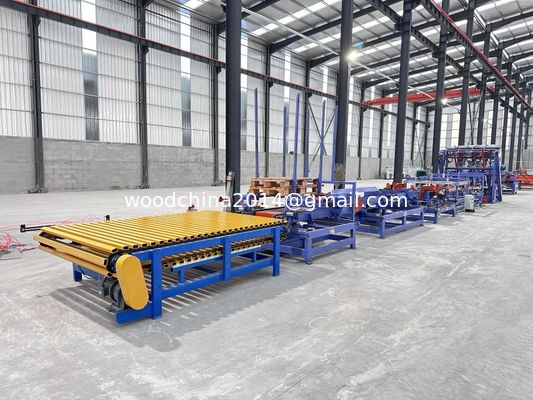

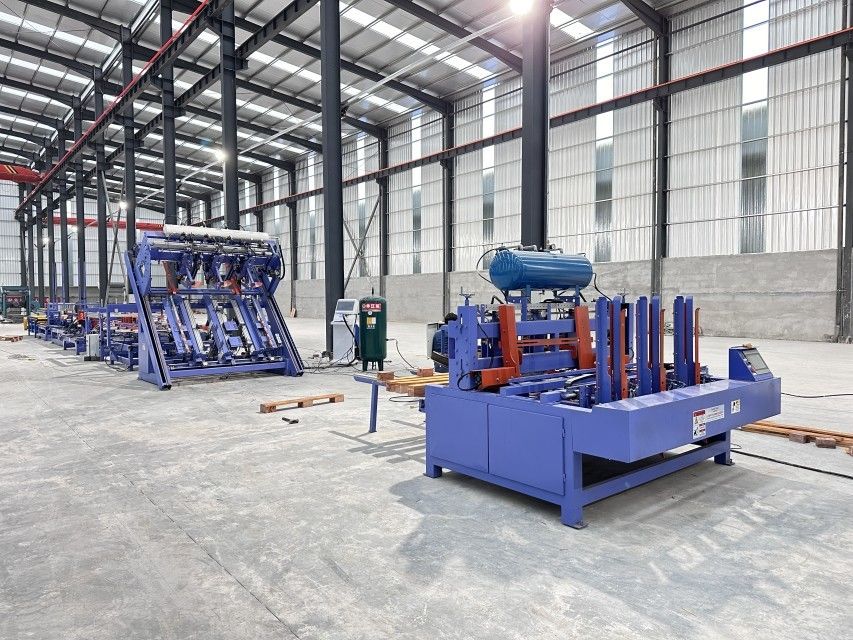

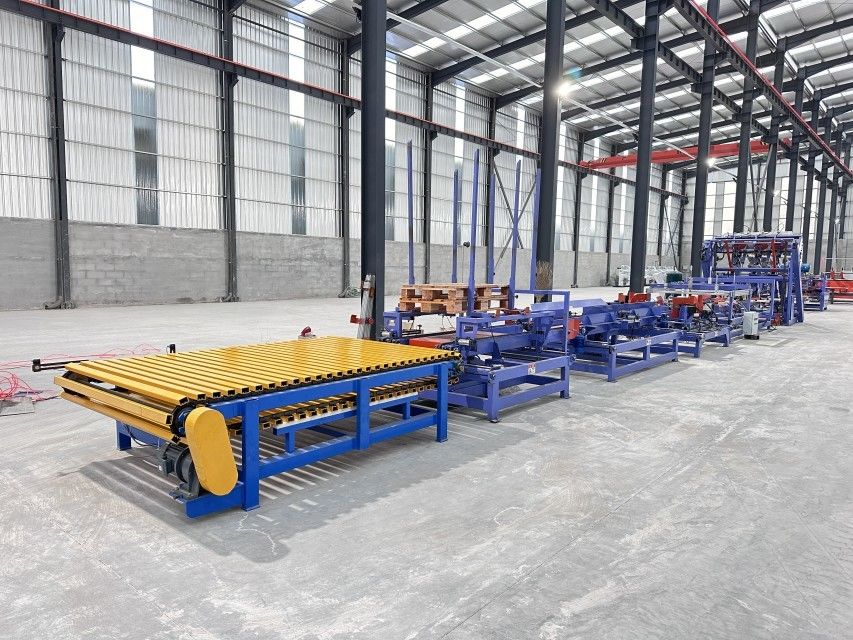

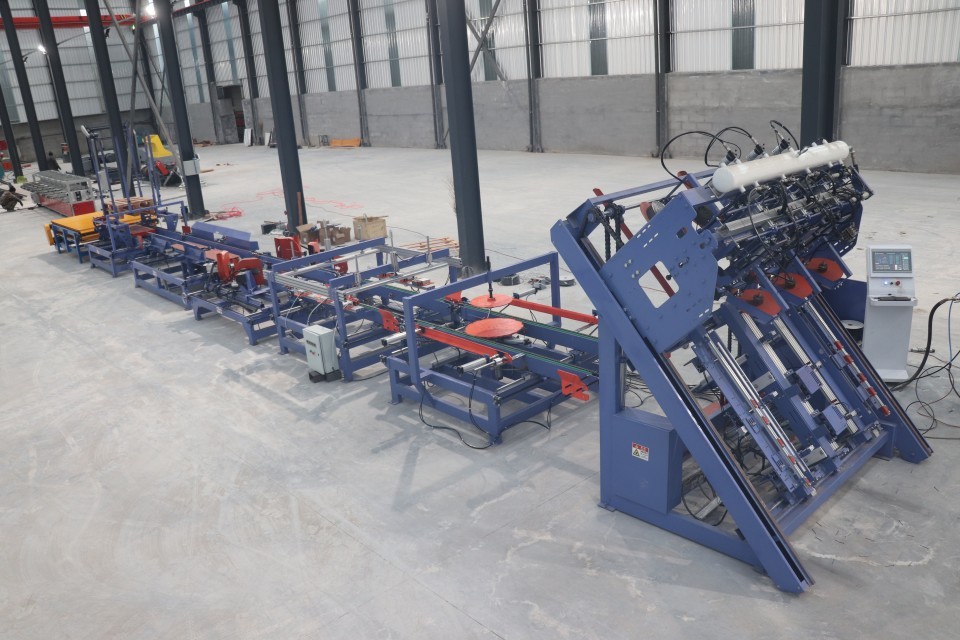

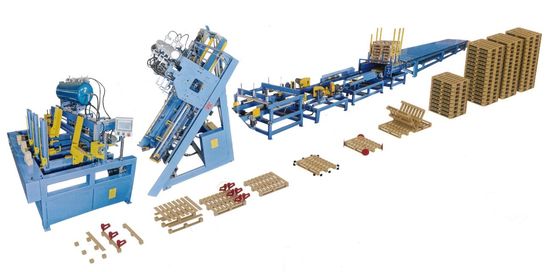

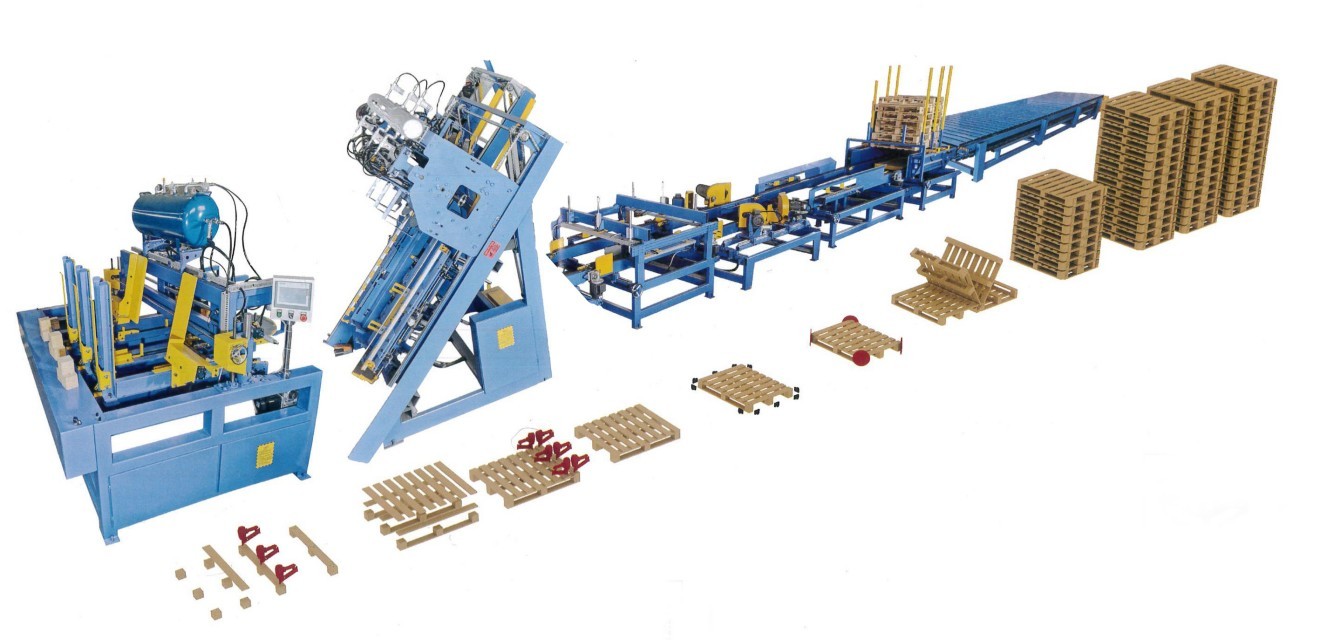

Euro Pallet Automatic Wood Pallet Production Line

1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine

Model	SLDJ-1300-3
Block width	60-150mm
Board Length	600-1300mm
Nail gun	CN703Stanley BOSTITCH Stitch CN703
Nailing method	1 nail, 2 nails, 3 nails, 4 nails, 5 nails
Air pressure	0.8MPA
Nail gun speed	4-8 s/time
Motor power	1.5KW Servomotor
Voltage	220V(Customized)
Operating mode	Touch screen
Production mode	Manual discharge/automatic pin pier

Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System 1

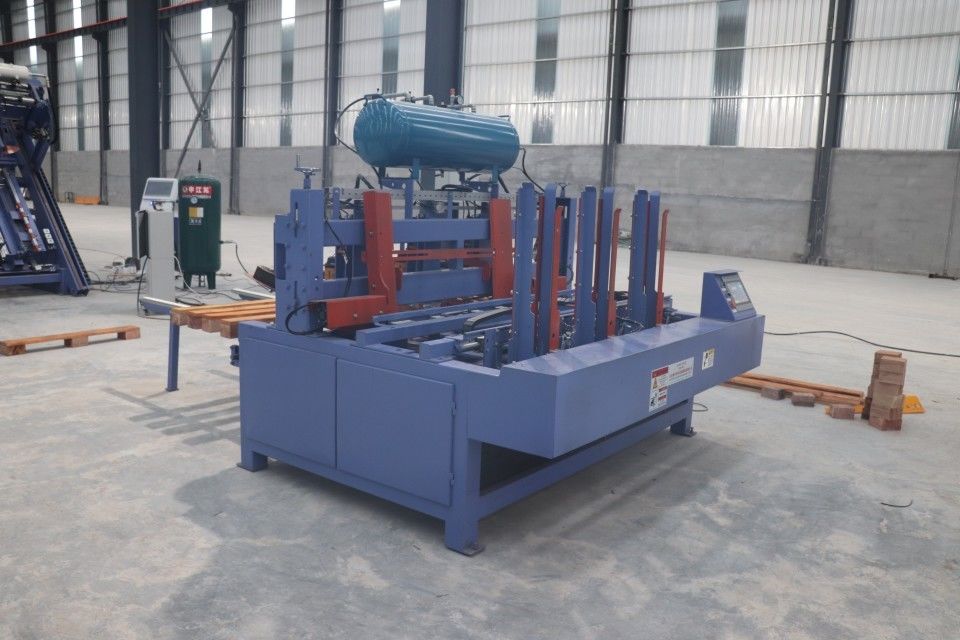

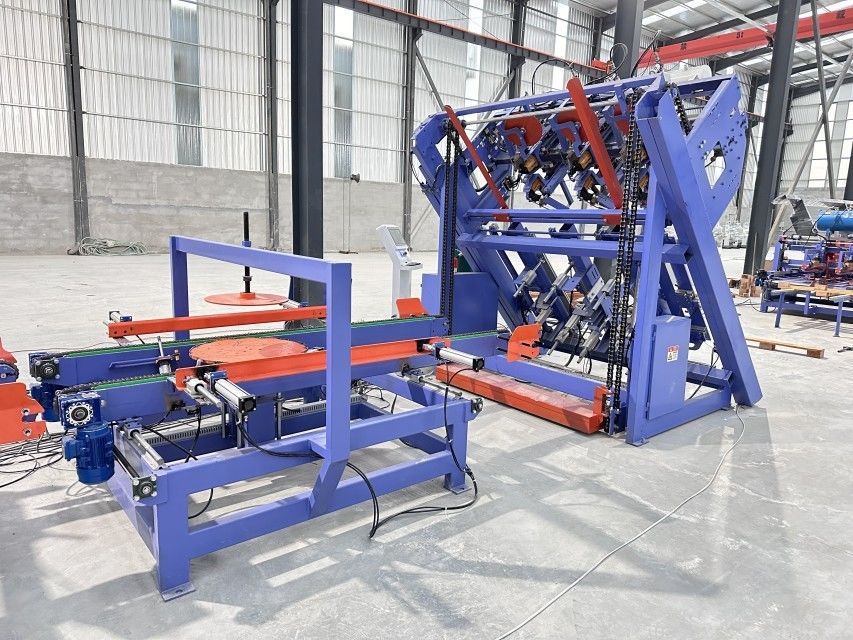

2.Automatic European pallet nailing machine

Model	AEPN-1300
Wood pallet length	700-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	2kw Servo motor
Air pressure	0.8MPA
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Number of nail guns	6P CN70,CN58
Weight	2000kg

Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System 2

Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System 3

Related Products

Automatic Pallet Block Cutting Machine

Technical data

Model	JD-1500
Cutting wood max. length	1500mm
Cutting Thickness	50-120mm
Cutting Width	60-200mm
Pallet foot pier size	30-200mm
Saw Diameter	400mm
Motor	7.5kw/3phase
Production capacity	1500-1800P/H
Weight	350kgs

Detailed Image

Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System 6

Wood block multi-blade saw

Technical data

Model	BM-1250
Cutting Length	1250mm
Cutting Thickness	100mm
Cutting Width	200mm
Saw Diameter	355mm
Motor	30kw
Weight	1600kg


Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System 7

Multi Blades Rip Saw

Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System 8

Euro Wood Block Pallet Making Machine 4 Stringer w/Stacker Pallet Nailer Assembly System 9
