Home > Products> Pallet Nailing Machine> European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets

Basic Information

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	AEPN-1300

Minimum Order Quantity:	1 SET Wood Pallet Nailing Machine
Price:	US $4,800 - 21,500 / Set
Packaging Details:	iron frame packings or luo packings
Delivery Time:	within 15 days
Payment Terms:	T/T or L/C at sight, Western Union
Supply Ability:	1000sets/year

Get Best Price Contact Now

Detail Information

Name:	Wood Pallet Nailing Machine	Wood Pallet Length:	700-1300mm
Wood Pallet Width:	800-1300mm	Working Mode:	Automatic Feeding And Stacking
Voltage And Power:	220V/ 2kw Servo Motor	Number Of Coil Nail Guns:	3pcs Or 4pcs
Air Pressure:	0.8MPA	Nail Gun Speed:	7times/second
Production Capacity:	1- 2tray/minute	Weight:	2000kg
Highlight:	European Pallet Assembly Machine , Industrial Automatic Pallet Nailing Machine , Wood Pallet Assembly Machine

Product Description

Machine to make wood pallets, Automatic Wood Pallet Nailing Machine for Euro trays

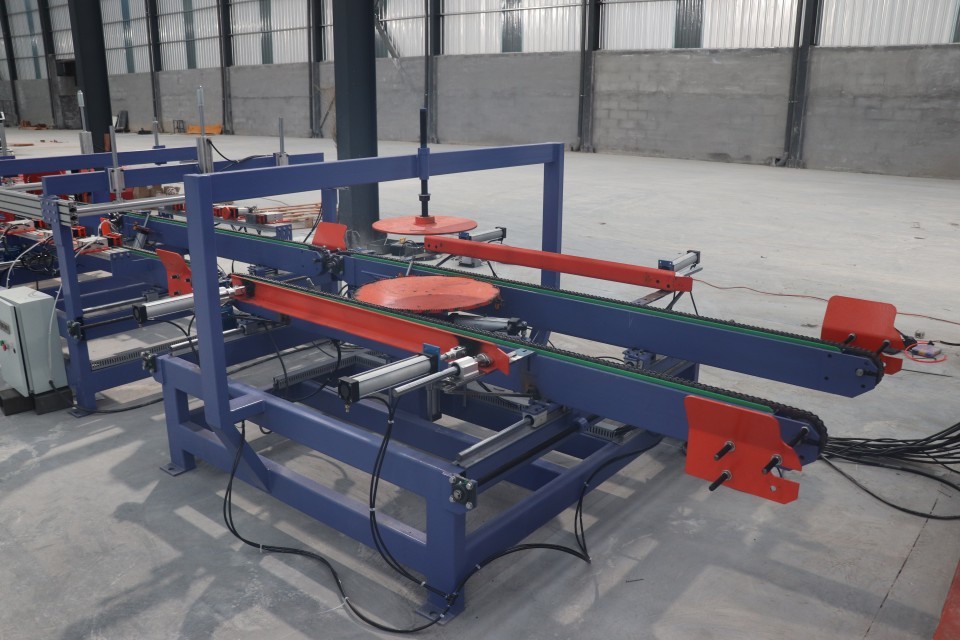

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets 0

Euro Pallet Automatic Wood Pallet Production Line

1. Euro Wood Pallet Pier Automatic Connecting Nailing Machine

Model	SLDJ-1300-3
Block width	60-150mm
Board Length	600-1300mm
Nail gun	CN703Stanley BOSTITCH Stitch CN703
Nailing method	1 nail, 2 nails, 3 nails, 4 nails, 5 nails
Air pressure	0.8MPA
Nail gun speed	4-8 s/time
Motor power	1.5KW Servomotor
Voltage	220V(Customized)
Operating mode	Touch screen
Production mode	Manual discharge/automatic pin pier

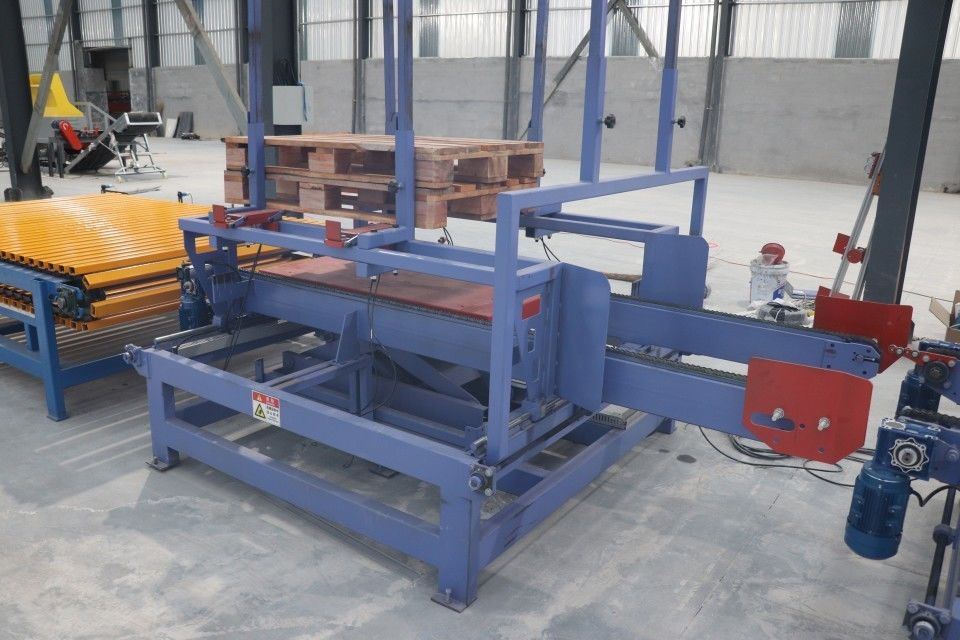

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets 1

2.Automatic European pallet nailing machine

Model	AEPN-1300
Wood pallet length	700-1300mm
Wood pallet width	800-1300mm
Working mode	Automatic feeding and stacking
Operation mode	Touch screen
Operational mode	Pneumatic operation
Voltage and power	2kw Servo motor
Air pressure	0.8MPA
Nail gun speed	7 times /second.
Production effciency	1-2pcs /min
Number of nail guns	6P CN70,CN58
Weight	2000kg

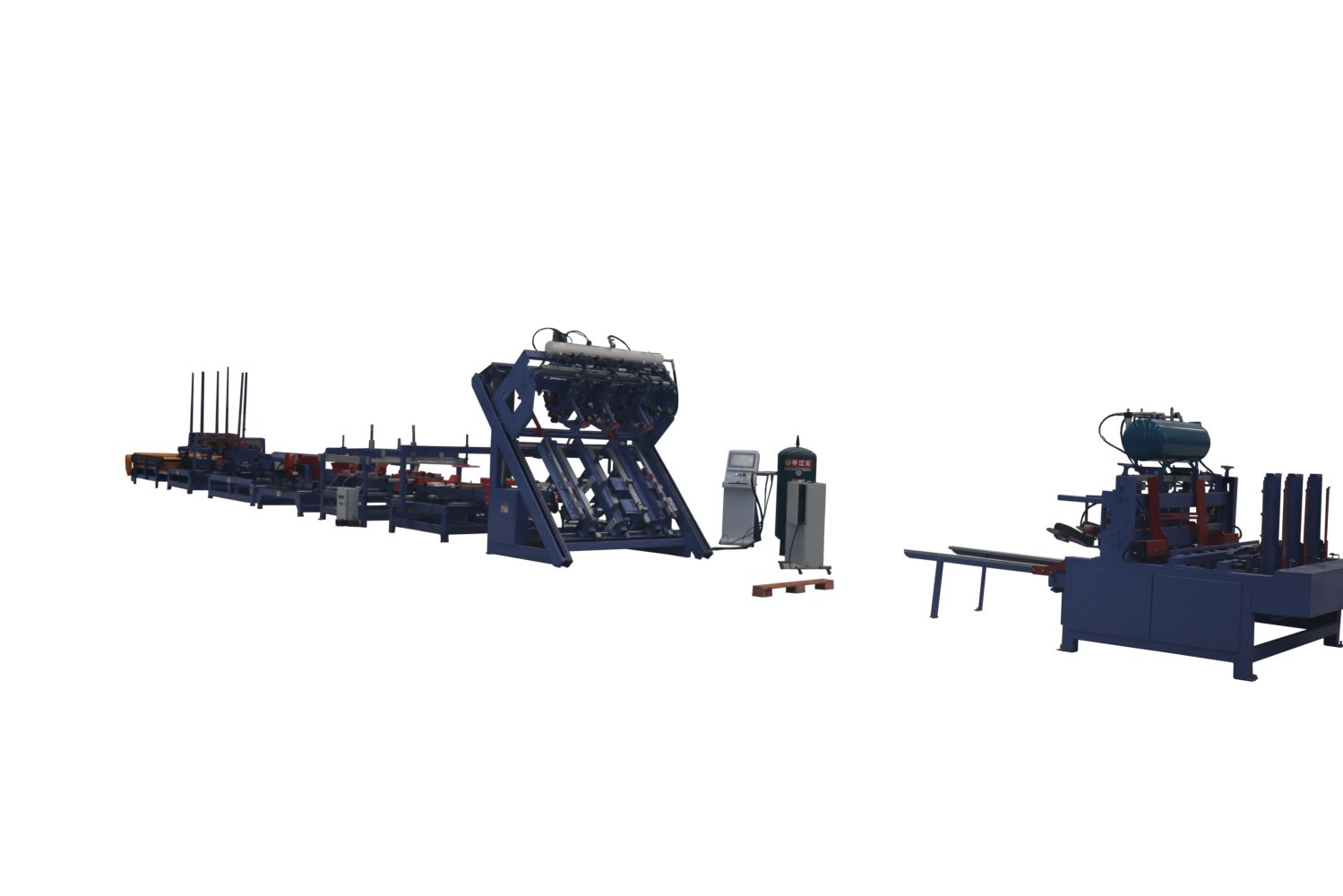

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets 2

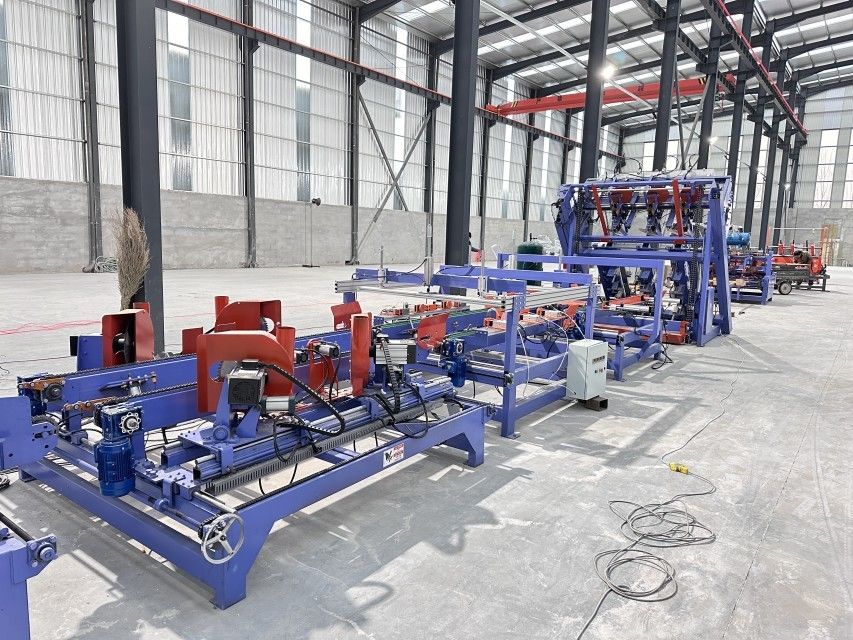

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets 3

Related Products

Automatic Pallet Block Cutting Machine

Technical data

Model	JD-1500
Cutting wood max. length	1500mm
Cutting Thickness	50-120mm
Cutting Width	60-200mm
Pallet foot pier size	30-200mm
Saw Diameter	400mm
Motor	7.5kw/3phase
Production capacity	1500-1800P/H
Weight	350kgs

Detailed Image

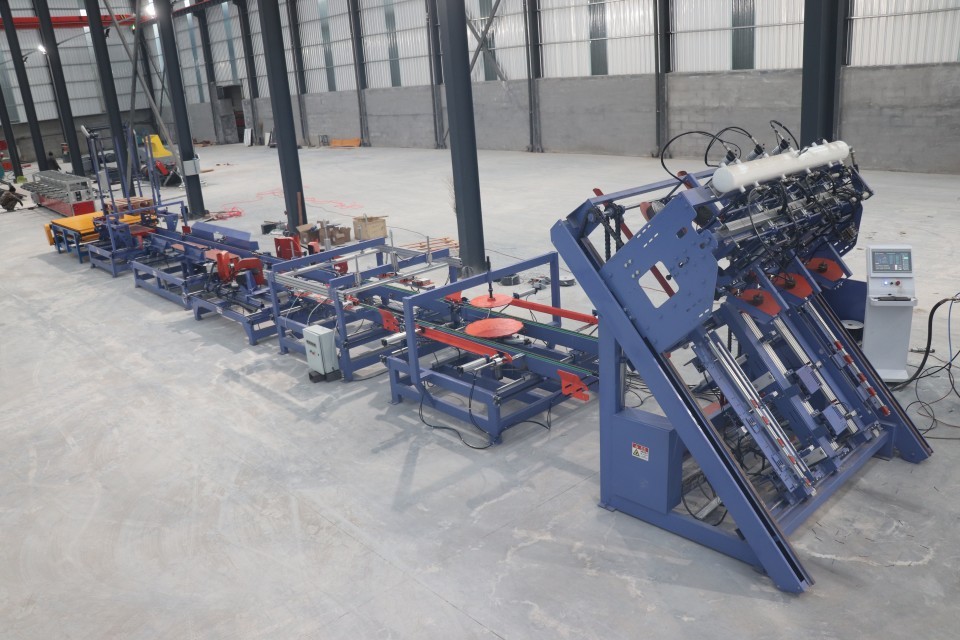

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets 6

Wood block multi-blade saw

Technical data

Model	BM-1250
Cutting Length	1250mm
Cutting Thickness	100mm
Cutting Width	200mm
Saw Diameter	355mm
Motor	30kw
Weight	1600kg

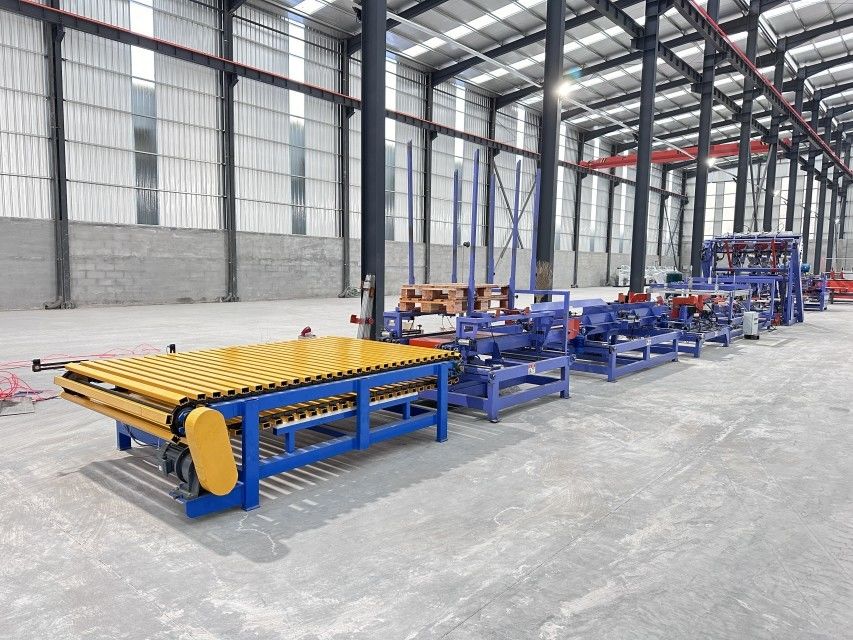

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets 7

Multi Blades Rip Saw

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets 8

European Pallet Assembly Machine Industrial Automatic Wood Pallet Nailing Machine To Make Wood Pallets 9
