Woodworking Machinery Multi Blade Rip Saw wood sawmill Machine Circular Saw for logs
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SHYM350, SHYM450, SH1240,SH1640, SH1030, etc |
| Minimum Order Quantity | 1 SET |
| Price | US $5,000 - 15,000 / Set |
| Packaging Details | wooden pallet or iron frame packings |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Multi Ripsaw | Condition | New |
|---|---|---|---|
| Type | Rip Saw | Application | Cut Wood Logs Into Planks Or Cut Panels Into Pcs |
| Feeding | Frequency | Blade Cooling | Axis Center Watering |
| Max. Sawing Log Diameter | 450mm | Max. Sawing Panel Width | 400mm |
| Circular Blade Diameter | 355mm, 550mm, 600mm, Etc | After-sales Provided | Video Technical Support, Online Suppirt |
| Warranty | 1 Year |
Product Description
circular sawmill machine wood multi rip saw mill machine
Log Cutting Multiple Blade Ripsaw
- Technical data
| Model | SHYM150 | SHYM200 | SHYM260 | SHYM330 |
| Sawing log diameter | 20-150mm | 60-200mm | 100-260mm | 150-330mm |
| Min sawing log length | 600mm | 600mm | 600mm | 600mm |
| Main motor power | 18.5KW X2 | 22KW X2 | 30kw , 37kw | 37KW X 2 |
| Feeding motor | 1.5KW | 1.5KW | 1.5KW | 2.2KW |
| Saw blade diameter | 255mm | 305mm | 380mm | 455mm |
| Weight | 1570kg | 1720kg | 2300kgs | 2550kg |
| Model | SHYM360 | SHYM400 | SHYM430 | SHYM500 |
| Sawing log diameter | 170-360mm | 180-400mm | 200-430mm | 250-500mm |
| Min sawing log length | 600mm | 600mm | 600mm | 600mm |
| Main motor power | 55KW X2 | 55KW X 2 | 75KW X 2 | 75KW X 2 |
| Feeding motor | 2.2KW | 2.2KW | 2.2KW | 2.2KW |
| Saw blade diameter | 500mm | 550mm | 600mm | 650mm |
| Weight | 2680kg | 3500kg | 3880kg | 4100kg |
|
Remarks: Main motor power can be changed as customer needs ; The multi ripsaw is with inverter auto feeding Blade cooling method: shaft center spraying water to cool |
||||

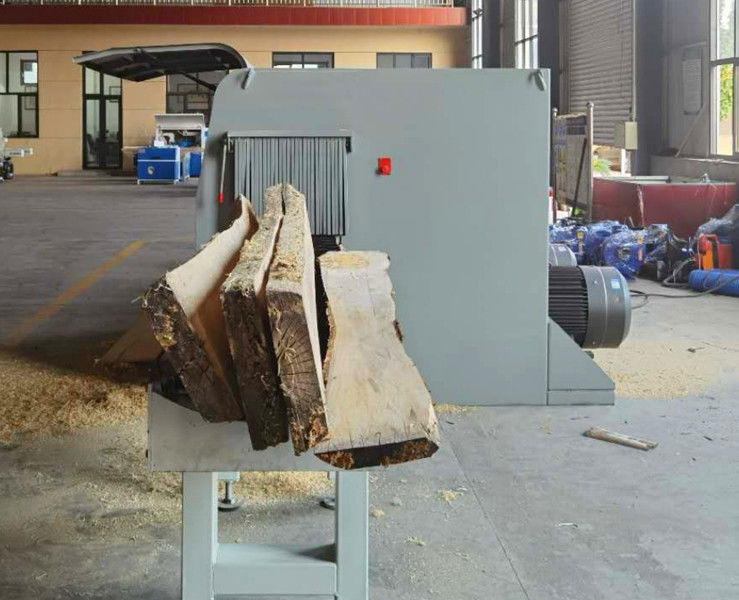

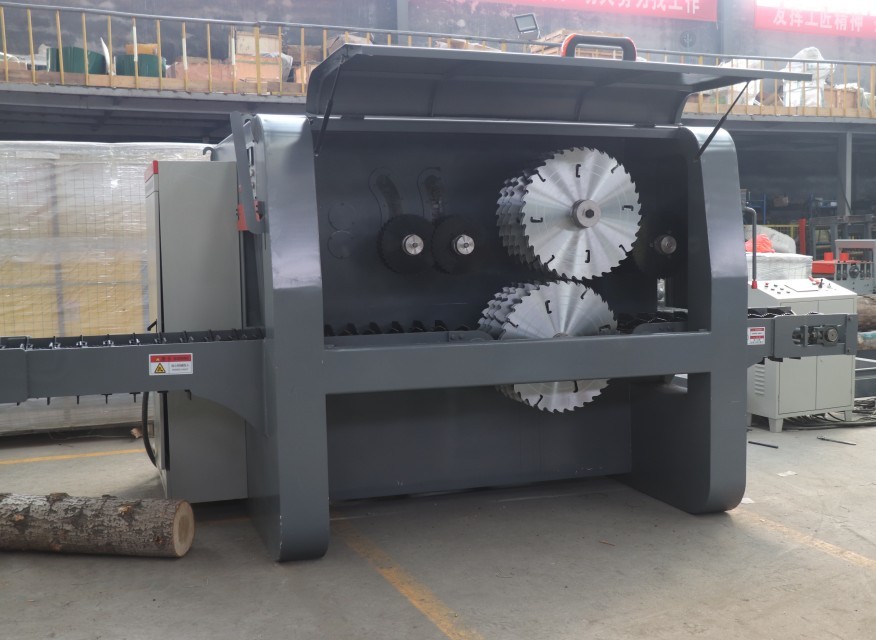

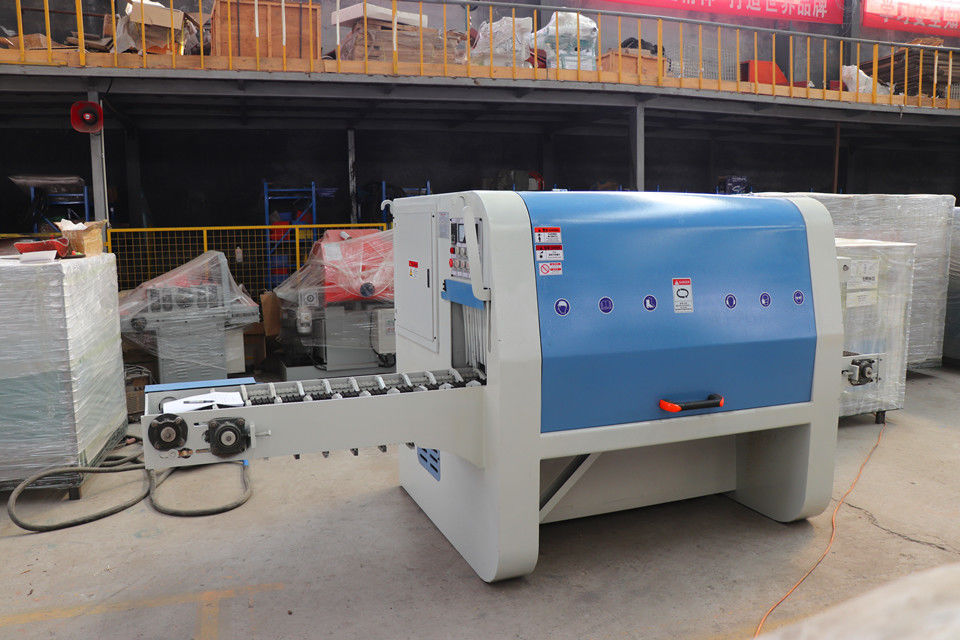

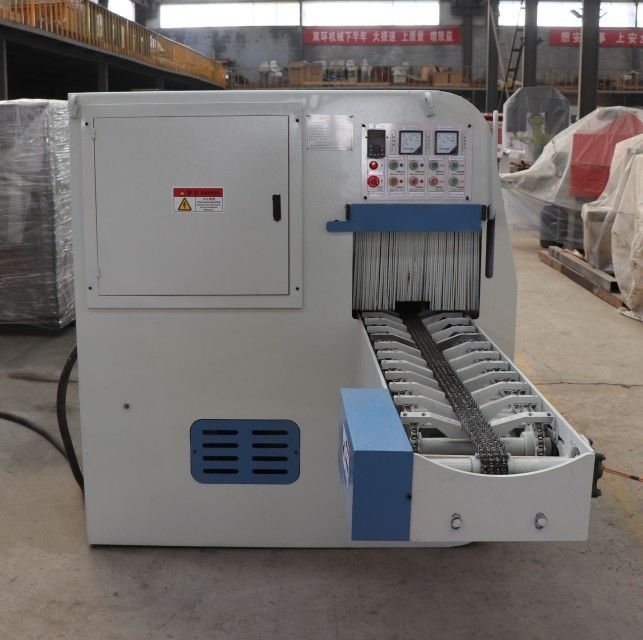

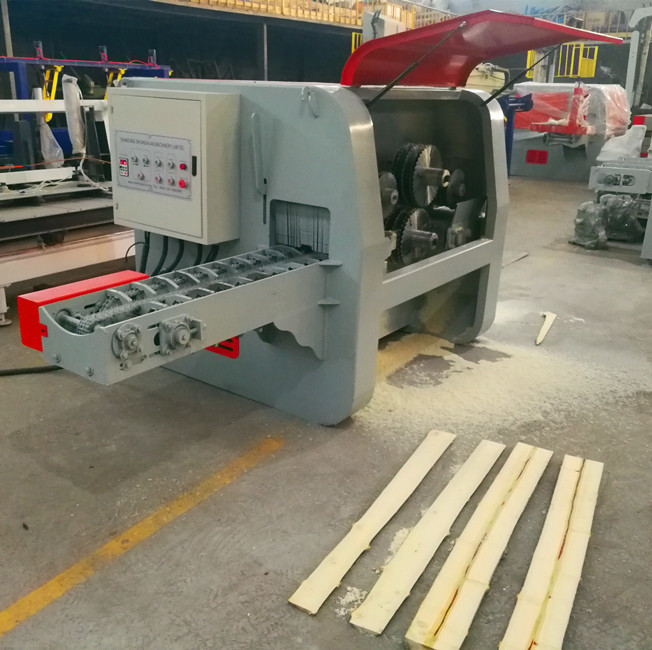

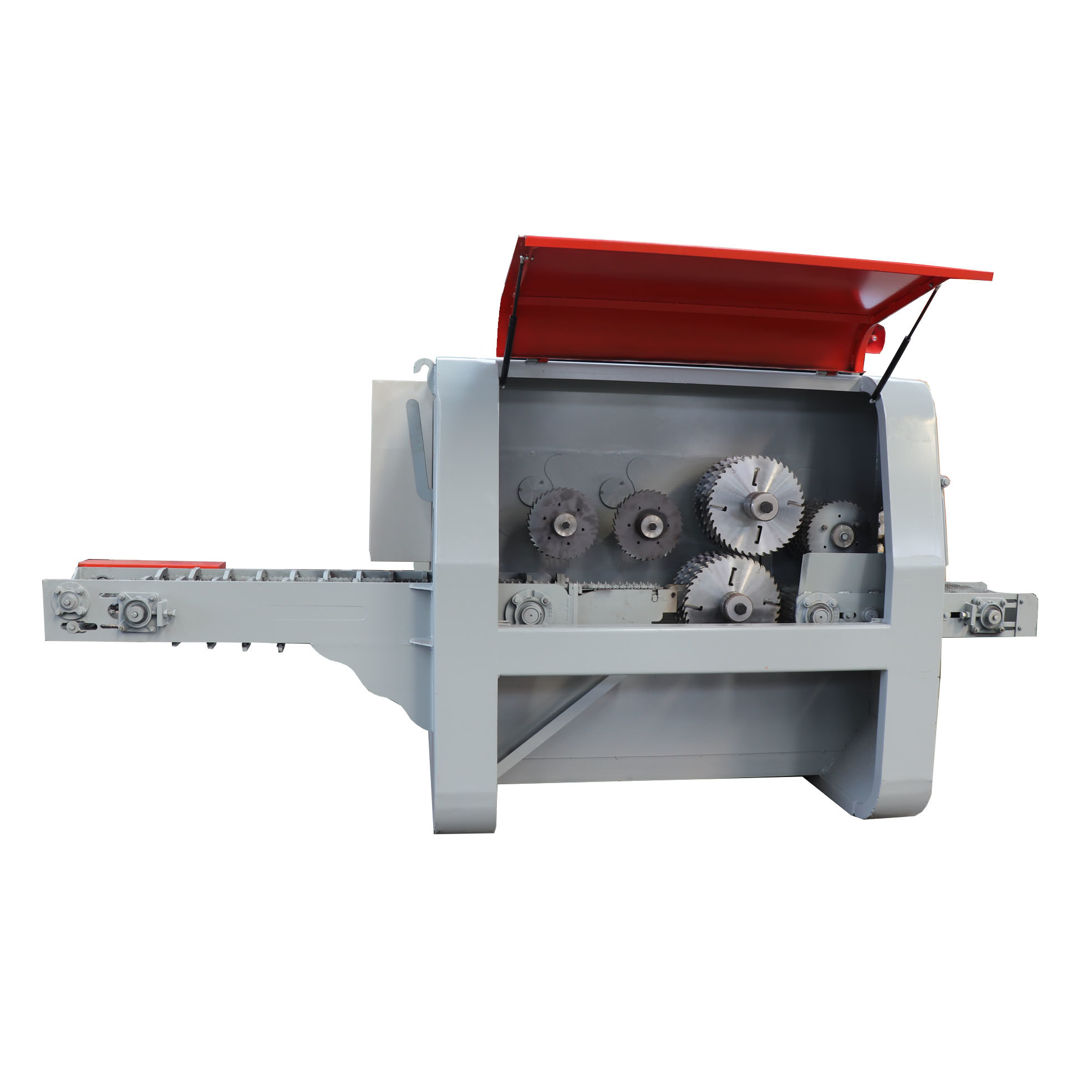

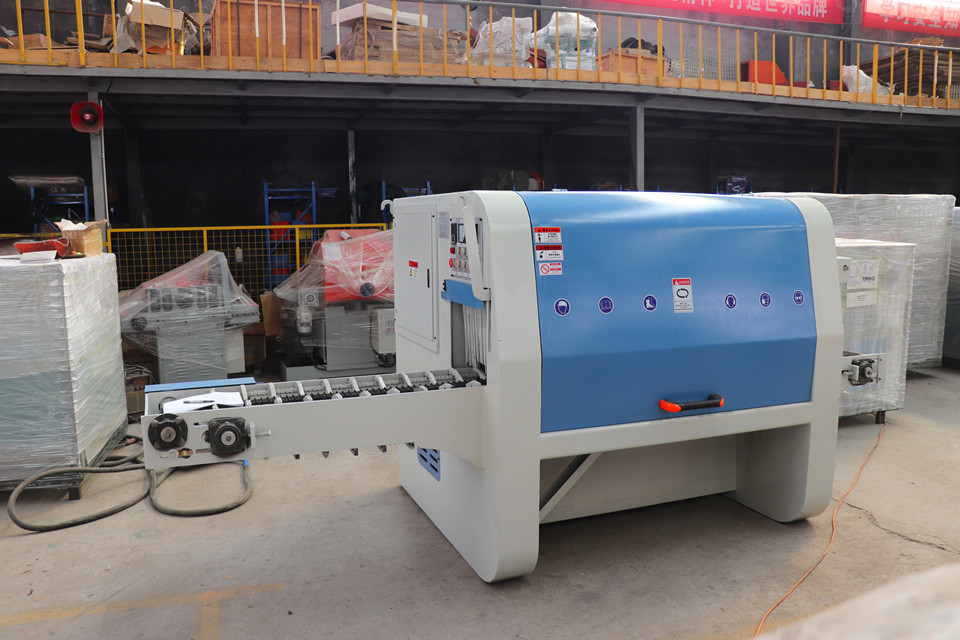

- Detailed Images
- Optional- Multi Blades Rip Saw Production Line for wood logs processing
Related Machines
- Heavy Duty Double Spindle Panel Cutting Multiple Blade Rip Saw
|
Model Specifications |
SH-1240 | SH-1640 | SH-2040 |
| Working height (mm) | 50-120 | 70-160 | 90-200 |
| Max. sawing width (mm) | 400 | 400 | 400 |
| Main shaft diameter(mm) | 70 | 70 | 80 |
| Motor power (kw) | 37kw x2 | 37kw &45kw | 37kw &45kw |
| Circular blade diameter (mm) | 255 | 280 | 355 |
| Weight | 2450kgs | 2690kgs | 2850kgs |
| Feeding type | Frequency variable auto feeding | ||
| Blade cooling type | Spindle center water spraying | ||
|
Model Specifications |
SH-2540 | SH-2740 | SH-3040 |
| Working height (mm) | 110-250 | 130-270 | 150-300 |
| Max. sawing width (mm) | 400 | 400 | 400 |
| Main shaft diameter (mm) | 80 | 80 | 100 |
| Motor power (kw) | 45KW x2 | 45KW &55kw | 55KW x 2 |
| Circular blade diameter(mm) | 380 | 405 | 455 |
| weight | 3050kgs | 3280kgs | 3400kgs |
| Feeding type | Frequency variable auto feeding | ||
| Blade cooling type | Spindle center water spraying | ||
- Detailed Images
- Light Duty Double Spindle Panel Cutting Multiple Blade Rip Saw
|
Model Specifications |
F-60 | F-80 | F-100 |
| Max Sawing thickness (mm) | 60 | 80 | 100 |
| Max. sawing width (mm) | 300 | 300 | 300 |
| Main shaft diameter(mm) | 50 | 50 | 50 |
| Motor power (kw) | 18.5kw &22kw | 22KW X 2 | 22KW X 2 |
| Circular blade diameter (mm) | 150 | 180 | 210 |
| Overall size (mm) | 1850x1400x1550 | 2250X1450X1550 | 2250x1450x1550 |
| Feeding type | Frequency variable auto feeding | ||
| Blade cooling type | Spindle center water spraying | ||
|
Model Specifications |
F-120 | F-150 | |
| Maximum sawing thickness (mm) | 120 | 150 | |
| Max. sawing width (mm) | 300 | 300 | |
| Main shaft diameter (mm) | 50 | 50 | |
| Motor power (kw) | 22KW &30kw | 22KW &30kw | |
| Circular blade diameter(mm) | 230 | 255 | |
| Overall size(mm) | 2250x1450x1550 | 2280X1450X1550 | |
| Feeding type | Frequency variable auto feeding | ||
| Blade cooling type | Spindle center water spraying | ||
