New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SLS350, SLS500
Minimum Order Quantity 1 SET
Price US $12,000 - 50,000 / Set
Packaging Details container loading
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Twin Heads Vertical Sawmill Machine Type Band Saw
Style Vertical Power(W) 2*122KW
Application Cut Four Side Of Log,produce Timber Saw Wheel Diameter 700MM
Max. Sawing Wood Diameter 500MM Control CNC Digital
Feeding Speed Variable Frequency Speed Adjustable Dimension 12000*2300*3500mm
Voltage 380V, 50HZ, 3PH Or As Customer Needs Weight 1500KG
Warranty 12 Months
Leave a Message
Product Description

Twin vertical wood band saw, log sawing sawmill machine with frequency feeding

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

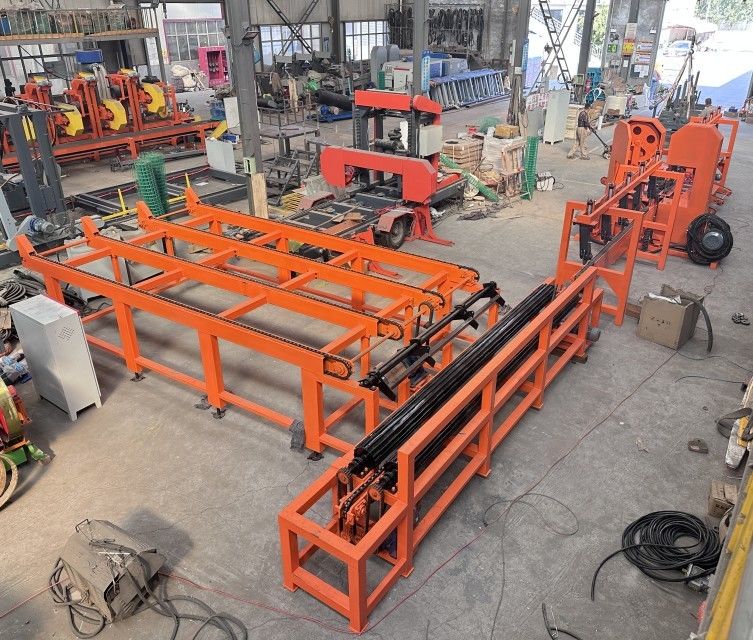

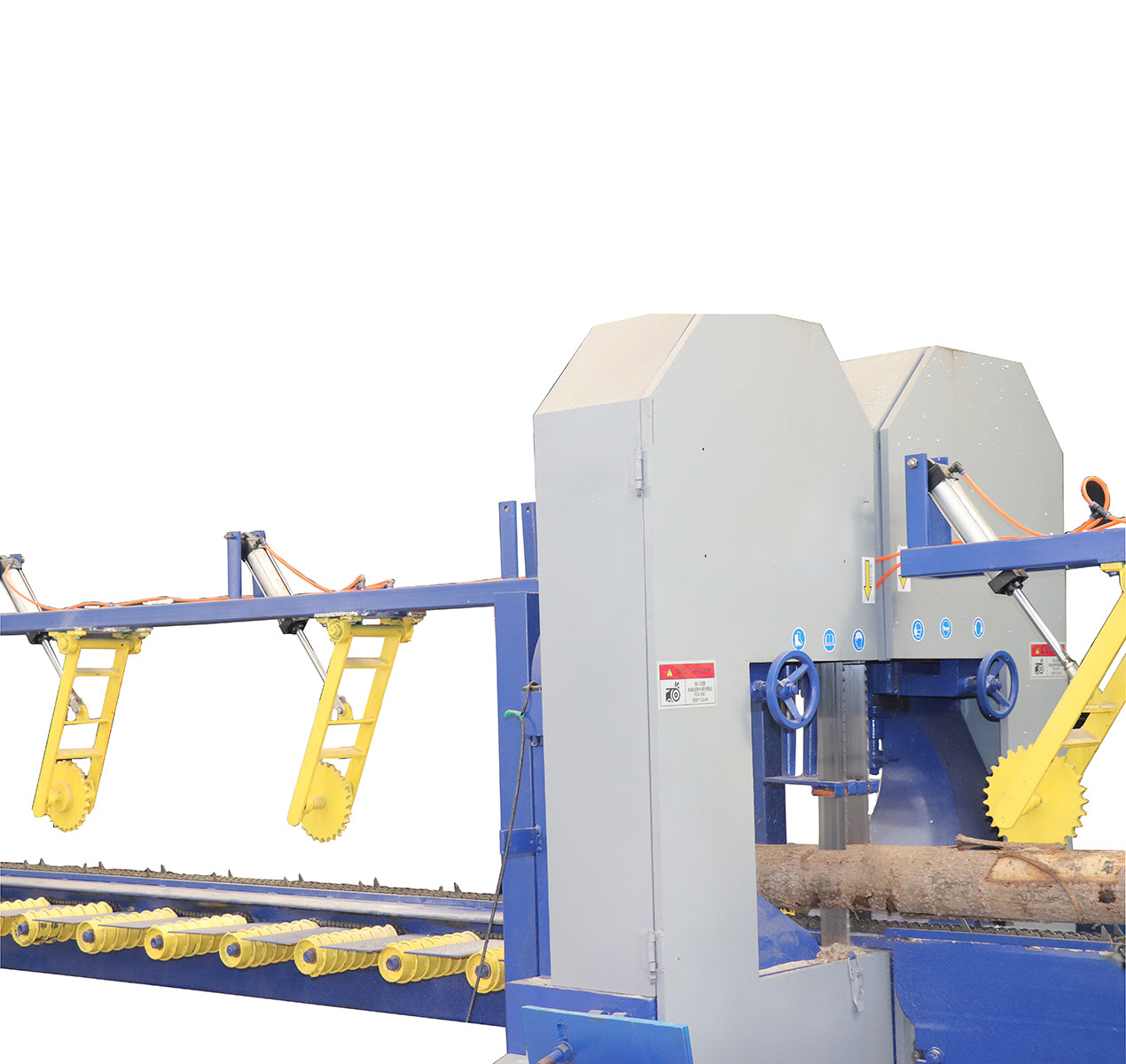

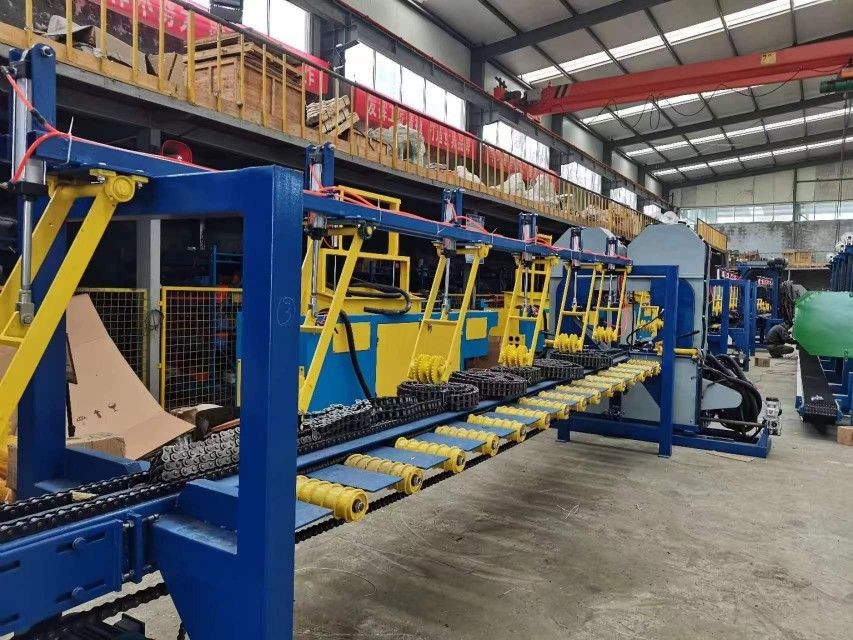

New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 0New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 1New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 2

Optional - slabs slope conveyor

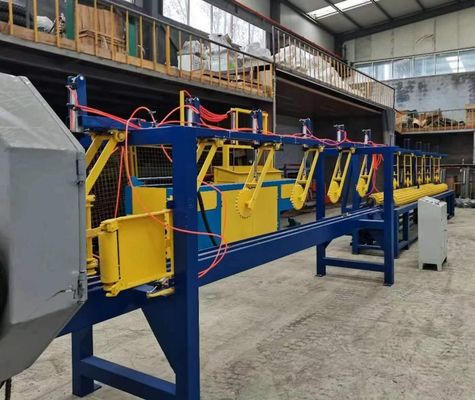

New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 3
Optional - log loading deck

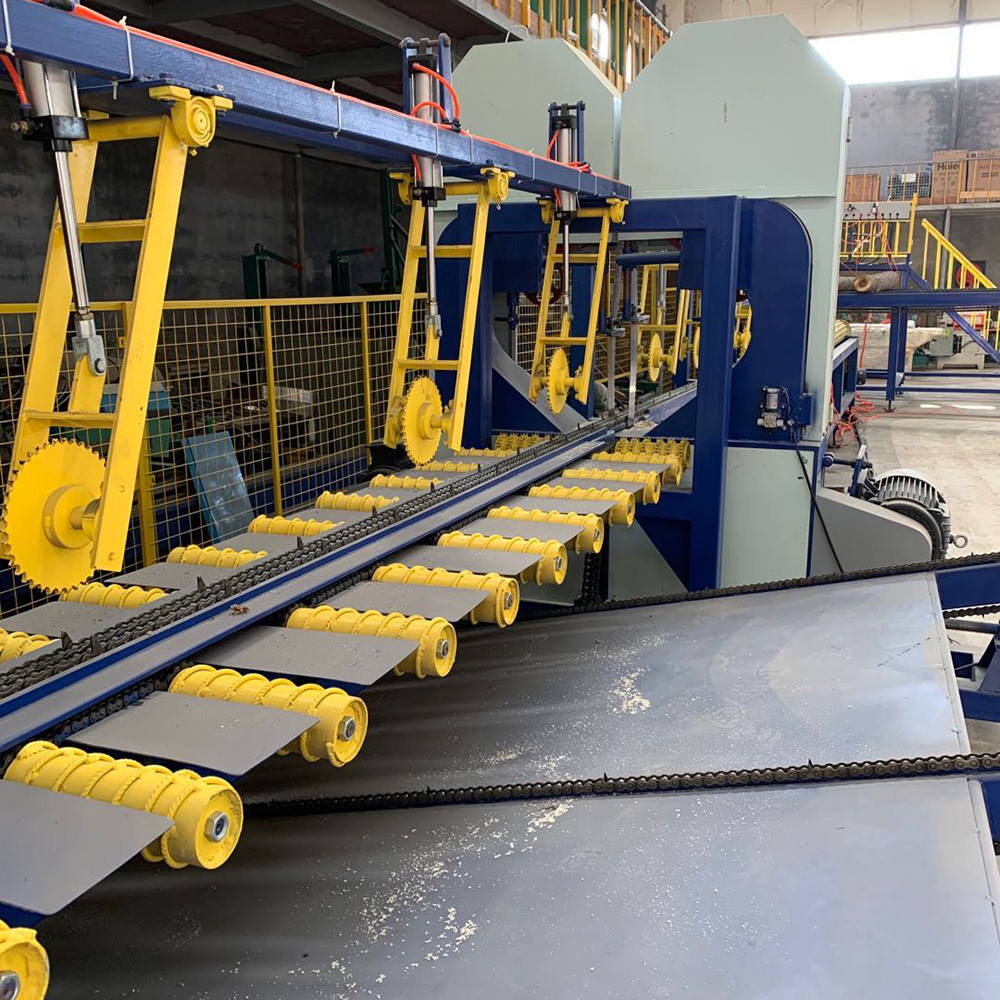

New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 4

Complete Sawmill Line -design as customer needs

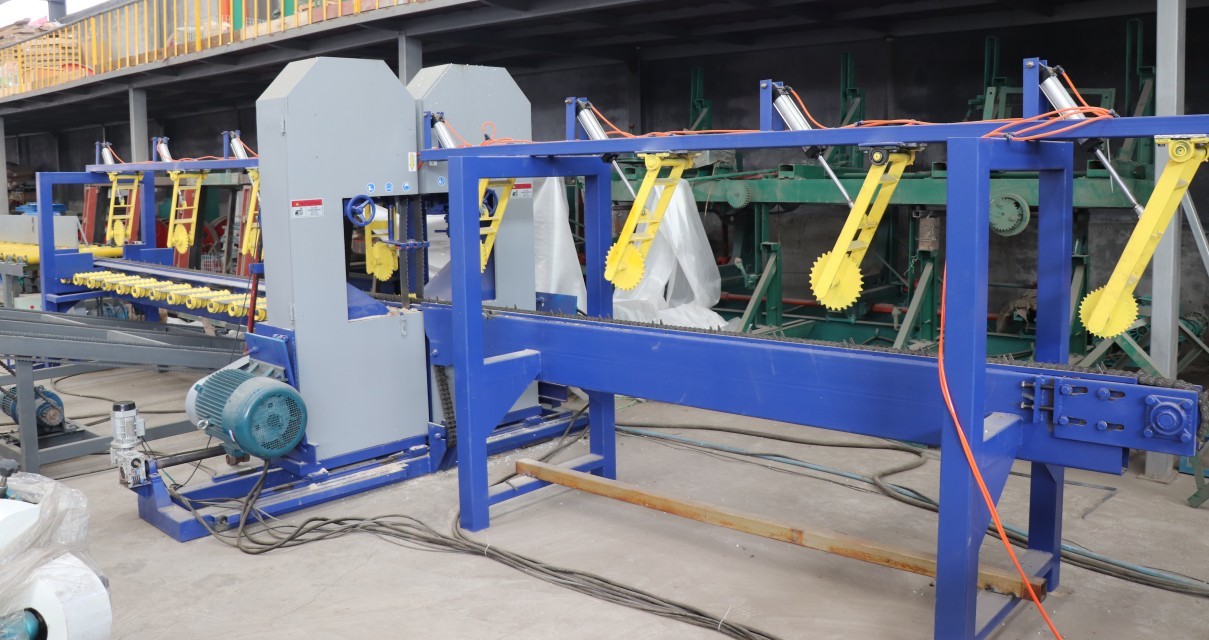

New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 5

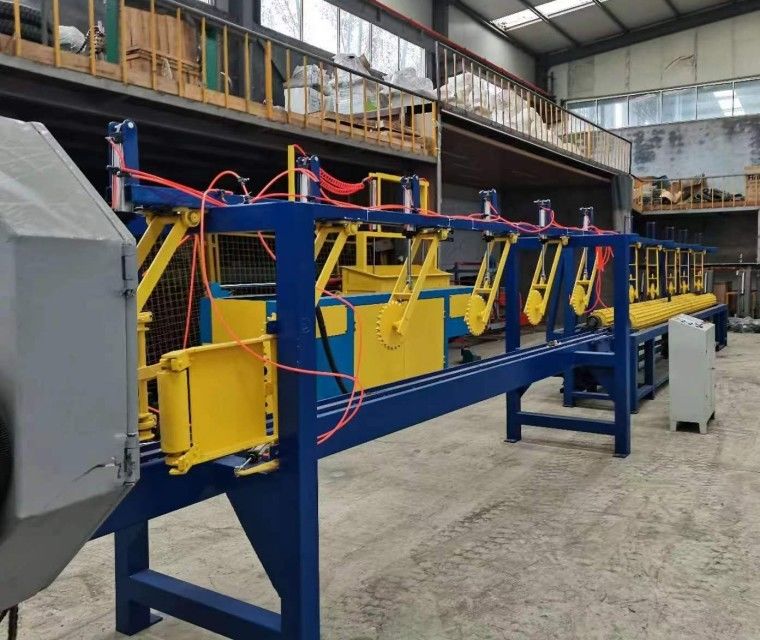

New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 6New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 7



Multi Heads Band Resaw

Technical data

Technical specifications DT300-1 DT300-2 DT300-3 DT300-5 DT300-6
Sawing width 300mm 300mm 300mm 300mm 300mm
Minimum wood thickness 2mm 2mm 2mm 2mm 2mm
Maximum wood height 260mm 260mm 260mm 260mm 260mm
Band wheel diameter 700mm 700mm 700mm 700mm 700mm
Saw motor 15kw 15kw x 2 15kw x 3 15kw x 5 15kw x 6
Saw machine length 3500mm 4500mm 5800mm 8500mm 11000
Weight 900kg 1500kg 2200kg 3500kg 5000kg
Feeding Variable frequency speed adjustable conveyor
Operation Touching screen auto setworks for sawn thickness


Detailed Image -6heads reaw equipment
New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 8

New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 9

Slabs Cutting Saw

Specifications:

Model

Specifications

BPJ200 BPJ250 BPJ300
Cutting width (mm) 200 250 300
Motor power (KW) 7.5kw x 2 7.5kw x 2 7.5kw x 2
Feeding Frequency variable auto feeding
Circular blade diameter (mm) 300 355 405
Weight (kg) 200 220 250



New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 10

Multi Blades Rip Saw



Technical data :

Model ZHW800-70 ZHW800-80 ZHW800-100
Sawing wood height 10-70mm 10-80mm 20-100mm
Sawing wood width 800mm 800mm 800mm
Carbide blade diameter 280mm 305mm 355mm
Main motor 22KW 30KW 37KW
Blade quantity 1P-10P 1P-10P 1P-10P
Rotation speed 3500/min 3500/min 3500/min

































New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 11

New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 12



Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model
SH100-400
SH120-400
SH160-400
SH200-400
SH250-400
SH270-400
SH290-400
Sawing width
400mm
400mm
400mm
400mm
400mm
400mm
400mm
Sawing thickness
40-100mm
50-120mm
70-160mm
90-200mm
110-250mm
130-270mm
150-290mm
Motor
30kw*2
37kw*2
37/45kw
37/45kw
45kw*2
45/55kw
55KW*2
Saw Blade Diameter
180MM
230mm
255mm
230mm
280mm
280mm
380mm
Spindle Diameter
70mm
70mm
70mm
80mm
80mm
80mm
100mm
Weight
2330kg
2450kg
2480kg
2550kg
2580kg
2620kg
2700kg



New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 13

New Design Industrial Wood Saw Machines Twin Vertical Band Sawmill For Cutting Wood 14
