band saw machine for wood cutting,portable saw mill,wood working machine
The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.
Horizontal Portable Band Sawmill With Diesel Engine
|
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
|
Sawing Wood Diameter |
700MM | 1000 | 1300 | 1600 |
|
Saw Wheel Diameter(MM) |
600 | 700 | 700 | 700 |
|
Sawn Thicknes |
2-250 | 2-300 | 2-300 | 2-300 |
|
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
|
Band Saw Blade Length |
5500 | 6100 | 6600 | 7100 |
|
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |

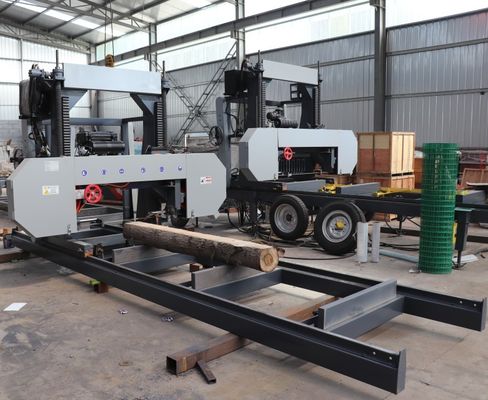

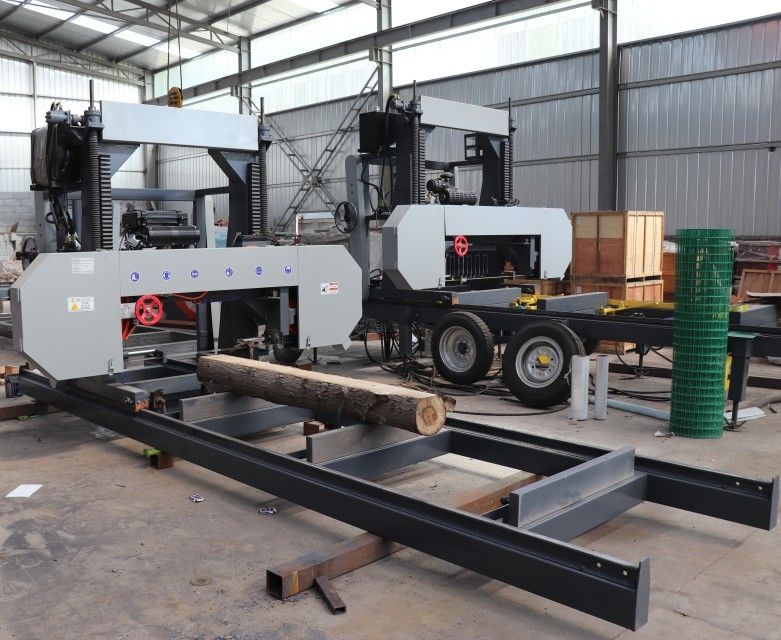

Image -standard model
|

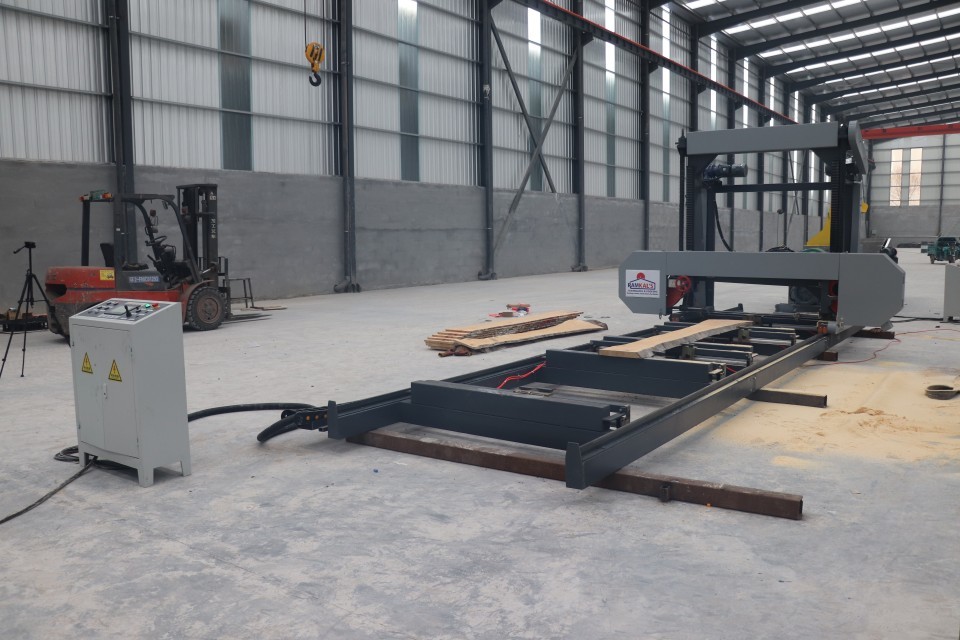

Image- Mobile Usage -optional
Image- Mobile Usage with hydraulic log loading arm - optional
Diesel Hydraulic Sawmill with wheels and hydraulic log loading arm and touching screen opeartion
PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL |
||||
|
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.1KW | 1.1KW | 1.1KW | 1.1KW |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |

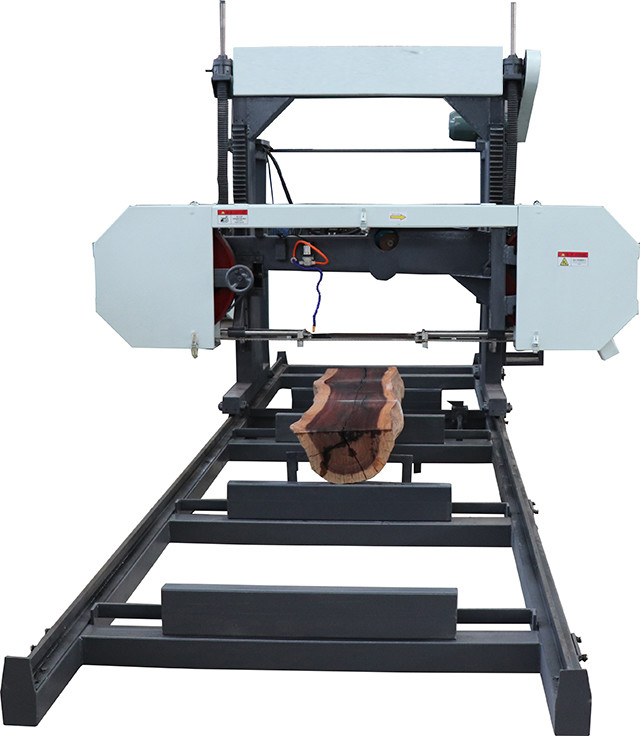

Image -standard model
Image- extended sawmill track - optional

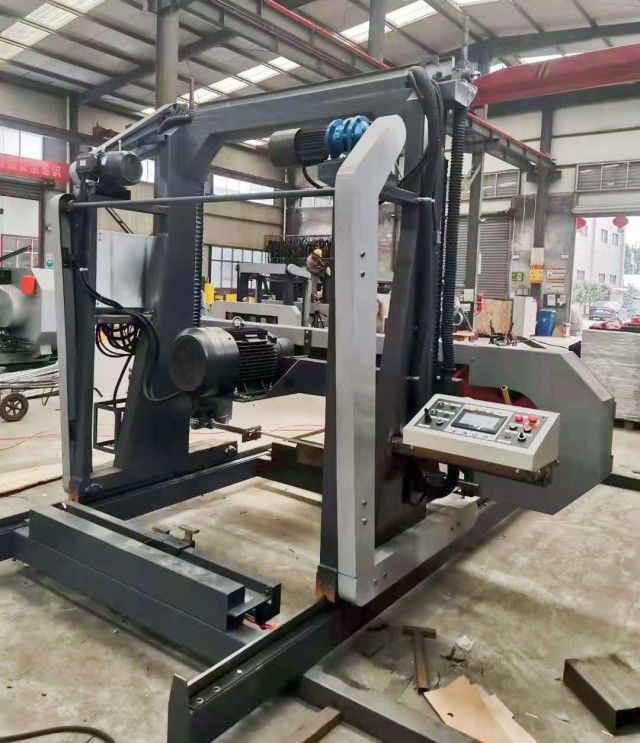

Image- CNC type - pneumatic log clamping - optional

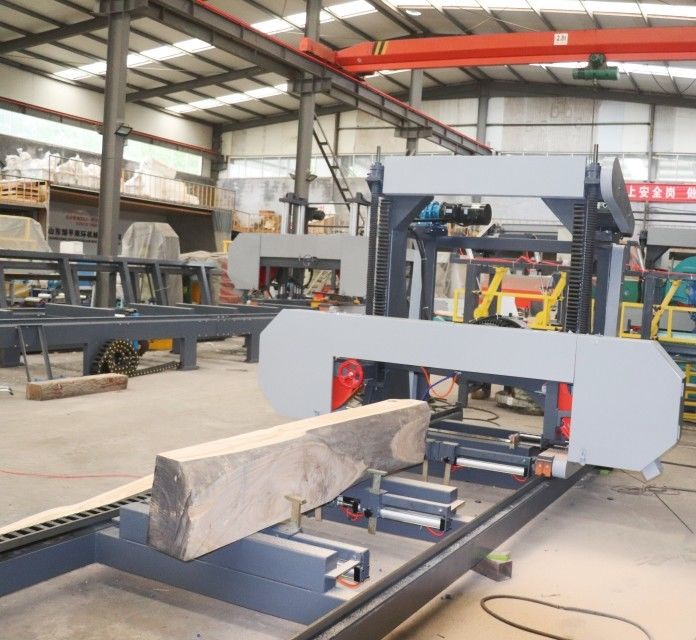

Image- CNC type - board returning hook - optional

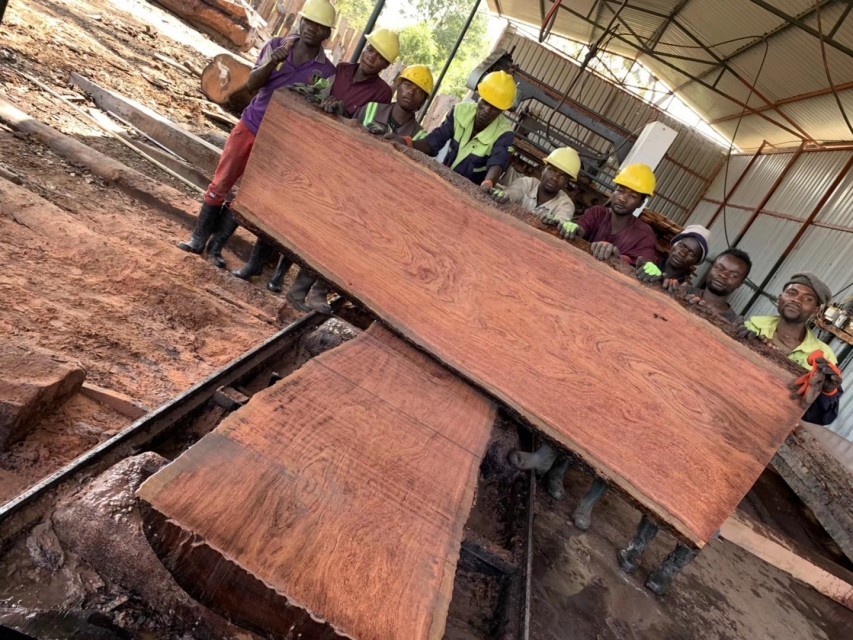

Image- feedback from abroad users
Sharpener
