Wood Horizontal Band Saw Machine Multi Heads Resaw Wood Sawmill Cutting Machine
| Place of Origin | Shandong Province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | SHJM800, SHJM400, SHJM650, SHJM1000 |
| Minimum Order Quantity | 1 SET |
| Price | US $5,000-14,950 / Set |
| Packaging Details | container loading |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000 Set/Sets per Year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Horizontal Wood Cutting Band Saw | Application | Wood Cutting,Furniture |
|---|---|---|---|
| Max. Sawing Width | 400mm, 650mm, 800mm | Max. Sawing Height | 110mm |
| Motor Power | 15kw To 30kw | Feeding Motor | 0.75kw, 1.5kw |
| Feeding Speed | 0.1 To 30meter/min | Min Sawing Thickness | 2mm |
| Weight | 1850kgs To 2750kgs | Keyword | Wood Cutting Band Saw,Wood Table Saw Machine,Horizontal Band Saw |
| Guarantee | 1 Year | After-sales Service | Video Technical Support, Spare Parts |
Product Description
Woodworking Horizontal Band Resaw Machine With Return conveyor Belt
Precision Wood Cutting Horizontal Resaw Band Saws For Sale
- Digital Control Sawing Thickness Setting
- Max. sawing wood width: 1300mm
- Saw wheel diameter : 600mm or 700mm or 800mm
- With board returning conveyor
- Specifications:
Model | SHJM-400
| SHJM-650 | SHJM-800 |
Saw Wheel Diameter |
600MM | 600MM | 700MM |
Max Sawing Wood Width | 400MM | 650MM | 800MM |
Max Sawing Height | 110MM
| ||
Min Sawing Thickness |
2MM
| ||
Feeding Speed |
0.1-30 Meters/Minute
| ||
Motor Power | 15KW
| 18.5KW
| 22KW
|
Feeding Motor | 0.75KW | 0.75KW | 1.5KW
|

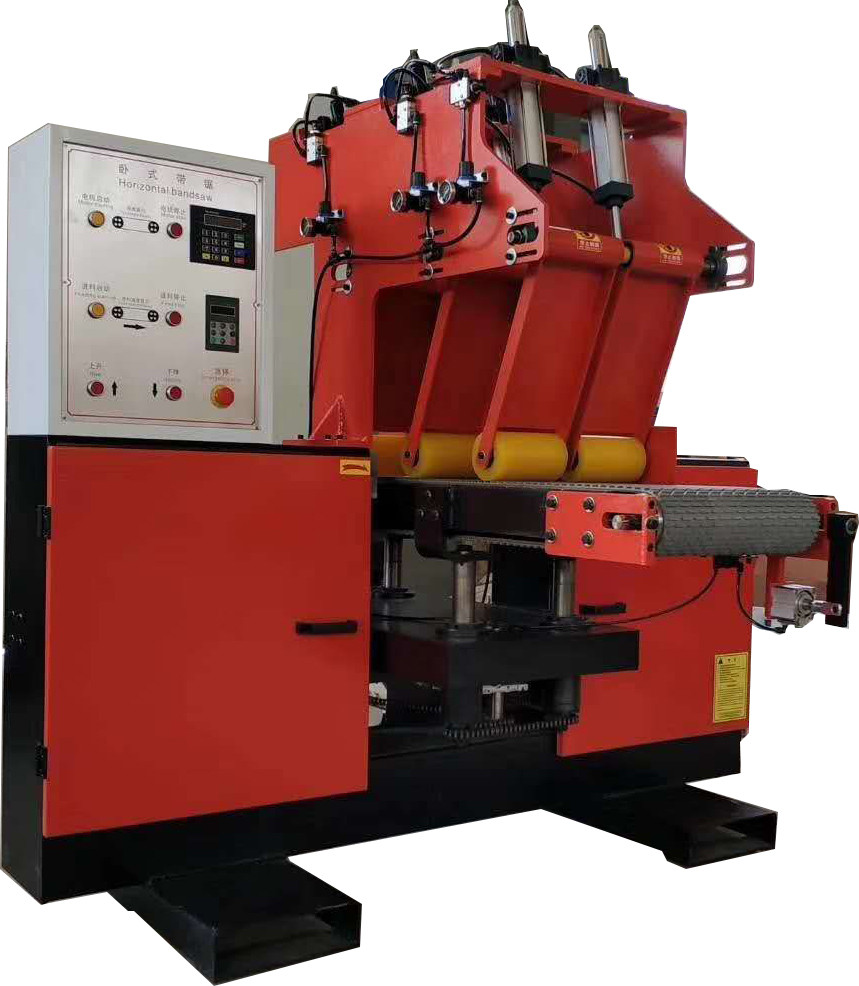

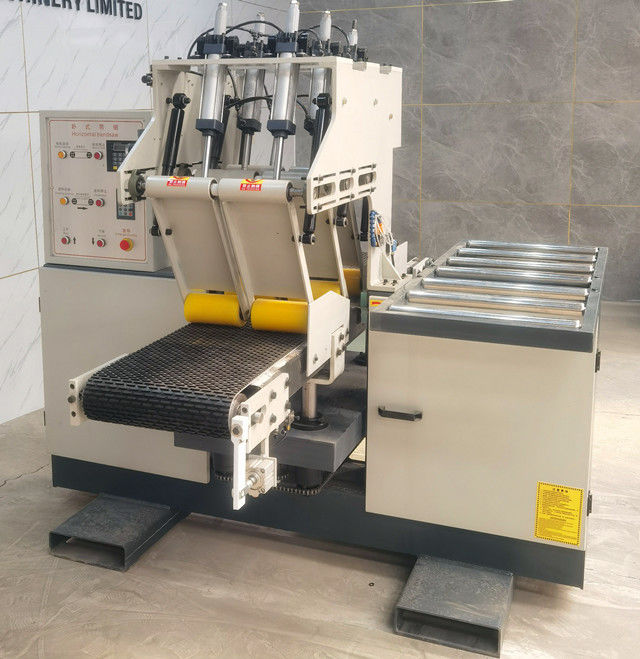

Detailed Image
Related Saw Machine
Multiple Heads Horizontal Resaw Band Saws
- This machine is easy-operated,high efficiency and easy-installed.
- The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
- Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical data
| Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
| Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding | Variable frequency speed adjustable conveyor | ||||
| Operation | Touching screen auto setworks for sawn thickness | ||||

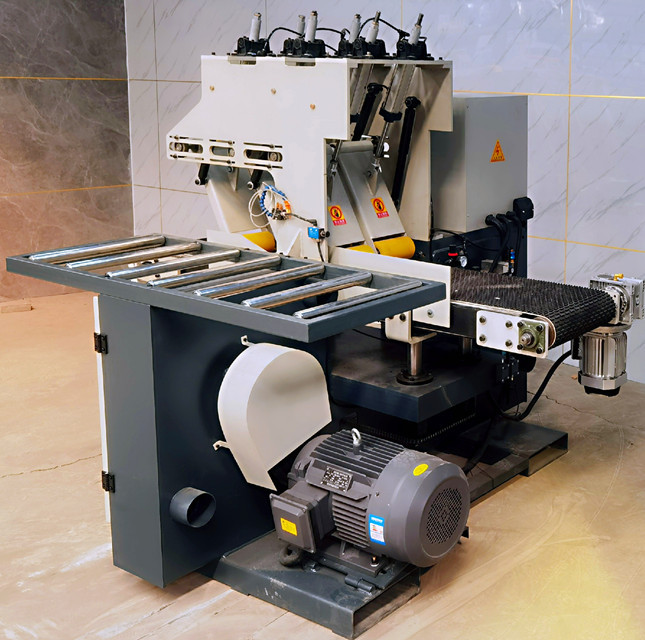

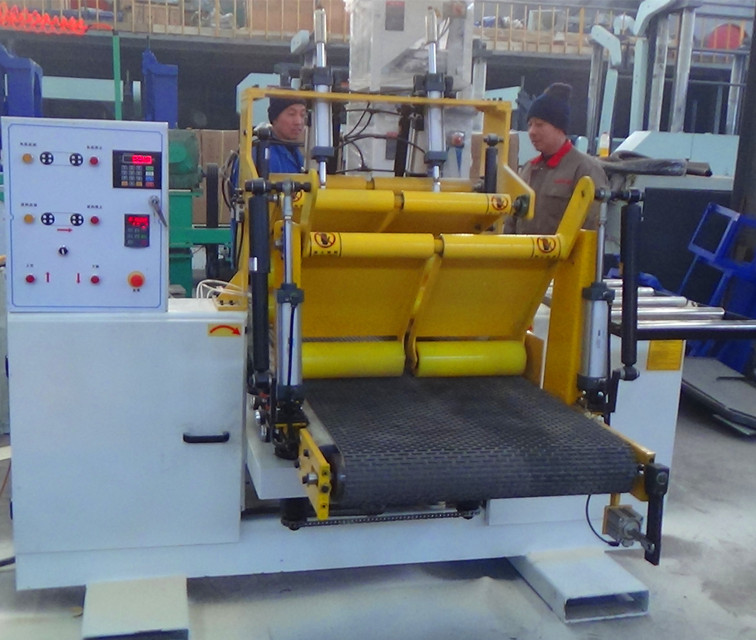

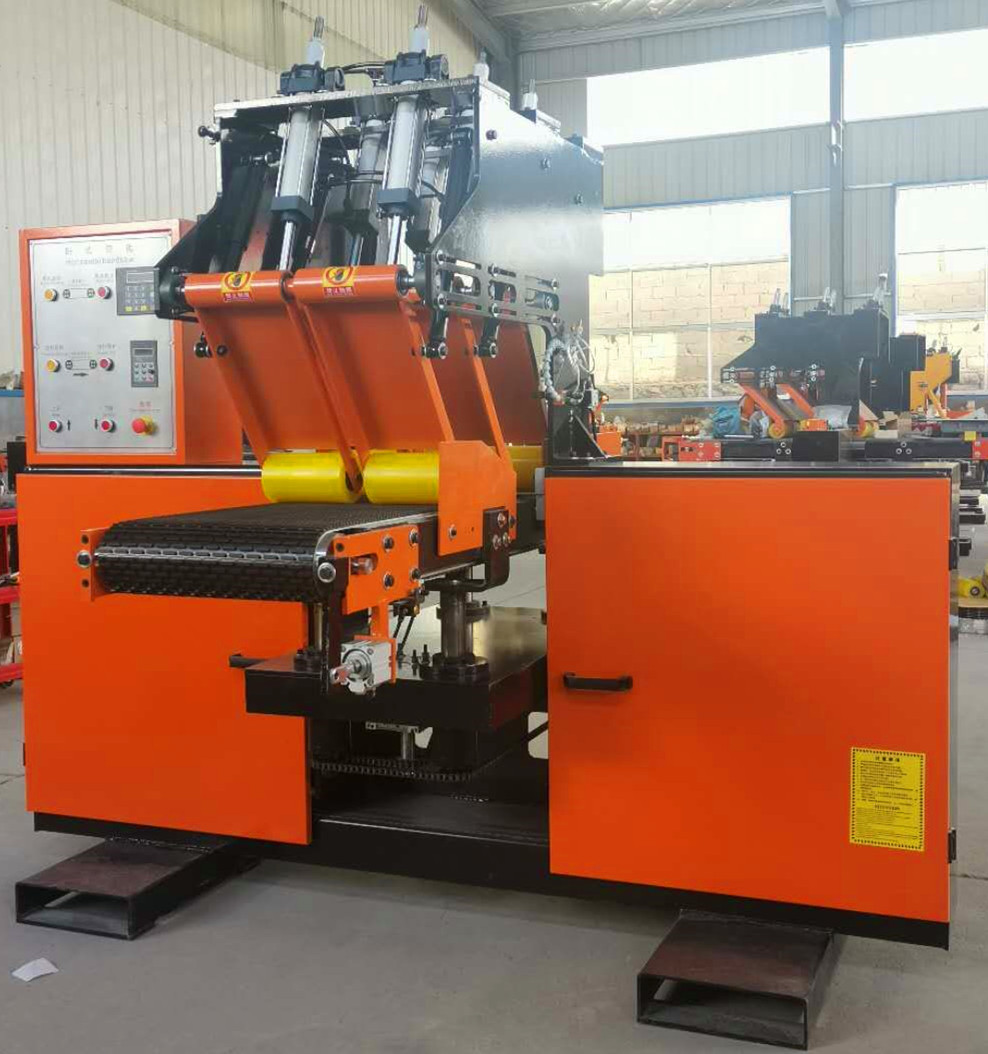

Detailed Image -6heads reaw equipment
Optional - board returning conveyor

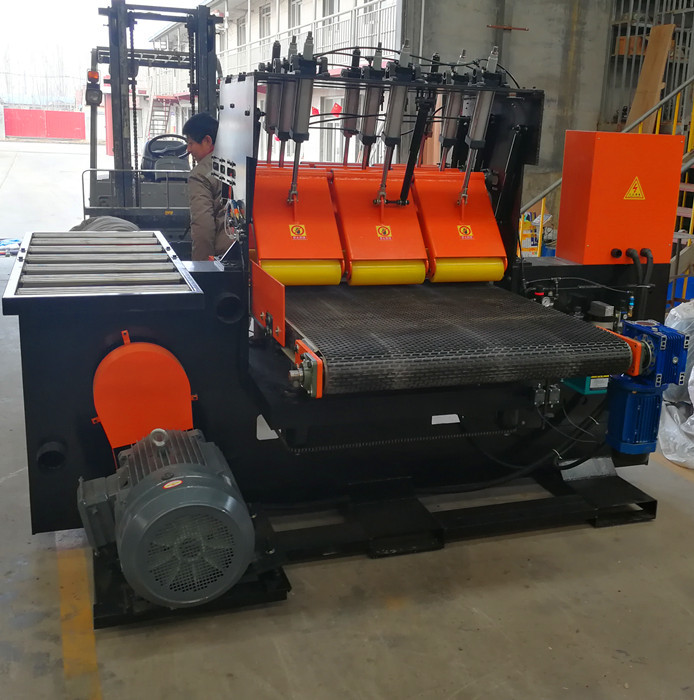

5heads reaw equipment
4heads reaw equipment
