Machine to make wood pallets, Automatic Wood Pallet Nailing Machine for Euro trays

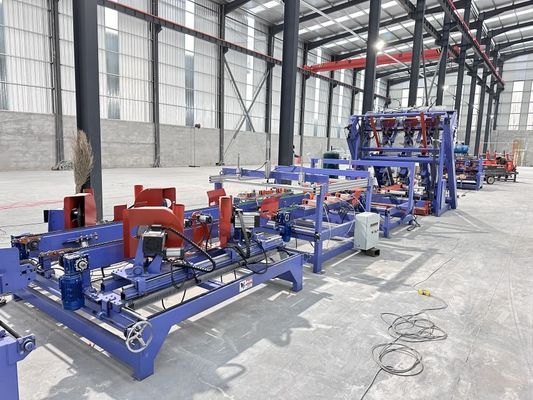

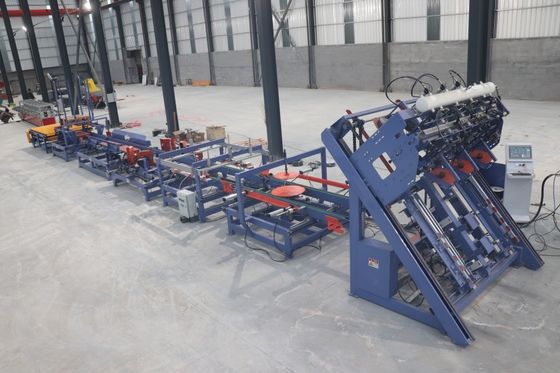

Euro Pallet Automatic Wood Pallet Production Line
| Model | SLDJ-1300-3 |
| Block width | 60-150mm |
| Board Length | 600-1300mm |
| Nail gun | CN70*3Stanley BOSTITCH Stitch CN70*3 |
| Nailing method | 1 nail, 2 nails, 3 nails, 4 nails, 5 nails |
| Air pressure | 0.8MPA |
| Nail gun speed | 4-8 s/time |
| Motor power | 1.5KW Servomotor |
| Voltage | 220V(Customized) |
| Operating mode | Touch screen |
| Production mode | Manual discharge/automatic pin pier |

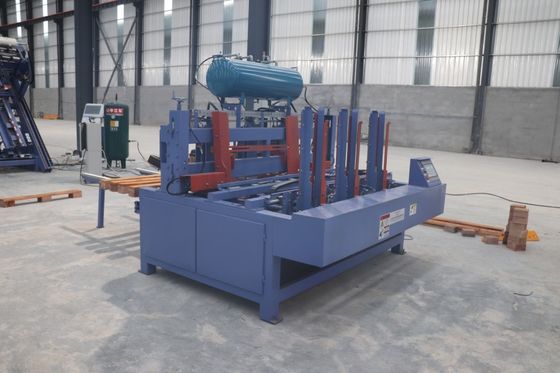

2.Automatic European pallet nailing machine
| Model | AEPN-1300 |
| Wood pallet length | 700-1300mm |
| Wood pallet width | 800-1300mm |
| Working mode | Automatic feeding and stacking |
| Operation mode | Touch screen |
| Operational mode | Pneumatic operation |
| Voltage and power | 2kw Servo motor |
| Air pressure | 0.8MPA |
| Nail gun speed | 7 times /second. |
| Production effciency | 1-2pcs /min |
| Number of nail guns | 6P CN70,CN58 |
| Weight | 2000kg |
3.
| Model | JD-1500 |
| Cutting wood max. length | 1500mm |
| Cutting Thickness | 50-120mm |
| Cutting Width | 60-200mm |
| Pallet foot pier size | 30-200mm |
| Saw Diameter | 400mm |
| Motor | 7.5kw/3phase |
| Production capacity | 1500-1800P/H |
| Weight | 350kgs |
Wood block multi-blade saw
| Model | BM-1250 |
| Cutting Length | 1250mm |
| Cutting Thickness | 100mm |
| Cutting Width | 200mm |
| Saw Diameter | 355mm |
| Motor | 30kw |
| Weight | 1600kg |
Multi Blades Rip Saw
