Detail Information

Name:	Automatic Rip Saw	Sawing Thickness:	5-85mm, 10-100mm
Sawing Max. Width:	360mm, 450mm	Sawing Min.length:	320mm, 230mm
Maximum Saw Blade Diameter:	305mm, 405mm	Main Motor Power:	7.5kw, 11kw
Feeding Motor:	0.75kw, 1.1kw	Working Table Size:	1540 X 945mm, 1580 X 890mm
Guarantee:	1 Year	After-sales Service:	Video Technical Support, Spare Parts
Highlight:	Automatic Single Blade Rip Saw , High Precision Single Blade Rip Saw , Single Blade Straight Line Rip Saw

Product Description

Automatic Rip Saw

Introduction

It's widely used to cut wood chips in high precision.
Whole cast iron machine frame keeps the working stability.

Top control panel with digital indicator, render the operation easy & ensure the working accuracy.

With sliding rip fence, so the users could manage and adjust the working width as the processing requirement.

Technical Data

Model	MJ153	MJ163
Sawing Thickness	5-85mm	10-100mm
Maximum Sawing Width	360mm	450mm
Minimum Sawing Length	320mm	230mm
Maximum Saw Blade Diameter	305mm	405mm
Main Motor Power	7.5kW	11kW
Feed Motor Power	0.75kW	1.1kW
Lifting Box Lifting Motor Power	-	0.3kW
Total Power	8.25kW	12.75kW
Working Table Size	1450*945mm	1580*890mm
Weight	780kg	950kg

Detailed Images

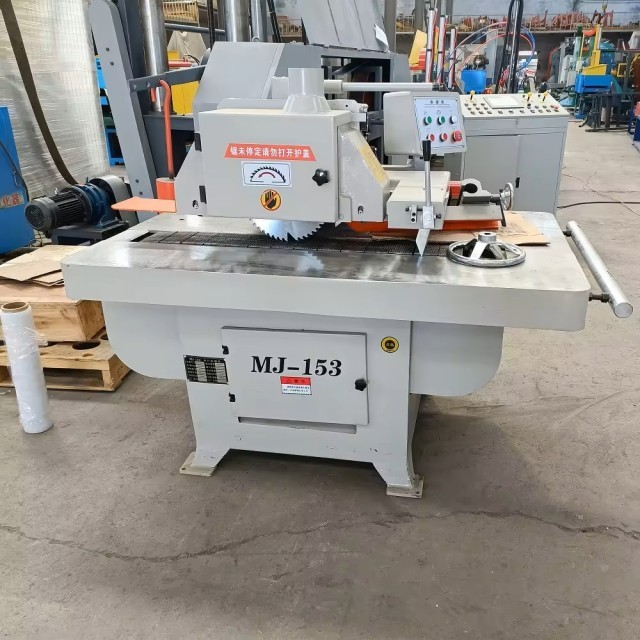

High Precision Single Blade Straight Line Automatic Rip Saw Optimal Edge Cutting 0

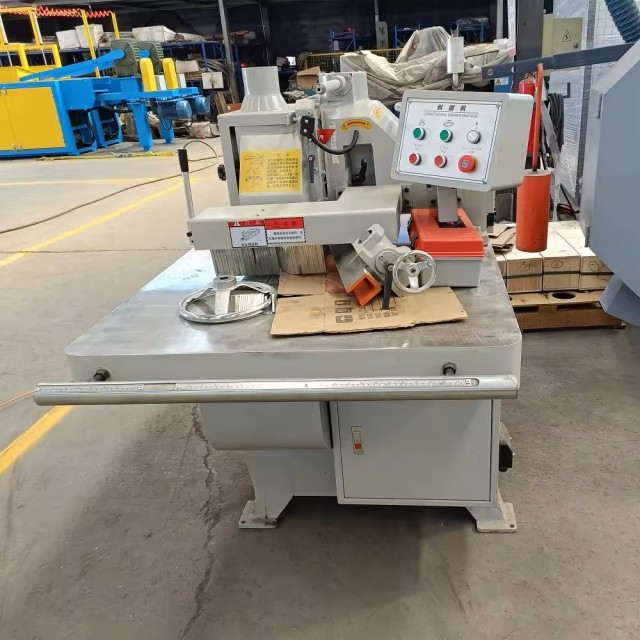

High Precision Single Blade Straight Line Automatic Rip Saw Optimal Edge Cutting 1

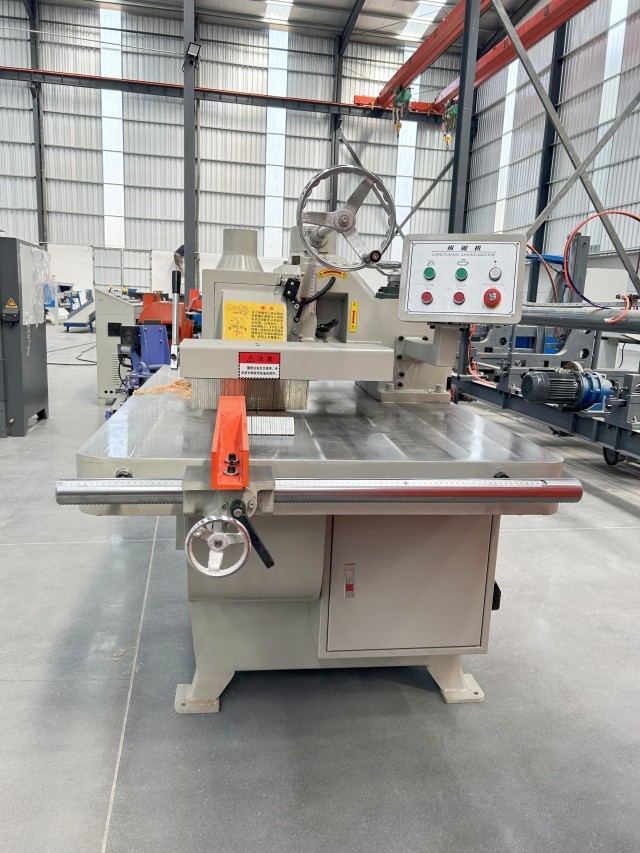

High Precision Single Blade Straight Line Automatic Rip Saw Optimal Edge Cutting 2

Related Saw Machine

Small Multi Blade Rip Saw for log edges cutting, Board Edger Saw Machine

Multi Blades Rip Saw

Introduction:

with Infrared positioning
for board edges cutting
sawing planks into small pcs
easy usage, no installation

Technical data :

Model	HW500	HW800
Sawing thickness	15-50mm	15-50mm
Sawing width	500mm	800mm
Circular blade diameter	230mm	230mm
Electric motor	15KW	18.5KW
Blade qty	1P-6P	1P-10P
Rotation speed	3500/min	3500/min

Photos:

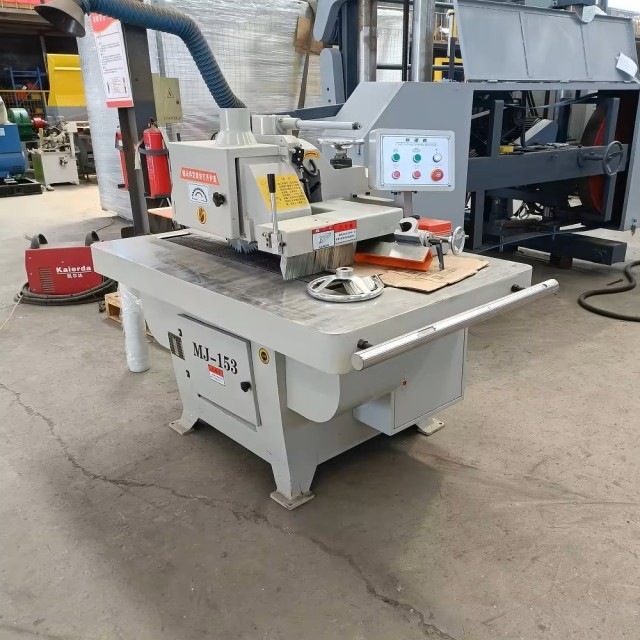

High Precision Single Blade Straight Line Automatic Rip Saw Optimal Edge Cutting 4

Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

with Infrared positioning
for big thickness board edger cutting
high working efficiency, low cost ,fulfil the max. value of the wood
easy usage, no installation

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min

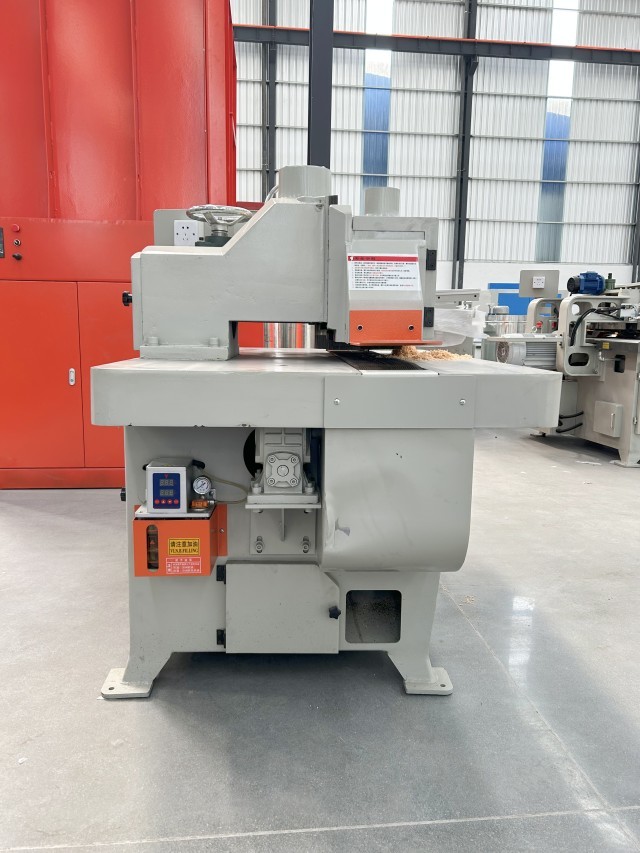

High Precision Single Blade Straight Line Automatic Rip Saw Optimal Edge Cutting 6

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness

Specifications:

Multi Blades Rip Saw- For wood panels/plank cutting

Model	SH60-300	SH80-300	SH100-300	SH120-300	SH150-300
Max. Sawing width	250-300mm	250-300mm	250-300mm	250-300mm	250-300mm
Max. Sawing thickness	60mm	30-80mm	40-100mm	50-120mm	60-150mm
Motor	18.5KW/22KW	22KW*2	22KW*2	22KW*2	30KW*2
Saw Blade Diameter	150MM	180mm	210mm	230mm	255mm
Spindle Diameter	50mm	50mm	50mm	50mm	50mm
Weight	1190kg	1260kg	1420kg	1560kg	1620kg

High Precision Single Blade Straight Line Automatic Rip Saw Optimal Edge Cutting 7

Tag:

Place of Origin:	Shandong Province, China
Brand Name:	SH
Certification:	ISO9001
Model Number:	MJ153, MJ163

Minimum Order Quantity:	1 set
Price:	US $3,788 - 6,788/ Set
Packaging Details:	iron made frame packing
Delivery Time:	within 15 days
Payment Terms:	Western Union, L/C, T/T
Supply Ability:	1000sets/year
