High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm

1 set
MOQ
US $3,788 - 6,788/ Set
Price
High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Automatic Rip Saw
Sawing Thickness: 5-85mm, 10-100mm
Sawing Max. Width: 360mm, 450mm
Sawing Min.length: 320mm, 230mm
Maximum Saw Blade Diameter: 305mm, 405mm
Main Motor Power: 7.5kw, 11kw
Feeding Motor: 0.75kw, 1.1kw
Working Table Size: 1540 X 945mm, 1580 X 890mm
Guarantee: 1 Year
After-sales Service: Video Technical Support, Spare Parts
Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ153, MJ163
Payment & Shipping Terms
Packaging Details: iron made frame packing
Delivery Time: within 15 days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1000sets/year
Product Description

Automatic Rip Saw

  • Introduction

It's widely used to cut wood chips in high precision.
Whole cast iron machine frame keeps the working stability.

Top control panel with digital indicator, render the operation easy & ensure the working accuracy.
With sliding rip fence, so the users could manage and adjust the working width as the processing requirement.
  • Technical Data
Model MJ153 MJ163
Sawing Thickness 5-85mm 10-100mm
Maximum Sawing Width 360mm 450mm
Minimum Sawing Length 320mm 230mm
Maximum Saw Blade Diameter 305mm 405mm
Main Motor Power 7.5kW 11kW
Feed Motor Power 0.75kW 1.1kW
Lifting Box Lifting Motor Power - 0.3kW
Total Power 8.25kW 12.75kW
Working Table Size 1450*945mm 1580*890mm
Weight 780kg 950kg
  • Detailed Images

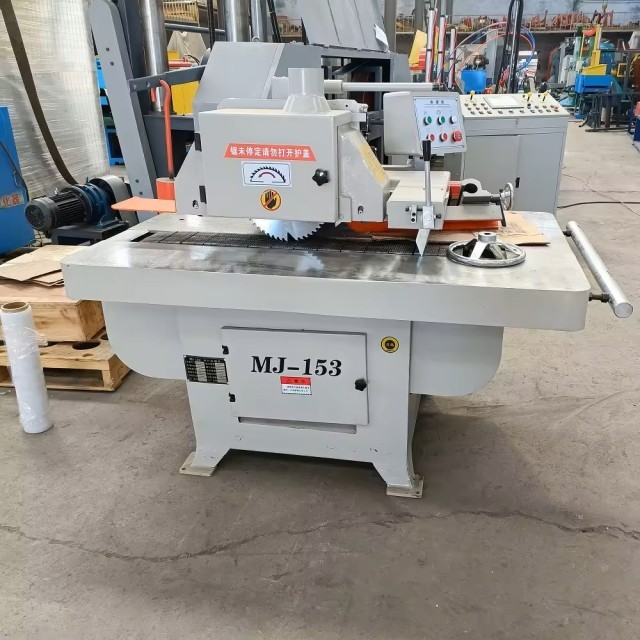

High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 0

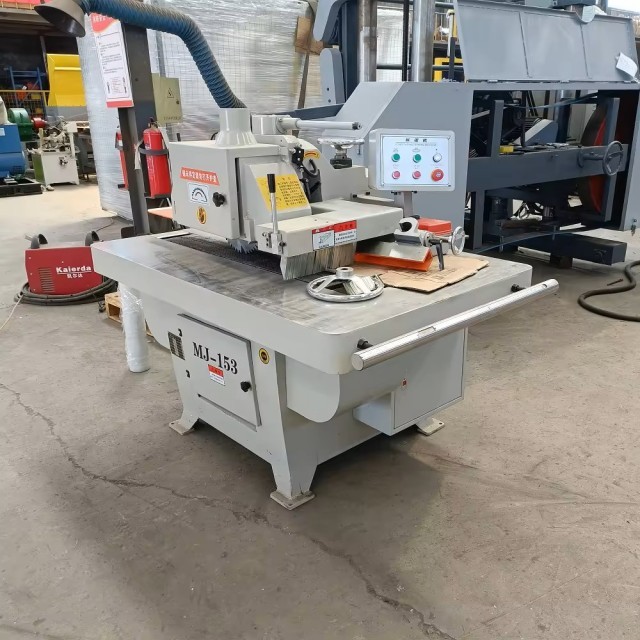

High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 1

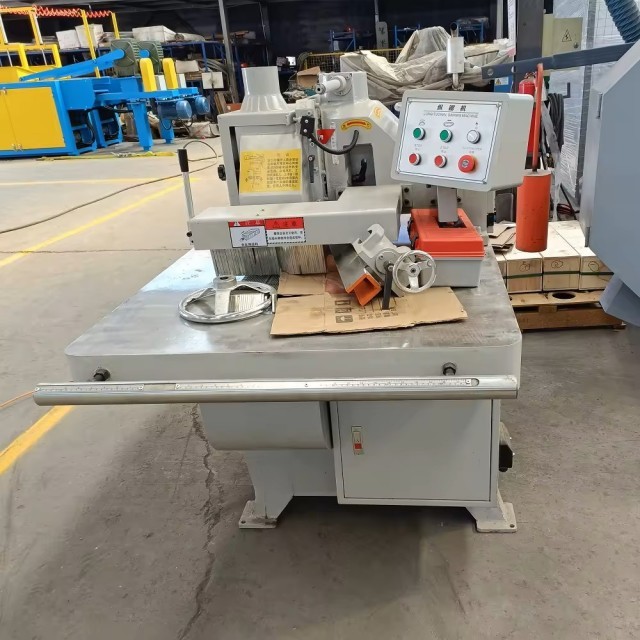

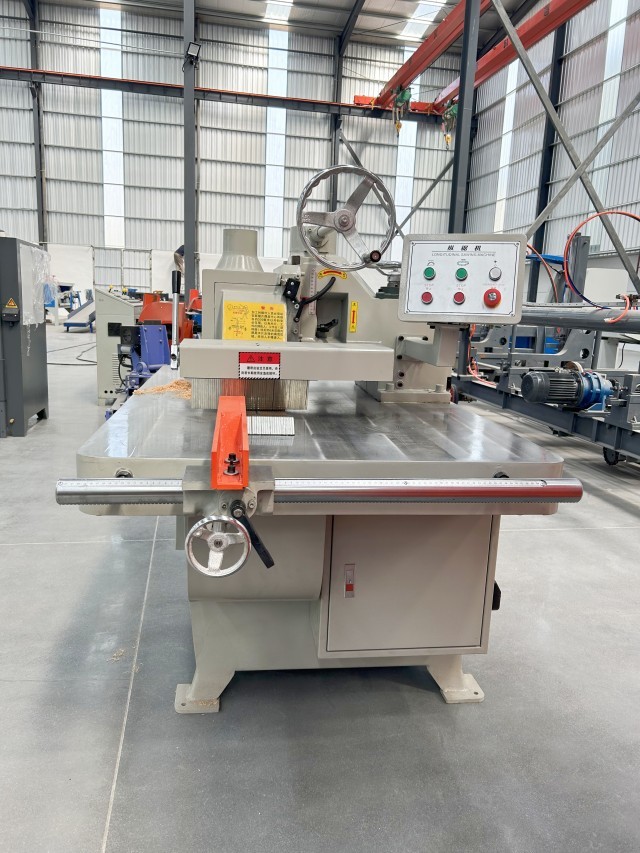

High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 2High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 3

Related Saw Machine

Small Multi Blade Rip Saw for log edges cutting, Board Edger Saw Machine

Multi Blades Rip Saw

Introduction:

  • with Infrared positioning
  • for board edges cutting
  • sawing planks into small pcs
  • easy usage, no installation

Technical data :

Model HW500 HW800
Sawing thickness 15-50mm 15-50mm
Sawing width 500mm 800mm
Circular blade diameter 230mm 230mm
Electric motor 15KW 18.5KW
Blade qty 1P-6P 1P-10P
Rotation speed 3500/min 3500/min































Photos:

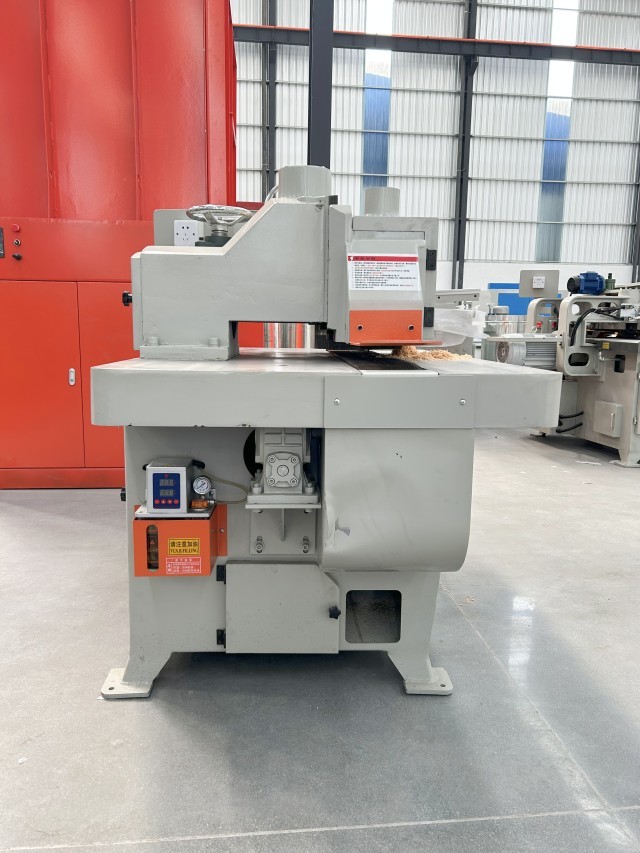

High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 4High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 5



Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine

Introduction:

  • with Infrared positioning
  • for big thickness board edger cutting
  • high working efficiency, low cost ,fulfil the max. value of the wood
  • easy usage, no installation

Technical data :

Model ZHW800-70 ZHW800-80 ZHW800-100
Sawing wood height 10-70mm 10-80mm 20-100mm
Sawing wood width 800mm 800mm 800mm
Carbide blade diameter 280mm 305mm 355mm
Main motor 22KW 30KW 37KW
Blade quantity 1P-10P 1P-10P 1P-10P
Rotation speed 3500/min 3500/min 3500/min































High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 6

Double Spindle Panel Cutting Multiple Blades Rip Saw

1.Used for Lumber/Panels/Planks Cutting

2.Max. cutting depth/thciness is upto 160mm

3.Max. cutting width is upto 400mm

4.Big motor power, fit for hardwood cutting

5.Blades is placed on up/down abrod/spindle .

6.We present one set discs on your cutting thickness



Specifications:

Multi Blades Rip Saw- For wood panels/plank cutting

Model
SH60-300
SH80-300
SH100-300
SH120-300
SH150-300
Max. Sawing width
250-300mm
250-300mm
250-300mm
250-300mm
250-300mm
Max. Sawing thickness
60mm
30-80mm
40-100mm
50-120mm
60-150mm
Motor
18.5KW/22KW
22KW*2
22KW*2
22KW*2
30KW*2
Saw Blade Diameter
150MM
180mm
210mm
230mm
255mm
Spindle Diameter
50mm
50mm
50mm
50mm
50mm
Weight
1190kg
1260kg
1420kg
1560kg
1620kg

High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 7High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 8High Precision Bottom Rip Saw Single blade Straight Line Rip Saw sawing thickness max.100mm 9
