Name: Twin Heads Vertical Sawmill Machine

Application: Wood Logs Production Line

Production Capacity: About 150m3/day

Operation Mode: CNC Digital

Feeding Speed: Inverter Speed Adjustable

Saw Wheel Diameter: 700MM

Max. Sawing Wood Diameter: 500MM

Main Power(W): 2*22KW

After-sales Service: Video Technical Support

Guarantee: 1 Year

Highlight:

Twin Bandsaw Sawmill Line

Twin Vertical Band Sawmill

Log Cutting Band Sawmill

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: SLS350, SLS500

Payment & Shipping Terms

Packaging Details: luo packing of Twin vertical bandsaw

Delivery Time: within 15 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 500sets/year

Gallery

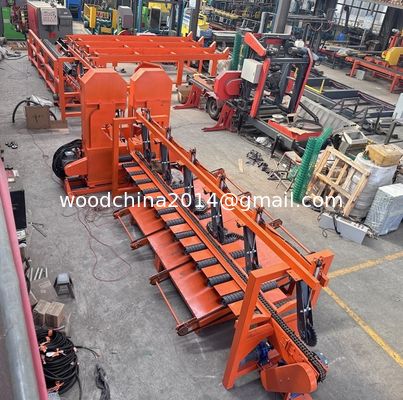

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line

Product Description

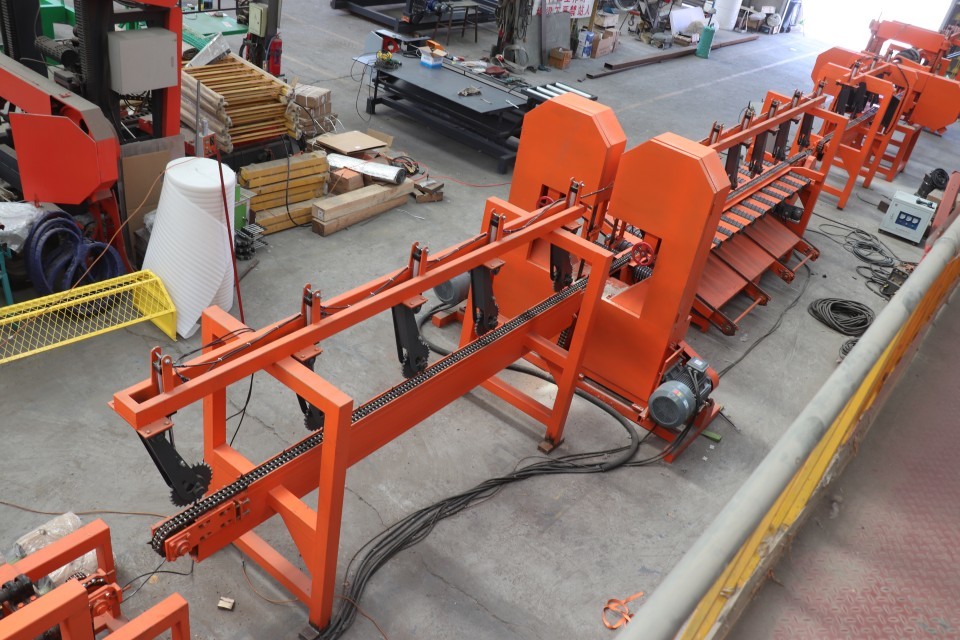

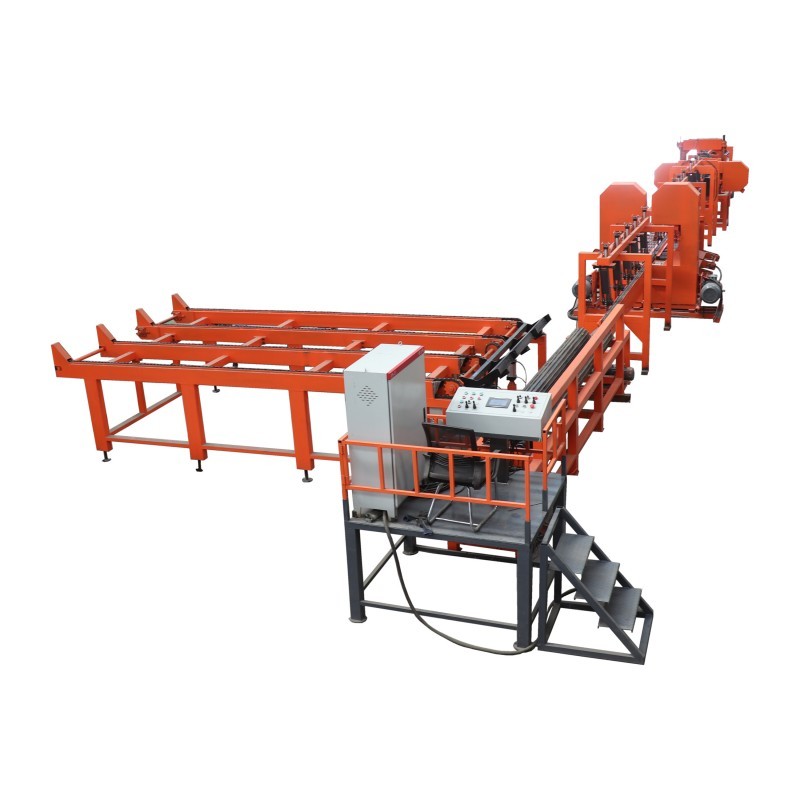

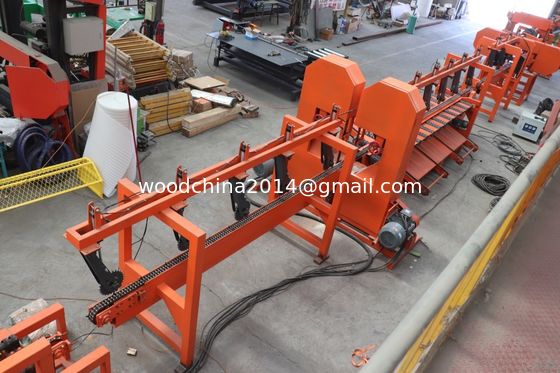

Twin vertical wood band saw, log sawing sawmill machine with frequency feeding

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 0

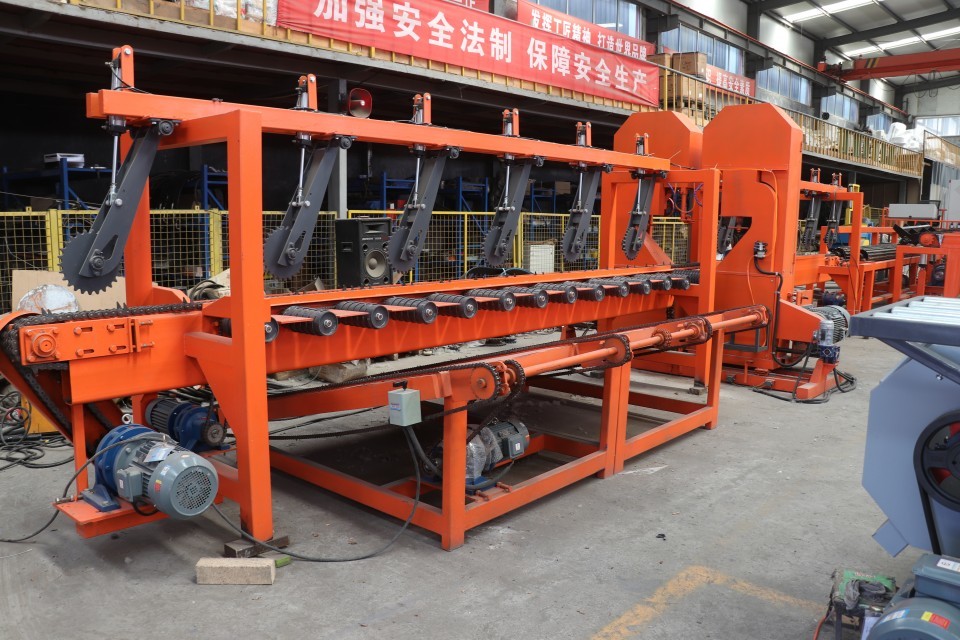

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Produces up to 4,000 m³ per month.

· Ideal to cut pine, eucalyptus, and teak.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Laterally-supported chain.

· High-precision cutting.

· High-production continuous feed system.

· Automatic feed

Technical Specifications:

Technical data	SLS350	SLS500
Band wheel diameter	700mm	760mm
Width of saw blade	50-80mm	50-100mm
Length of saw blade	4850	5200mm
Maximum log diameter	350mm	500mm
Minimum log diameter	100mm	100mm
Wood length	1000 to 3000mm
Feed speed	9-25m/min (inverter)
Conveyor length	7000mm	3500mm x 2
Saw motor	2x18.5kw	2x22kw
Feed motor	5.5kw	4kw x 2
Sawn sizing control	Touching screen auto setworks

Photos

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 1

Optional - slabs slope conveyor
Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 3

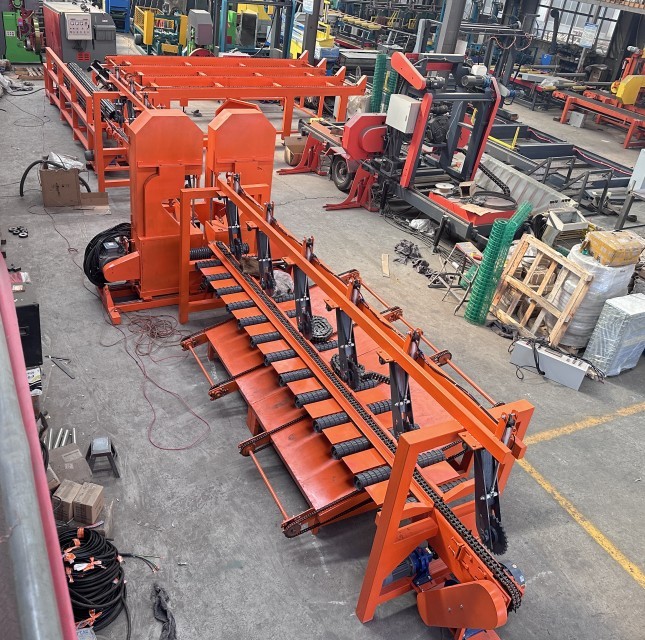

Optional - log loading deck

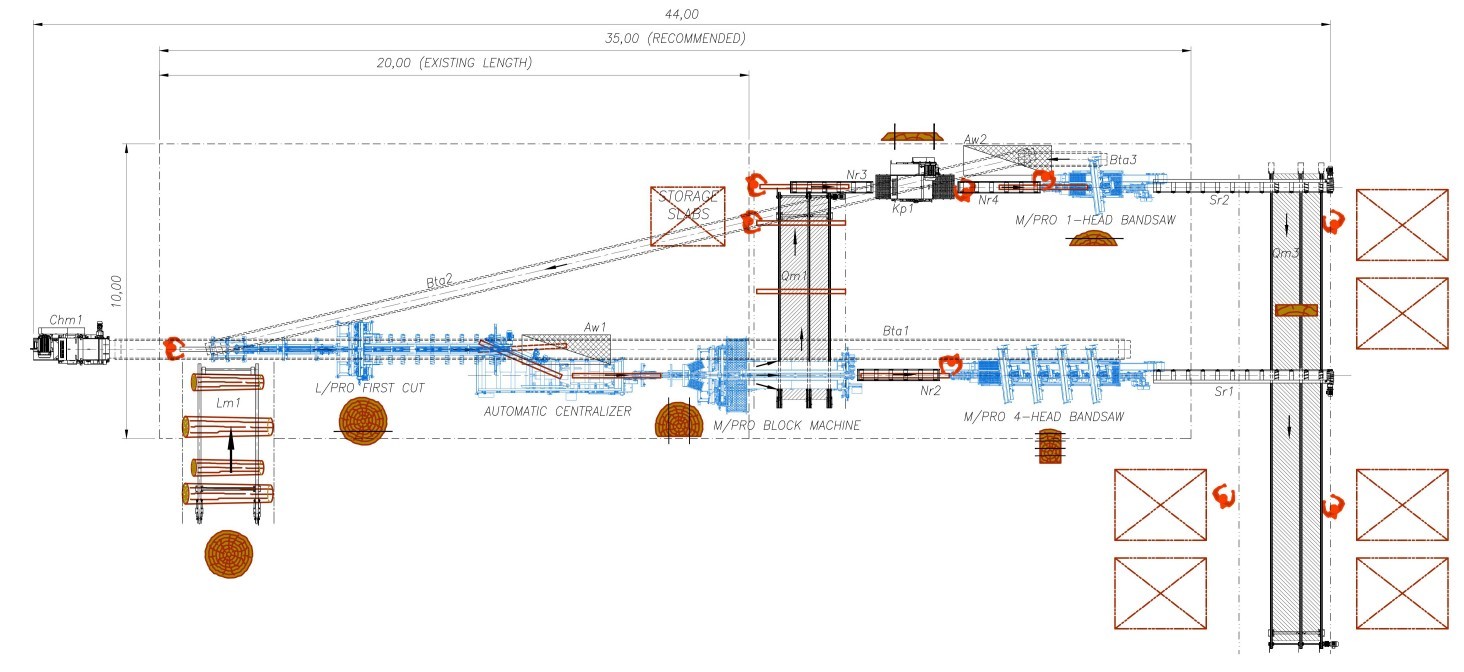

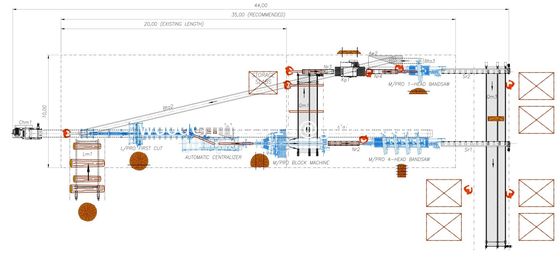

Complete Sawmill Line -design as customer needs

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 5

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 6

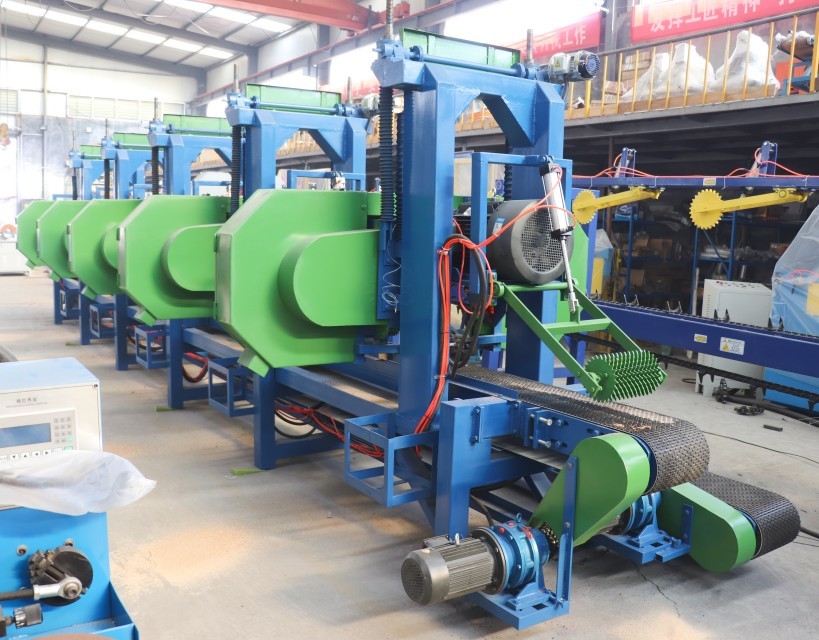

Multi Heads Band Resaw

Technical data

Technical specifications	DT300-1	DT300-2	DT300-3	DT300-5	DT300-6
Sawing width	300mm	300mm	300mm	300mm	300mm
Minimum wood thickness	2mm	2mm	2mm	2mm	2mm
Maximum wood height	260mm	260mm	260mm	260mm	260mm
Band wheel diameter	700mm	700mm	700mm	700mm	700mm
Saw motor	15kw	15kw x 2	15kw x 3	15kw x 5	15kw x 6
Saw machine length	3500mm	4500mm	5800mm	8500mm	11000
Weight	900kg	1500kg	2200kg	3500kg	5000kg
Feeding	Variable frequency speed adjustable conveyor
Operation	Touching screen auto setworks for sawn thickness

Detailed Image -6heads reaw equipment
Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 8

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 9

Slabs Cutting Saw

Specifications:

Model Specifications	BPJ200	BPJ250	BPJ300
Cutting width (mm)	200	250	300
Motor power (KW)	7.5kw x 2	7.5kw x 2	7.5kw x 2
Feeding	Frequency variable auto feeding
Circular blade diameter (mm)	300	355	405
Weight (kg)	200	220	250

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 10

Multi Blades Rip Saw

Technical data :

Model	ZHW800-70	ZHW800-80	ZHW800-100
Sawing wood height	10-70mm	10-80mm	20-100mm
Sawing wood width	800mm	800mm	800mm
Carbide blade diameter	280mm	305mm	355mm
Main motor	22KW	30KW	37KW
Blade quantity	1P-10P	1P-10P	1P-10P
Rotation speed	3500/min	3500/min	3500/min

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 11

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 12

Double Spindle Panel Cutting Multiple Blades Rip Saw -Heavy Duty Type

Model	SH100-400	SH120-400	SH160-400	SH200-400	SH250-400	SH270-400	SH290-400
Sawing width	400mm	400mm	400mm	400mm	400mm	400mm	400mm
Sawing thickness	40-100mm	50-120mm	70-160mm	90-200mm	110-250mm	130-270mm	150-290mm
Motor	30kw*2	37kw*2	37/45kw	37/45kw	45kw*2	45/55kw	55KW*2
Saw Blade Diameter	180MM	230mm	255mm	230mm	280mm	280mm	380mm
Spindle Diameter	70mm	70mm	70mm	80mm	80mm	80mm	100mm
Weight	2330kg	2450kg	2480kg	2550kg	2580kg	2620kg	2700kg

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 13

Log Cutting Band Sawmill Twin Vertical Band Saw Machine Twin Bandsaw Sawmill Line 14
