Detail Information

Product Name:	Vertical Band Saw Wood Cutting Machine	Model:	MJ3210-H3000
Saw Wheel Diameter:	1060mm	Max Sawing Log Diameter:	800mm
Max Sawing Log Length:	4 Meters OR 6 Meters	Main Motor Power:	30KW
Saw Blade Size (L X W X T):	7400 X 150 X 1.25mm	Carriage Clamp Quantity:	3 Sets Or 4 Sets
Wood Rotation:	Hydraulic	Carriage Drive:	Frequency Converter
Size Setting:	PLC Touch Screen	Carriage Length:	3 Meters Or 5 Meters
Rail Length:	12 Meters Or 18 Meters	Machine Weight:	4500 Kgs
Warranty:	12 Months	After-Sales Service:	Engineers Available Overseas, Online Support, Video Technical Support
Highlight:	industrial vertical band saw , automatic wood cutting machine , heavy duty log sawmill

Product Description

Vertical Band Saw Wood Cutting Machine MJ3210 — Precision Sawing for Medium-Scale Sawmills

The MJ3210 vertical band saw wood cutting machine delivers industrial-grade cutting accuracy and efficiency for medium-scale sawmill operations. Equipped with a 1060mm saw wheel,30KW main motor, and hydraulic log rotation, this machine is engineered to process logs up to 800mm in diameter with exceptional stability and minimal waste.

Key Features of the MJ3210 Vertical Band Saw

Automatic Hydraulic Log Carriage

The hydraulic carriage system provides smooth, consistent log feed across the band saw blade. Three clamping stakes secure logs firmly, eliminating vibration and ensuring straight, accurate cuts on every pass.

PLC Touch Screen Control

Set precise cutting dimensions via an intuitive touch screen interface. The PLC system remembers frequently used dimensions, reducing setup time and minimizing operator error.

Frequency Converter Drive

Variable frequency drive on the carriage enables infinitely adjustable feed speeds, allowing operators to optimize cutting speed for different wood species and log diameters.

Hydraulic Wood Rotation

Built-in hydraulic log turner rotates heavy logs with precision, enabling multi-sided cutting without manual repositioning. Ideal for producing beams, cants, and dimensional lumber.

Technical Specifications

Saw Wheel Diameter	1060mm
Max Sawing Log Diameter	800mm
Max Sawing Log Length	4 meters or 6meters
Main Motor Power	30KW
Saw Blade Size (L x W x T)	7400 x 150 x 1.25mm
Carriage Clamp Quantity	3 Sets or 4 sets
Wood Rotation	Hydraulic
Carriage Drive	Frequency Converter
Size Setting	PLC Touch Screen
Carriage Length	3 meters or 5 meters
Rail Length	12 meters or 18meters
Machine Weight	4500 kgs or 5000kgs

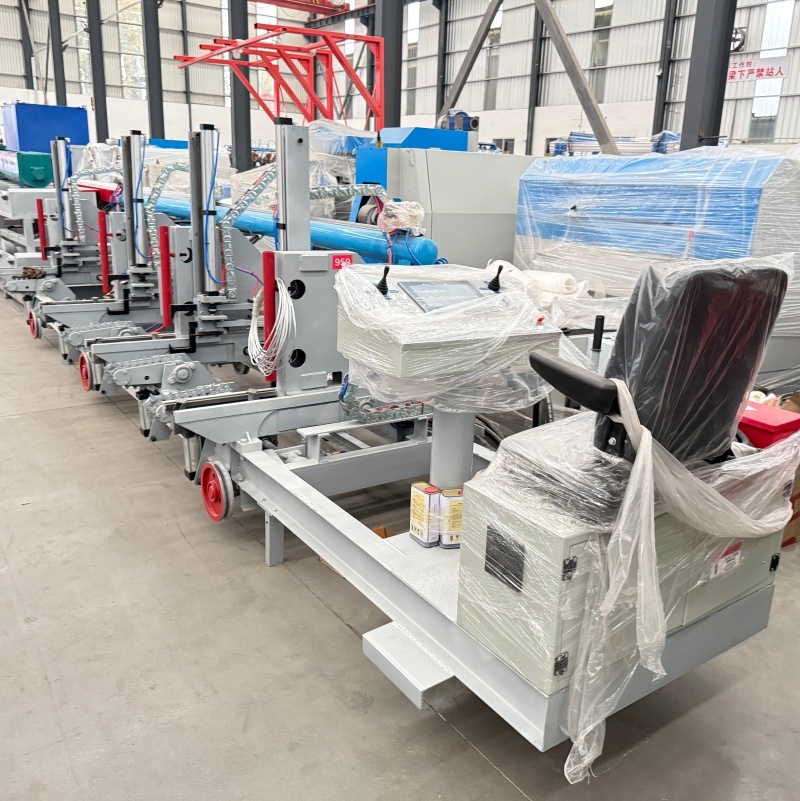

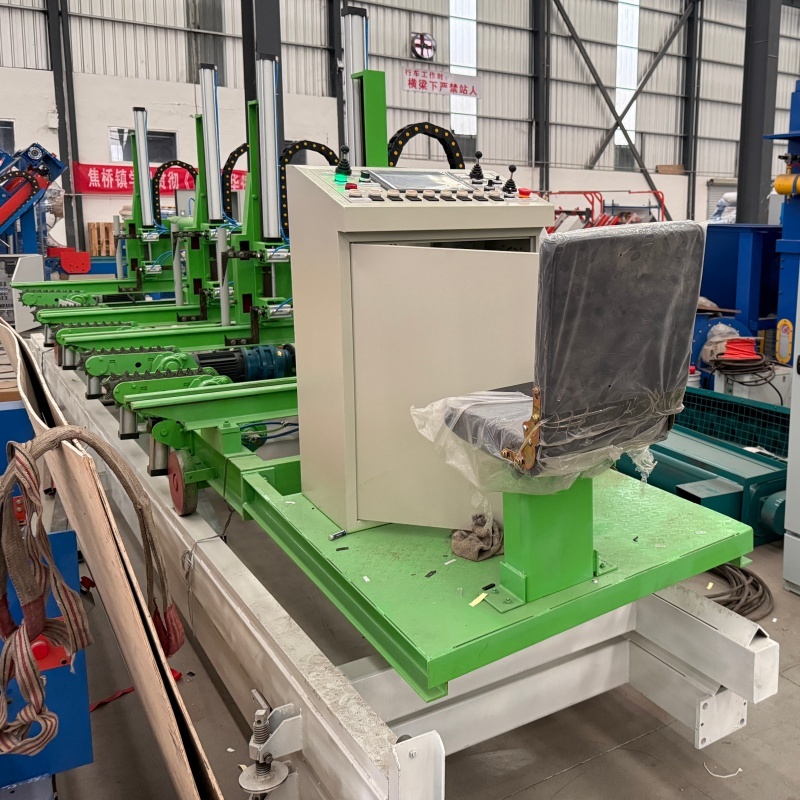

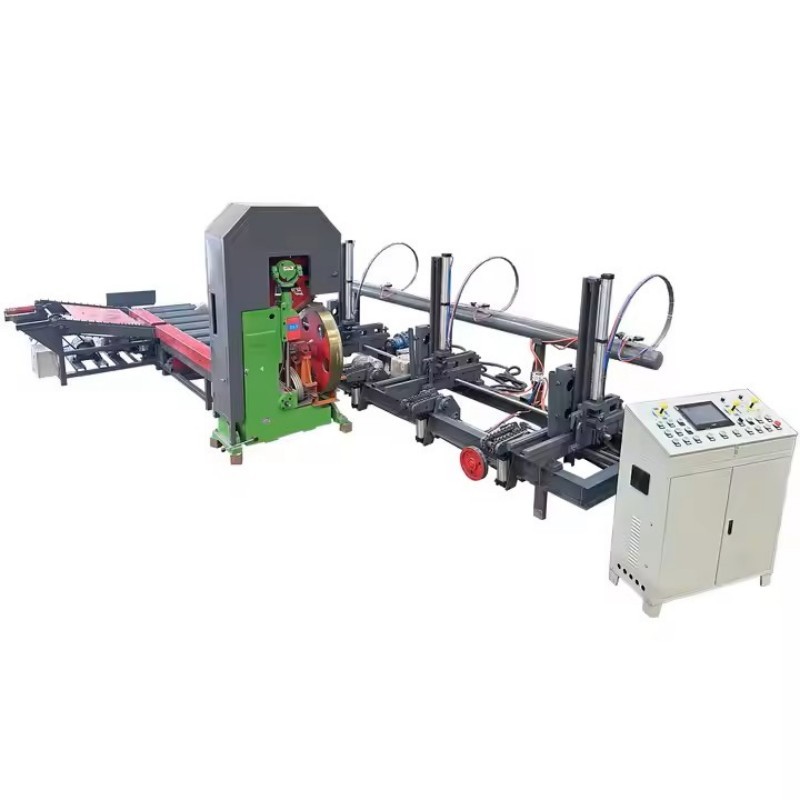

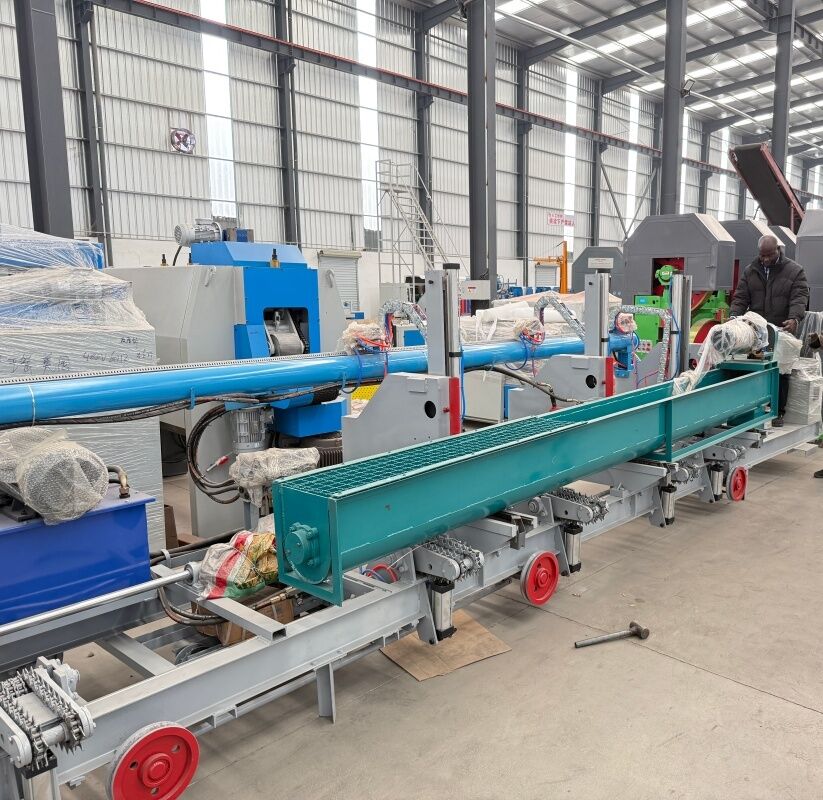

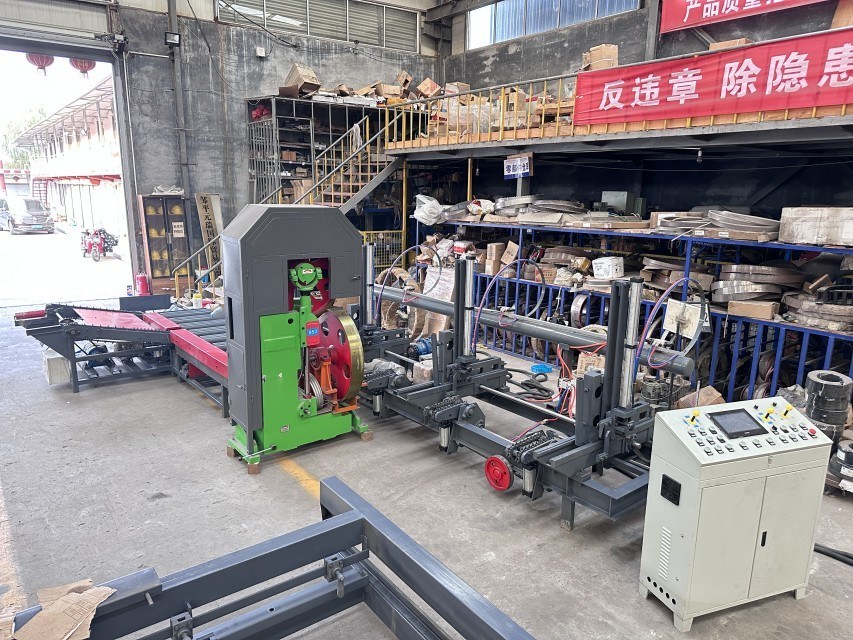

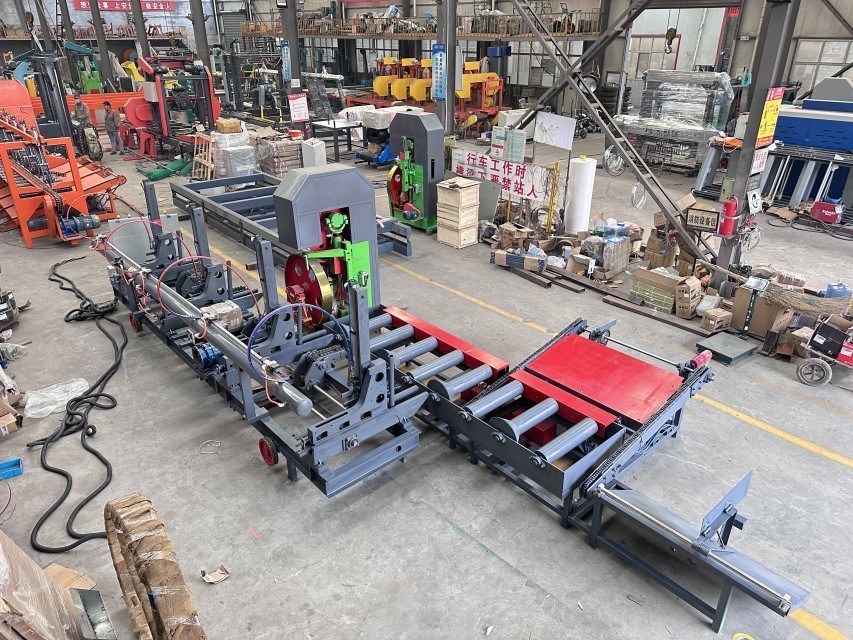

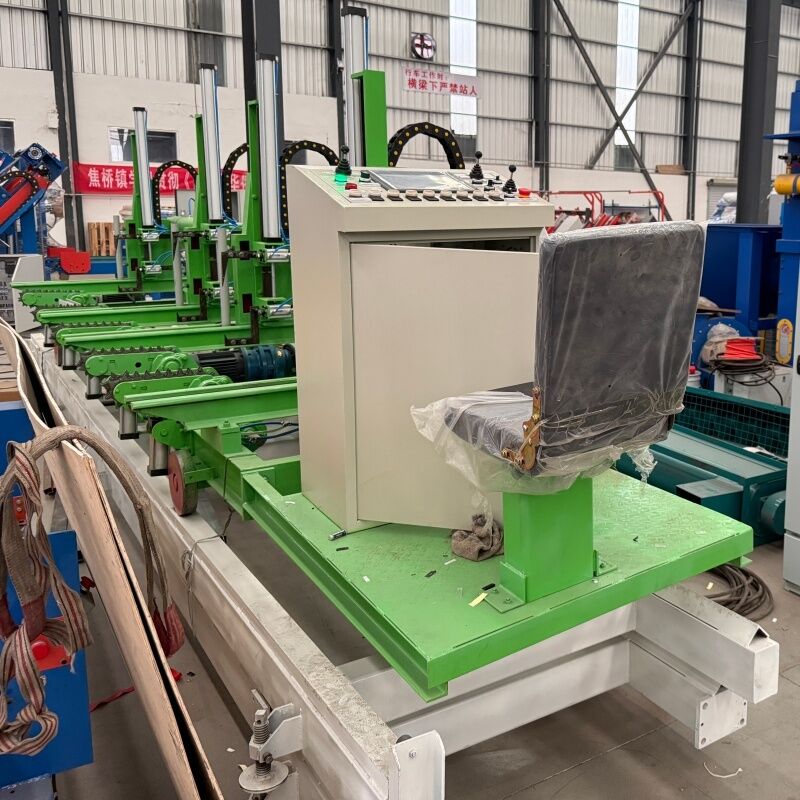

Detailed photos

Vertical Band Saw Wood Cutting Machine MJ3210 Log Sawmill with Automatic Carriage 1060mm Wheel 30KW Motor

Applications

This vertical band saw is ideal for processing hardwoods, softwoods, and tropical timber species in furniture manufacturing facilities, construction lumber yards, and medium-capacity sawmills. Its compact footprint makes it suitable for operations where floor space is at a premium while still delivering industrial throughput.

Why Choose This Wood Saw Machine?

Reduced Kerf Loss: Thin 1.25mm band saw blade minimizes material waste
Stable Cutting: Stationary blade with moving carriage design reduces vibration
Operator Safety: Fully guarded blade enclosure and emergency stop system
Easy Maintenance: Centralized lubrication points and tool-free blade replacement
12-Month Warranty: Comprehensive coverage with remote and on-site support available

Contact us today for a customized quotation on the MJ3210 vertical band saw wood cutting machine. Our engineering team is ready to configure the optimal solution for your sawmill requirements.

Tag:

Place of Origin:	Shandong, China
Brand Name:	SH
Certification:	ISO 9001:2015
Model Number:	MJ3210-FG3000, MJ3210-FG5000

Minimum Order Quantity:	1 Set
Price:	USD 5,000 - 23,000 / Set
Packaging Details:	Standard export wooden case with anti-rust oil coating, reinforced steel frame for container shipping
Delivery Time:	15-20 working days after deposit
Payment Terms:	T/T,Western Union
Supply Ability:	1000 Sets per Year
