Detail Information

Product Name:	Electric Vertical Band Sawmill Wood Saw Machine	Model:	MJ3310-H3000
Saw Wheel Diameter:	1060mm	Max Sawing Log Diameter:	800mm
Max Sawing Log Length:	4 Meters	Main Motor Power:	30KW
Saw Blade Size (L X W X T):	7800 X 150 X 1.25mm	Carriage Clamp Quantity:	3 Sets
Wood Rotation:	Hydraulic Log Turner	Carriage Drive:	Frequency Converter
Size Setting:	PLC Touch Screen	Carriage Length:	3 Meters
Rail Length:	12 Meters	Machine Weight:	5000 Kgs
Warranty:	12 Months	After-Sales Service:	Engineers Available Overseas, Online Support, Video Technical Support
Highlight:	electric vertical band saw , hydraulic log turner sawmill , precision wood saw machine

Product Description

Electric Vertical Band Sawmill Wood Saw Machine MJ3310 — Precision and Versatility Combined

The MJ3310 electric vertical band sawmill wood saw machine bridges the gap between compact sawmills and full-scale industrial operations. Featuring a 1060mm saw wheel, 30KW electric motor, and advanced hydraulic log turner, this versatile machine delivers precision cutting for logs up to 1000mm in diameter across a 6-meter working length.

Designed for the Modern Sawmill Operation

Integrated Hydraulic Log Turner

The built-in hydraulic log rotation system allows operators to reposition heavy logs with push-button ease. Achieve multi-sided cutting for beams, slabs, and dimensional lumber without manual handling, significantly improving both safety and throughput.

Precision PLC Control System

The digital PLC touch screen interface provides micrometer-level control over cutting dimensions. Store frequently used settings for rapid job changeover, ensuring consistent product quality across production runs.

37KW Electric Drive Motor

The high-torque 37KW electric motor delivers smooth, consistent blade speed even when cutting through dense hardwoods. Energy-efficient design reduces operating costs compared to diesel-powered alternatives.

Extended Rail System

18-meter rail length with 5-meter carriage provides a stable cutting platform for logs up to 6 meters. Precision-machined rails ensure smooth carriage travel and accurate cutting over the full working range.

Technical Specifications

Saw Wheel Diameter	1060mm
Max Sawing Log Diameter	1000mm
Max Sawing Log Length	6 meters or 4meters
Main Motor Power	30KW
Saw Blade Size (L x W x T)	7400 x 150 x 1.25mm
Carriage Clamp Quantity	4sets or 3 Sets
Wood Rotation	Hydraulic Log Turner
Carriage Drive	Frequency Converter
Size Setting	PLC Touch Screen
Carriage Length	5 meters or 4meters
Rail Length	18 meters or 10meters
Machine Weight	6000 kgs or 5000kgs

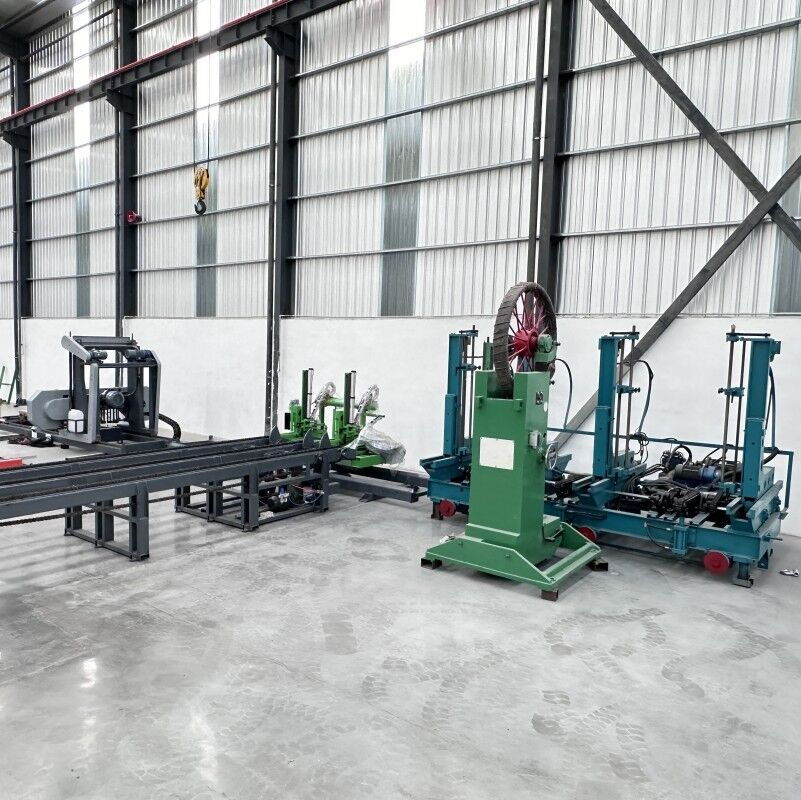

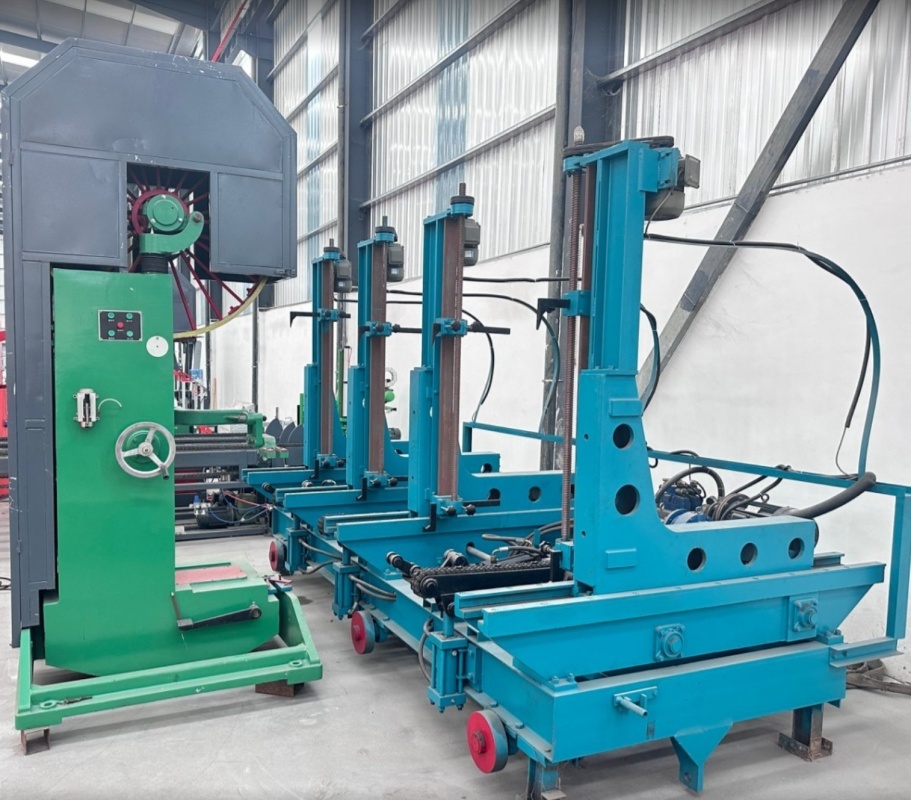

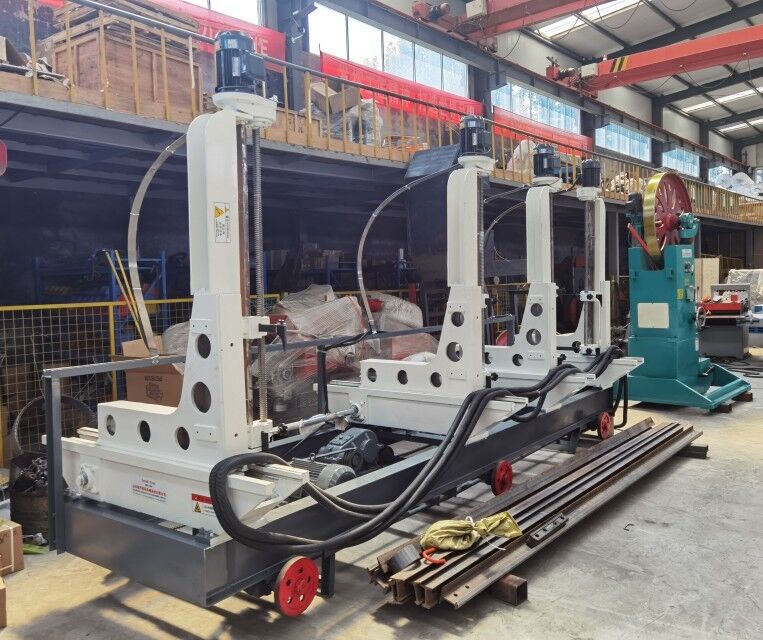

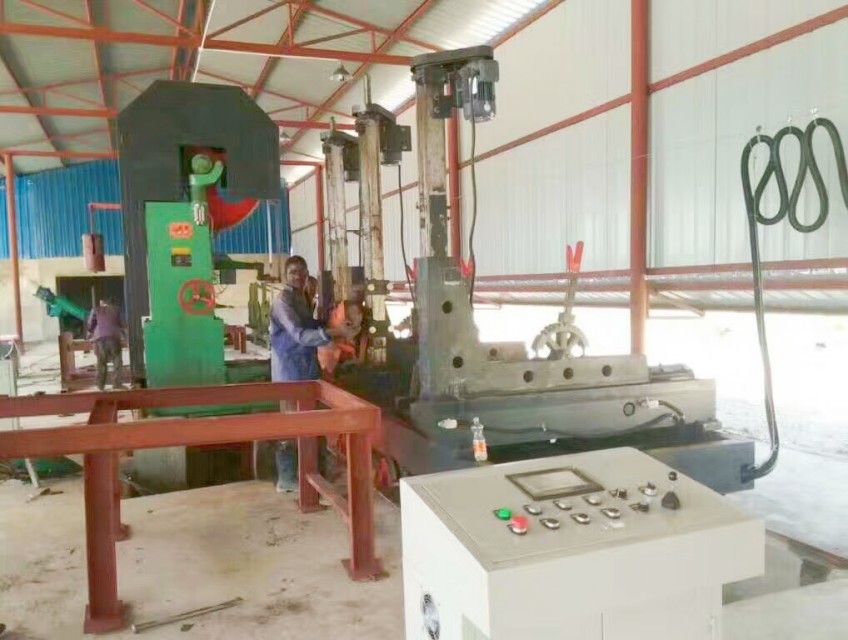

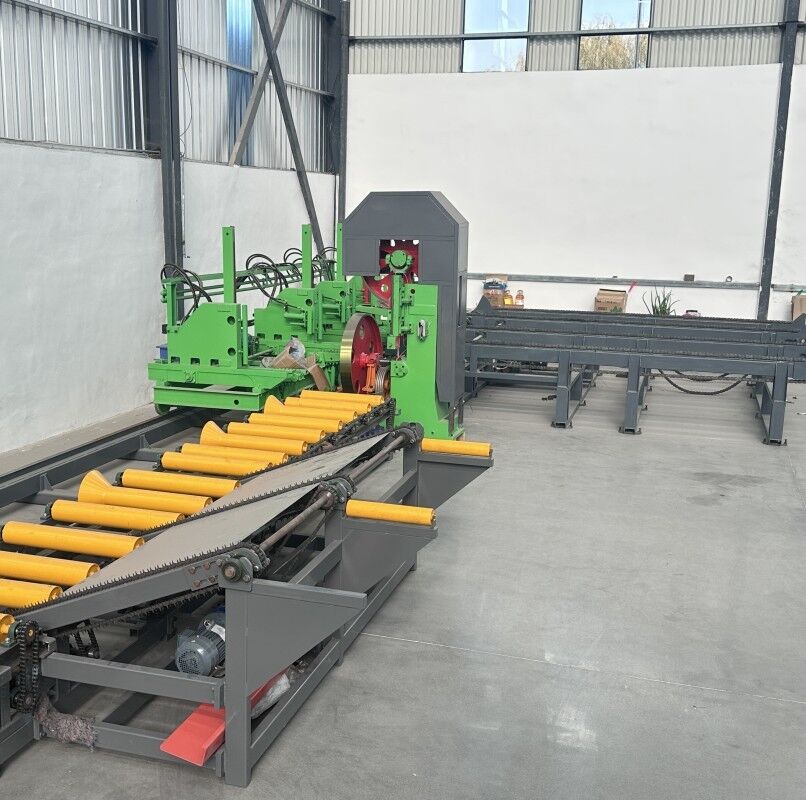

Detailed Photos

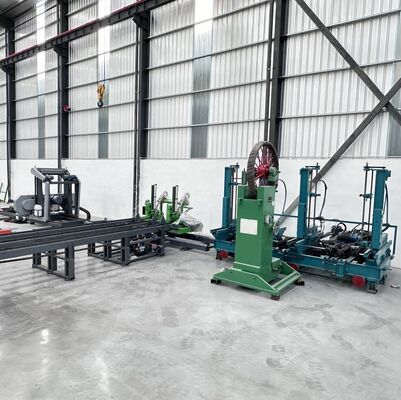

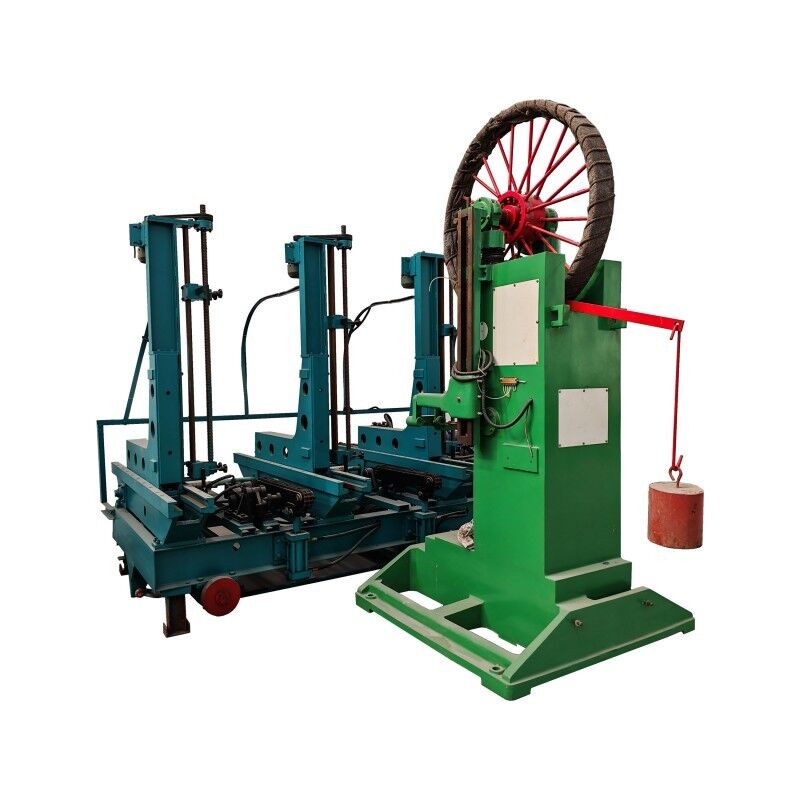

Electric Vertical Band Sawmill Wood Cutting Machine MJ3310 Hydraulic Log Turner 1060mm Wheel Automatic Carriage

Versatile Applications for This Wood Saw Machine

The MJ3310 wood saw machine excels in diverse applications including furniture-grade lumber production, pallet and packaging material manufacturing, construction timber processing, and value-added wood product fabrication. Its electric drive makes it particularly suitable for indoor sawmill facilities and operations with reliable grid power access.

Operational Benefits

Quick Setup: Pre-assembled modules enable rapid on-site installation
Energy Efficiency: Electric drive consumes significantly less energy than diesel mills
Low Noise Operation: Ideal for semi-urban and indoor sawmill locations
Minimal Maintenance: Sealed bearings and centralized lubrication reduce downtime
Operator Training Included: Comprehensive on-site or remote training with every purchase

Get in touch with our sales team today to request detailed specifications and a competitive price quotation for the MJ3310 electric vertical band sawmill. We offer customized configurations to match your exact production requirements.

Tag:

Place of Origin:	Shandong, China
Brand Name:	SH
Certification:	ISO 9001:2015
Model Number:	MJ3310-H3000

Minimum Order Quantity:	1 Set
Price:	USD 8,000 - 30,000 / Set
Packaging Details:	film wrapped container loading
Delivery Time:	25-35 working days after deposit
Payment Terms:	T/T,Western Union
Supply Ability:	800 Sets per Year

Electric Vertical Band Sawmill Wood Cutting Machine MJ3310 Hydraulic Log Turner 1060mm Wheel Automatic Carriage
