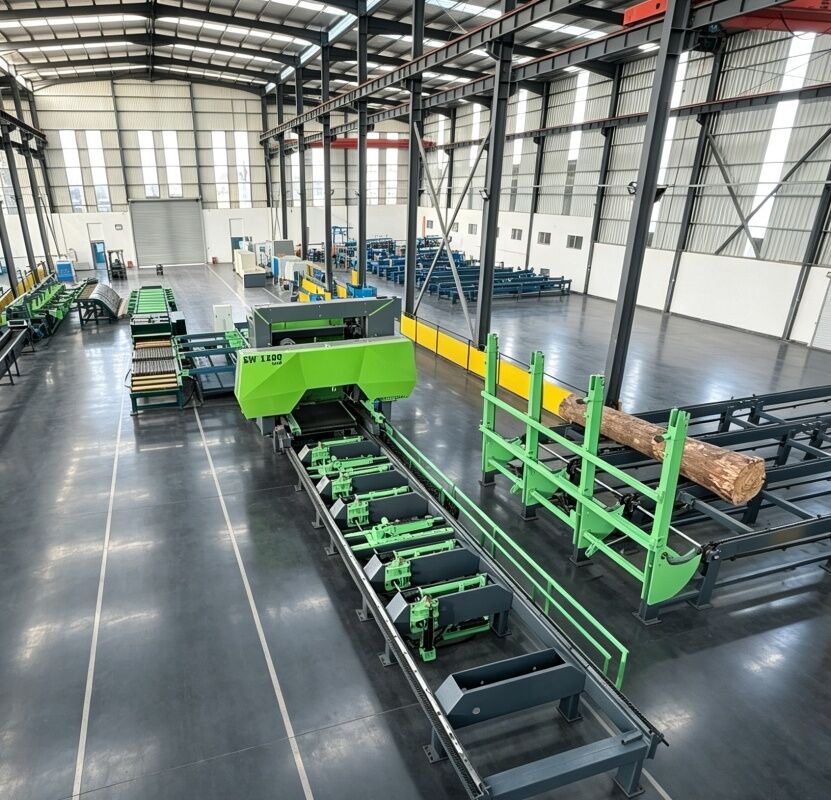

Heavy-Duty Horizontal Hydraulic Band Sawmill Complete sawing line SW1200PRO

The SW1200PRO SAWMILL is a heavy-duty, high-productivity horizontal band sawmill. It is designed for high-precision, high-volume log processing in industrial sawmills.

Technical Specifications

• Productivity: Up to 60 to 80+ m³ of logs per 8-hour shift
• Max. Log Diameter: 1,200 mm
• Max. Cutting Width: 1,200 mm
• Flywheel Diameter: 1250 mm
• Flywheel width: 140mm and blade is in 160 mm width
• Main Motor Power: 55 kW
• Machine Weight: Approximately 10,000 kg (10 tonnes)
• Dimensions: Rail length 115000mm, total height of 3,000 mm (with blade in the highest position)

Key Features & Control

• Automation & Control: Equipped with Stepless Cutting Speed Adjustment – Automatically Maintains Tension, automated control, and Quick Selection of Saved Sizes with Automatic Saw Positioning.
• Handling Equipment: Features hydraulic log tensioning, pre-cutter, longitudinal rollers, vertical arms, clamps, board pushers, and integrated conveyors.
• Operator Interface: Size Programming for Automatic Cutting of Entire Logs, Memory for Size Combinations (Programs) with Quick Program Recall, Touch Screen CNC

Datasheet

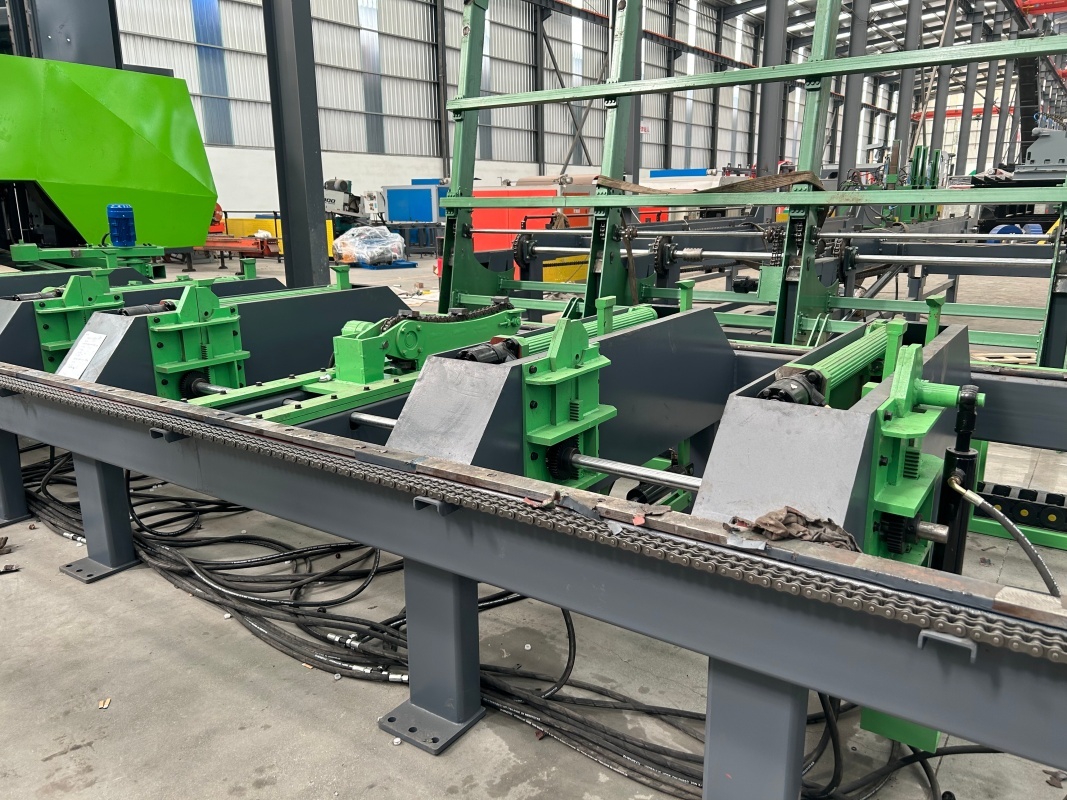

DETAIL SHOT
