Wood Slab Saw Machine, Log Edges/Slab Cutting Saw Mill , Board Edger Saw
Wood Slabs Cutting Circular Saw
Specifications:
|
Model Specifications |
BPJ200 | BPJ250 | BPJ300 |
| Cutting width (mm) | 200 | 250 | 300 |
| Cutting height | 100mm | 100mm | 150mm |
| Motor power (KW) | 7.5kw x 2 | 7.5kw x 2 | 11kw x 2 |
| Feeding | Frequency variable auto feeding | ||
| Circular blade diameter | 305(mm) | 355(mm) | 405(mm) |
| Weight (kg) | 480 | 600 | 750 |
| Overall size | 1450x1150x1400mm | 1450x1200x1400mm | 1750x1250x1550mm |
We can also do bigger model as customer needs .

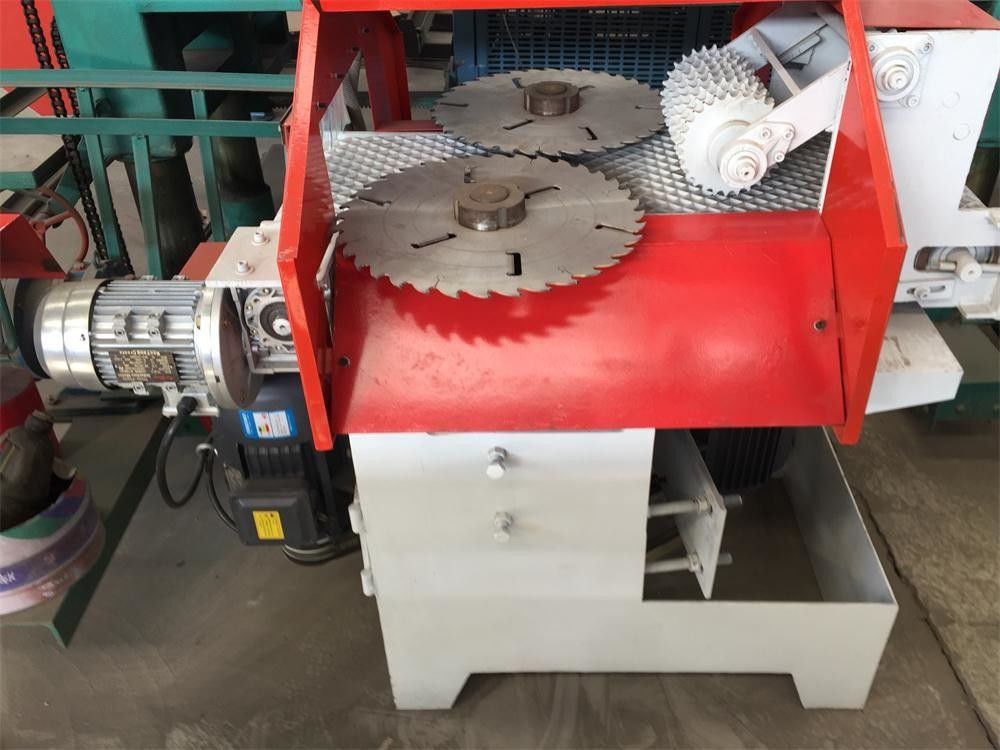

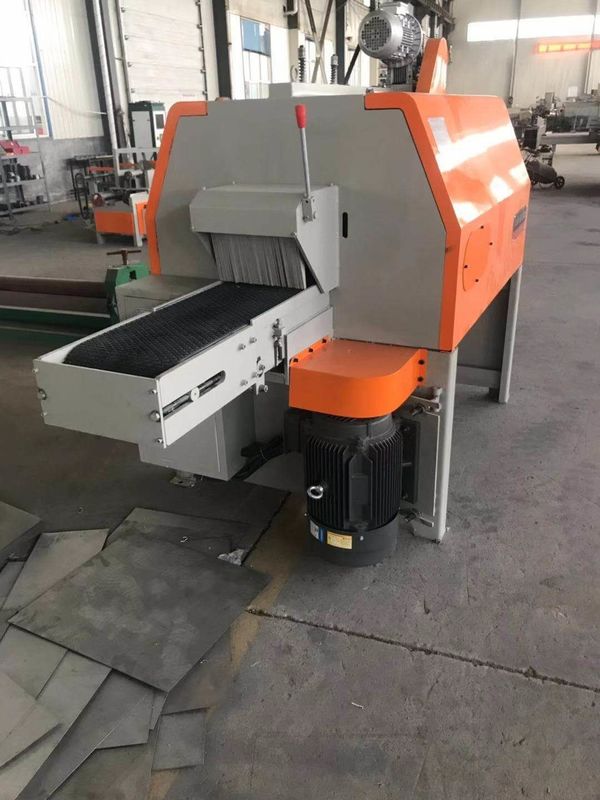

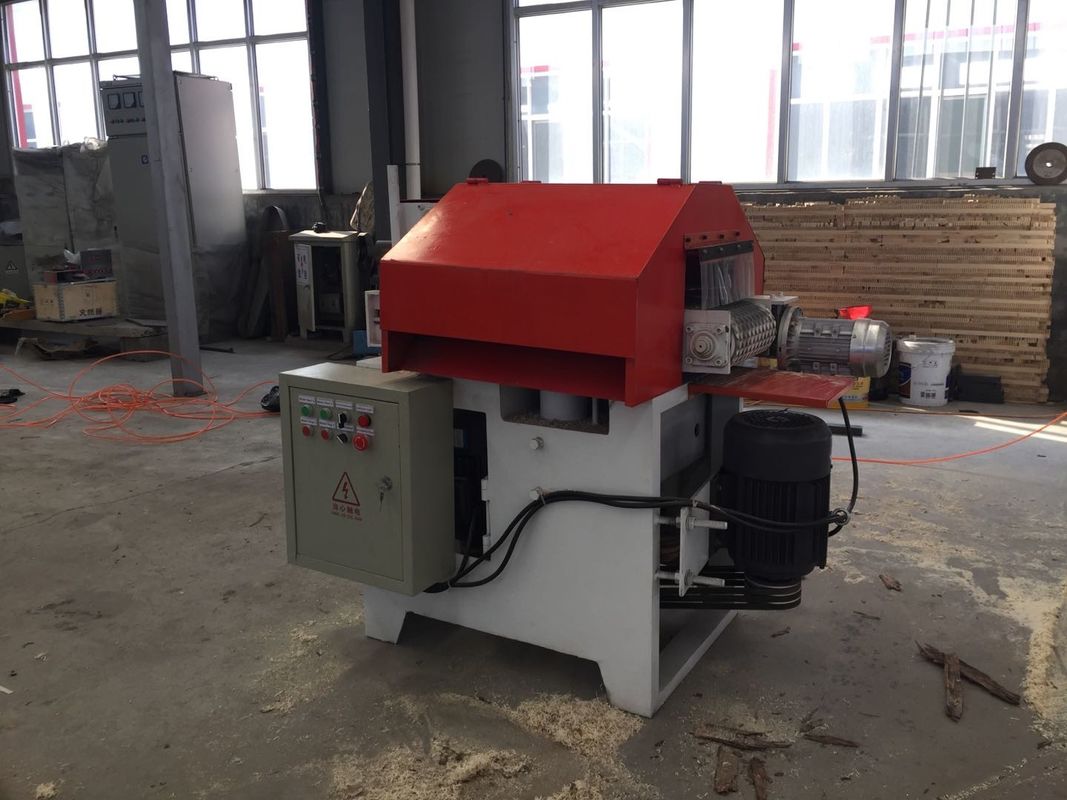

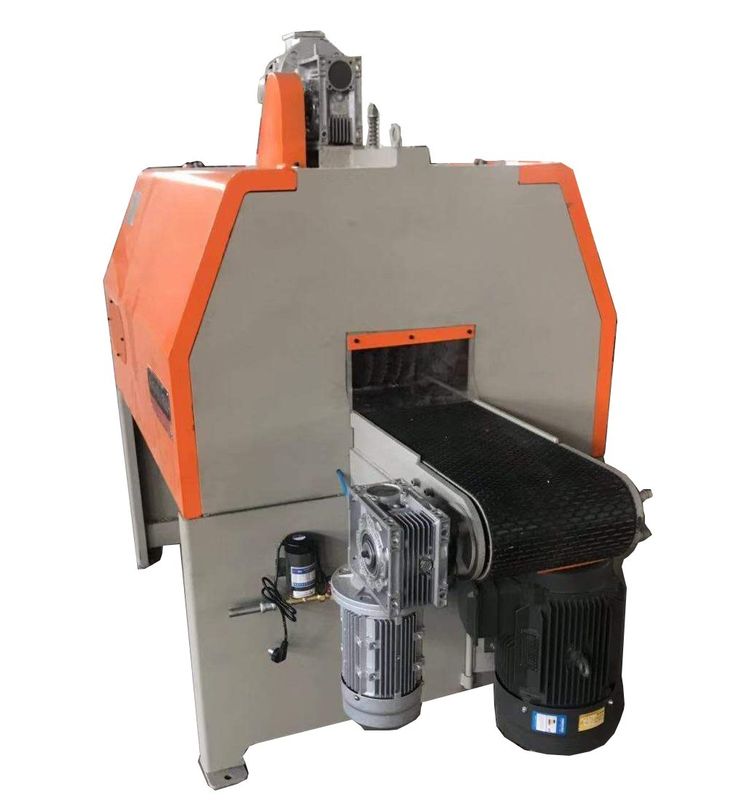

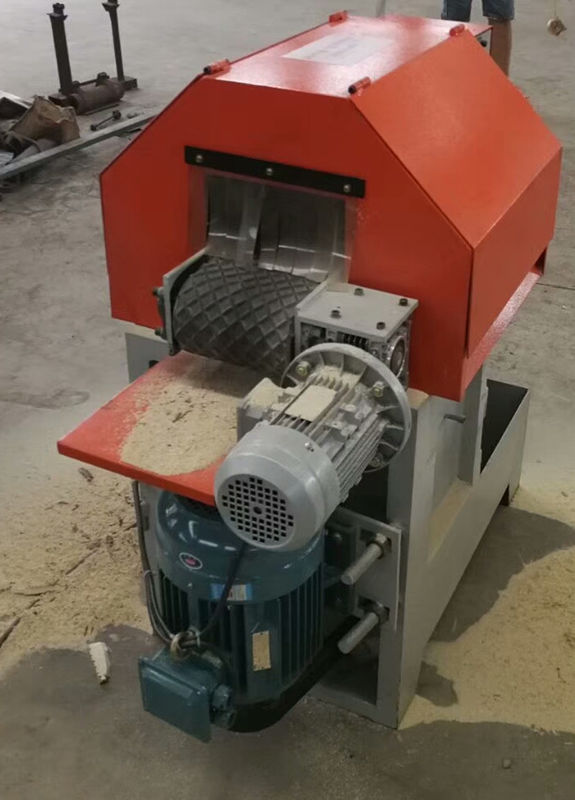

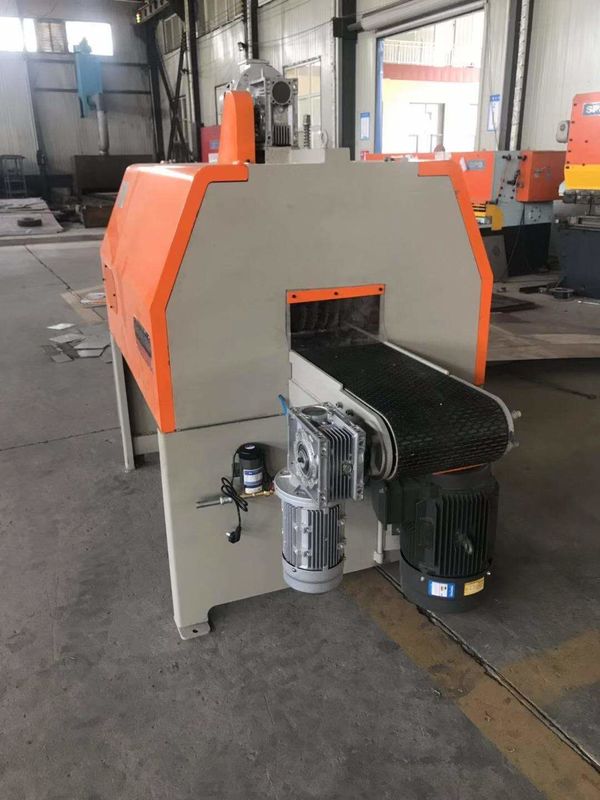

Photos :
Heavy Duty Wood Slabs Cutting Circular Saw
Specifications:
|
Model Specifications |
ZB150 | ZB250 | ZB300 |
| Cutting width (mm) | 150 | 250 | 300 |
| Cutting height | 150mm | 150mm | 150mm |
| Motor power (KW) | 15kw x 2 | 15kw x 2 | 15kw x 2 |
| Feeding | Frequency variable auto feeding | ||
| Circular blade diameter | 305(mm) | 355(mm) | 455(mm) |
| Weight (kg) | 1350 | 1380 | 1420 |
| Overall size | 4000x1200x1850mm | 4000x1200x1850mm | 4000x1200x1850mm |
Related Products:
Multi Blades Rip Saw
Introduction:
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 230mm | 230mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
