Twin Blade Timber Mill, Double Heads Vertical Slabber Sawmill Machine

Basic Information
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: SLS350, SLS500
Minimum Order Quantity: 1 SET
Price: US $13,000 - 50,000 / Set
Packaging Details: container loading
Delivery Time: within 25 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets/year
Detail Information
Name: Twin Vertical Band Sawmill Condition: New
Sawing Log Diameter: 100mm To 500mm Sawing Log Lenght: 1m To 3meters Or As Customer Needs
Saw Wheel Diameter: 700mm &75mm Width Sawn Sizes Setting: PLC Touching Screen Auto Setworks
Main Electric Motor: 2 X 22kw, 3phase Feeding Motor: 4KW X 2

Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

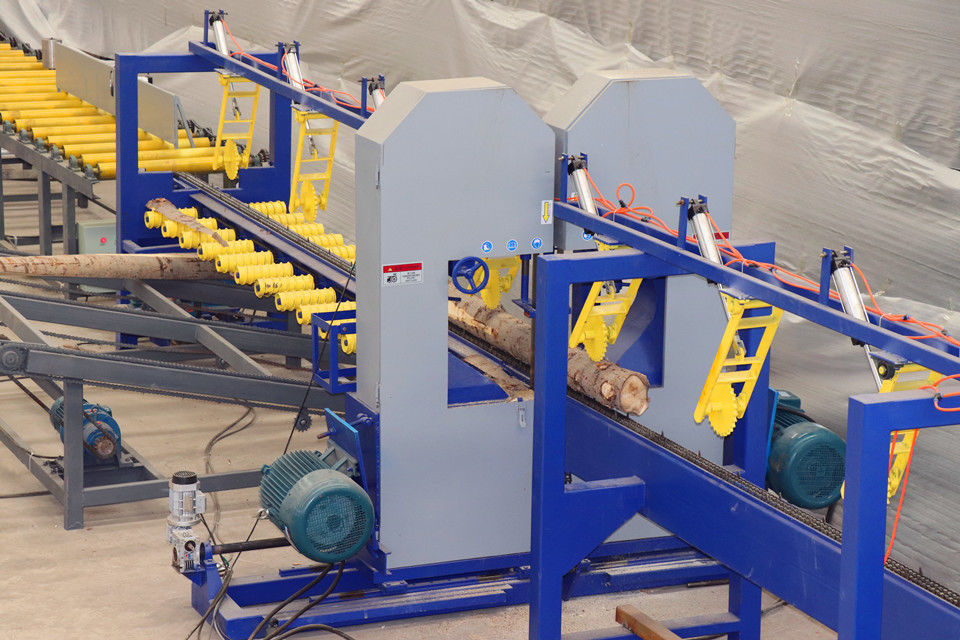

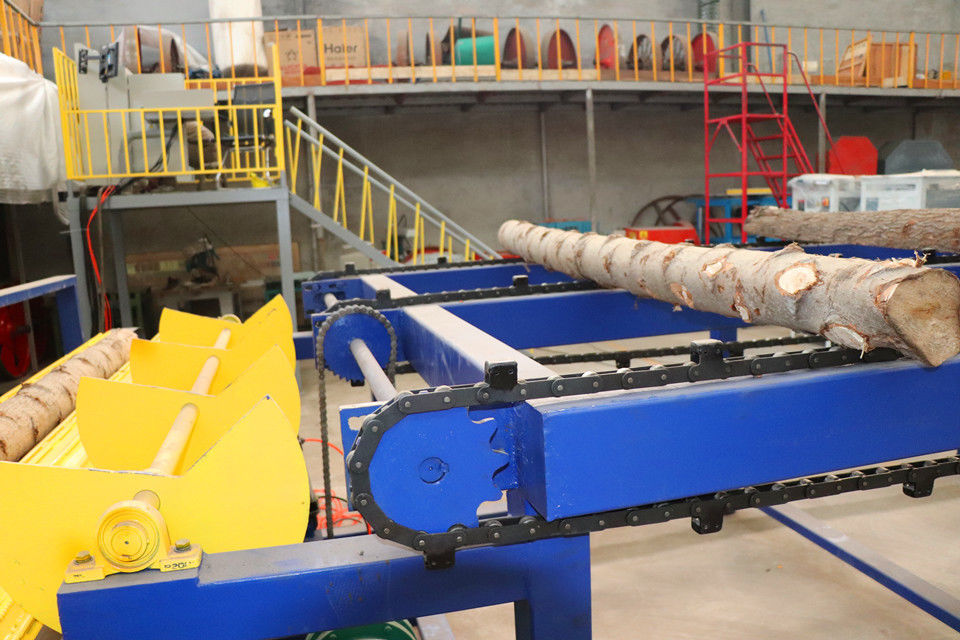

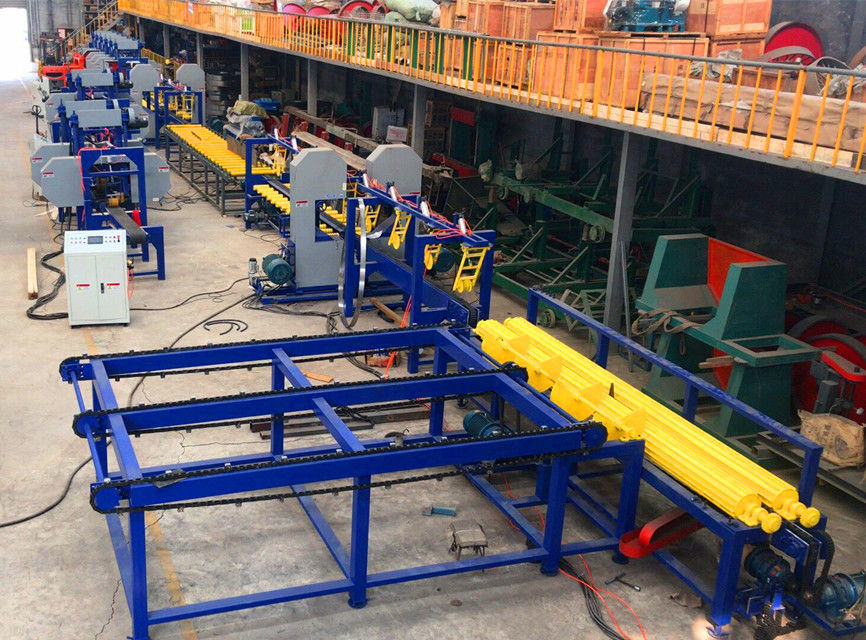

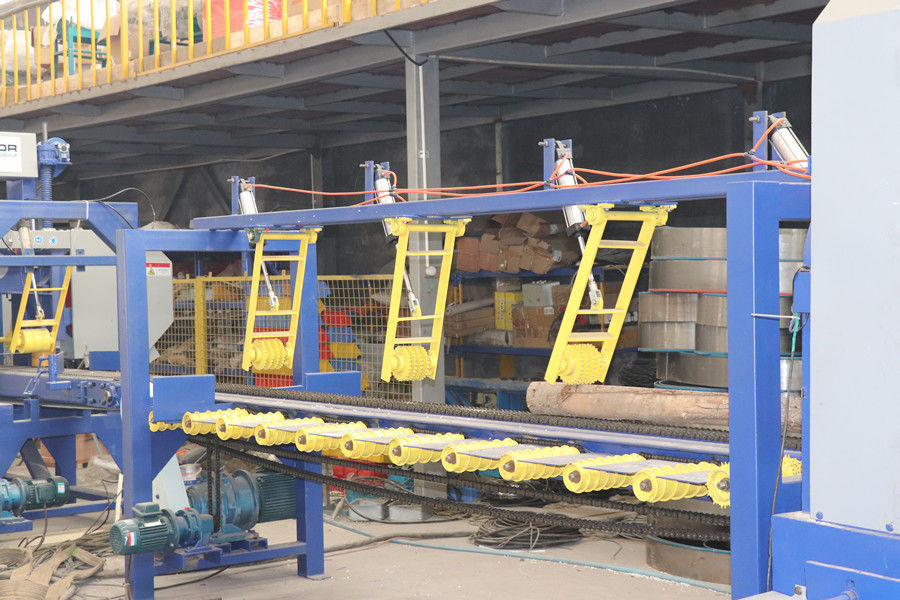

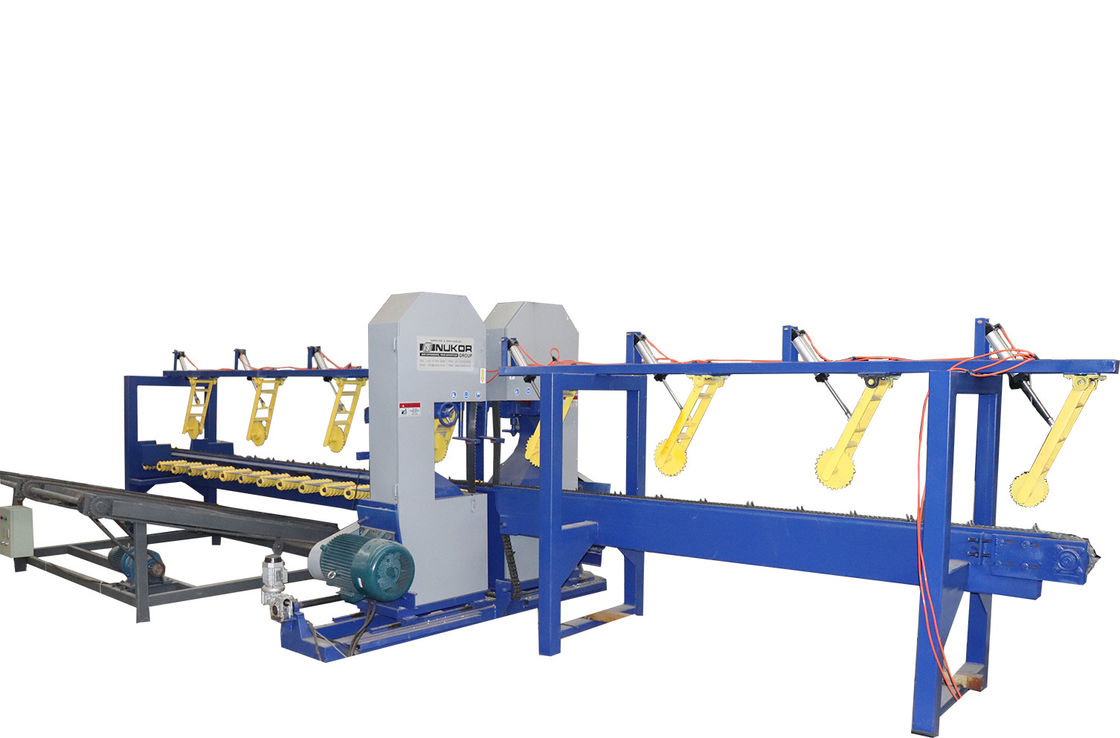

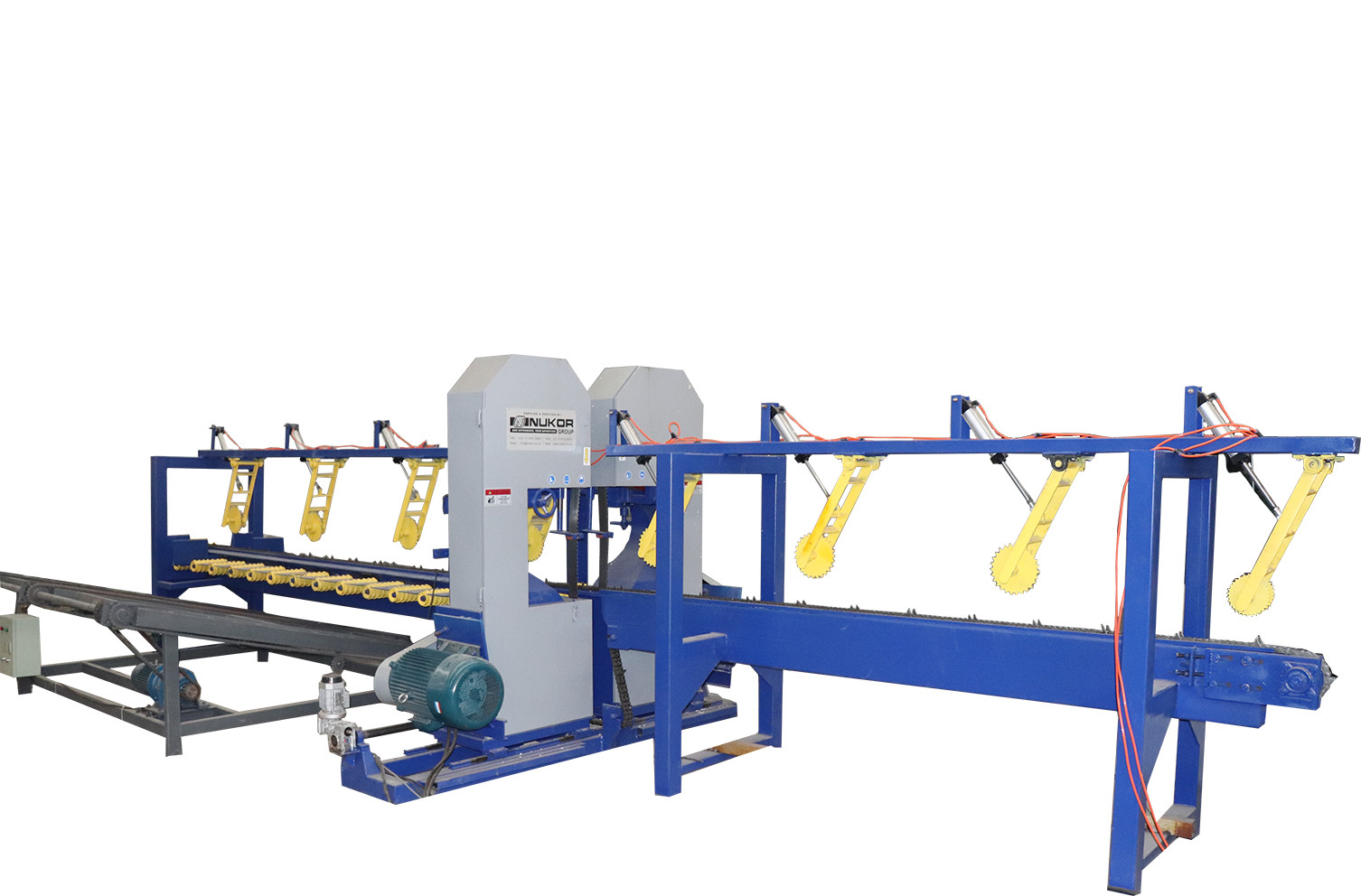

Twin Blade Timber Mill, Double Heads Vertical Slabber Sawmill Machine 0Twin Blade Timber Mill, Double Heads Vertical Slabber Sawmill Machine 1Twin Blade Timber Mill, Double Heads Vertical Slabber Sawmill Machine 2
