Technical Specifications :
| Central Console | |
| Overall size | 3000*1500mm |
| Display function | LCD Monitor |
| Operation | Distant control |
| Wood loading rack | |
| Length of loading rack | 4000mm |
| Total width | 2500mm |
| Transmission method | Inverter |
| Motor | 3KW |
| loading method | Pneumatic |
| Feeding type | Chain feeding |
| Wood automatic tumbling guide belt | |
| Max. length of tumbling wood | |
| Transmission method | Inverter |
| Total motor power | 6KW |
| Control | Distant control |
| SLS350 Twin Bandsaw for logs No.1 | |
| Max. sawing log diameter | |
| Min.sawing log diametr | 150mm |
| Log length | 800-3000mm |
| Saw wheel diameter | 700mm |
| Sawing speed | 9-25m/min |
| Main motor power | 18.5KW *2 |
| Sizing operation | CNC Touching screen |
| Automatic roll adjustment centering roller frame | |
| Frame length | 6000mm |
| Width | 1000mm |
| Motor | |
| Log centering operation | Pneumatic |
| SLSP400 Twin Bandsaw for logs No.2 | |
| Max. sawing log diameter | 400mm |
| Min. sawing log diameter | 150mm |
| Log length | 800-3000mm |
| Saw wheel diameter | 700mm |
| Sawing speed | |
| Motor power | 18.5KW *2 |
| Sizing operation | CNC touching screen |
| Slab slope conveyor | |
| Conveyor length | 3000mm |
| Width | 2500mm |
| Motor | 2.2KW |
| DT300-5 Multi Heads Band Saw-5heads | |
| Max. sawing width | 300mm |
| Max. sawing thickness | 300mm |
| Main motor | 15kw*5 |
| BPJ300 Slabs Cutting Saw | |
| Max. sawing width | 300mm |
| Max. sawing thickness | |
| Motor power | 7.5KW*2 |
| CB600 Wood Edger | |
| Max. sawing width | 600mm |
| Max. sawing thickness | 80mm |
| Blades No. | 1-5pcs |
| Motor power | 22kw |

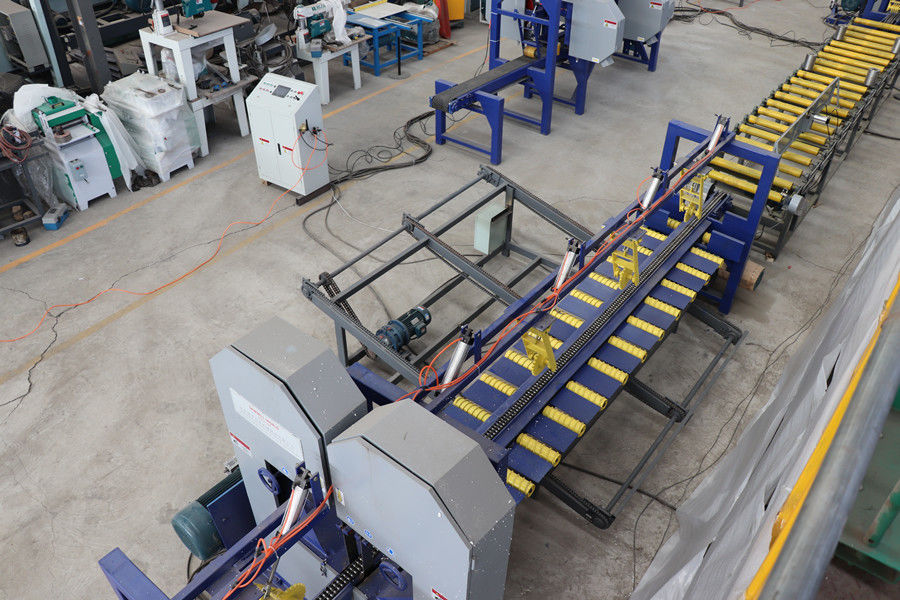

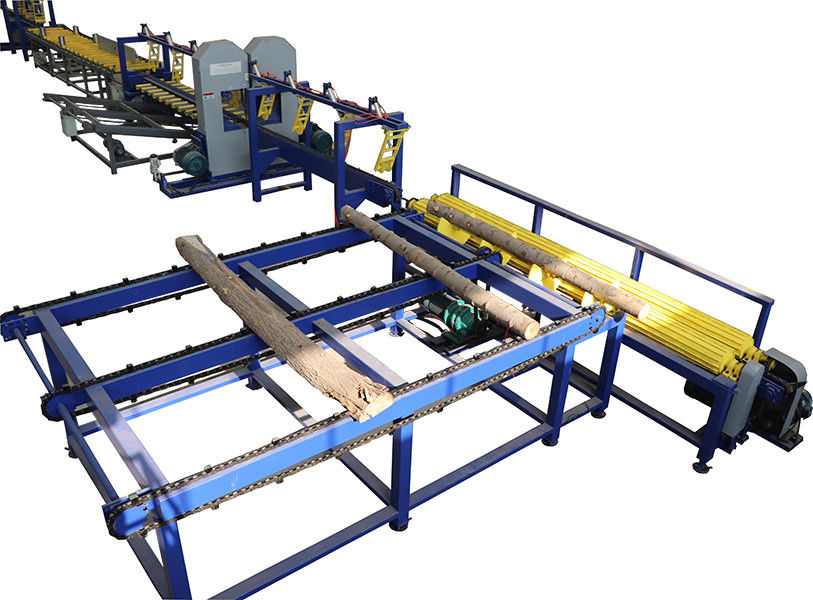

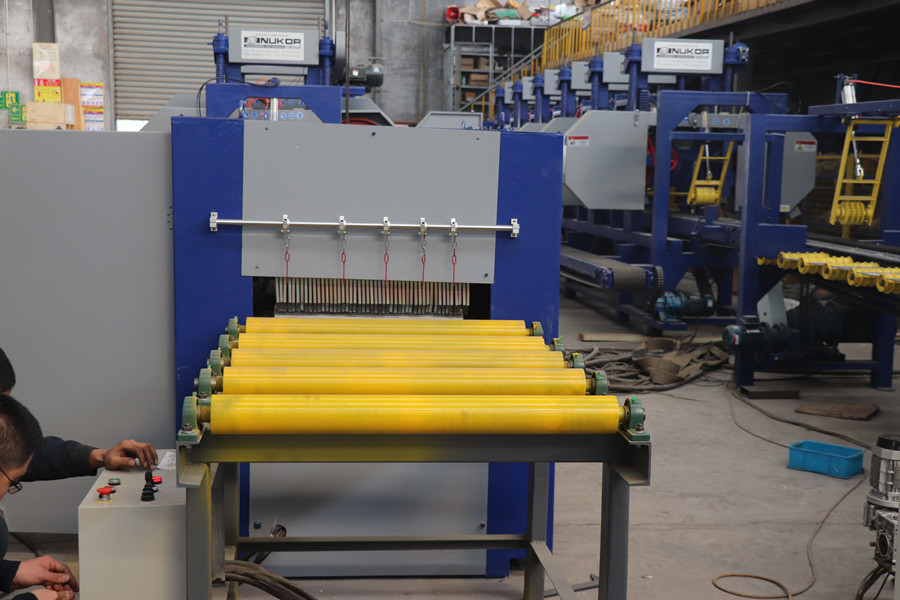

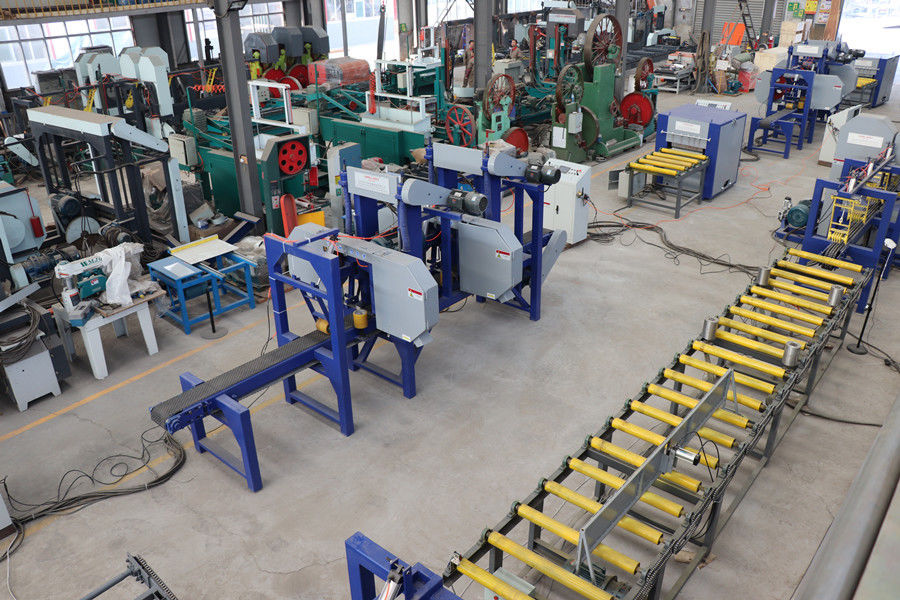

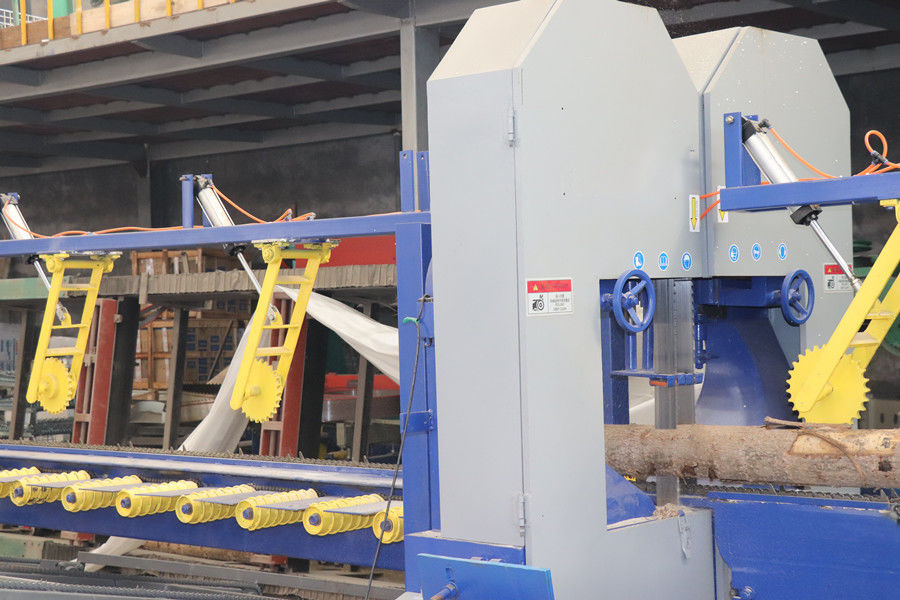

Photos
