Twin Blade Circular Saw Board Edger Machine, Wood Edger Saw with infrared positioning
Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable
4. The saw blade moves with infrared light and moves at the same time .
5. Feeding: frequency speed adjustable auto feeding
6. Max. sawing width: 600mm or as customer needs
7. Max. sawing thickness : 70mm
Technical data :
| Model | EG600 | EG800 | EG1000 |
| Sawing width | 50-600MM | 50-800MM | 50-1000MM |
| Sawing height | 10-70mm | 10-70mm | 10-70mm |
| Blade diameter | 2*350MM | 2*350MM | 2*350MM |
| Feeding speed | 20-25m/ minute | 20-25m/ minute | 20-25m/ minute |
| Main motor power | 7.5KW*2 | 7.5KW*2 | 7.5KW*2 |

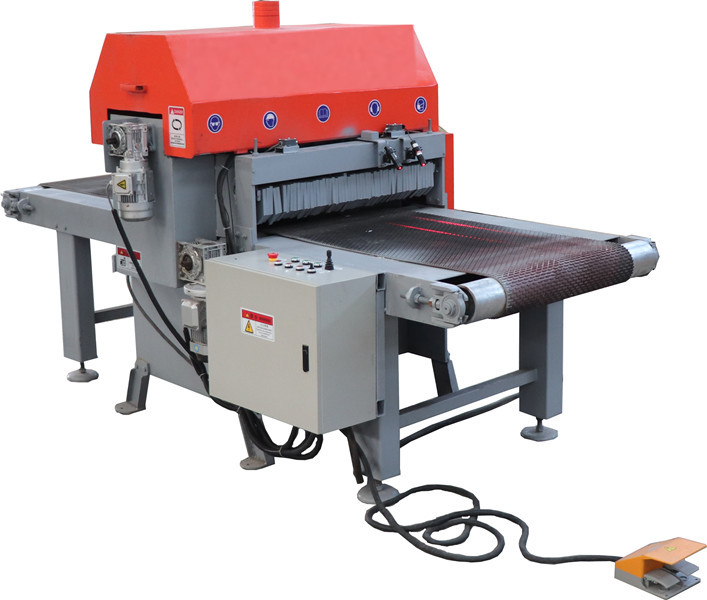

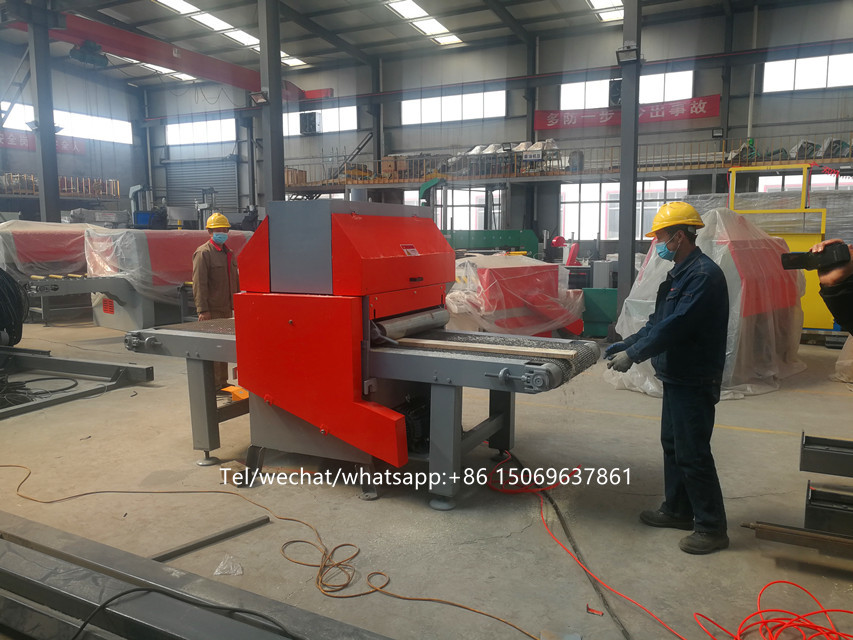

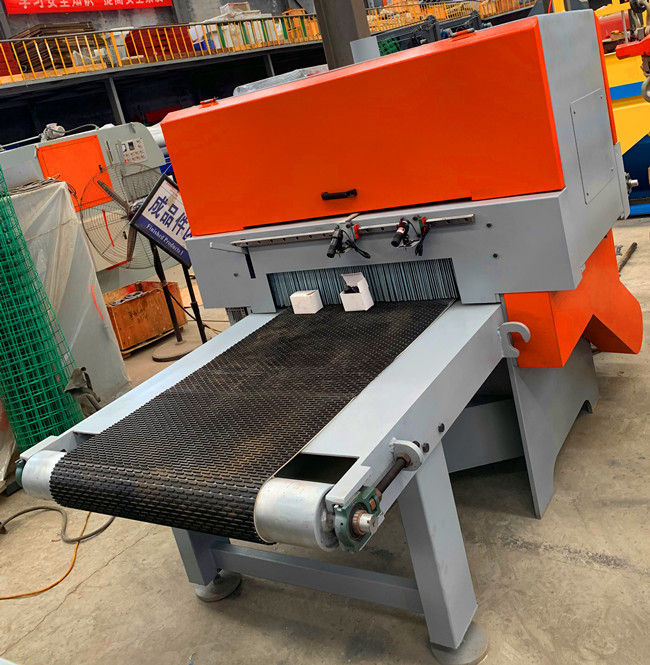

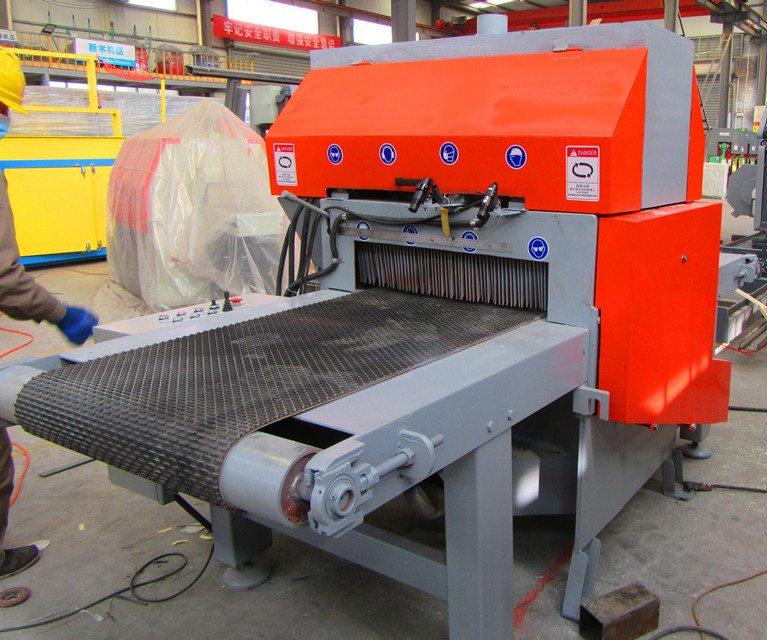

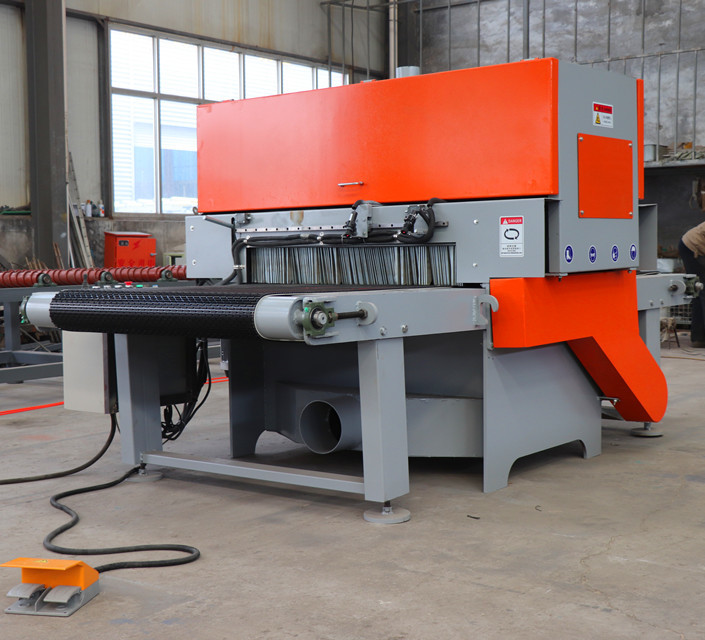

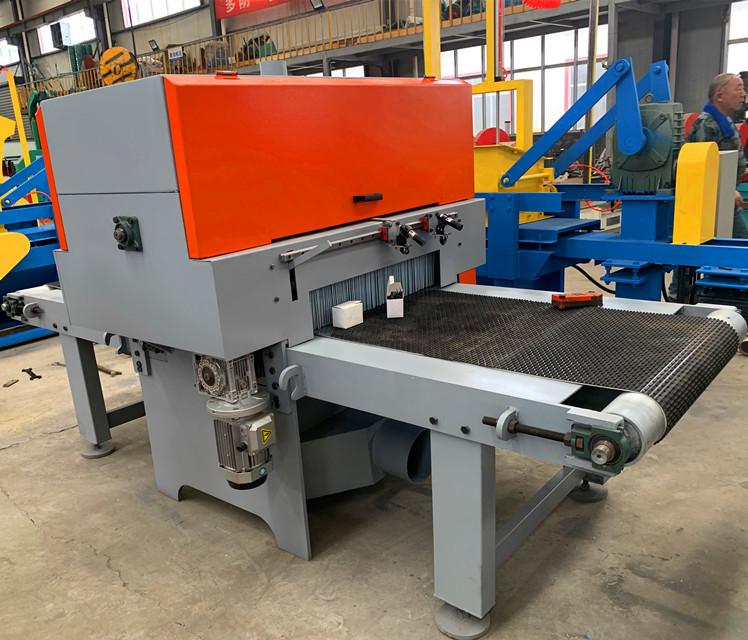

Photos:
Related Saw Machine
Multi Blades Rip Saw
Introduction:
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 210mm | 210mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
