Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs

  • Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs
  • Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs
  • Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs
  • Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs
  • Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs
  • Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs
Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SLS350, SLS500
Minimum Order Quantity 1 SET
Price US $13,000 - 50,000 / Set
Packaging Details container loading
Delivery Time within 25 days
Payment Terms T/T or L/C at sight
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Double Heads Vertical Band Sawmill Sawing Log Diameter 100mm To 500mm
Sawing Log Lenght 1m To 3meters Or As Customer Needs Main Electric Motor 2 X 22kw, 3phase
Feeding Motor 4KW X 2 Feeding Speed Frequency Speed Adjustable
Sawn Sizes Setting PLC Touching Screen Auto Setworks Saw Wheel Diameter 700mm &75mm Width
Leave a Message
Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

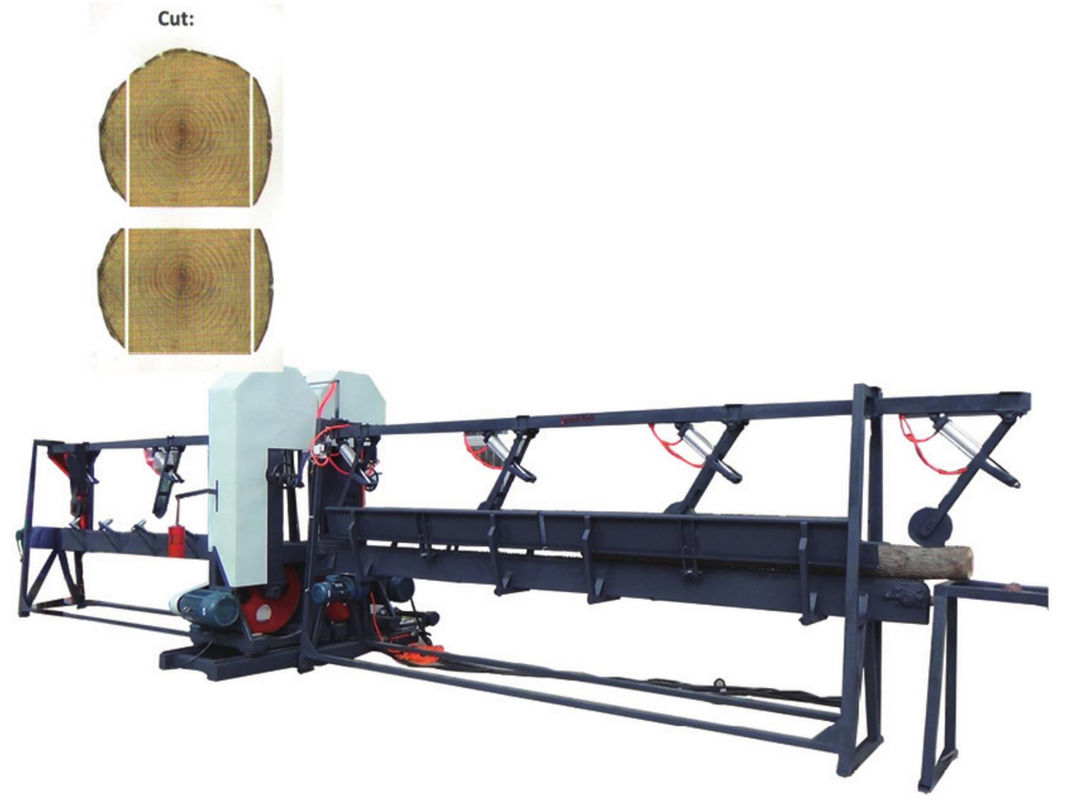

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks



Photos

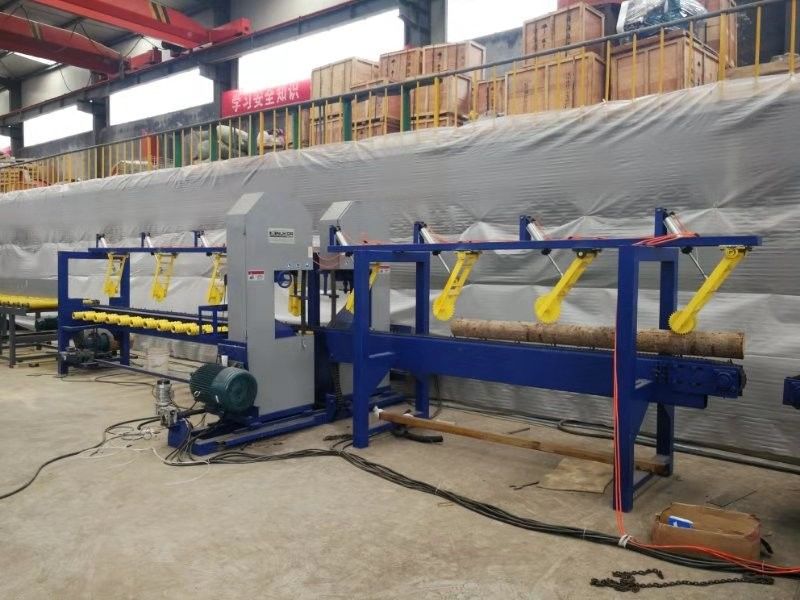

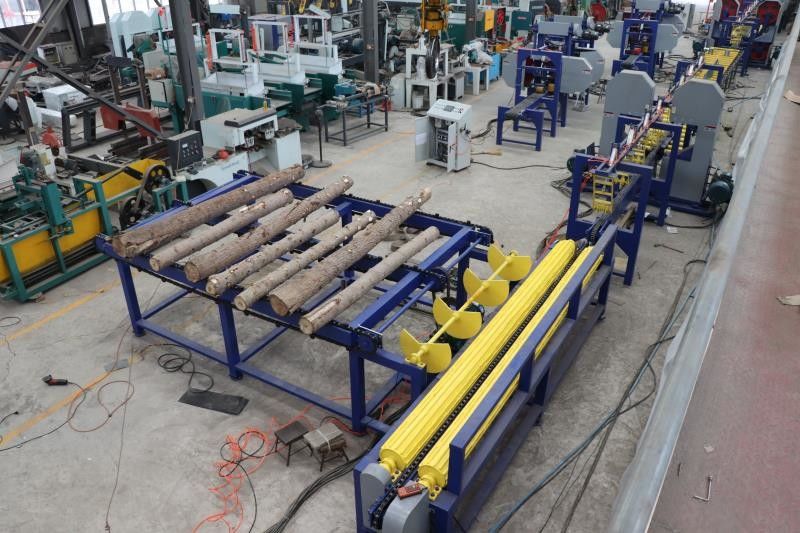

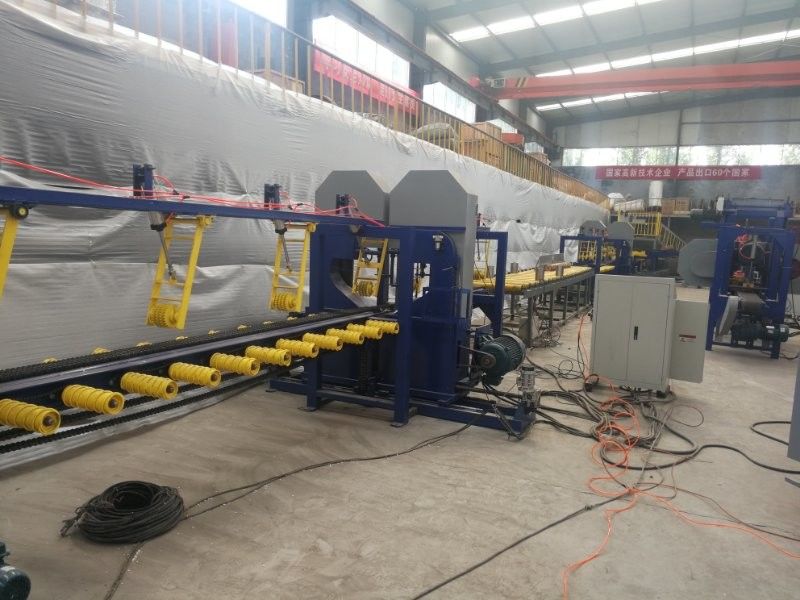

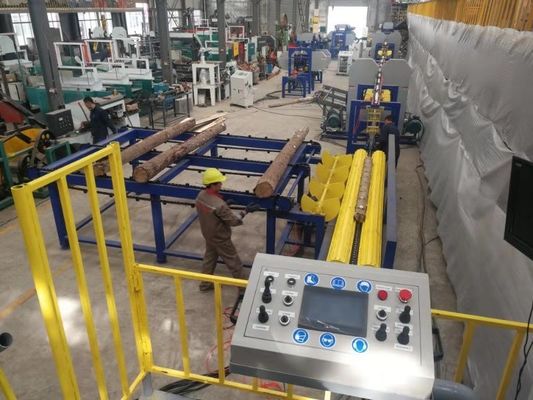

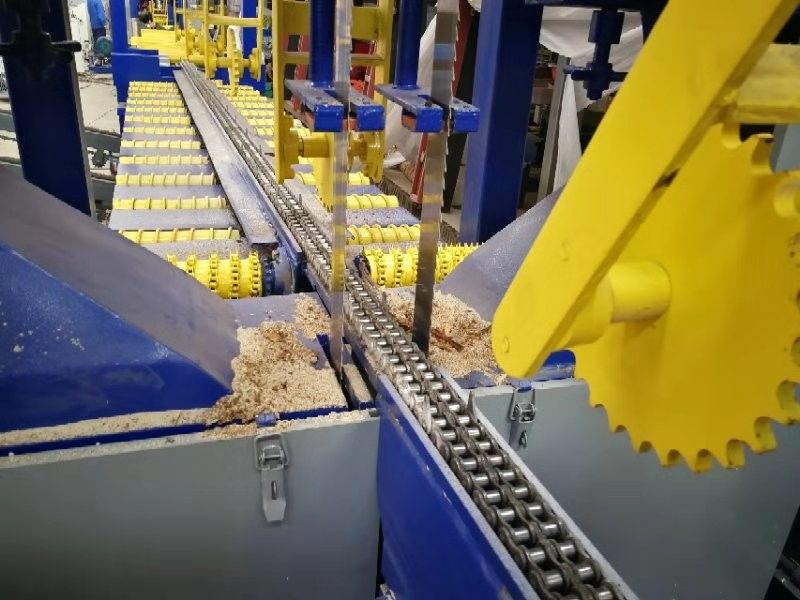

Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs 0Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs 1Automatic Vertical Sawmill Twin Heads Bandsaw double cut for logs 2
