Lumber Edger Multiple Blade Board Edger Sawmill, Wood Slabs Cutting Saw

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number HW500, HW800
Minimum Order Quantity 1 SET
Price US $2,900 - 15,000 / Set
Packaging Details iron made frame pallet
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Board Edger Saw Condition New
Application Sawing Edges Of Wood Boards Power 15KW/3phase
Max. Sawing Width 1000mm Sawing Thickness 10mm To 70mm
Warranty One Year
Leave a Message
Product Description

Multi Blades Rip Saw

Introduction:

  • with Infrared positioning
  • for board edges cutting
  • sawing planks into small pcs
  • easy usage, no installation

Technical data :

Model HW500 HW800
Sawing thickness 15-50mm 15-50mm
Sawing width 500mm 800mm
Circular blade diameter 230mm 230mm
Electric motor 15KW 18.5KW
Blade qty 1P-6P 1P-10P
Rotation speed 3500/min 3500/min































Photos:

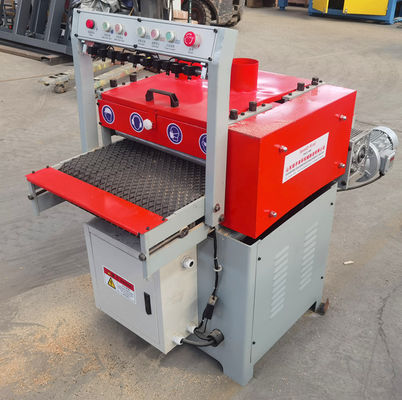

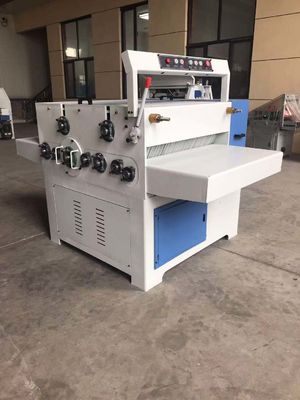

Lumber Edger Multiple Blade Board Edger Sawmill, Wood Slabs Cutting Saw 0Lumber Edger Multiple Blade Board Edger Sawmill, Wood Slabs Cutting Saw 1

Twin Blades Wood Board Edger/border cutting machine

1. Twin circular blades saw.

2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.

3. With tyres, moveable usage is workable

4. The saw blade moves with infrared light and moves at the same time .



Technical data :

Technical parameters EG600A
cutting max. width 600mm
cutting min. width 50mm
sawn max. thickness 70mm
sawn min. thickness 10mm
Blade 2*350mm
Feeding method Automatic feeding conveyor
Feed Rate 20-25m/ minute
Power 15KW electric motor
Positioning Infrared line
Machine weight 800KG

Remarks:

One blade is fixed and another blade is movable.

Can cut both sides at same time.

Mobile wheels are workable



Photos:

Lumber Edger Multiple Blade Board Edger Sawmill, Wood Slabs Cutting Saw 2

Lumber Edger Multiple Blade Board Edger Sawmill, Wood Slabs Cutting Saw 3
