Portable Board Edgers Circular Sawmill 1500mm Max Cutting Width

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number BT3000-600, BT3000-1000, BT3000-1500
Minimum Order Quantity 1 SET
Price US $2,900-8,900 / Sets
Packaging Details iron made frame pallet
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets per year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Wood Board Edger Cutting Saw Condition New
Application Cut Both Edgers Of Wood Board Warranty One Year
Max. Sawing Width 1500mm Max. Sawing Height 180mm Or As Customer Needs
Feeding Type Manual Or Frequency Cutting Length As Customer Needs
Operation Manual Or Automatic Circular Blade Diameter 500mm Or As Cutting Thickness
High Light

Board Edgers Circular Sawmill


Circular Sawmill 1500mm


1500mm Portable Board Edgers

Leave a Message
Product Description

Wood Cutting Circular Blade Board Edger Saw Mill Machine with max. cutting width 1500mm


Wood Edger Cutting Circular Blade Table Sawmill


1.Used to cut edges of wood boards in high efficiency or cut boards into small timbers.

2.Sawing max width is upto 1.5meters

3.The saw equipped with carbide blade for hardwood cutting .

4.The saw machine is with auto feeding .


Technical data:

Model BT3000-600 BT3000-1000 BT3000-1500
Sawing thickness 10-180mm 10-180mm 10-180mm
Sawing maximum length 3000mm 3000mm 3000mm
Sawing maximum width 600mm 1000mm 1500mm
Circular blade diameter 500mm 500mm 500mm
Motor power 11KW 15KW 15KW
Track length 5800mm 5800mm 5800mm
Wood grasp type Pneumatic Pneumatic Pneumatic
Feeding Manual Manual Manual
Operation Manual Manual Manual

Optional parts:

1.Frequency variable auto feeding ; 2. Saw track can be extended ; 3. Manual operation can be changed to electric type or PLC touching screen auto setworks

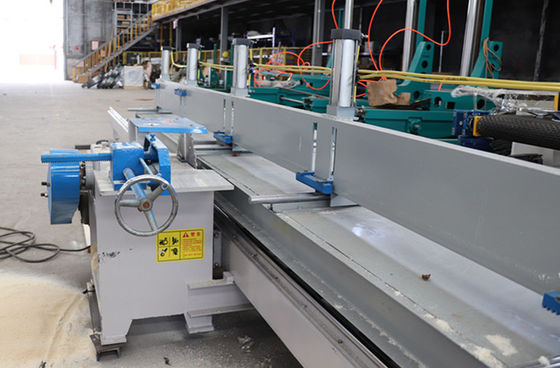

Portable Board Edgers Circular Sawmill 1500mm Max Cutting Width 0

Portable Board Edgers Circular Sawmill 1500mm Max Cutting Width 1

Portable Board Edgers Circular Sawmill 1500mm Max Cutting Width 2Portable Board Edgers Circular Sawmill 1500mm Max Cutting Width 3

Related Saw Machine


Portable Horizontal Band Sawmill (Electric Model )

  • Portable horizontal band saw which is easy to install and operate.
  • Finished with Carbide band saw blade for hard wood cutting .
  • The sawing kerf is small, reduce the waste to high output.
  • The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .



MJ700E MJ1000E MJ1300E MJ1600E


Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM


Saw Wheel Diameter

600MM 700MM 700MM 700MM


Sawn Thickness

2-250MM 2-300MM 2-300MM 2-300MM


Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500


Main Motor Power

15KW 18.5KW 22KW 30KW


Lifting Motor Power

1.5KW 1.5KW 1.5KW 1.5KW


Total Weight (KG)

1100 1100 1300 1500


Detailed Images of stanard model:

Portable Board Edgers Circular Sawmill 1500mm Max Cutting Width 4


Heavy Duty Large Size Horizontal Band Sawmill

  • The Sawmill is designed to saw the large diameter hard woods like Rosewood ,wenge and santos rosewood.
  • It have large saw wheel and high power.
  • Owe reputable position to the steady performance of sawing the large diameter wood in Congo,Cabon, Angola, Fiji and Southeast Asian countries .

Technical specifications:


Model MJ1200 MJ1500 MJ2000 MJ2500
Max. sawing width 1200mm 1500mm 2000mm 2500mm
Height from blade to track 1100mm 1200mm 1700mm 2200mm
Saw wheel diameter 1070mm 1070mm 1070mm 1070mm
Max.sawn thickness 350mm 350mm 400mm 400mm
Sawing wood length max. 6meters 6meters 6meters 6meters
Saw blade length & width 7900 &125mm 8600&125mm 9700&125mm 10500&125,150mm
Main motor power 30kw 37kw 45kw 55kw
Weight 3800kgs 4500kg 5000kg 5500kg
Portable Board Edgers Circular Sawmill 1500mm Max Cutting Width 5
