Edger Saw Machine Board Edger Sawing Machinery with infrared light for positioning
Twin Blades Wood Board Edger/border cutting machine
1. Twin circular blades saw.
2. ONe blade is fixed, another is moveable ,saving working time, improve working efficiency.
3. With tyres, moveable usage is workable

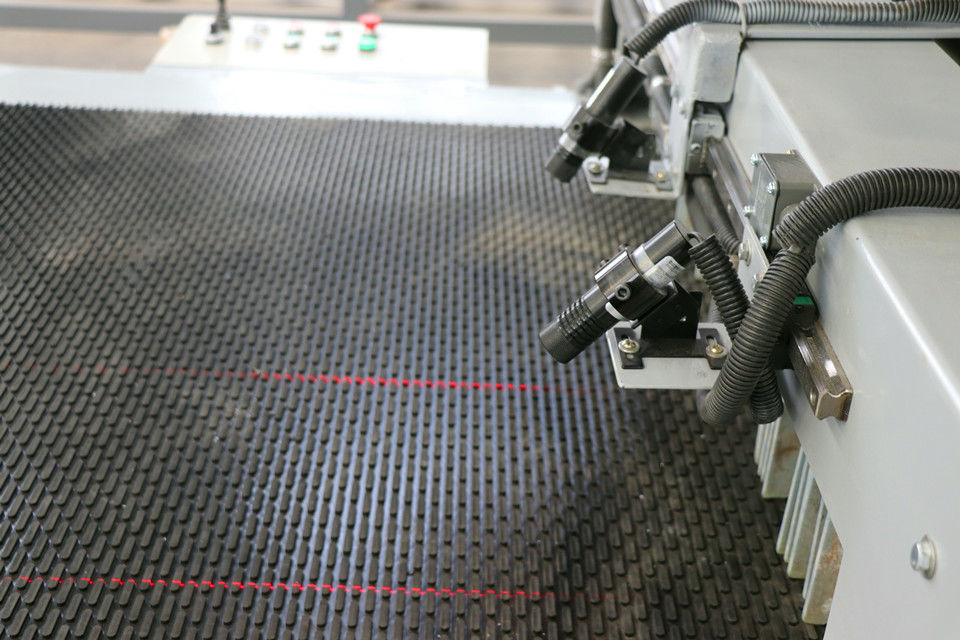

4. The saw blade moves with infrared light and moves at the same time .
Technical data :
| Model | EG600 | EG800 | EG1000 |
| Sawing width | 50-600MM | 50-800MM | 50-1000MM |
| Sawing height | 10-70mm | 10-70mm | 10-70mm |
| Blade diameter | 2*350MM | 2*350MM | 2*350MM |
| Feeding speed | 20-25m/ minute | 20-25m/ minute | 20-25m/ minute |
| Main motor power | 7.5KW*2 | 7.5KW*2 | 7.5KW*2 |
Photos:
Multi Blades Rip Saw
Introduction:
Technical data :
| Model | HW500 | HW800 |
| Sawing thickness | 15-50mm | 15-50mm |
| Sawing width | 500mm | 800mm |
| Circular blade diameter | 210mm | 210mm |
| Electric motor | 15KW | 18.5KW |
| Blade qty | 1P-6P | 1P-10P |
| Rotation speed | 3500/min | 3500/min |
Photos:
Heavy Duty Single Shaft Multi Blade Rip Saw / Board Edger Saw Machine
Introduction:
Technical data :
| Model | ZHW800-70 | ZHW800-80 | ZHW800-100 |
| Sawing wood height | 10-70mm | 10-80mm | 20-100mm |
| Sawing wood width | 800mm | 800mm | 800mm |
| Carbide blade diameter | 280mm | 305mm | 355mm |
| Main motor | 22KW | 30KW | 37KW |
| Blade quantity | 1P-10P | 1P-10P | 1P-10P |
| Rotation speed | 3500/min | 3500/min | 3500/min |
Related Machine
Big Width Wood Board Edger Saw
1.Fit for wider and thicker board edges cutting
2.Electrical wood feeding
3.Pneumatic wood grasp
Technical specifications:
| Model | BT300-6-3500 | BT250-10-3500 | BT250-15-3500 | BT250-15-3500 |
| Sawing max. thickness | 10-300mm | 10-250mm | 10-250mm | 10-100mm |
| Sawing max. length | 3500mm | 3500mm | 3500mm | 3500mm |
| Sawing max. width | 600mm | 1000mm | 1500mm | 600mm |
| Circular blade dia. | 405mm | 355mm | 355mm | 355mm |
| Main motor power | 11KW*2 | 11KW*2 | 11KW*2 | 11KW |
| Rail length | 7000mm | 7000mm | 7000mm | 7000mm |
| Grasp wood type | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Feeding | Electrical | Electrical | Electrical | Electrical |
| Size setting | Manual | Manual | Manual | Manual |
Photos:
