Industrial Wood Saw Machine Double Cutting Vertical Bandsaw Equipment

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SLS350, SLS500
Minimum Order Quantity 1 SET
Price US $13,000 - 50,000 / Set
Packaging Details container loading
Delivery Time within 25 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Name Twin Bandsaw Equipment
Sawing Log Diameter 100mm To 500mm Sawing Log Lenght 1m To 3meters Or As Customer Needs
Saw Wheel Diameter 700mm &75mm Width Blade Size 75x0.9x5200mm
Feeding Motor 4KW X 2 Sawn Sizes Setting PLC Touching Screen Auto Setworks
Leave a Message
Product Description

TWIN BANDSAW FOR LOG EDGES CUTTING

Designed to receive logs and make two vertical cuts removing a slab from either side of the log.

· Ideal to cut pine, eucalyptus, and teak.

· High-precision cutting.

· Laterally-supported chain.

· High-production continuous feed system.

· Produces up to 4,000 m³ per month.

· Highly efficient use of wood, with the finest cut on the market.

· Motorization and control panel included.

· Automatic feed



Technical Specifications:

Technical data SLS350 SLS500
Maximum log diameter 350mm 500mm
Minimum log diameter 100mm 100mm
Wood length 1000 to 3000mm 1000 to 3000mm
Feed speed 9-25m/min (inverter) 9-25m/min (inverter)
Conveyor length 7000mm 3500mm x 2
Band wheel diameter 700mm 760mm
Width of saw blade 50-80mm 50-100mm
Length of saw blade 4850 5200mm
Thickness of saw blade 0.9mm 0.9mm
Saw motor 2x18.5kw 2x22kw
Feed motor 5.5kw 4kw x 2
Sawn sizing control Touching screen auto setworks Touching screen auto setworks

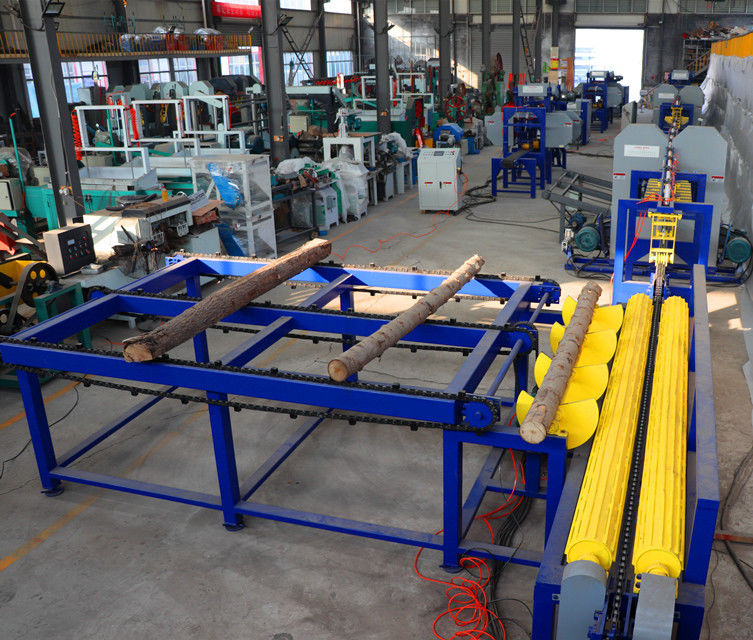

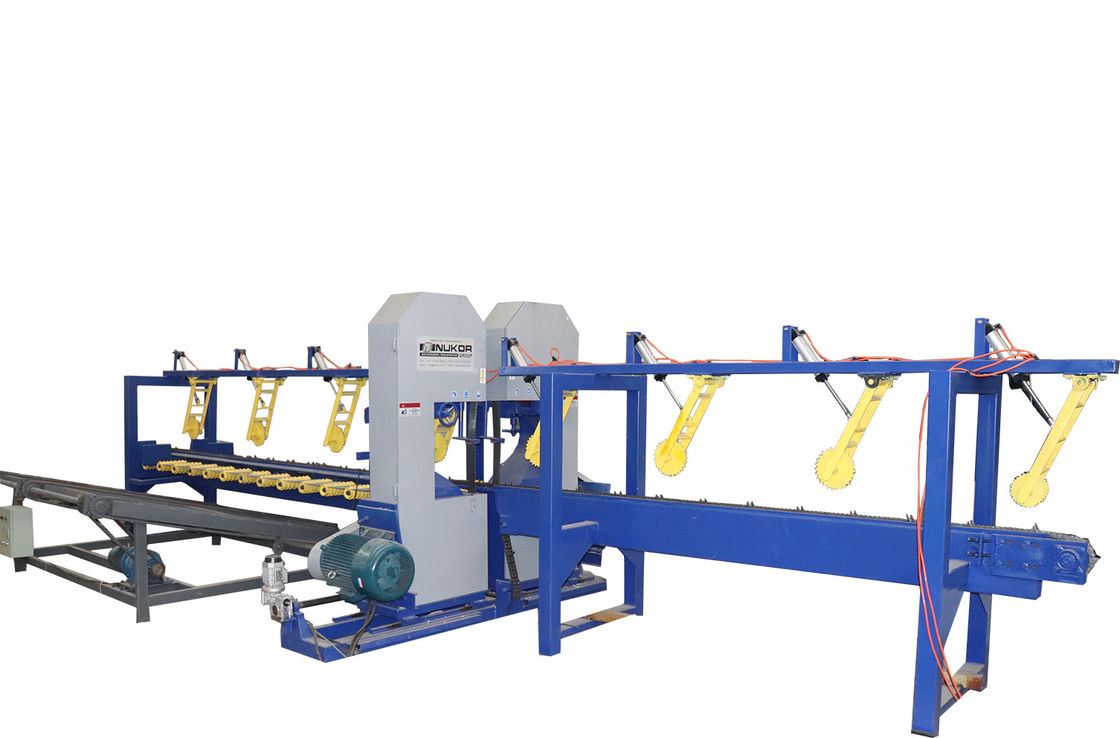

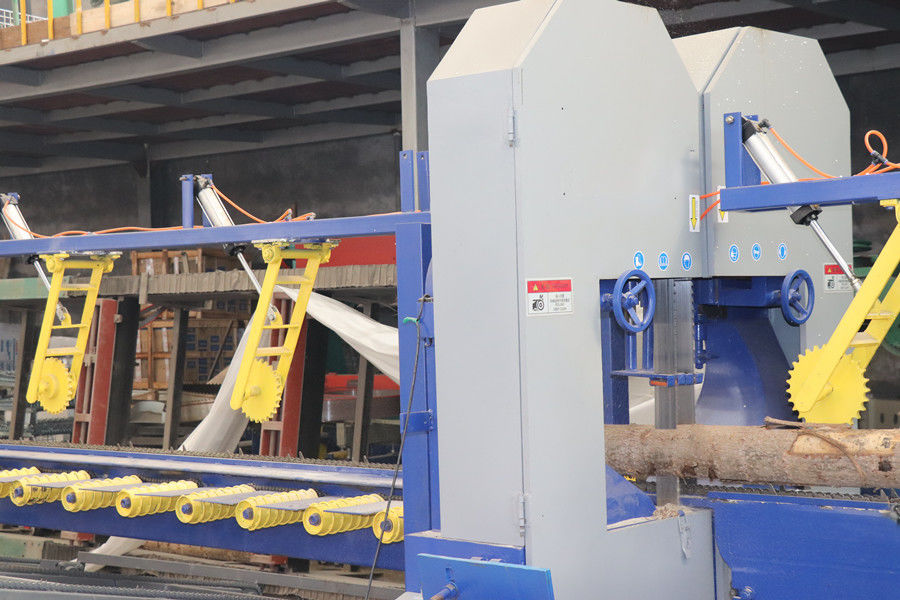

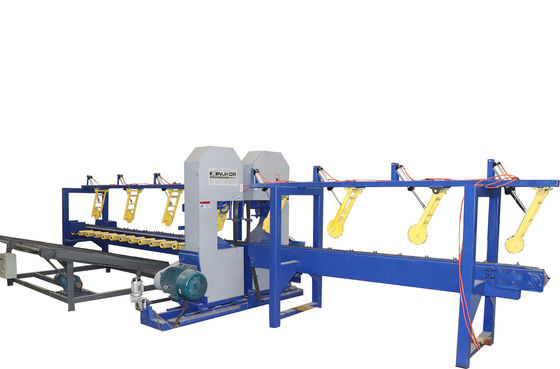

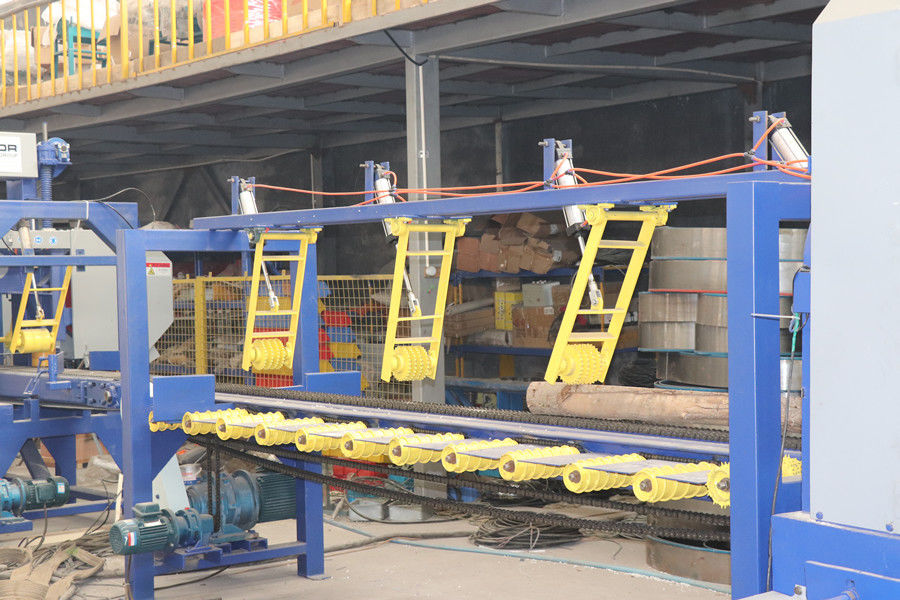

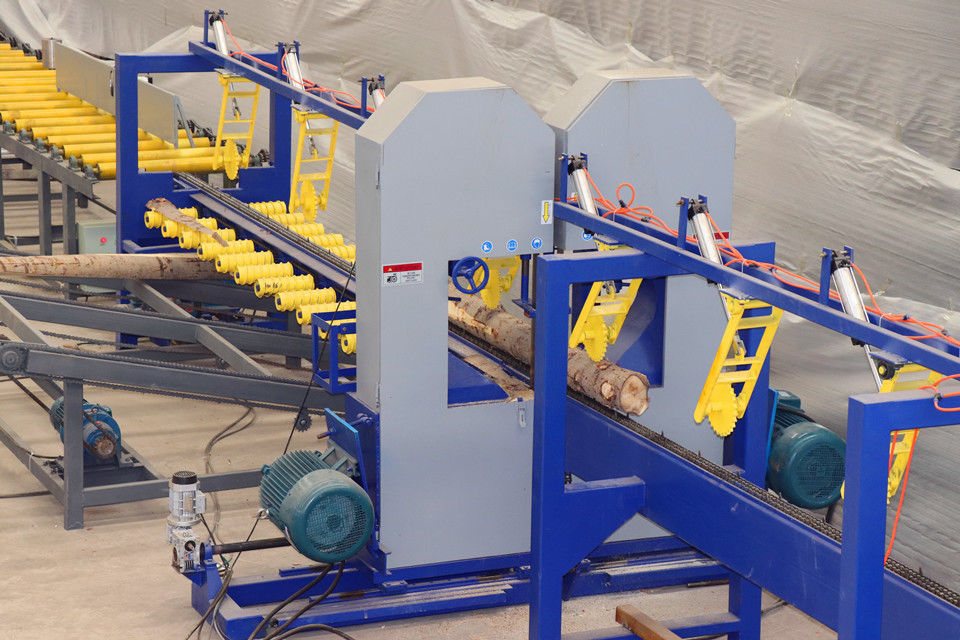

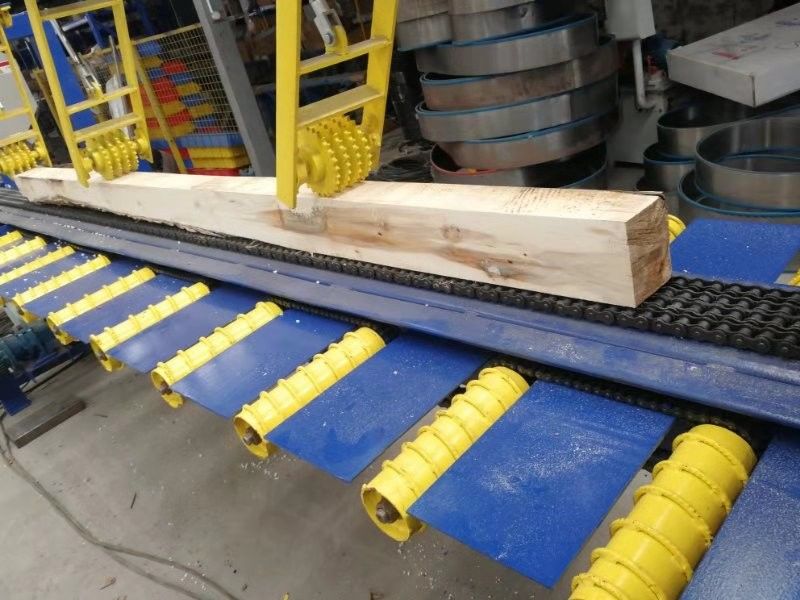

Photos


Industrial Wood Saw Machine Double Cutting Vertical Bandsaw Equipment 0Industrial Wood Saw Machine Double Cutting Vertical Bandsaw Equipment 1Industrial Wood Saw Machine Double Cutting Vertical Bandsaw Equipment 2
