Portable Horizontal Band Sawmill (Electric Model )
Portable horizontal band saw which is easy to install and operate. Finished with Carbide band saw blade for hard wood cutting . The sawing kerf is small, reduce the waste to high output.
The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .
Horizontal Portable Band Sawmill With Electric Motor
Specifications: | ||||
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
Lifting Motor Power |
1.1KW | 1.1KW | 1.1KW | 1.1KW |
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |

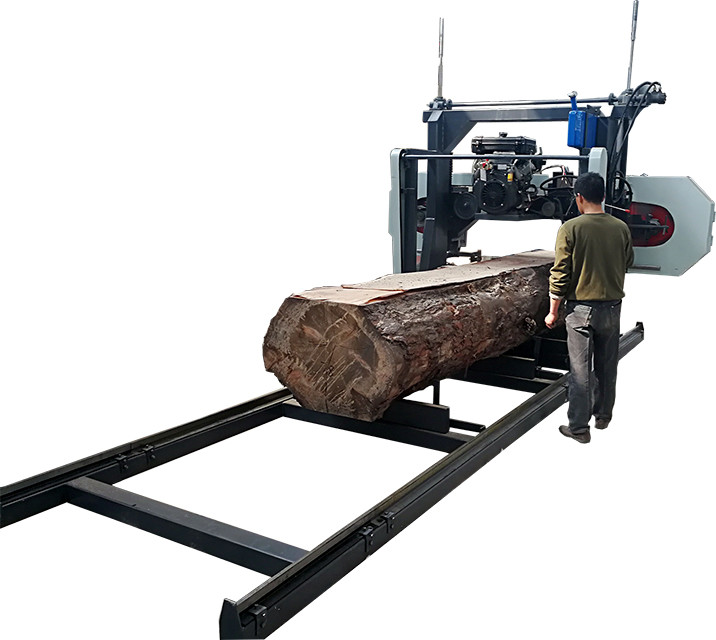

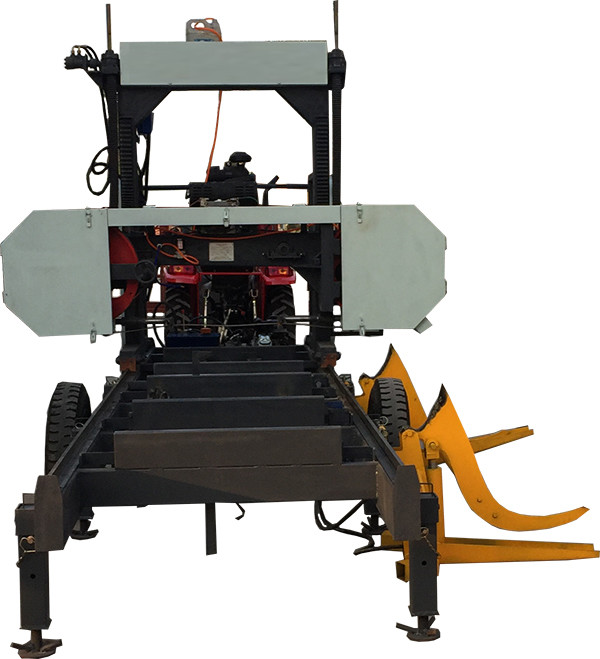

Portable Horizontal Band Sawmill (Diesel Model )
Portable horizontal band saw is our patent product. It equiped with diesel engine or gasoline engine . Easy to install and operate, suitable for moving around and cutting the wood in the virgin forest .
Horizontal Portable Band Sawmill With Diesel Engine
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
Sawing Wood Diameter |
700MM | 1000 | 1300 | 1600 |
Saw Wheel Diameter(MM) |
600 | 700 | 700 | 700 |
Sawn Thicknes |
2-250 | 2-300 | 2-300 | 2-300 |
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
Band Saw Blade Length |
5500 | 6100 | 6600 | 7100 |
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Item | Auxiliary Equipment | ||||
1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
2 | Sand Wheel For MR1111 | ||||
3 | UN65 Flash Seal Welding Machine | ||||
4 | MR417 Roll Machine | ||||
5 | Dual Tooth Setter | ||||
6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
7 | Wood Cant Hook 48” Handle |
