MJ700D/MJ1600D Diesel Horizontal Portable Band Saw Mills Timber Sawmill

1 SET
MOQ
US $4,500 - 10,000 / set
Price
MJ700D/MJ1600D Diesel Horizontal Portable Band Saw Mills Timber Sawmill
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Warranty: 12 Months
Diesel Engine: 22HP, Electric Start, Double Cylinder
Max. Sawing Width: 700mm
Sawing Log Length: 4.5meters Or Extend Sawmill Track
Saw Walking Forward/back: Manual
Highlight:

portable band sawmill

,

portable bandsaw sawmill

,

bandsaw sawmill

Basic Infomation
Place of Origin: Shandong Province, China
Brand Name: SH
Certification: ISO9001
Model Number: MJ700D,MJ1000D,MJ1300D,MJ1600D
Payment & Shipping Terms
Packaging Details: wooden crates or iron frame packings
Delivery Time: within 20 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1500sets/year
Product Description

Portable Horizontal Band Sawmill (Electric Model )

Portable horizontal band saw which is easy to install and operate. Finished with Carbide band saw blade for hard wood cutting . The sawing kerf is small, reduce the waste to high output.

The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .



Horizontal Portable Band Sawmill With Electric Motor

Specifications:



Technical Parameter

MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

600MM 700MM 700MM 700MM



Sawn Thickness

2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

15KW 18.5KW 22KW 30KW



Lifting Motor Power

1.1KW 1.1KW 1.1KW 1.1KW



Total Weight (KG)

1100 1100 1300 1500

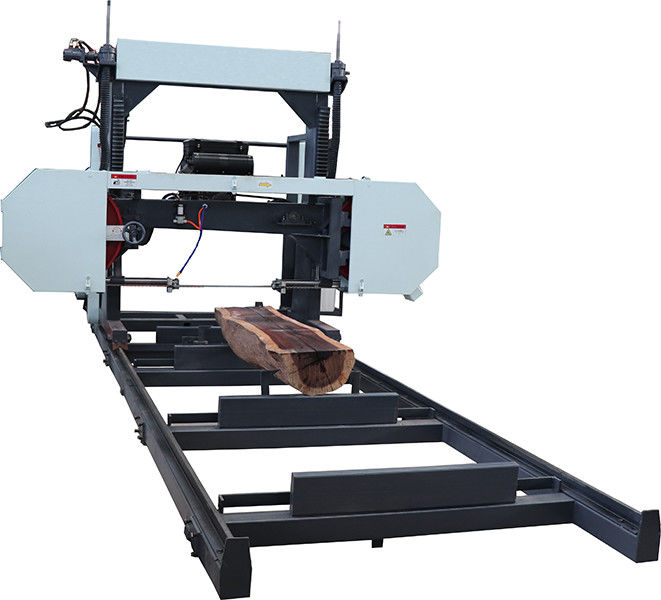

MJ700D/MJ1600D Diesel Horizontal Portable Band Saw Mills Timber Sawmill 0

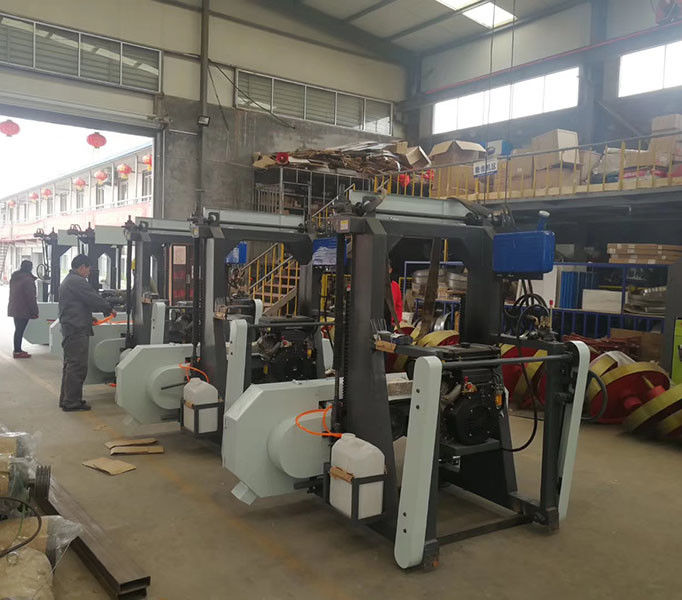

MJ700D/MJ1600D Diesel Horizontal Portable Band Saw Mills Timber Sawmill 1



Portable Horizontal Band Sawmill (Diesel Model )

Portable horizontal band saw is our patent product. It equiped with diesel engine or gasoline engine . Easy to install and operate, suitable for moving around and cutting the wood in the virgin forest .



Horizontal Portable Band Sawmill With Diesel Engine



Technical Parameter

MJ700P MJ1000D MJ1300D MJ1600D



Sawing Wood Diameter

700MM 1000 1300 1600



Saw Wheel Diameter(MM)

600 700 700 700



Sawn Thicknes

2-250 2-300 2-300 2-300



Sawing Wood Length (MM)

1300-4500 1300-4500 1300-4500 1300-4500



Engine

22HP Petrol 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

5500 6100 6600 7100



Machine Length(MM)

5800 5800 5800 5800



Total Weight (KG)

1100 1100 1300 1500

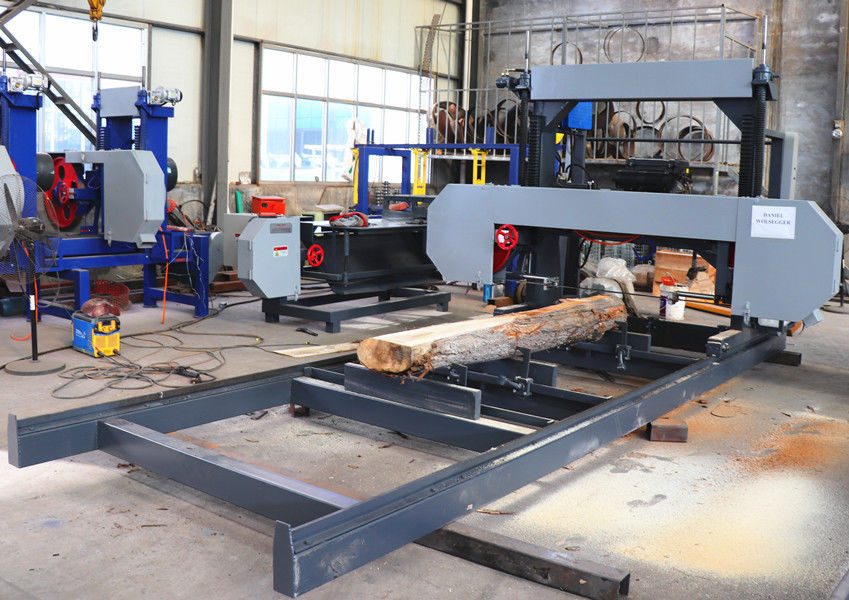

MJ700D/MJ1600D Diesel Horizontal Portable Band Saw Mills Timber Sawmill 2

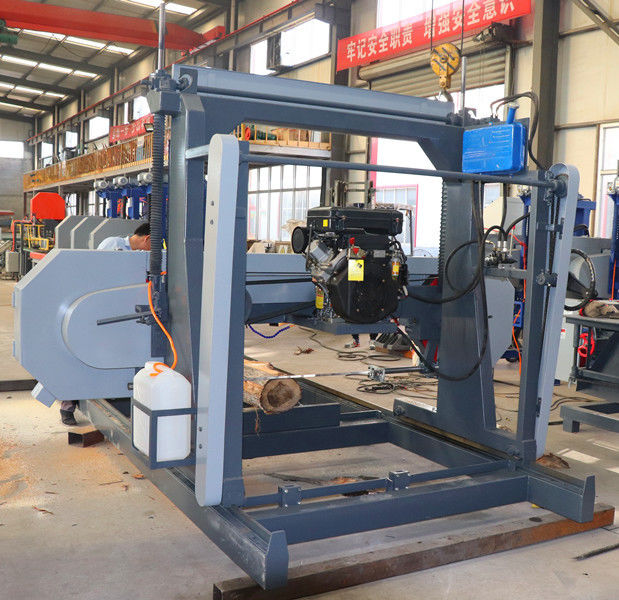

MJ700D/MJ1600D Diesel Horizontal Portable Band Saw Mills Timber Sawmill 3

Auxiliary Parts Optional :

Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle
