Portable Wood Sawmill Band Saw, Wood Working Band Saw Mills, Log Cutting Machine

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number MJ700,MJ1000,MJ1300,MJ1600
Minimum Order Quantity 1 SET
Price US $4,200 - 19,000 / set
Packaging Details iron frame pallet or film wrapped packings
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Portable Sawmill
Use Woodworking Application Cutting Logs Into Planks/lumber
Warranty 12 Months Engine Diesel / Petrol Engine, Electric Start
Bandsaw Blade 75mm Width Saw Head Walking Hydraulic Lifting Up/down
High Light

portable band sawmill

,

portable bandsaw sawmill

,

bandsaw sawmill

Leave a Message
Product Description

Working video link of computer band sawmill : https://youtu.be/GUfHEweLRbM

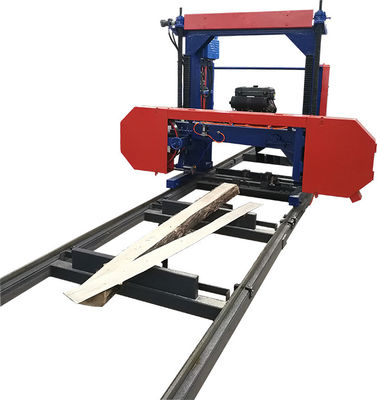

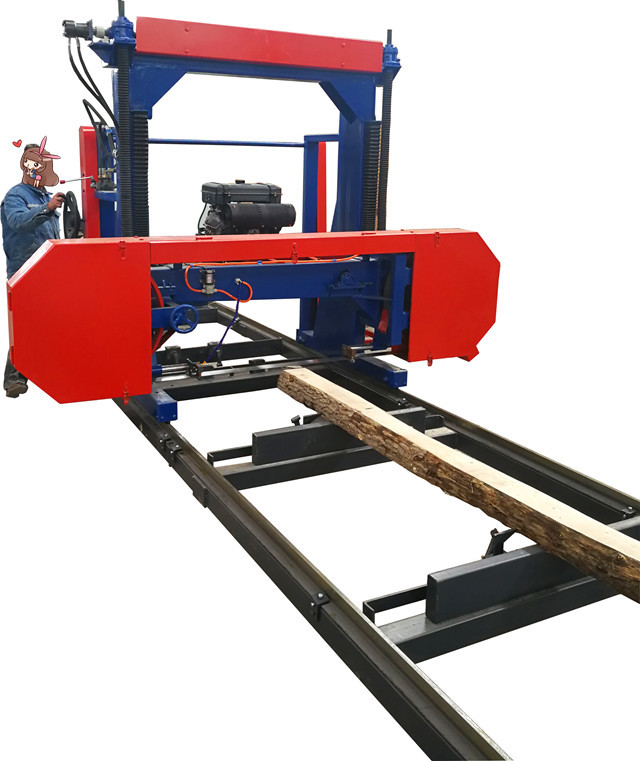

Portable Horizontal Band Sawmill (Electric Model )

Portable horizontal band saw which is easy to install and operate. Finished with Carbide band saw blade for hard wood cutting . The sawing kerf is small, reduce the waste to high output.

The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .



Horizontal Portable Band Sawmill With Electric Motor

Specifications:



Technical Parameter

MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

600MM 700MM 700MM 700MM



Sawn Thickness

2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

15KW 18.5KW 22KW 30KW



Lifting Motor Power

1.1KW 1.1KW 1.1KW 1.1KW



Total Weight (KG)

1100 1100 1300 1500



Portable Wood Sawmill Band Saw, Wood Working Band Saw Mills, Log Cutting Machine 0

Portable Wood Sawmill Band Saw, Wood Working Band Saw Mills, Log Cutting Machine 1

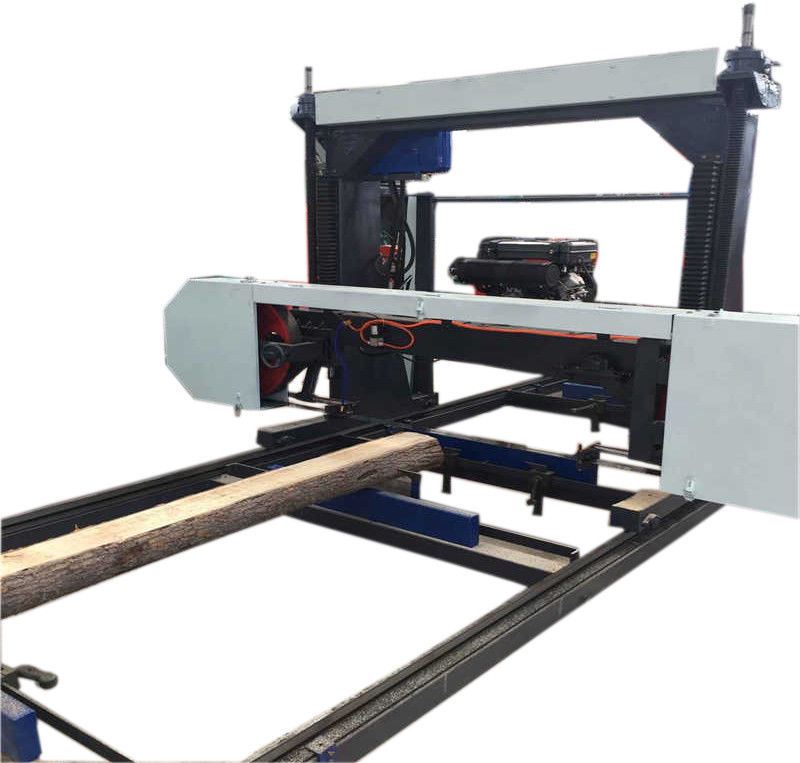

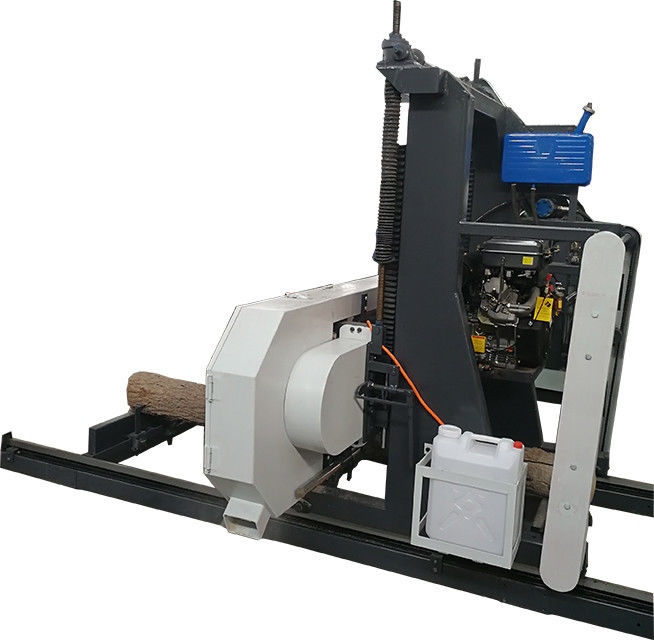

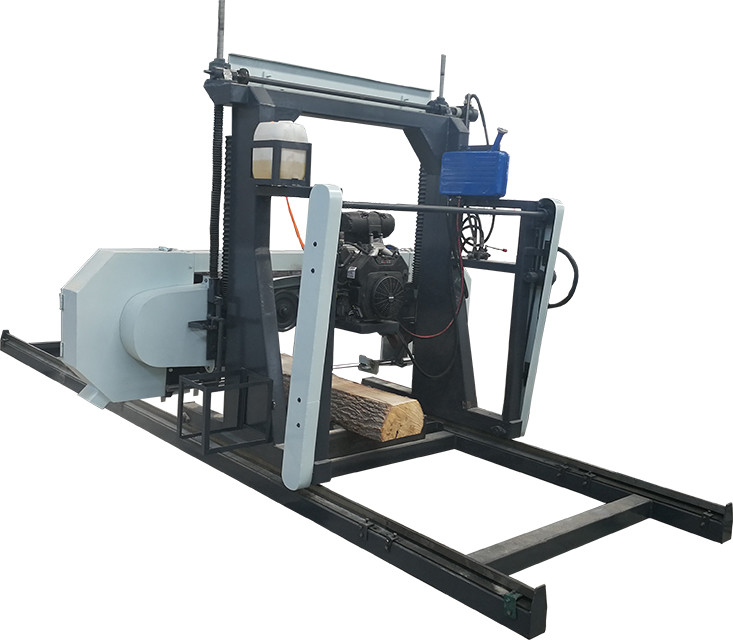

Portable Horizontal Band Sawmill (Diesel Model )

Portable horizontal band saw is our patent product. It equiped with diesel engine or gasoline engine . Easy to install and operate, suitable for moving around and cutting the wood in the virgin forest .



Horizontal Portable Band Sawmill With Diesel Engine



Technical Parameter

MJ700P MJ1000D MJ1300D MJ1600D



Sawing Wood Diameter

700MM 1000 1300 1600



Saw Wheel Diameter(MM)

600 700 700 700



Sawn Thicknes

2-250 2-300 2-300 2-300



Sawing Wood Length (MM)

1300-4500 1300-4500 1300-4500 1300-4500



Engine

22HP Petrol 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

5500 6100 6600 7100



Machine Length(MM)

5800 5800 5800 5800



Total Weight (KG)

1100 1100 1300 1500

Portable Wood Sawmill Band Saw, Wood Working Band Saw Mills, Log Cutting Machine 2Portable Wood Sawmill Band Saw, Wood Working Band Saw Mills, Log Cutting Machine 3





Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle















































Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle
