The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.

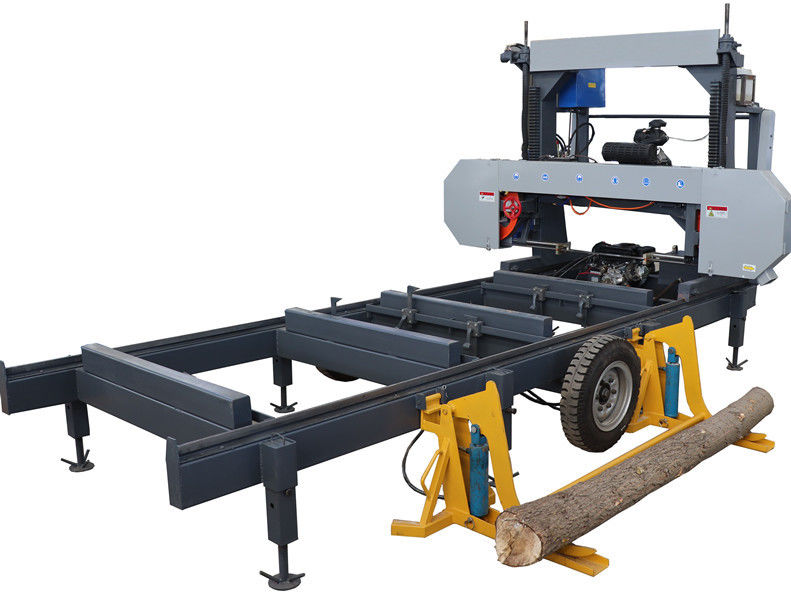

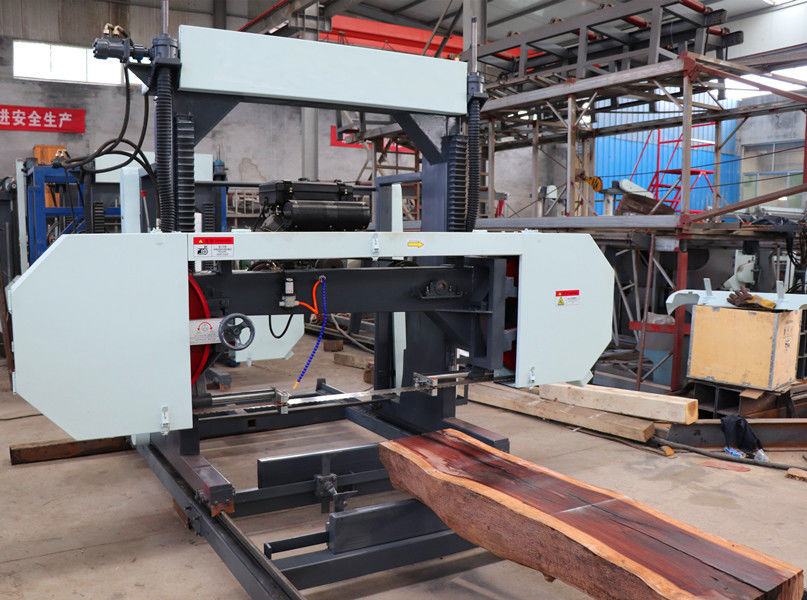

Horizontal Portable Band Sawmill With Diesel Engine
|
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
|
Sawing Wood Diameter |
700MM | 1000 | 1300 | 1600 |
|
Saw Wheel Diameter(MM) |
600 | 700 | 700 | 700 |
|
Sawn Thicknes |
2-250 | 2-300 | 2-300 | 2-300 |
|
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
|
Band Saw Blade Length |
5500 | 6100 | 6600 | 7100 |
|
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
|

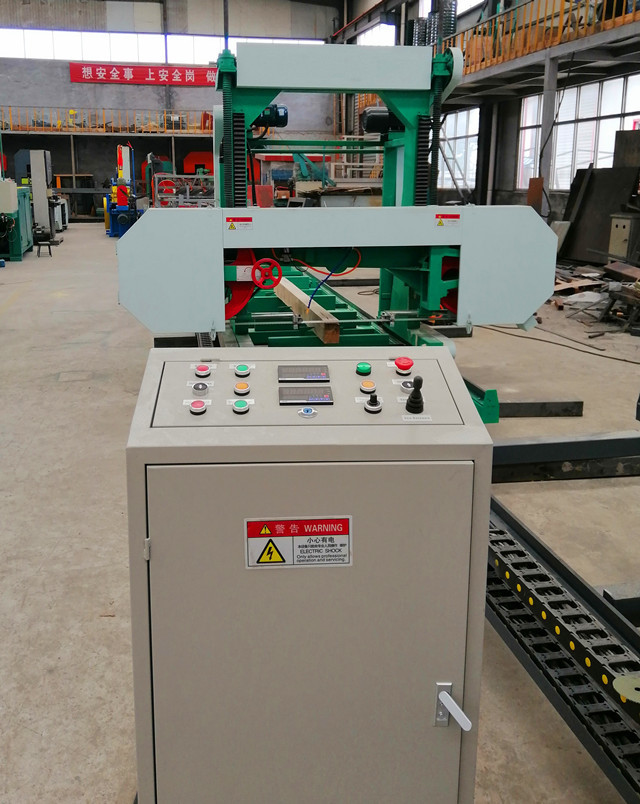

PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL |
||||
|
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.1KW | 1.1KW | 1.1KW | 1.1KW |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
