Place of Origin: | Shandong Province, China |
---|---|
Brand Name: | SH |
Certification: | ISO9001 |
Model Number: | 1, 2, 3, 4, 5, 6 heads, etc |
Minimum Order Quantity: | 1 SET |
Price: | USD10,000 ~USD30,000/ Set |
Packaging Details: | container loading |
Delivery Time: | within 25 days |
Payment Terms: | T/T or L/C at sight, Western Union |
Supply Ability: | 1000 Sets/year |

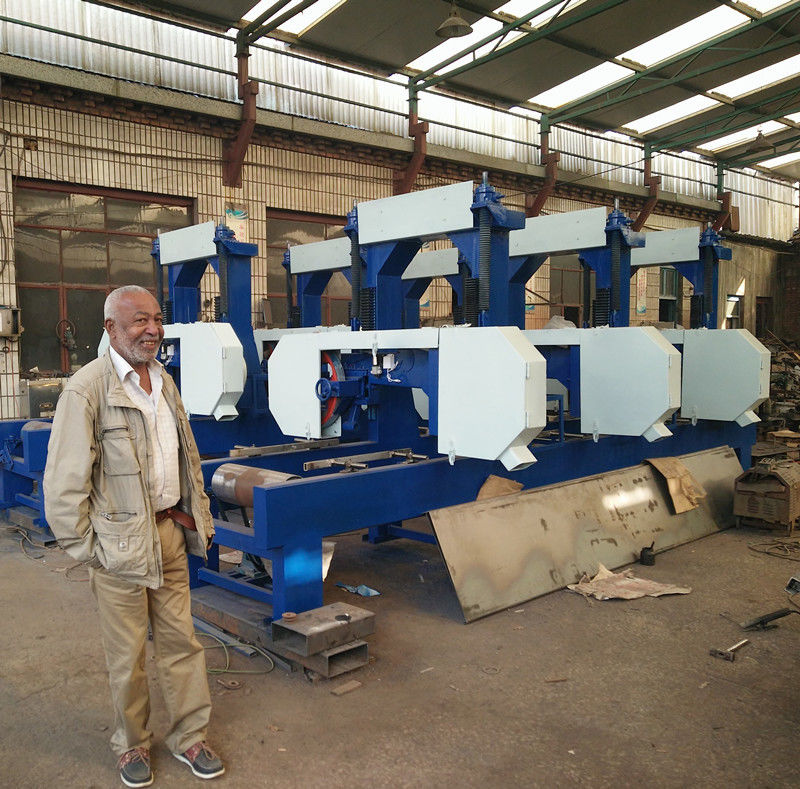

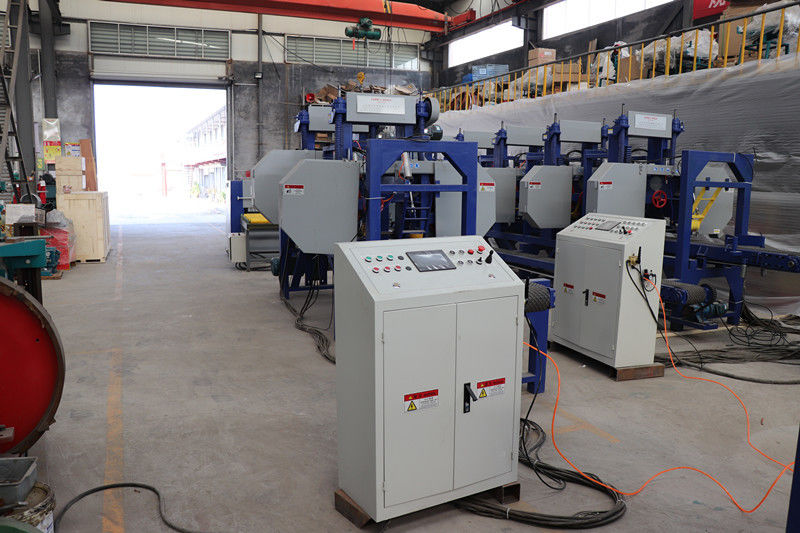

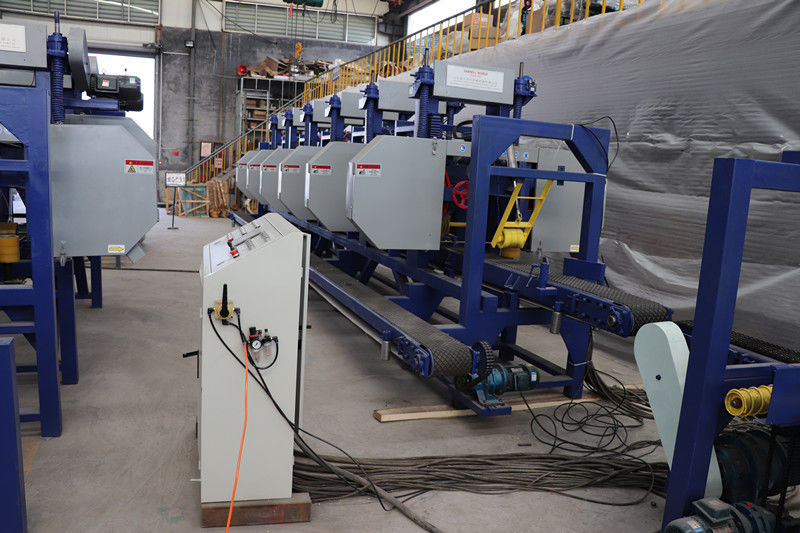

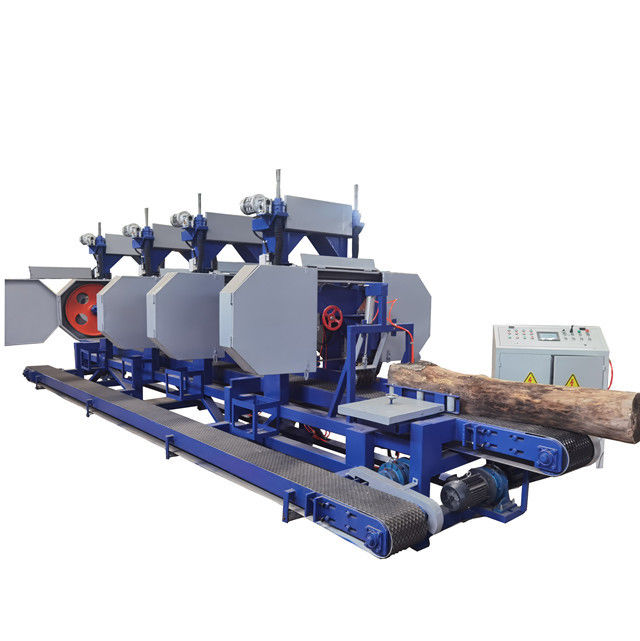

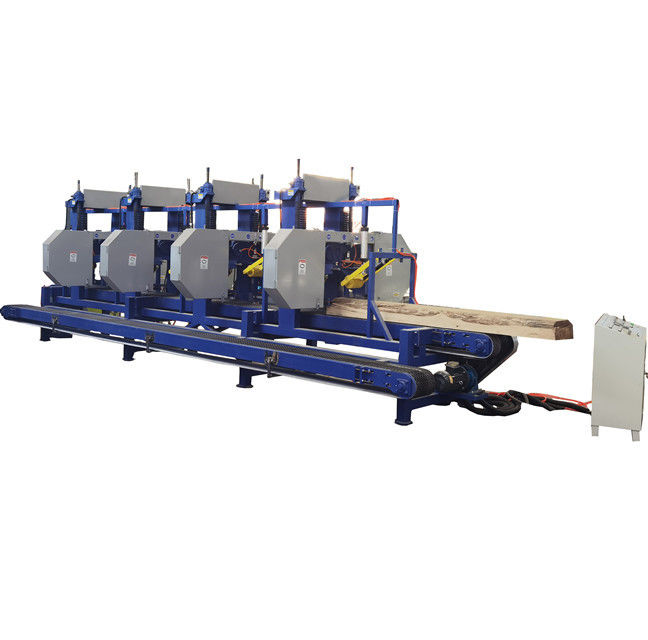

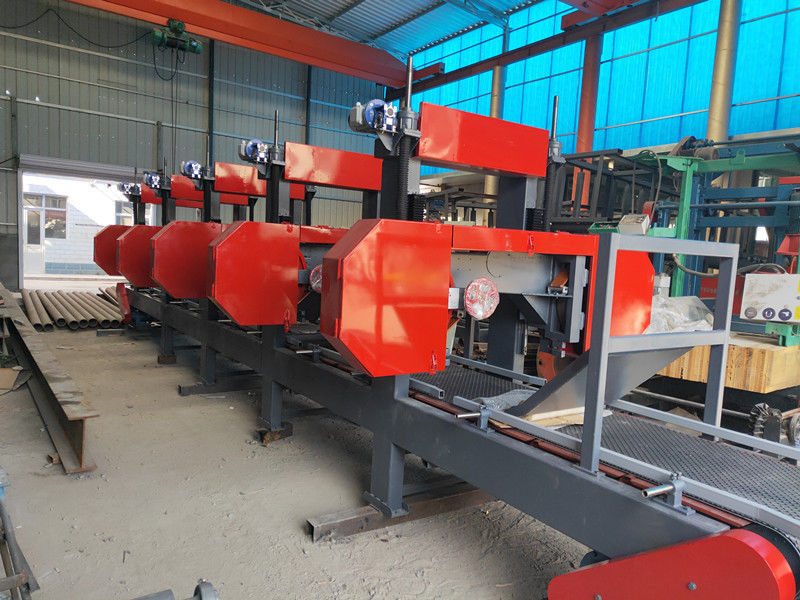

Name: | Multiple Head Horizontal Band Resaw Machine | Condition: | New |
---|---|---|---|
Sawing Max. Width: | 300mm To 600mm As Customized | Operation: | CNC Digital |
Voltage: | 380V/50HZ/3PH | Application Wood: | Hardwood / Softwood |
Applicable Industries: | Manufacturing Plant,woodworking | Warranty: | 12 Months |
Highlight: | horizontal band sawmill for wood logs,industrial timber cutting machine,multiple heads wood sawmill |
This machine is invented by our company.It is easy-operated,high efficiency and easy-installed.
The head quantity is given option from one to six .The user will get multi board at one time to improve the efficiency.
Main Features:
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
Feeding | Variable frequency speed adjustable conveyor | ||||
Operation | Touching screen auto setworks for sawn thickness |
