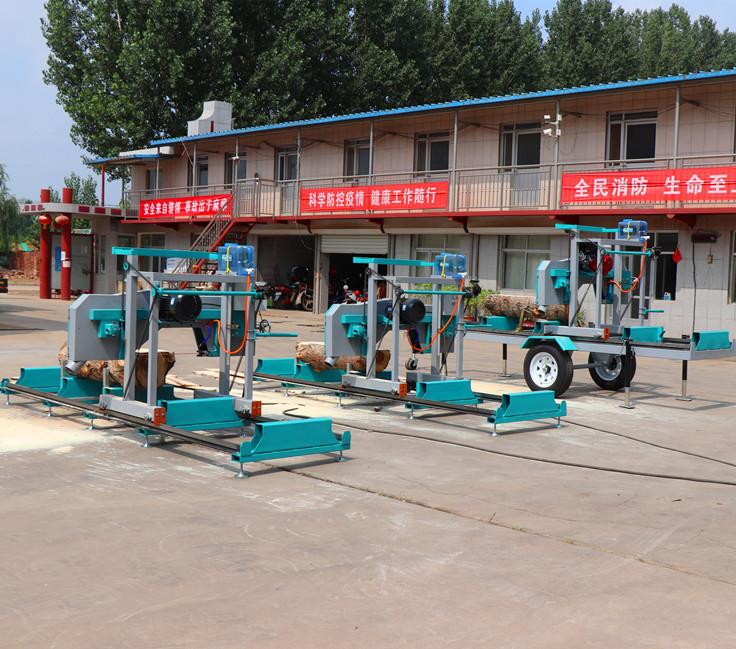

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking

Place of Origin Shandong Province, China
Brand Name SH
Certification ISO9001
Model Number SW26G, SW26E, SW31, SW36, MJ1000 MJ1300 MJ1600
Minimum Order Quantity 1 SET
Price US $2,188 - 12,200 / Set
Packaging Details iron frame pallet or film wrapped packings
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1500sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 26''/ 36'' Wood Portable Sawmill Use Woodworking
Warranty 12 Months Application Cutting Soft/hard Log
Voltage 380V/3phase/50HZ Or As Customer Needs Power(W) 7.5kw Electric Motor OR 9HP Petrol Engine
Band Wheel Diameter 480mm Max. Sawing Log Diameter 26'' Or 660mm
Blade Size 1.07mm X 35mm X 3750mm Or 0.9mm X 35mm X 3750mm Weight 500KG
Other We Can Customize Machine According To Customer Needs
High Light

SW26 Diesel Portable Sawmill

,

SW26 36 inch bandsaw mill

,

26 inch sawmill Woodworking

Leave a Message
Product Description

Cheap Mini Wood Sawmill Machine,Wood Cutting Band Sawmill,Diesel Portable Sawmill

SW26 Sawmill

  • Simple- Compact -Convenient
  • Reach your sawing petential with a tibery SW26 personal sawmill
  • The SW26 has a sleek design and all the great features of more expensive sawmill, including ceramic blade guides, quick-set log rests, and hand crank head adjustment.
  • The lightweight head and adjustable bed provide a variety of travel and storage options.

Technical Specifications:

Model SW26G SW26E
Power
Gasoline Egnine 9HP,
Manual start
Electric motor , 7.5kw
Max.sawing log diameter 26'' or 660mm 26'' or 660mm
Standard sawing wood length 3000mm or 118'' 3000mm or 118''
Saw wheel diameter 480mm 480mm
Blade size 1.07 or 0.9mm x35x3750mm 1.07 or 0.9mm x 35x3750mm
Machine length 4000mm or 157'' 4000mm or 157''
Feeding system manually push manually push
Weight 500kg 500kg

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 0SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 1

SW31 Sawmill

SW31 Model SW31G SW31E
Power

Gasoline Engine 15 PH

(LONCIN, Manual start)

Electric Motor

7.5KW

Max Sawing Wood Diameter 780mm(31”)
Standard Sawing Wood Length 3000mm(118”)
Saw Wheel Diameter 480mm(18.9”)
Blade size 4070 x 35x 0.9 mm
Machine Length 4000mm(157”)
Weight 500KG

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 2



SW36 Sawmill

SW36 Model SW36G SW36E
Power

Gasoline Engine 15 PH

(LONCIN, Manual start)

Electric Motor

11KW

Max Sawing Wood Diameter 900mm(36”)
Standard Sawing Wood Length 4000mm(118”)
Saw Wheel Diameter 600mm(18.9”)
Blade size 4100 x 35x 0.9 mm
Machine Length 5000mm(196”)
Weight 700KG



SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 3

Optional - extended sawmill track

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 4

Optional - log loading

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 5

Sawing effect

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 6

Optional - blade sharpener

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 7

Diesel Engine Powered Horizontal Portable Band Sawmill



Technical Parameter

MJ700D MJ1000D MJ1300D MJ1600D



Sawing Wood Diameter

700MM 1000 1300 1600



Saw Wheel Diameter(MM)

700 700 700 700



Sawing Wood Thicknes

10-200 10-300 10-300 10-300



Sawing Wood Length (MM)

1300-4500 1300-4500 1300-4500 1300-4500



Engine

22HP Diesel 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

5500 6100 6600 7100



Machine Length(MM)

5800 5800 5800 5800



Total Weight (KG)

1100 1100 1300 1500

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 8SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 9





Electric Powered Portable Horizontal Band Sawmill ​



Technical Parameter

MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

600MM 700MM 700MM 700MM



Sawing Wood Thickness

10-200MM 10-300MM 10-300MM 10-300MM



Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

15KW 18.5KW 22KW 30KW



Lifting Motor Power

1.5KW 1.5KW 1.5KW 1.5KW



Total Weight (KG)

1100 1100 1300 1500

SW26 Diesel Portable Sawmill 26 Inch 36 Inch Bandsaw Mill Woodworking 10





Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle
