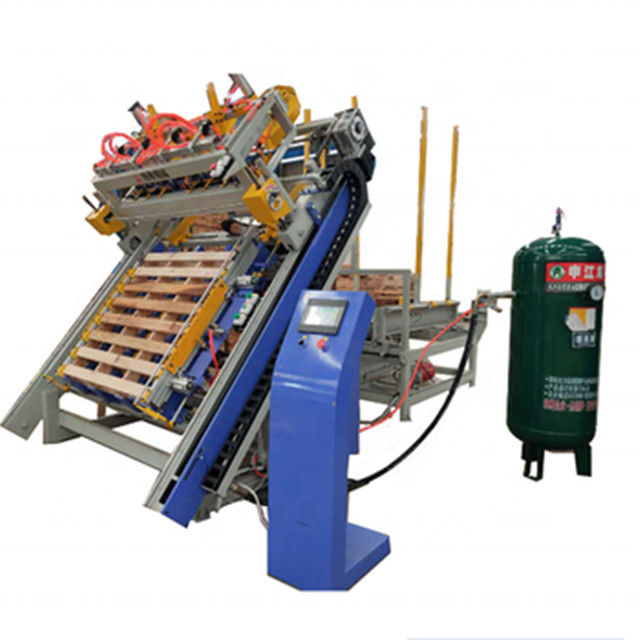

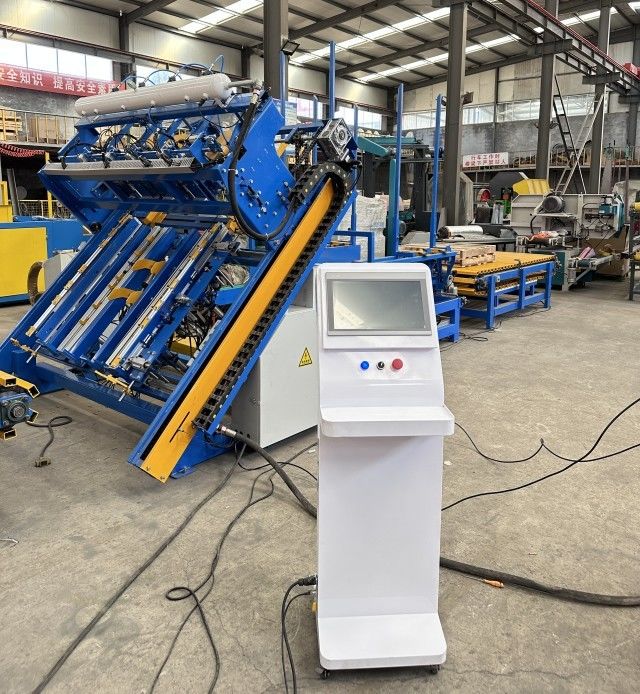

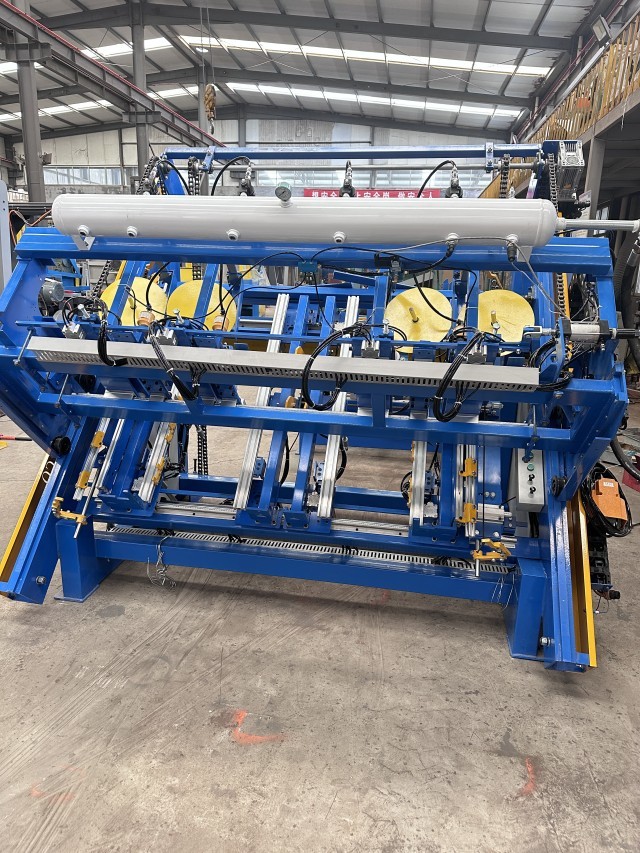

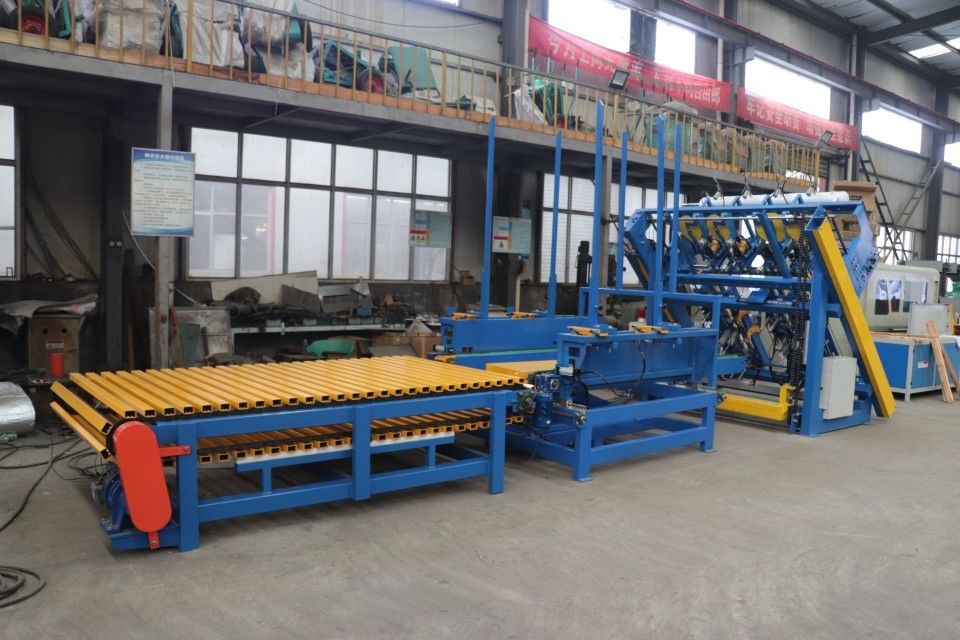

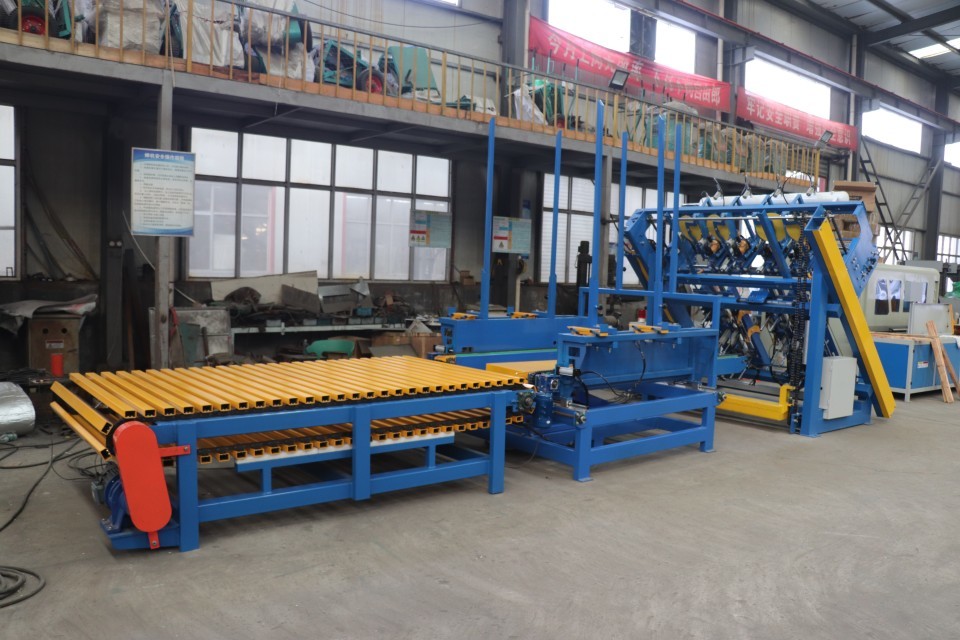

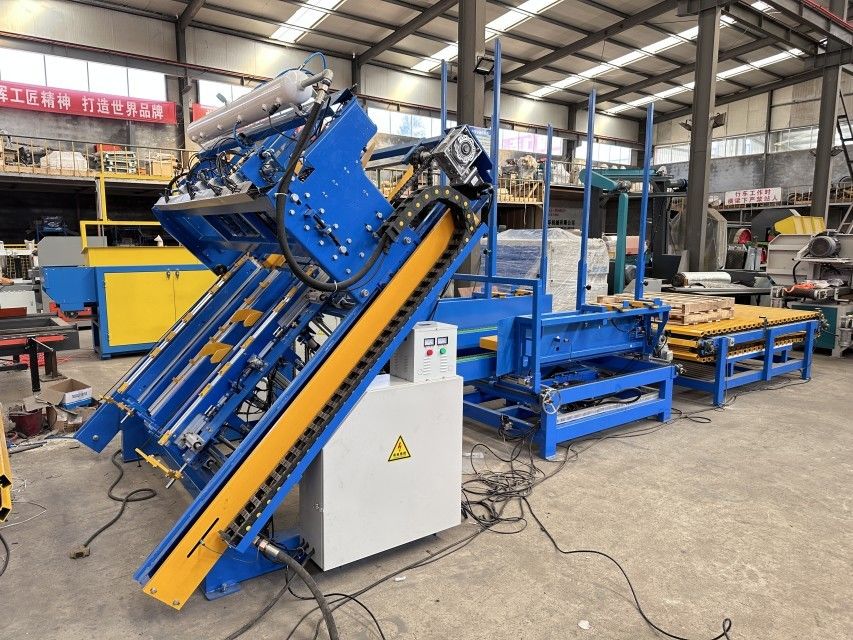

Automatic Wood Pallet Nailing Machine with Automatic palletizer
-- USA and National Style Wooden Pallets
Model | AWPN-1300 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1300mm |
Working mode | Automatic feeding and stacking |
Operation mode | Touch screen |
Operational mode | Pneumatic operation |
Voltage and power | 220V/ 2kw Servo motor |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Weight | 2000kg |
Related Products
Pallet Notcher
Model | WPN-1 | WPN-2 |
Power | 15kw | 30kw |
Material of knife | Alloy | Alloy |
Capacity | 600-800pics/h | 1800pics/h |
Processing size | Wood pallet length: max 1800mm | Wood pallet length: max 1400mm |
Wood pallet width: 160mm | Wood pallet width: max 90mm | |
Wood pallet thickness:40-60mm | Wood pallet thickness: 40-60mm | |
Slot depth: <45mm | Slot depth: <45mm | |
Slot width: 200-230mm | Slot width: 200-230mm | |
Machine size | 1200*1100*1200mm | 2300*1300*1300mm |
Machine wight | 400kg | 1000kg |
Feature | Slot smooth, size consistent | |
Apply for many kinds of slots, also can customized. |
Semi-Automatic wooden pallet nailing machine
Model | AWPN-1500 |
Wood pallet length | 600-1300mm |
Wood pallet width | 800-1700mm |
Feeding mode | Hand pull |
Palletizing mode | Automatic |
Operational mode | Pneumatic operation |
Voltage | 380V,480V or other |
Air pressure | 0.8MPA |
Tank size | 0.2 cubic |
Nail gun speed | 7 times /second. |
Production efficiency | 1-2pcs /min |
Apply a nail | Less than 90mm |
Number of nail guns | 3P OR 4P |
Palletizing quantity | 10P |
Weight | 2000kg |
Manual American Wood Pallet Nailing Table
Model | PT-1600 | PT-3300 |
Wood pallet length | 600-1300mm | 700-1500mm |
Wood pallet width | 800-1600mm | 900-3300mm |
Operational mode | Pneumatic operation | Pneumatic operation |
Air pressure | 0.8MPA | 0.8MPA |
Production efficiency | 30-40pcs /h | 30-40pcs /h |
Number of beams | 3p (customized) | 5p (customized) |
Number of nail guns |
2P (CN70,CN55) American Stanley staple gun |
2P (CN70,CN55) American Stanley staple gun |
Weight | 650kg | 950kg |
Size | 2400*980*1900mm | 4000*980*1900mm |
Automatic Euro Wood Pallet Nailing Machine
