China made diesel portable sawmill ,wood timber harvester band sawmill with gas motor

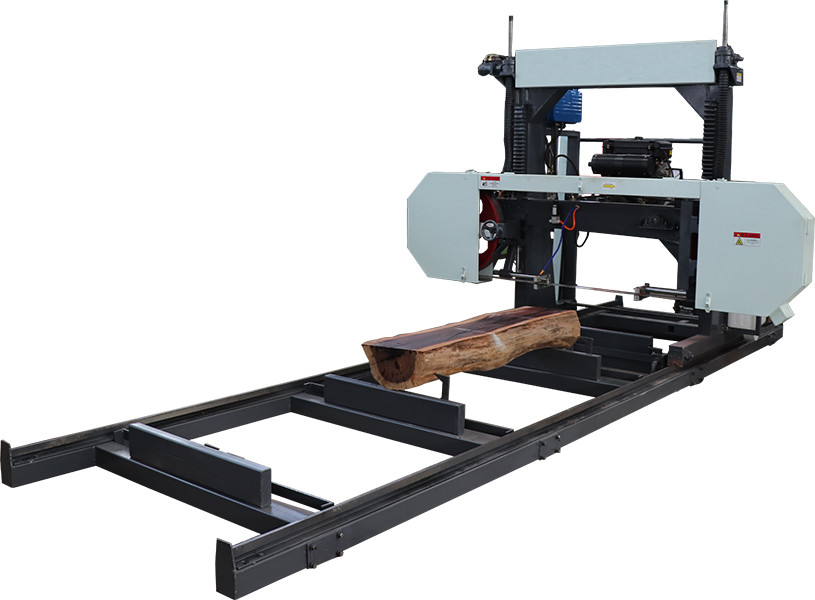

Portable Horizontal Band Sawmill (Diesel Model )
Portable horizontal band saw is our patent product. It equiped with diesel engine or gasoline engine . Easy to install and operate, suitable for moving around and cutting the wood in the virgin forest .
Horizontal Portable Band Sawmill With Diesel Engine
|
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
|
Sawing Wood Diameter |
700MM | 1000 | 1300 | 1600 |
|
Saw Wheel Diameter(MM) |
600 | 700 | 700 | 700 |
|
Sawn Thicknes |
2-250 | 2-300 | 2-300 | 2-300 |
|
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
|
Band Saw Blade Length |
5500 | 6100 | 6600 | 7100 |
|
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Diesel Type Mobile Usage

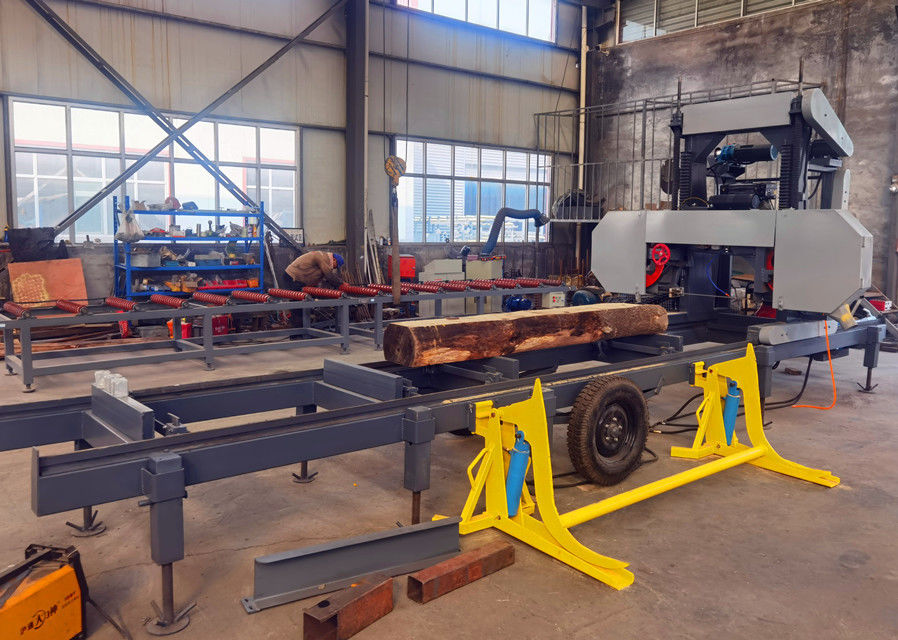

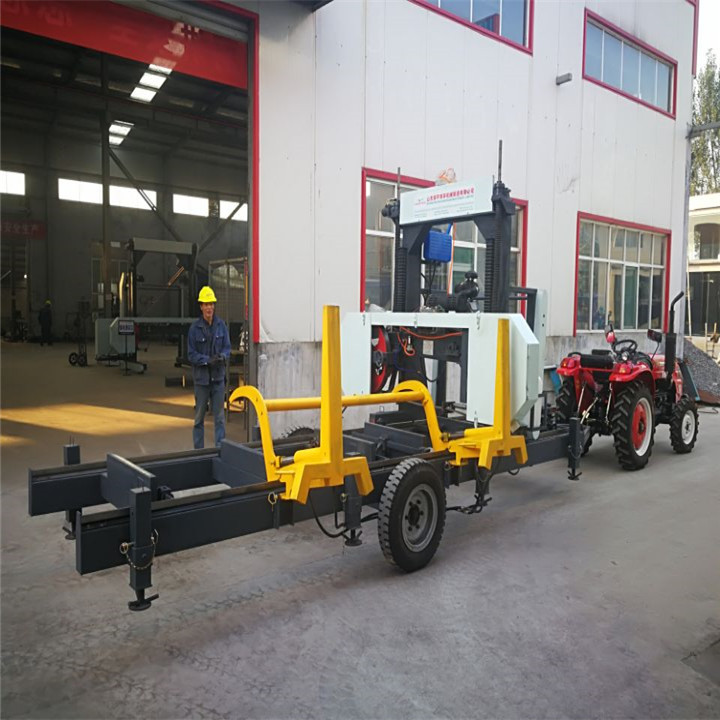

Diesel Type Mobile Usage with Hydraulic log loading arm
Related Products
Electrical type Portable Sawmill
| PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL | ||||
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
Sawing Wood Thickness |
10-200MM | 10-300MM | 10-300MM | 10-300MM |
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
Lifting Motor Power |
1.1KW | 1.1KW | 1.1KW | 1.1KW |
Total Weight (KG) |
600 | 1100 | 1300 | 1500 |
CNC Automatic Type
Hydraulic Automatic Sawmill
| Item | Auxiliary Equipment | ||||
| 1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
| 2 | Sand Wheel For MR1111 | ||||
| 3 | UN65 Flash Seal Welding Machine | ||||
| 4 | MR417 Roll Machine | ||||
| 5 | Dual Tooth Setter | ||||
| 6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
| USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
| 7 | Wood Cant Hook 48” Handle | ||||
