SW26 Mini Sawmill, Ultra portable Saw Machines with cant hook optional

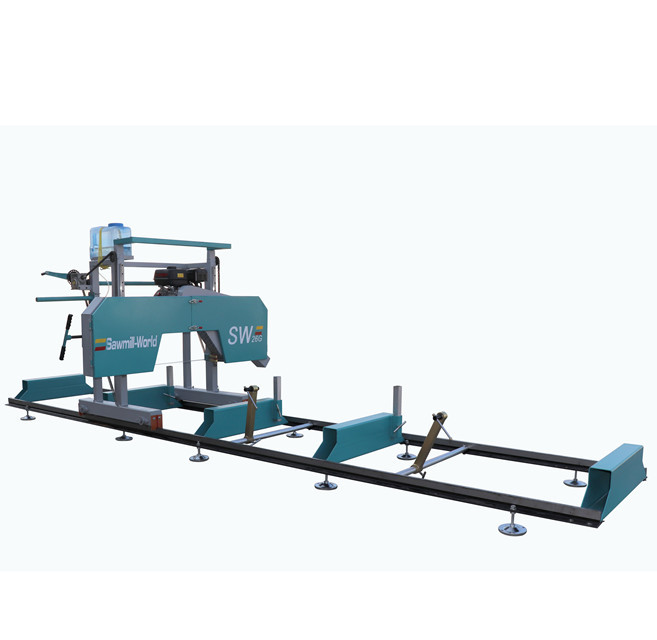

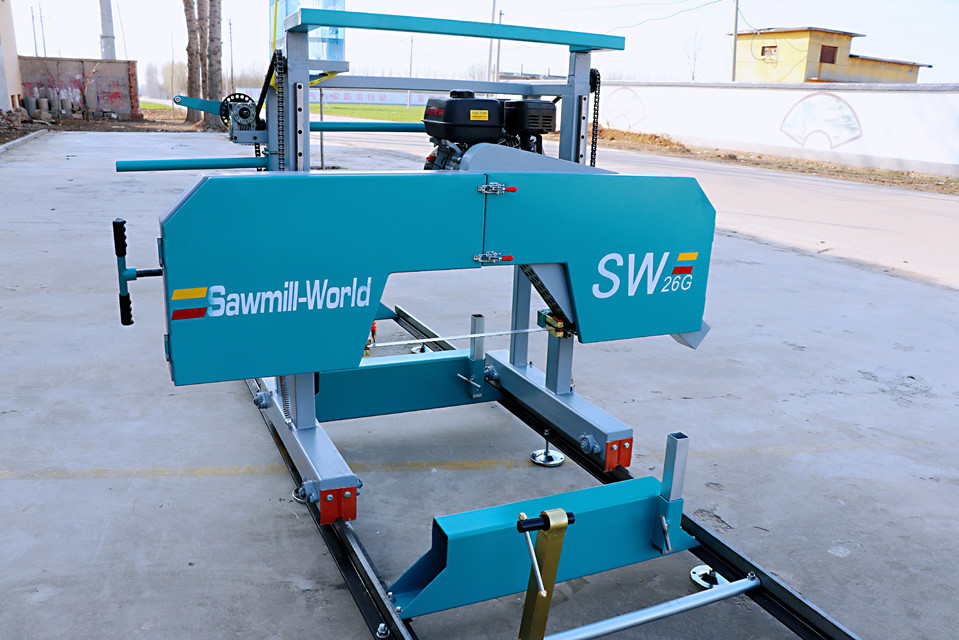

SW26 Sawmill
Technical Specifications:
| Model | SW26G | SW26E |
| Power |
Gasoline Egnine 9HP,
Manual start
|
Electric motor , 7.5kw |
| Max.sawing log diameter | 26'' or 660mm | 26'' or 660mm |
| Standard sawing wood length | 3000mm or 118'' | 3000mm or 118'' |
| Saw wheel diameter | 480mm | 480mm |
| Blade size | 1.07 or 0.9mm x35x3750mm | 1.07 or 0.9mm x 35x3750mm |
| Machine length | 4000mm or 157'' | 4000mm or 157'' |
| Feeding system | manually push | manually push |
| Weight | 500kg | 500kg |
SW31 Sawmill
| Model | SW31G | SW31E |
| Cutting max. diameter | 31'' or 780mm | 31'' or 780mm |
| Band wheel diameter | 480mm | 480mm |
| Sawn lumber thickness | 10-200mm | 10-200mm |
| Cutting max. length | 3000mm or 10feet | 3000mm or 10feet |
| Engine motor | 15HP Petrol | Electric motor 7.5KW |
| Tension blade mode | manual | manual |
| Blade size | 4070 x 35x 0.9 mm | |
| Machine length | 4000mm OR 157'' | 4000mm OR 157'' |
| Total weight | 500kg | 500kg |
Optional part for SW31 Sawmill
| Rail Extending |

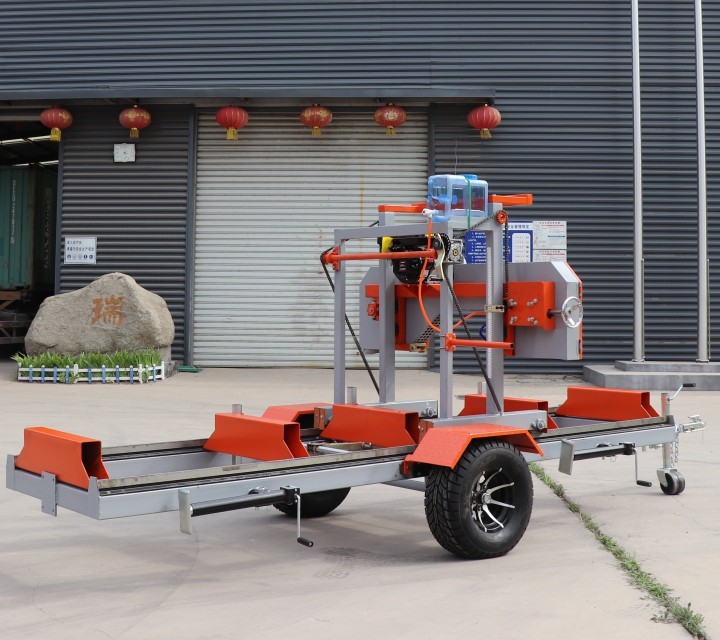

| Mobile trailer -- Wheels + lifting legs |
| Rail extending for mobile trailer type |
| Honda gas engine 13HP, manual start |
| Carbide bandsaw blade 4050*35*0.9 |
| USA Bimetal bandsaw blade 4080*34*1.1 |
SW36 Sawmill
| Model | SW36G | SW36E |
|
Power |
Gasoline Engine 15 PH (LONCIN, Manual start) |
Electric Motor 11KW |
|
Max Sawing Wood Diameter |
900mm(36”) | |
| Standard Sawing Wood Length | 4000mm(118”) | |
| Saw Wheel Diameter | 600mm(18.9”) | |
| Blade size | 4100 x 35x 0.9 mm | |
| Machine Length | 5000mm(196”) | |
| Weight | 700KG | |
