Ultra portable horizontal band sawmill, smooth finishing, easy to move around, suitable to cut wood for the farm owners and DIY woodworking .

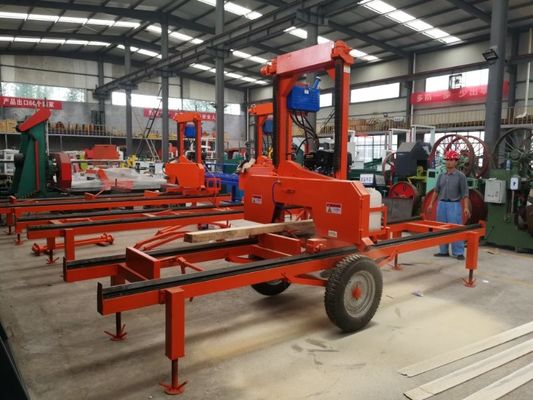

SH24 Small Portable Wood Horizontal Band Sawmill
Specifications: | SH24P | SH24D | SH24E |
Cutting maximum diameter | 600mm | 600mm | 600mm |
Band wheel diameter | 480mm | 480mm | 480mm |
Sawn maximum thickness | 150mm | 150mm | 150mm |
Width range of band saw blade | 27mm-35mm | 27-35mm | 27-35mm |
Cutting length | 4meters | 4meters | 4meters |
Motor | 15HP gasoline | 13HP diesel | 11KW electric |
Track length | 5meters | 5meters | 5meters |
Weight | 500KG | 500kg | 500kg |
Packing size | 2000mm*800mm*1800mm |
The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.
Horizontal Portable Band Sawmill With Diesel Engine
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
Sawing Wood Diameter |
700MM | 1000 | 1300 | 1600 |
Saw Wheel Diameter(MM) |
600 | 700 | 700 | 700 |
Sawn Thicknes |
2-250 | 2-300 | 2-300 | 2-300 |
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
Band Saw Blade Length |
5500 | 6100 | 6600 | 7100 |
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |

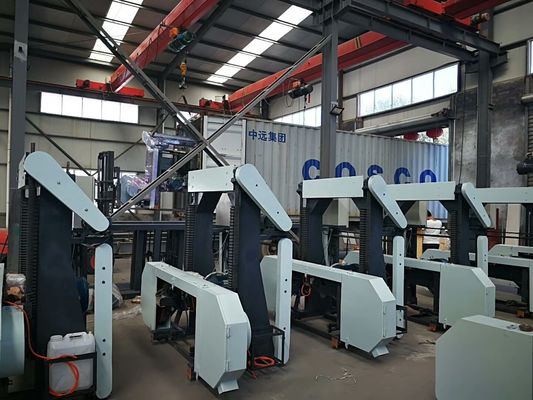

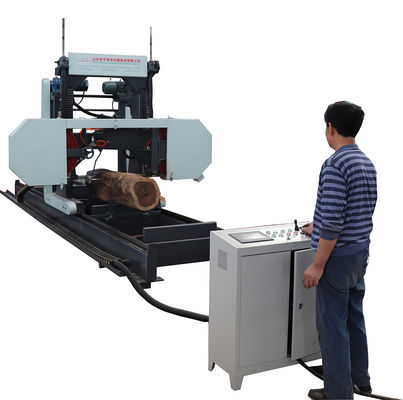

PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL |
||||
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
Lifting Motor Power |
1.1KW | 1.1KW | 1.1KW | 1.1KW |
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Item | Auxiliary Equipment | ||||
1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
2 | Sand Wheel For MR1111 | ||||
3 | UN65 Flash Seal Welding Machine | ||||
4 | MR417 Roll Machine | ||||
5 | Dual Tooth Setter | ||||
6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
7 | Wood Cant Hook 48” Handle |
