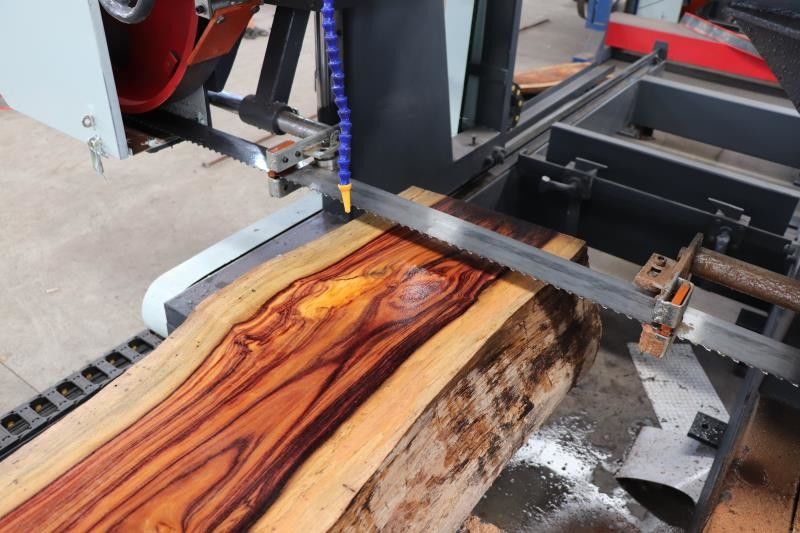

Horizontal band sawing machine saw mills for wood cutting /Portable sawmill
Place of Origin | shandong province |
---|---|
Brand Name | SH |
Certification | ISO |
Model Number | SH24, MJ700,MJ1000,MJ1300,MJ1600 |
Minimum Order Quantity | 1 SET |
Price | US $2,999 - 12,200 / Set |
Packaging Details | wooden crates or iron frame packings |
Delivery Time | within 15 days |
Payment Terms | T/T or L/C at sight, Western Union |
Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xCondition | New | Type | Band Saw |
---|---|---|---|
Use | Woodworking | Style | Horizontal |
Voltage | 380V/3phase/50HZ Or As Customer Needs | Power(W) | 7.5kw-30kw |
Warranty | 12 Month | After-sales Service Provided | Engineers Available To Service Machine Overseas |
Engine | Electric / Diesel / Petrol Engine | Control | Manual / Computer Control |
Other | We Can Customize Machine According To Customer Needs |
The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.

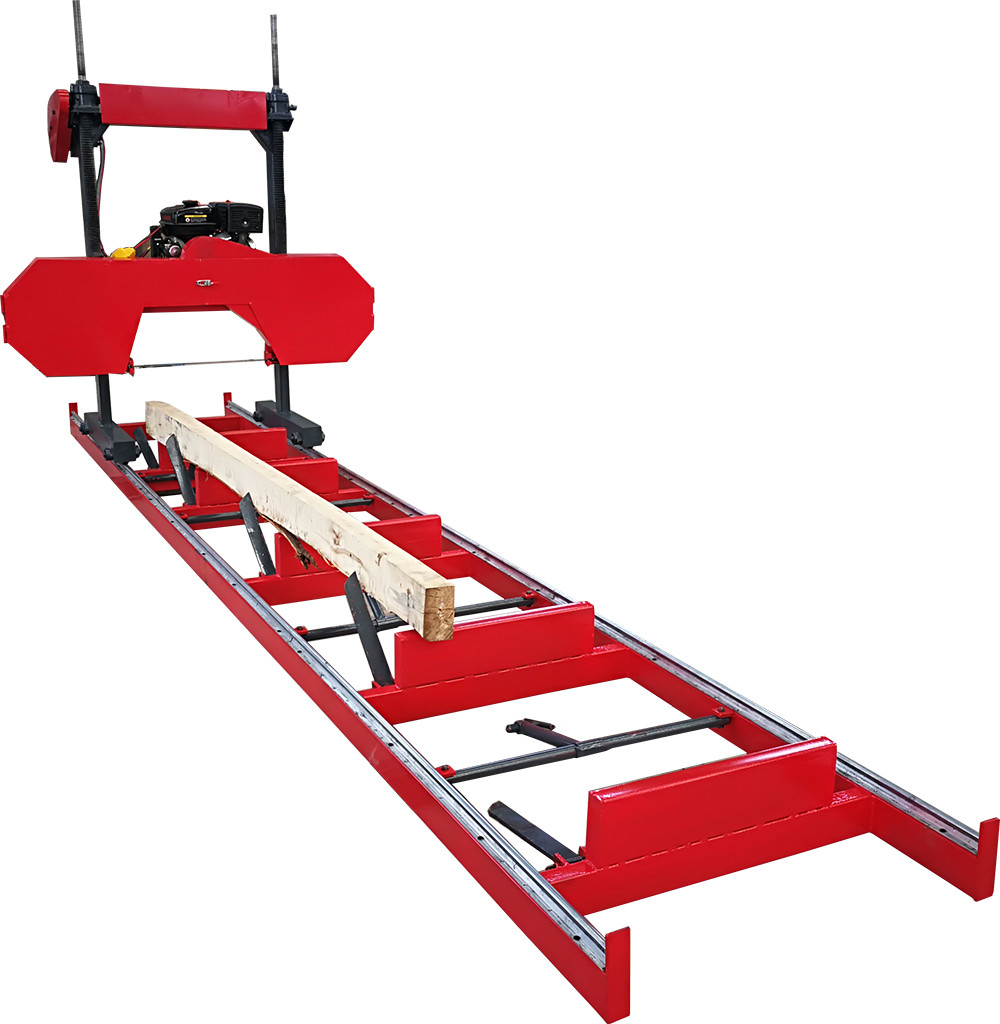

SH24 Small Portable Wood Horizontal Band Sawmill
Specifications: | SH24 |
Cutting maximum diameter | 600mm |
Band wheel diameter | 480mm |
Sawn maximum thickness | 150mm |
Width range of band saw blade | 27mm-35mm |
Cutting maximum length | 3100mm |
Motor | 15HP petrol engine or 13HP diesel engine or 11KW electric motor |
Track length | 2000mm*2 |
Weight | 300KG |
Packing size | 2000mm*800mm*1800mm |

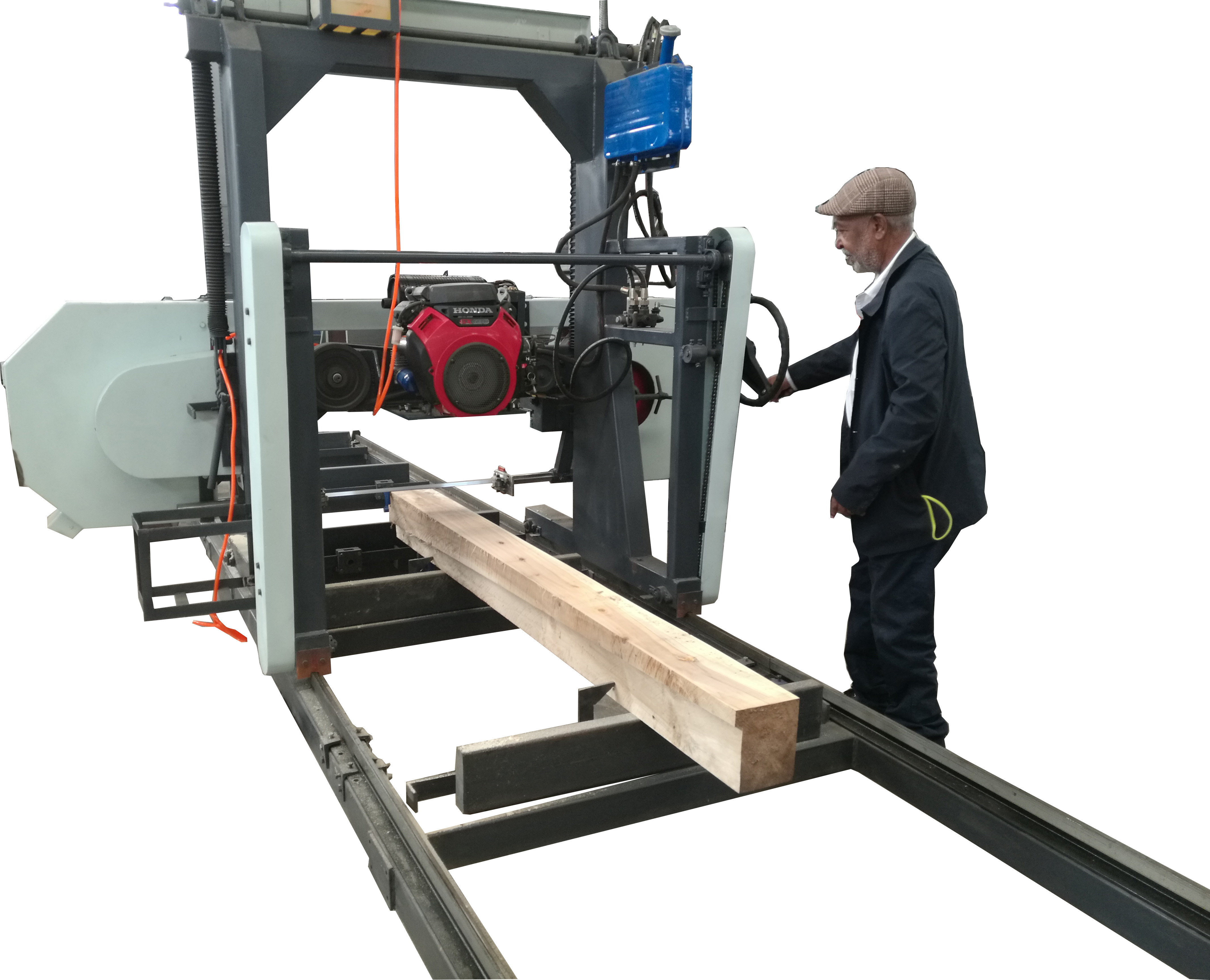

Horizontal Portable Band Sawmill With Diesel Engine
Technical Parameter |
MJ700D | MJ1000D | MJ1300D | MJ1600D |
Sawing Wood Diameter |
700MM | 1000 | 1300 | 1600 |
Saw Wheel Diameter(MM) |
600 | 700 | 700 | 700 |
Sawing Wood Thicknes |
10-200 | 10-300 | 10-300 | 10-300 |
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Engine |
14HP Diesel | 22HP Diesel | 25HP Diesel | 27HP Diesel |
Band Saw Blade Length |
5500 | 6100 | 6600 | 7100 |
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
Total Weight (KG) |
800 | 1100 | 1300 | 1500 |

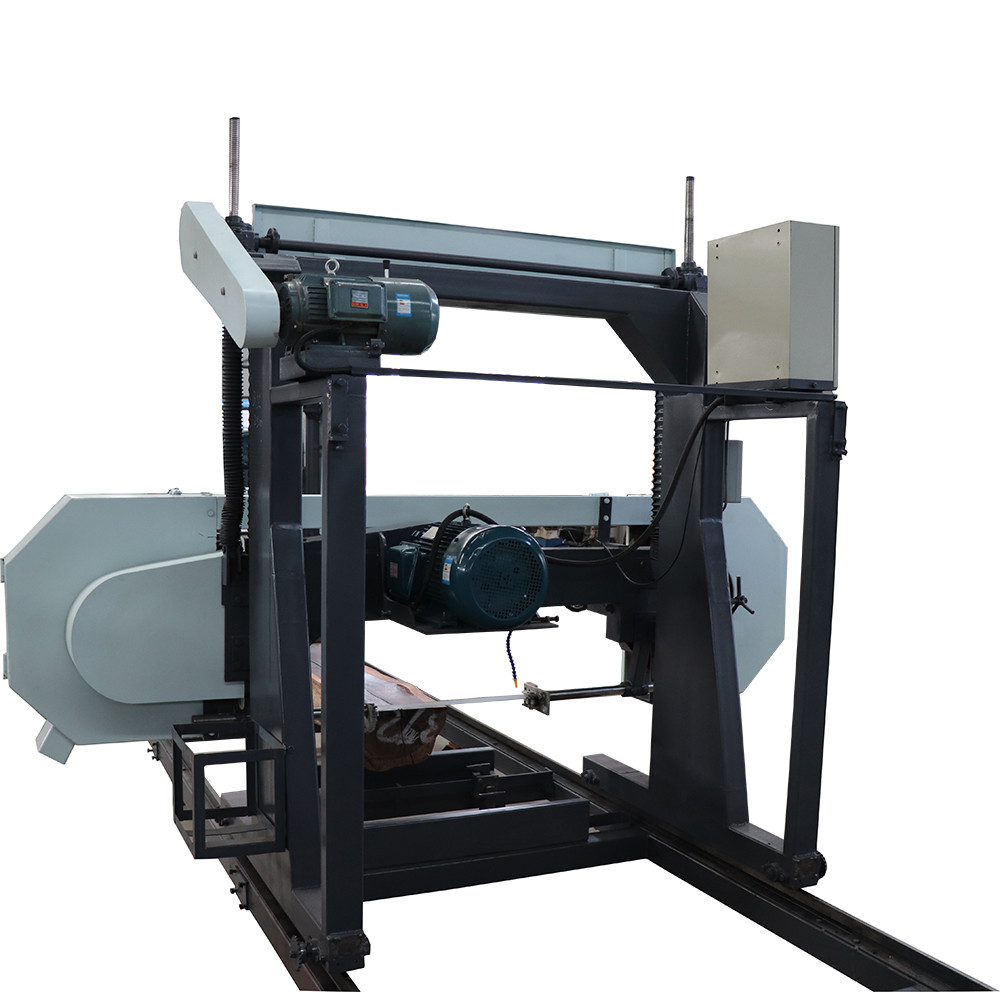

PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL |
||||
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
Sawing Wood Thickness |
10-200MM | 10-300MM | 10-300MM | 10-300MM |
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
Main Motor Power |
7.5KW | 11KW | 15KW | 18.5KW |
Lifting Motor Power |
1.1KW | 1.1KW | 1.1KW | 1.1KW |
Total Weight (KG) |
600 | 1100 | 1300 | 1500 |
Item | Auxiliary Equipment | ||||
1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
2 | Sand Wheel For MR1111 | ||||
3 | UN65 Flash Seal Welding Machine | ||||
4 | MR417 Roll Machine | ||||
5 | Dual Tooth Setter | ||||
6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
7 | Wood Cant Hook 48” Handle |
