Forestry Machinery Saw Machines Sawmill Machine Portable Bandsaw

Place of Origin shandong province, China
Brand Name SH
Certification ISO9001
Model Number MJ700,MJ1000,MJ1300,MJ1600
Minimum Order Quantity 1 SET
Price US $5,200 - 10,200 / Set
Packaging Details iron frame pallet or film wrapped packings
Delivery Time within 20 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Band Saw Style Horizontal
Condition New Voltage 380V/3phase/50HZ Or As Customer Needs
Warranty 12 Month Engine Electric / Diesel / Petrol Engine
Other We Can Customize Machine According To Customer Needs Control Manual / Computer Control
Leave a Message
Product Description

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern Europe.

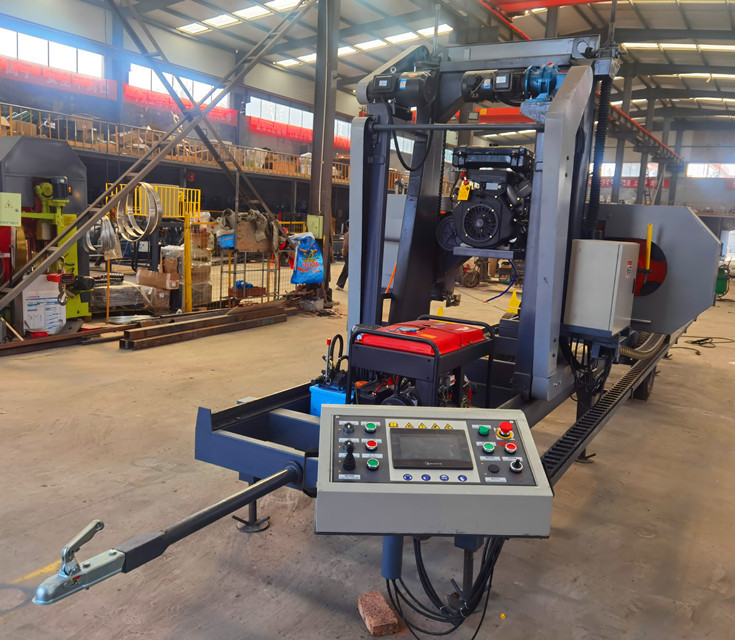

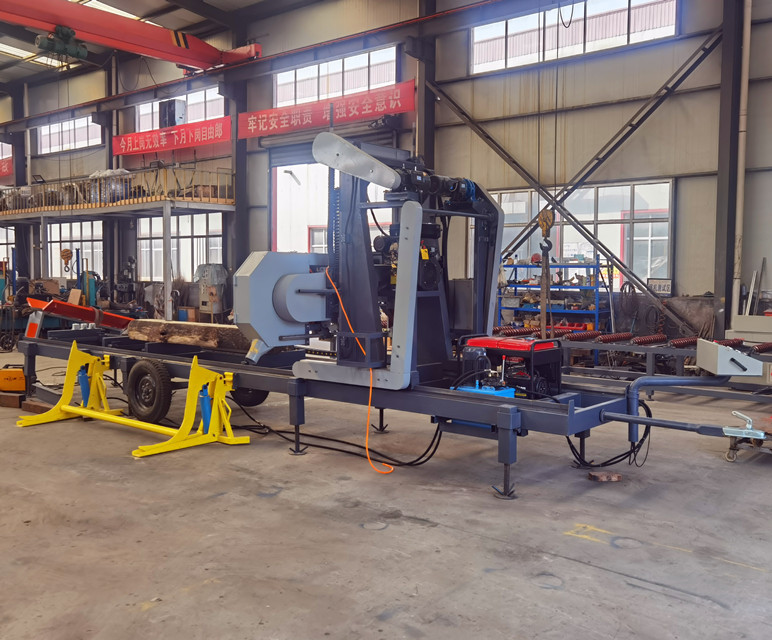

Horizontal Portable Band Sawmill With Diesel Engine



Configuration:

  • Sawing log max. diameter: 700mm
  • Sawing log length: 6500mm
  • Diesel engine: 22HP
  • Log feeding: electrical auto feeding
  • Sawn sizes setting : PLC touching screen



Technical Parameter

MJ700D MJ1000D MJ1300D MJ1600D



Sawing Wood Diameter

700MM 1000 1300 1600



Saw Wheel Diameter(MM)

600 700 700 700



Sawing Wood Thicknes

10-200 10-300 10-300 10-300



Sawing Wood Length (MM)

1300-4500 1300-4500 1300-4500 1300-4500



Engine

14HP Diesel 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

5500 6100 6600 7100



Machine Length(MM)

5800 5800 5800 5800



Total Weight (KG)

800 1100 1300 1500

Forestry Machinery Saw Machines Sawmill Machine Portable Bandsaw 0Forestry Machinery Saw Machines Sawmill Machine Portable Bandsaw 1

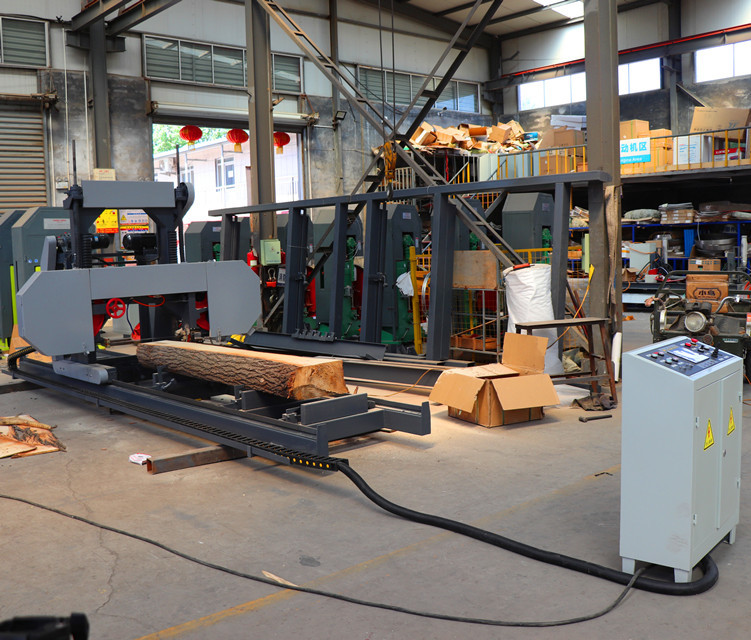

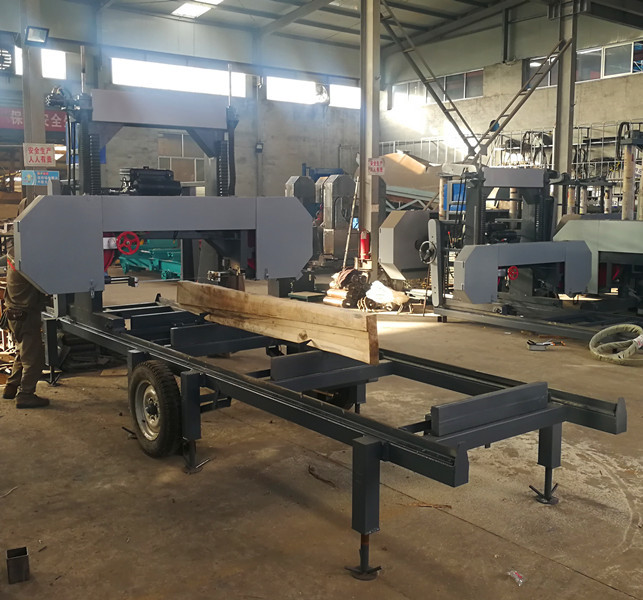

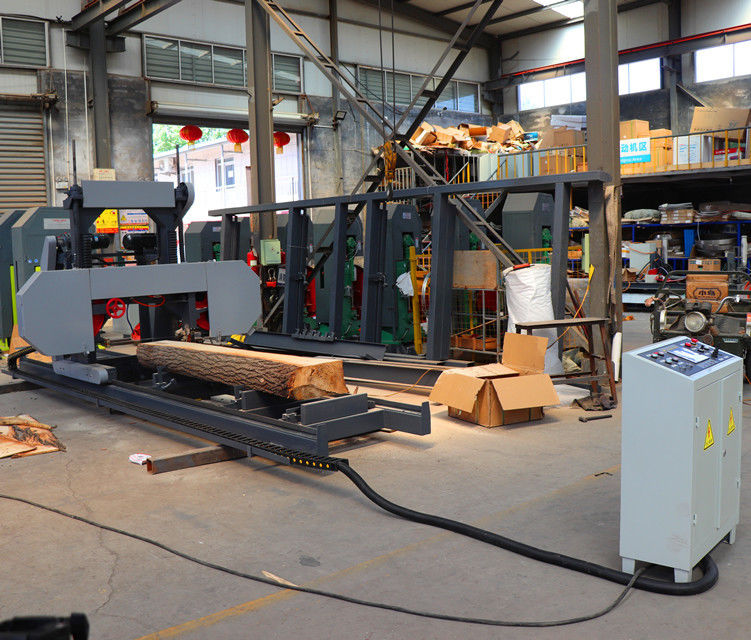

CNC Horizontal Band Sawmill

  • Specifications:
Technical specifications MJ1000AE MJ1300AE MJ1600AE
Cutting wood max. Diameter: 1000mm 1300mm 1600mm
Cutting max. length, : 4500mm 4500mm 4500mm
Sawn thickness range: 2mm ~300mm 2mm ~300mm 2mm ~300mm
Band wheel diameter & width: 700mm & 75mm 700mm & 75mm 700mm & 75mm
Main motor power,3phase 18.5kw 22KW 30KW
Saw head lift up/down motor 1.5kw 1.5kw 1.5kw
Saw walking forward/back Frequency variable auto feeding

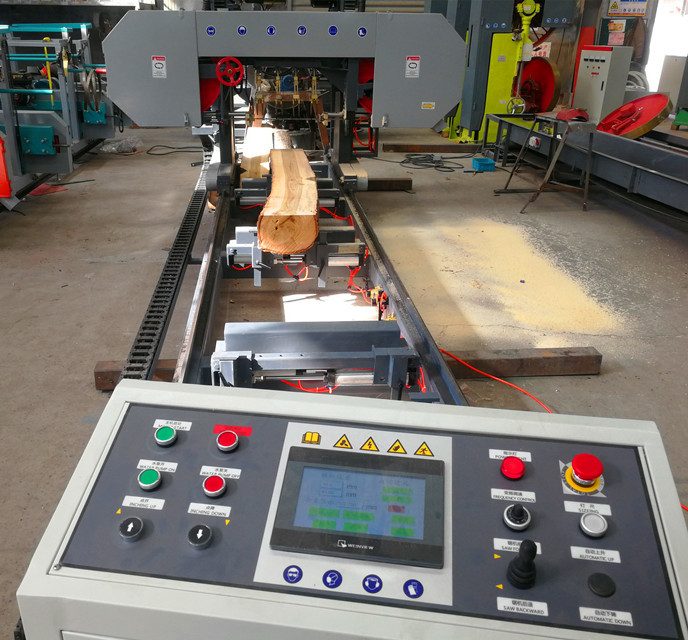

Operation of sawn sizes Touching screen precision setting sizes
Sawmill track length: 5.8meters 5.8meters 5.8meters
Band saw blade width 40mm to 80mm 40mm to 80mm 40mm to 80mm
Band saw blade length 6100 6600mm 7100mm
Machine weight: 1800kgs 2000kgs 2200kgs

Forestry Machinery Saw Machines Sawmill Machine Portable Bandsaw 2

Forestry Machinery Saw Machines Sawmill Machine Portable Bandsaw 3



Auxiliary Parts (Optional )

Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle
