| Place of Origin: | shandong province, China |
| Brand Name: | SH |
| Certification: | ISO9001 |
| Model Number: | SW26G, SW26E, SW26D |
| Minimum Order Quantity: | 1 SET |
|---|---|
| Price: | US $1,788 - 2,988/ Set |
| Packaging Details: | iron frame pallet or film wrapped packings |
| Delivery Time: | within 20 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 1000sets/year |
| Name: | Portable Sawmill | Condition: | New |
|---|---|---|---|
| Type: | Band Saw | Application: | Wood Factory |
| Band Wheel Diameter: | 480mm | Max. Sawing Log Diameter: | 26'' |
| Saw Head Walking: | Manual | Sawing Log Length: | 3meters Or As Customer Needs |
| Blade Size: | 3750 X 35x 0.9 Mm | Color: | Customized |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support,commissioning And Training |

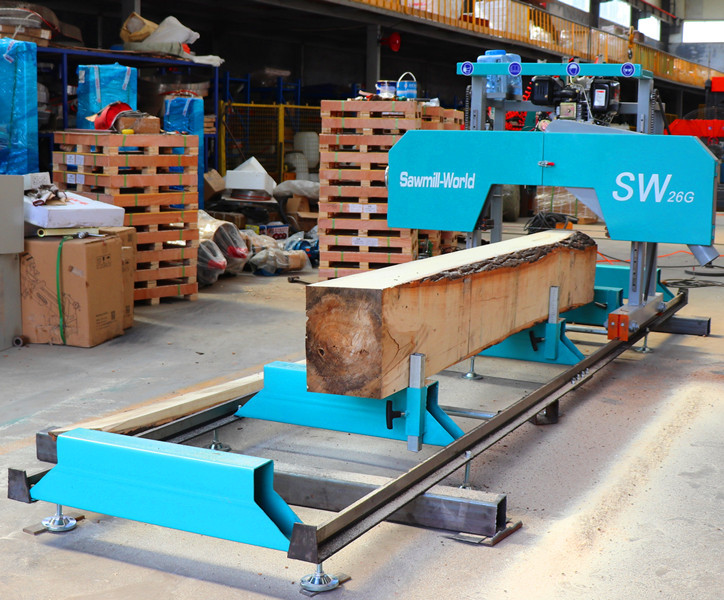

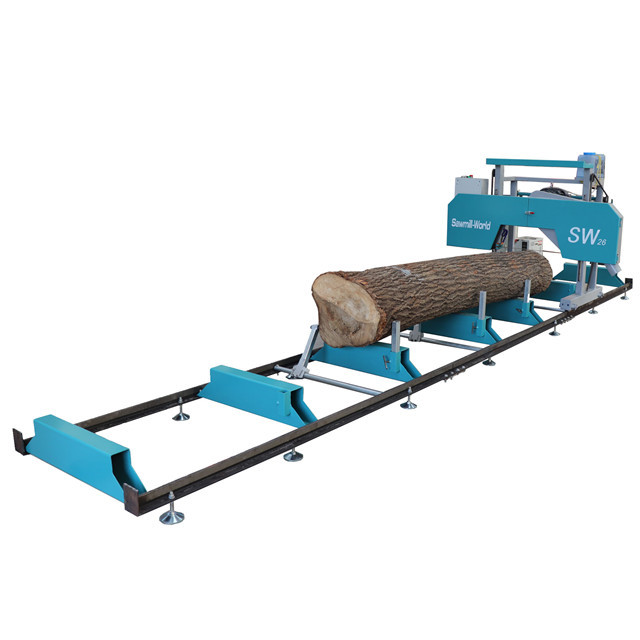

SW26 Sawmill
Technical Specifications:
| Model | SW26G | SW26E |
| Power |
Gasoline engine 9HP, manual start |
Electric 7.5KW, 3PH |
| Max Sawing Wood Diameter | 660mm(26”) | 660mm(26”) |
| Standard Sawing Wood Length | 3000mm(118”) | 3000mm(118”) |
| Saw Wheel Diameter | 480mm(18.9”) | 480mm(18.9”) |
| Blade size | 3750 x 35x 0.9 mm(148”*1.37”*0.035”) | |
| Machine Length | 4000mm(157”) | 4000mm(157”) |
| Weight | 500KG | 500KG |
| Packing size | 2200mm*1000mm*1600mm | |
Optional Parts:
| 1 | Rail Extending |

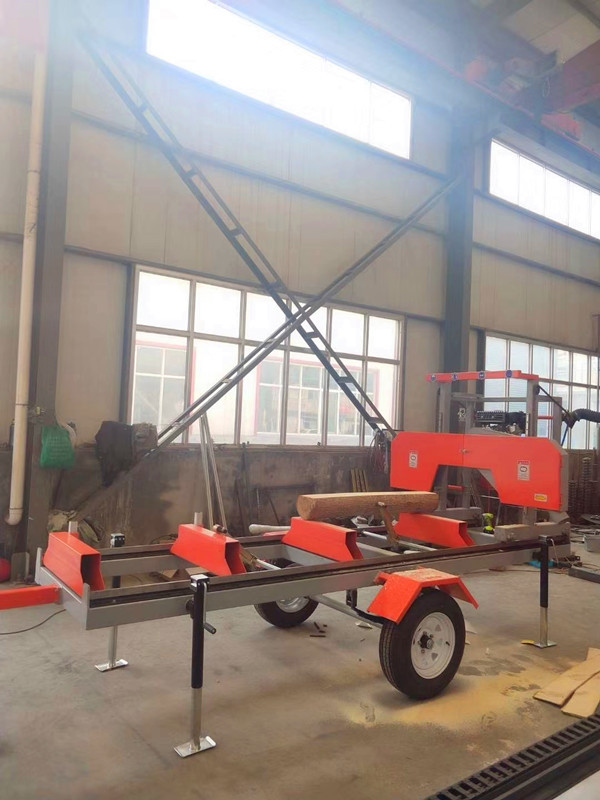

| 2 | Wheels + lifting legs |
| 3 | Diesel Engine 13HP, electric start |
| 4 | Carbon bandsaw blade 3750*35*0.9 |
| 5 | Carbide bandsaw blade 3750*35*0.9 |
| 6 | USA Bimetal bandsaw blade 3780*34*1.1 |
| 7 | Sharpener for carbide blade and bimetal blade |
| 8 | Log hook |
| 9 | Iron frame export packing |
Working video link:
SW26G : https://youtu.be/nVnT95us8bY
SW26E : https://youtu.be/d5HQyGSbeLA
