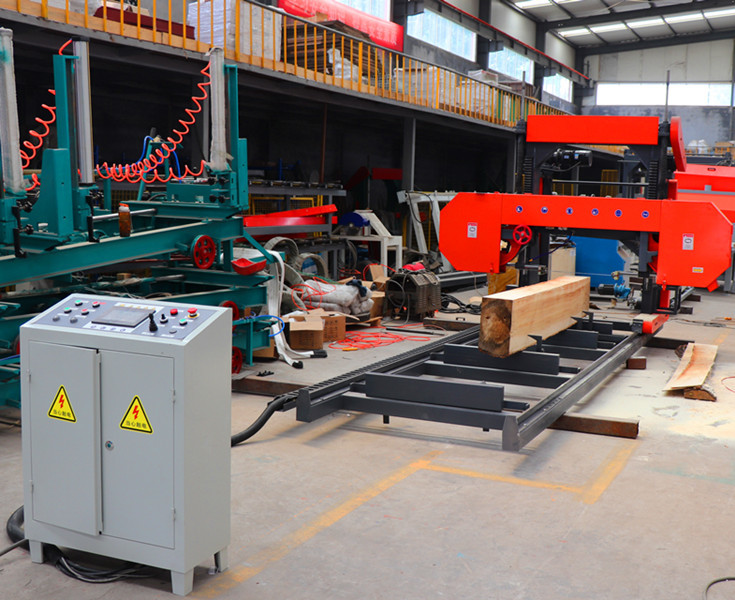

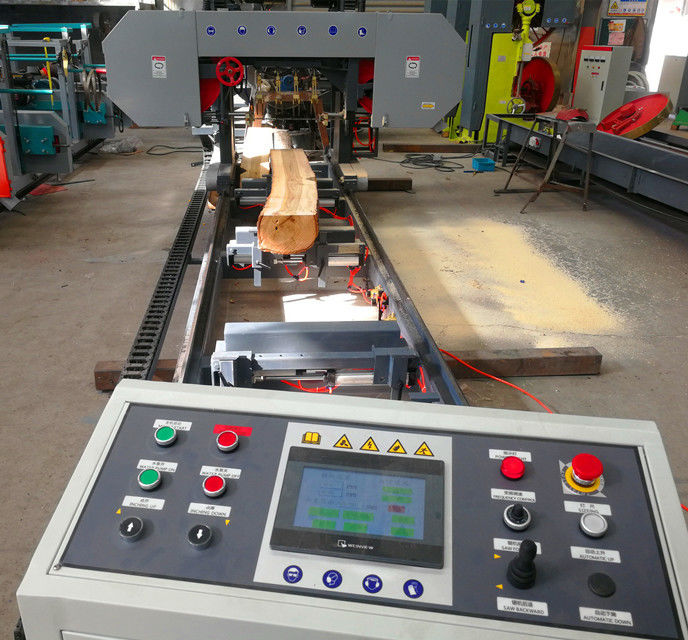

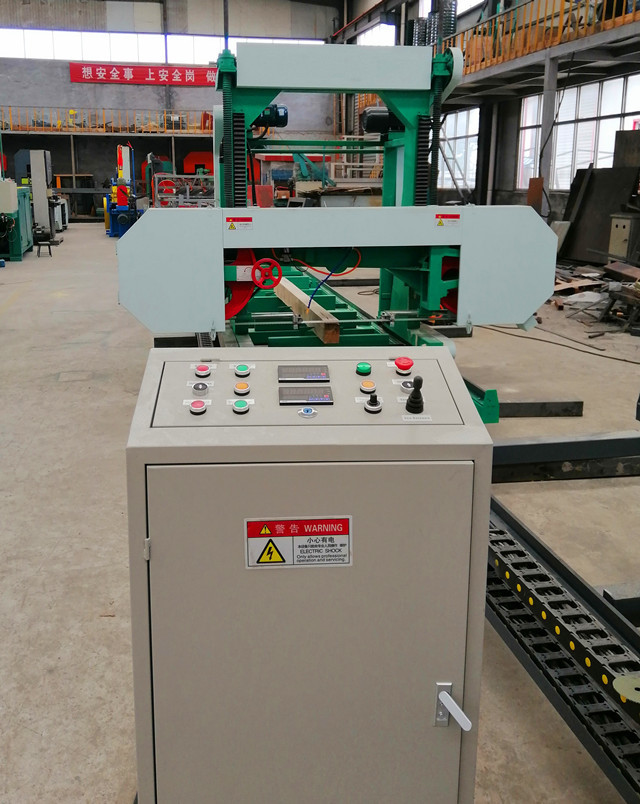

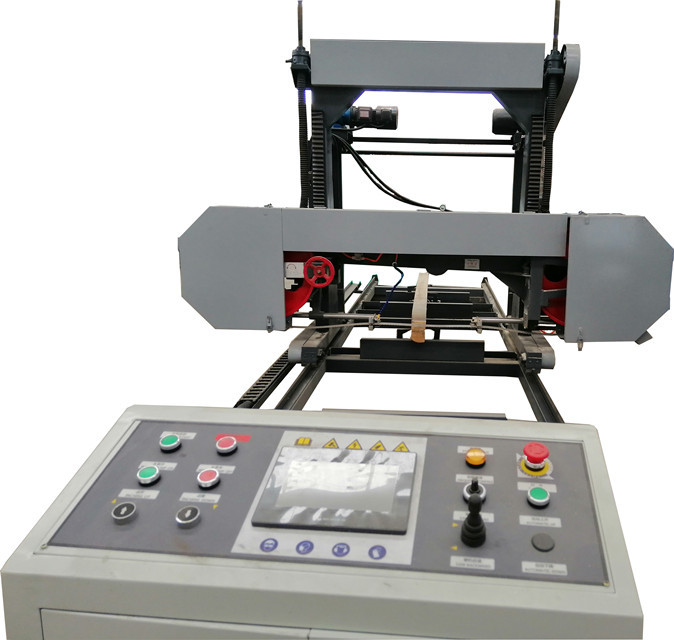

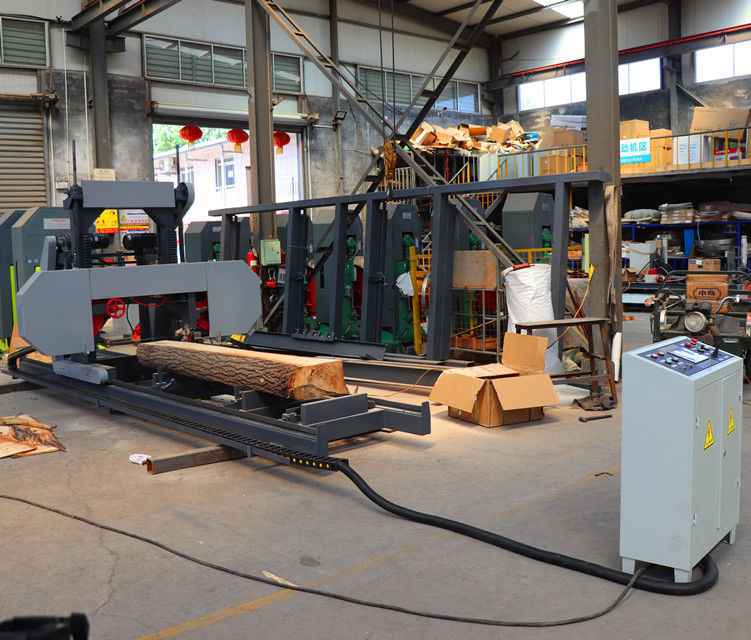

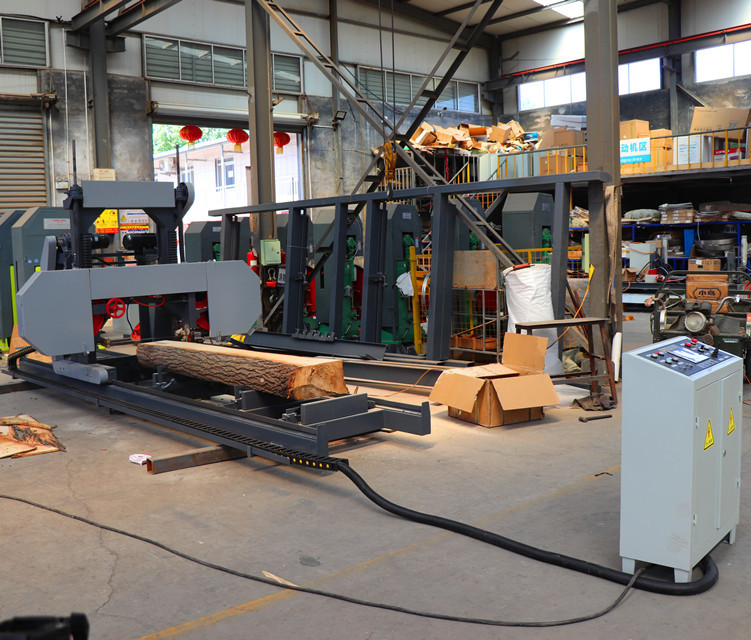

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
Technical specifications | MJ1000AE | MJ1300AE | MJ1600AE |
Cutting wood max. Diameter: | 1000mm | 1300mm | 1600mm |
Cutting max. length, : | 4500mm | 4500mm | 4500mm |
Sawn thickness range: | 2mm ~300mm | 2mm ~300mm | 2mm ~300mm |
Band wheel diameter & width: | 700mm & 75mm | 700mm & 75mm | 700mm & 75mm |
Main motor power,3phase | 18.5kw | 22KW | 30KW |
Saw head lift up/down motor | 1.5kw | 1.5kw | 1.5kw |
Saw walking forward/back | Frequency variable auto feeding | ||
Operation of sawn sizes | Touching screen precision setting sizes | ||
Sawmill track length: | 5.8meters | 5.8meters | 5.8meters |
Band saw blade width | 40mm to 80mm | 40mm to 80mm | 40mm to 80mm |
Band saw blade length | 6100 | 6600mm | 7100mm |
Machine weight: | 1800kgs | 2000kgs | 2200kgs |
