Woodworking saw mills, Horizontal Band Saw, Diesel Portable Sawmill

Place of Origin shandong province
Brand Name SH
Certification ISO
Model Number MJ700,MJ1000,MJ1300,MJ1600
Minimum Order Quantity 1 SET
Price US $4,200 - 9,200 / Set
Packaging Details Wooden crates or iron frame packings
Delivery Time within 15 days
Payment Terms T/T or L/C at sight, Western Union
Supply Ability 1000sets/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Condition New Type Band Saw
Use Woodworking Engine 22HP-27HP Diesel Engine, Air-cooling, Electric Start
Warranty 12 Months Saw Head Lift Hydraulic Easy Operation
Log Clamp DUAL LOG CLAMPS Saw Head Walking Mechanically Manual
Leave a Message
Product Description

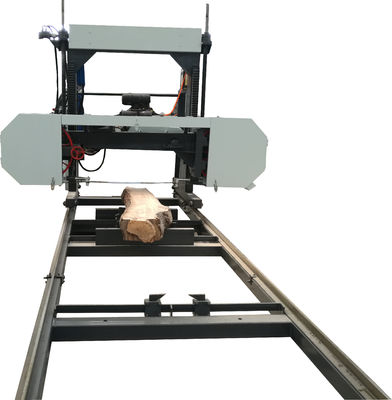

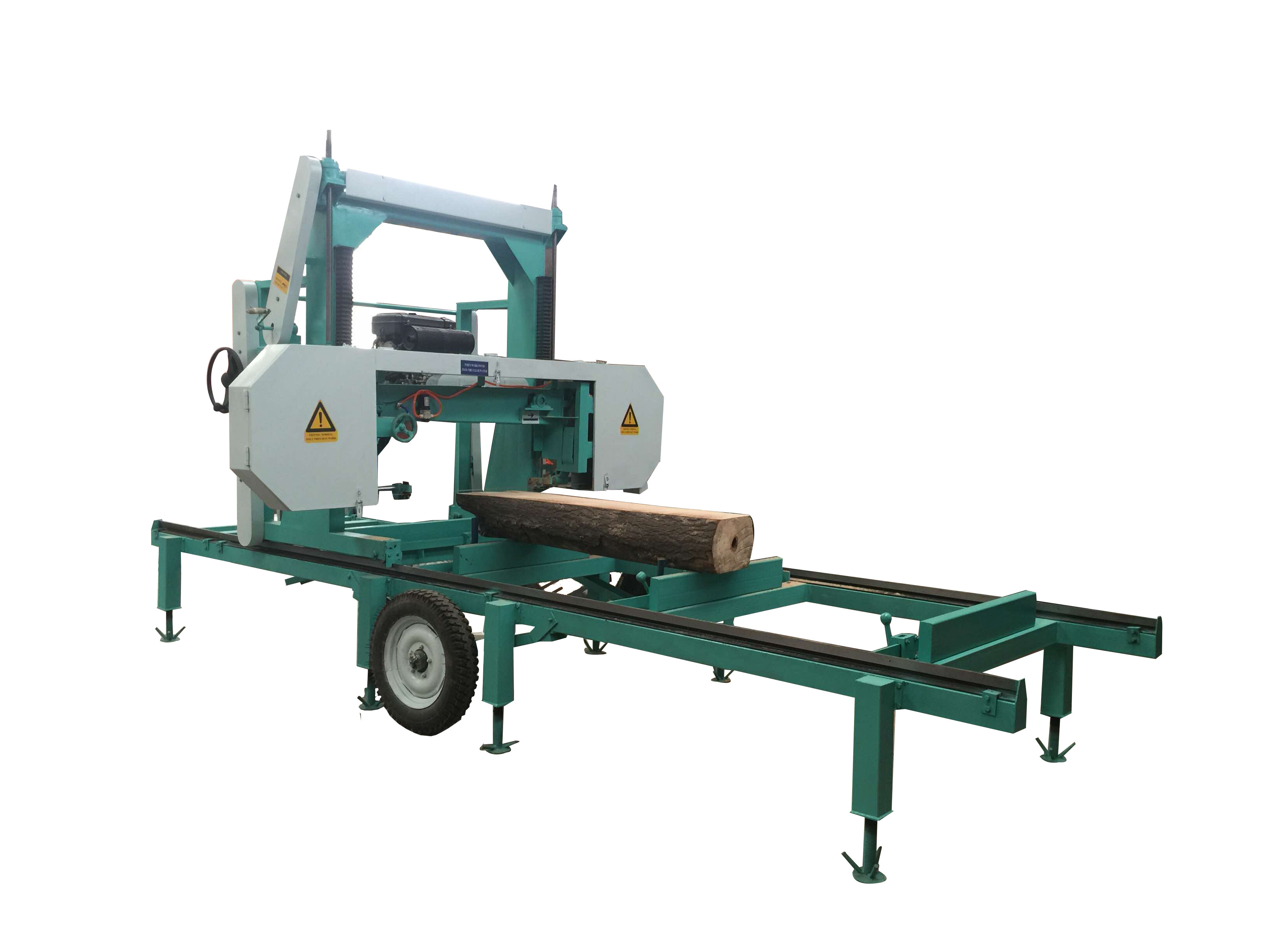

Portable Horizontal Band Sawmill (Electric Model )

Portable horizontal band saw which is easy to install and operate. Finished with Carbide band saw blade for hard wood cutting . The sawing kerf is small, reduce the waste to high output.

The computerized sawmill is sutiable for cutting expensive wood in the furniture factory and move around to cut wood in virgin forest .



Horizontal Portable Band Sawmill With Electric Motor

Specifications:



Technical Parameter

MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

600MM 700MM 700MM 700MM



Sawn Thickness

2-250MM 2-300MM 2-300MM 2-300MM



Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

15KW 18.5KW 22KW 30KW



Lifting Motor Power

1.1KW 1.1KW 1.1KW 1.1KW



Total Weight (KG)

1100 1100 1300 1500



Woodworking saw mills, Horizontal Band Saw, Diesel Portable Sawmill 0Woodworking saw mills, Horizontal Band Saw, Diesel Portable Sawmill 1

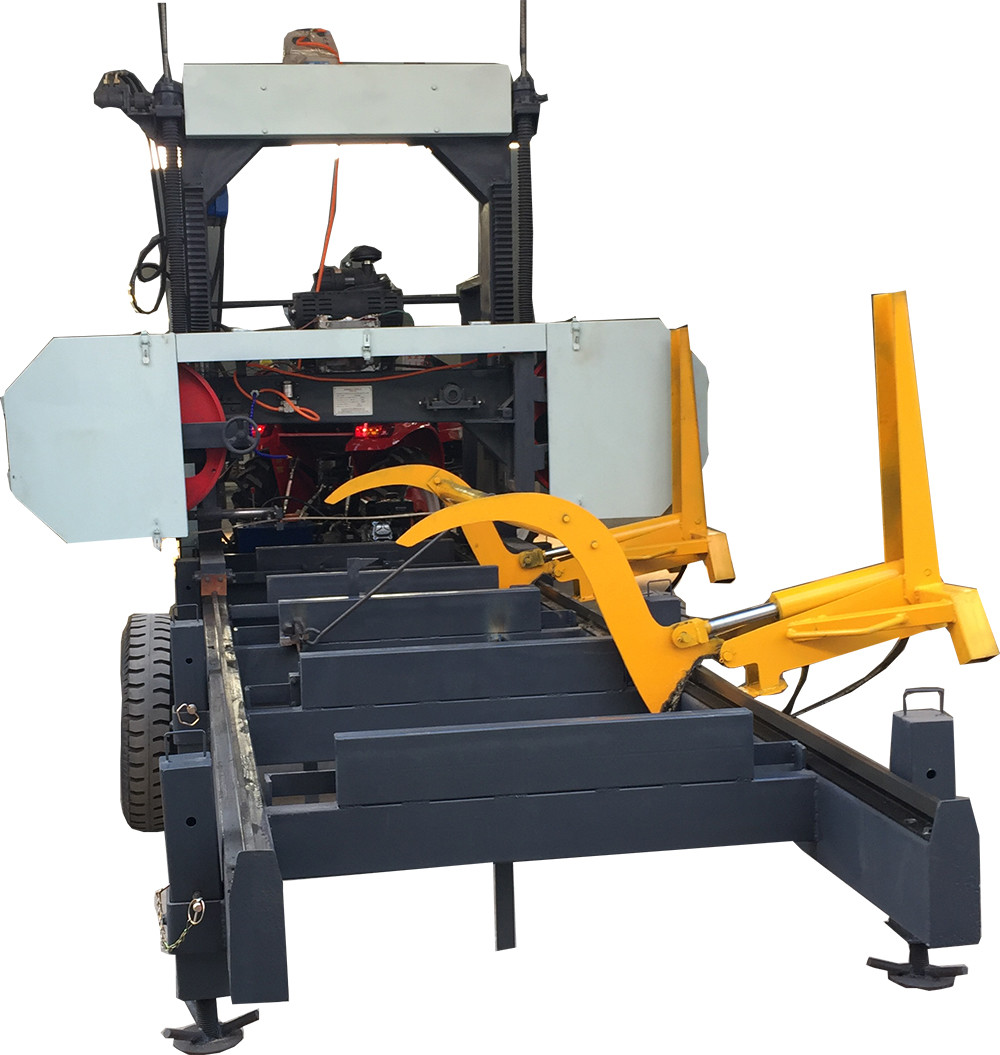

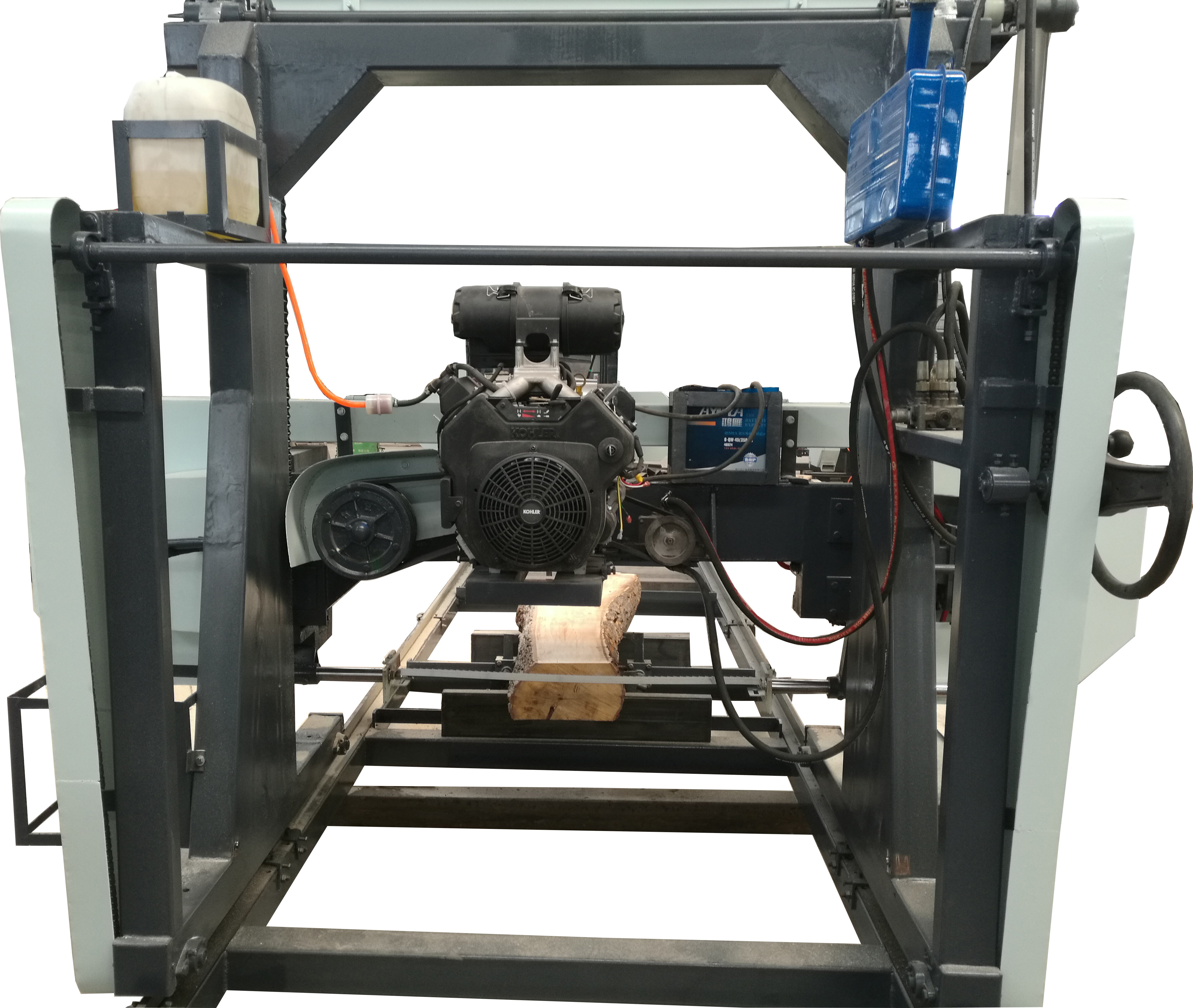

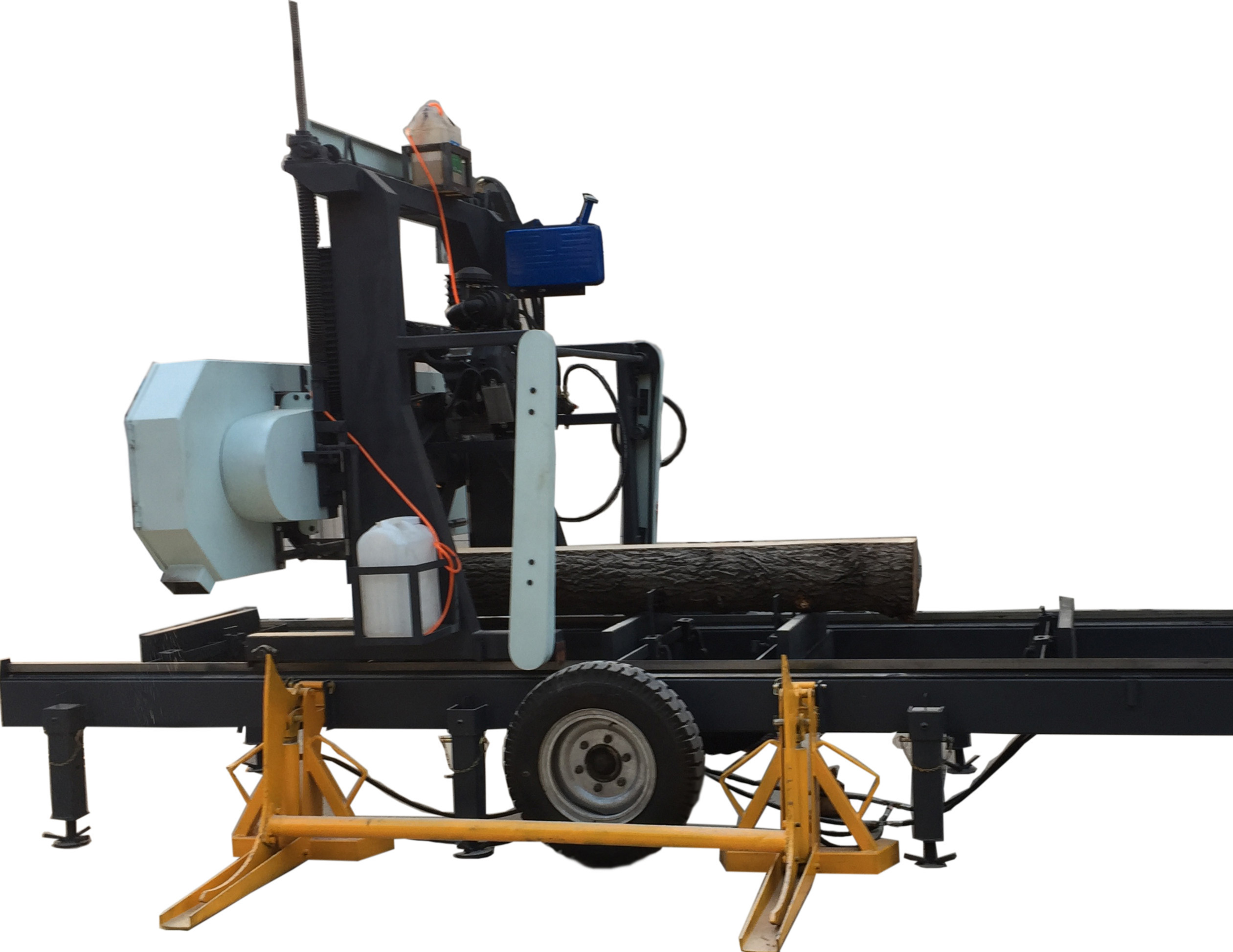

Portable Horizontal Band Sawmill (Diesel Model )

Portable horizontal band saw is our patent product. It equiped with diesel engine or gasoline engine . Easy to install and operate, suitable for moving around and cutting the wood in the virgin forest .



Horizontal Portable Band Sawmill With Diesel Engine



Technical Parameter

MJ700P MJ1000D MJ1300D MJ1600D



Sawing Wood Diameter

700MM 1000 1300 1600



Saw Wheel Diameter(MM)

600 700 700 700



Sawn Thicknes

2-250 2-300 2-300 2-300



Sawing Wood Length (MM)

1300-4500 1300-4500 1300-4500 1300-4500



Engine

22HP Petrol 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

5500 6100 6600 7100



Machine Length(MM)

5800 5800 5800 5800



Total Weight (KG)

1100 1100 1300 1500

Woodworking saw mills, Horizontal Band Saw, Diesel Portable Sawmill 2Woodworking saw mills, Horizontal Band Saw, Diesel Portable Sawmill 3









Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle
