The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

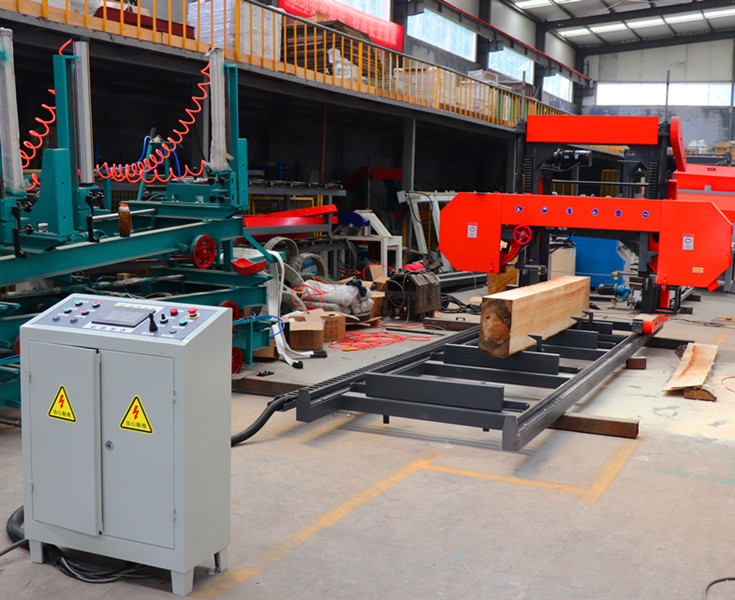

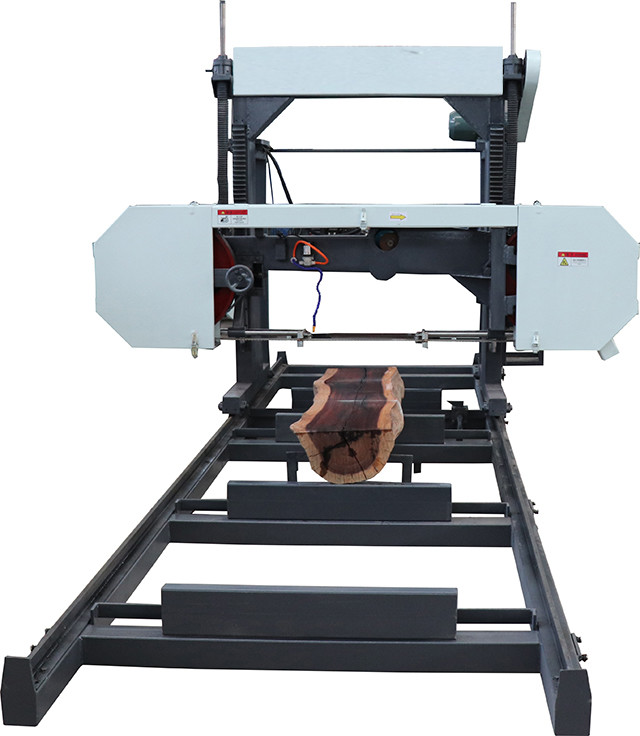

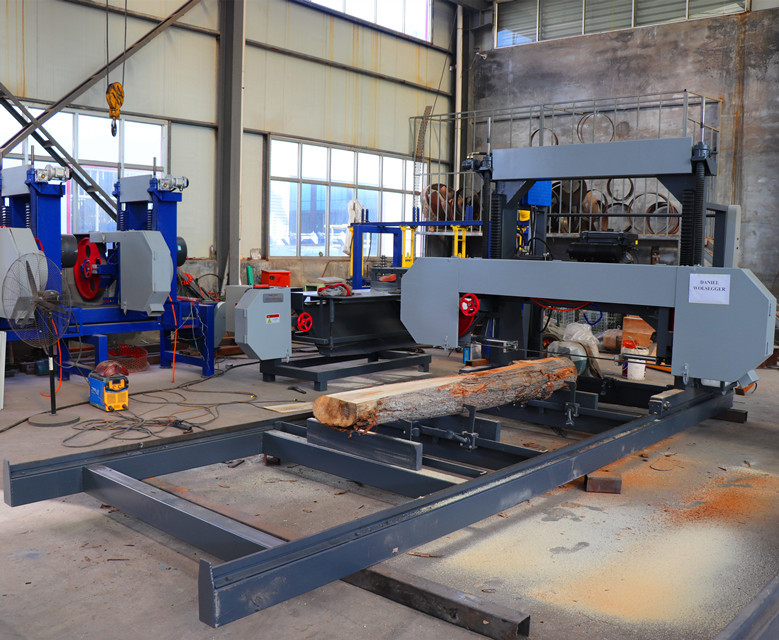

CNC Horizontal Band Sawmill
| Model | MJ700 | MJ1000 | MJ1300 | MJ1600 |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawing Wood Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Walking motor power | 2.2kw | 2.2kw | 2.2kw | 2.2kw |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Images:
Optional - Pneumatic log clamping
Optional - Board returning hook

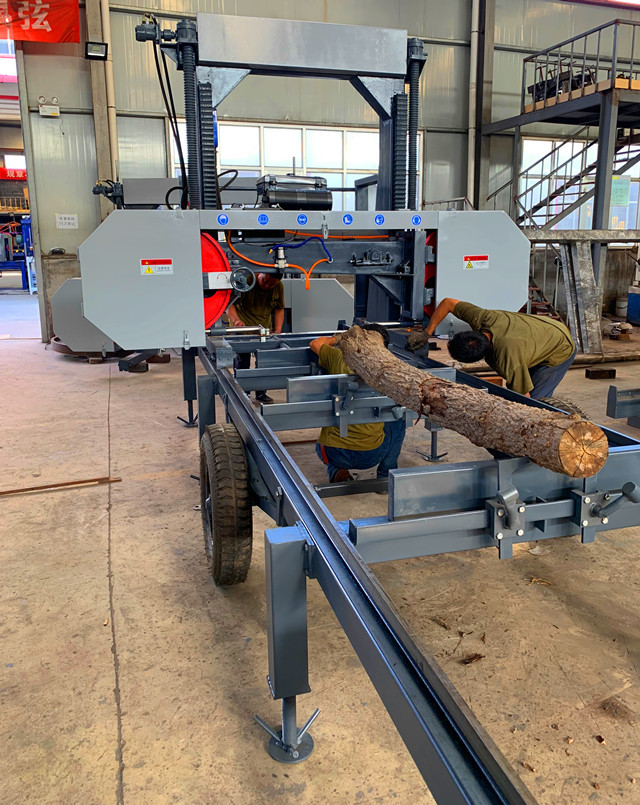

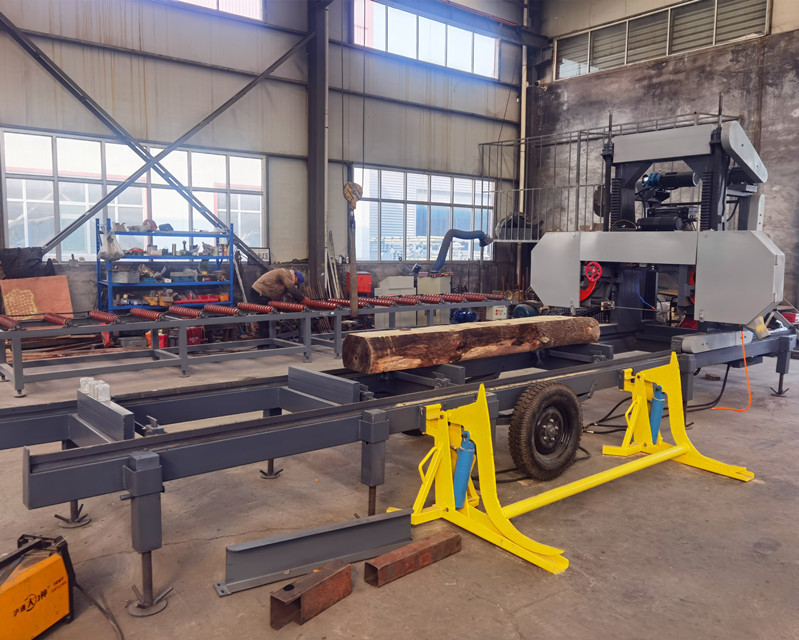

Optional - Mobile usage + hydraulic log loading arm
|
PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL -electrical |
||||
|
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawing Wood Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.5KW | 1.5KW | 1.5KW | 1.5KW |
|
Total Weight (KG) |
600 | 1100 | 1300 | 1500 |
Related Products
Wood Board Edger Saw
Technical data:
| Model | EG600A | EG800 | EG1000 |
| Max. Processing width | 600mm | 800mm | 1000mm |
| Min. Processing width | 50mm | 50mm | 50mm |
| Max. Processing height | 70mm | 70mm | 70mm |
| Blade | 2*350mm | 2*350mm | 2*350mm |
| Feeding method | Automatic feeding conveyor | ||
| Feed Rate | 20-25m/ minute, speed adjustable | ||
| Electric motor power | 7.5KW x 2sets | 7.5KW x 2sets | 7.5KW x 2sets |
| Machine weight | 1000KG | 1600KGS | 1800KGS |
|
Customize: Working electric voltage, bigger motor power |
|||
| Item | Auxiliary Equipment | ||||
| 1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
| 2 | Sand Wheel For MR1111 | ||||
| 3 | UN65 Flash Seal Welding Machine | ||||
| 4 | MR417 Roll Machine | ||||
| 5 | Dual Tooth Setter | ||||
| 6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
| USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
| 7 | Wood Cant Hook 48” Handle |
||||
