| Place of Origin: | shandong province |
|---|---|
| Brand Name: | SH |
| Certification: | ISO |
| Model Number: | MJH1000E,MJH1200E,MJH1000D,MJH1000P, etc |
| Minimum Order Quantity: | 1 SET |
| Price: | US $11,500 - 33,100 / Set |
| Packaging Details: | wooden crates or iron frame packing |
| Delivery Time: | within 25 days |
| Payment Terms: | T/T or L/C at sight, Western Union |
| Supply Ability: | 100 sets/quarter |
| Condition: | New | Type: | Horizontal Band Saw |
|---|---|---|---|
| Use: | Woodworking | Voltage: | 380V/3phase/50HZ Or As Customer Needs |
| Warranty: | 12 Months | Application: | Cutting Soft/hard Log |
| Engine: | Electric / Diesel / Gas Engine | Control: | Hydraulic Automatic Controlling |
| Log Loading: | Hydraulic Loading | ||
| Highlight: | gasoline engine band saw,automatic horizontal wood cutting sawmill,portable sawmill with gasoline engine |
||

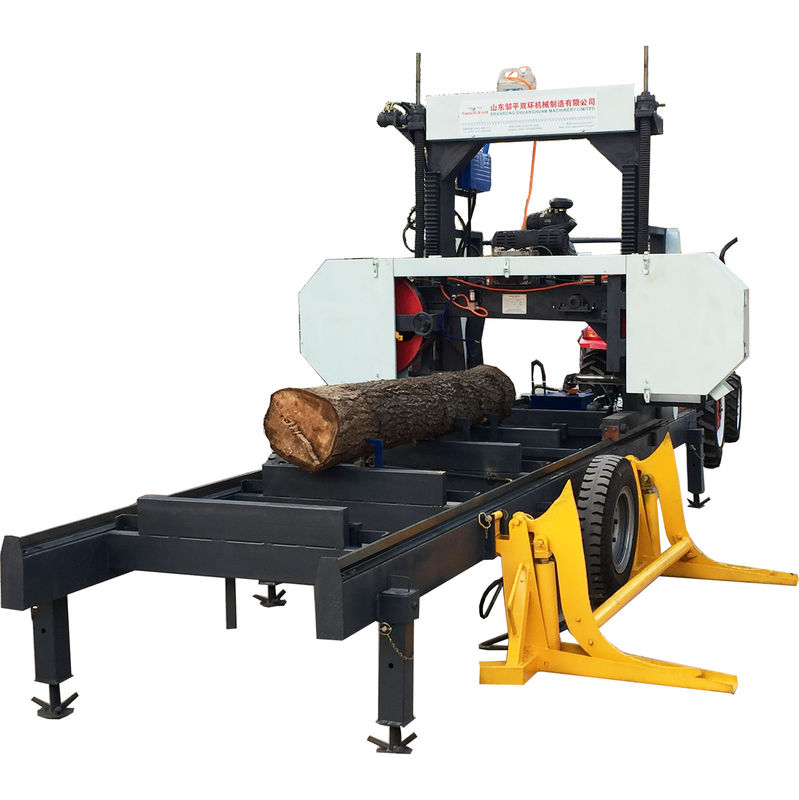

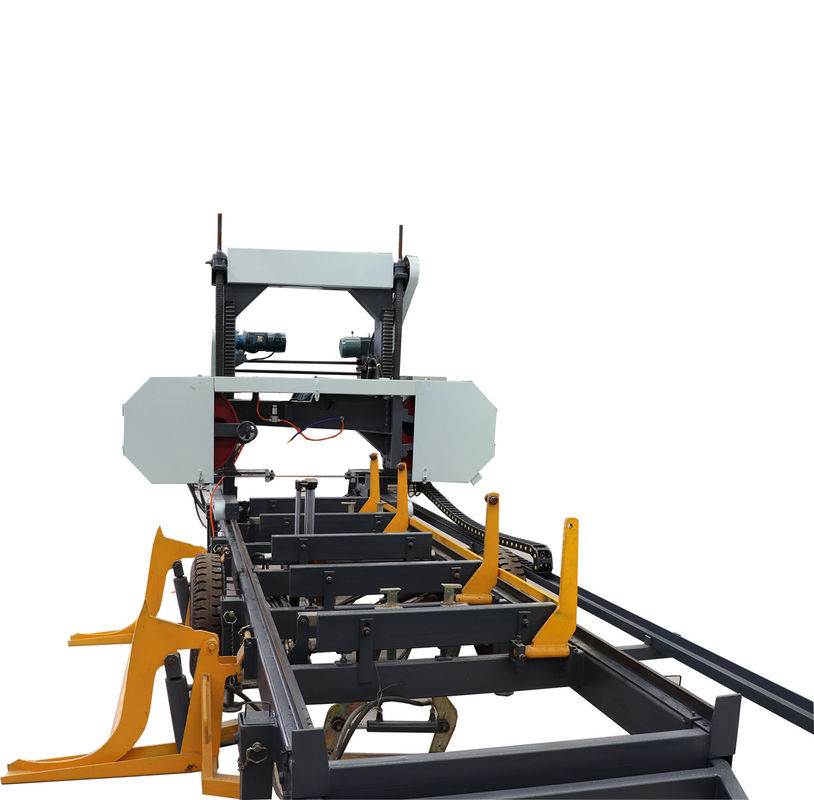

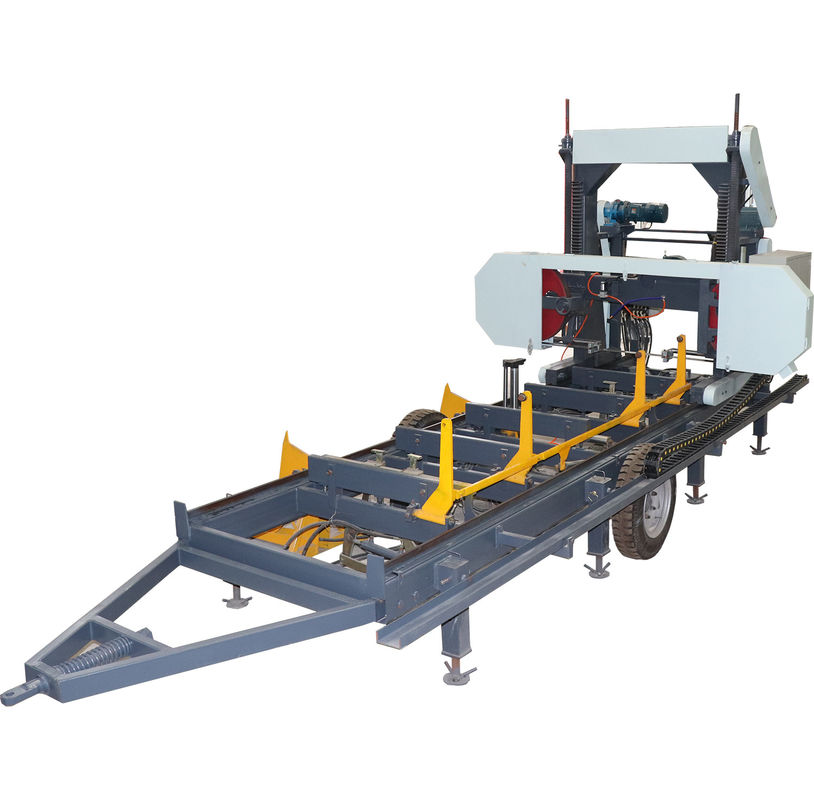

Hydraulic Portable Horizontal Band Sawmill (Gasoline/Diesel)
| Model | MJH1000G | MJH1000D |
| Max Sawing Wood Diameter | 1000mm | 1000mm |
| Saw Wheel Diameter | 700mm | 700mm |
| Max Sawing Wood Thickness | 300mm | 300mm |
| Standard Sawing Wood Length | 4000mm | 4000mm |
| Engine Power | 22HP Diesel Double Cylinder | 35HP Gasoline Double Cylinder |
| Up/Down | Hydraulic | Hydraulic |
| Forward/Backward | Automatically | Automatically |
| Saw Blade Thickness | 27-75mm | 27-75mm |
| Blade Tension | Hydraulic | Hydraulic |
| Machine Length | 5800mm | 5800mm |
| Weight | 2500kg | 2500kg |
| Standard Configuration | |||||||
|
Hydraulic Loading Arm *1 Lifts log onto bed |
Hydraulic Clamp *1 Secure and stabilize the log |
||||||
|
Hydraulic Wood Clamp*2 Secure and stabilize the log |
Hydraulic vertical side supports *4 Secure and stabilize the log |
||||||
|
Mobile Wheels, Set of 8 fine-Adjust outriggers Mobile usage and precise bed leveling and stability |
Hydraulic Wood Adjuster*1
|
||||||
|
Touch Screen Accuset Setworks Automatically moves head for each cut and head walking speed is Frequency variable |
|
Hydraulic bi-directional Chain log turner*2 For max. log control
|
|||||
| Options: | |||||||
|
Extend The Rail Length Add usd850/meter |
|||||||
Video link: https://youtu.be/L9ef6mAXgv0
![]()
![]()
![]()
