Portable Horizontal Band Sawmill (Diesel Model )
Horizontal Portable Band Sawmill With Diesel Engine
|
Technical Parameter |
MJ700P | MJ1000D | MJ1300D | MJ1600D |
|
Sawing Wood Diameter |
700MM | 1000 | 1300 | 1600 |
|
Saw Wheel Diameter(MM) |
600 | 700 | 700 | 700 |
|
Sawn Thicknes |
2-250 | 2-300 | 2-300 | 2-300 |
|
Sawing Wood Length (MM) |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Engine |
22HP Petrol | 22HP Diesel | 25HP Diesel | 27HP Diesel |
|
Band Saw Blade Length |
5500 | 6100 | 6600 | 7100 |
|
Machine Length(MM) |
5800 | 5800 | 5800 | 5800 |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
|

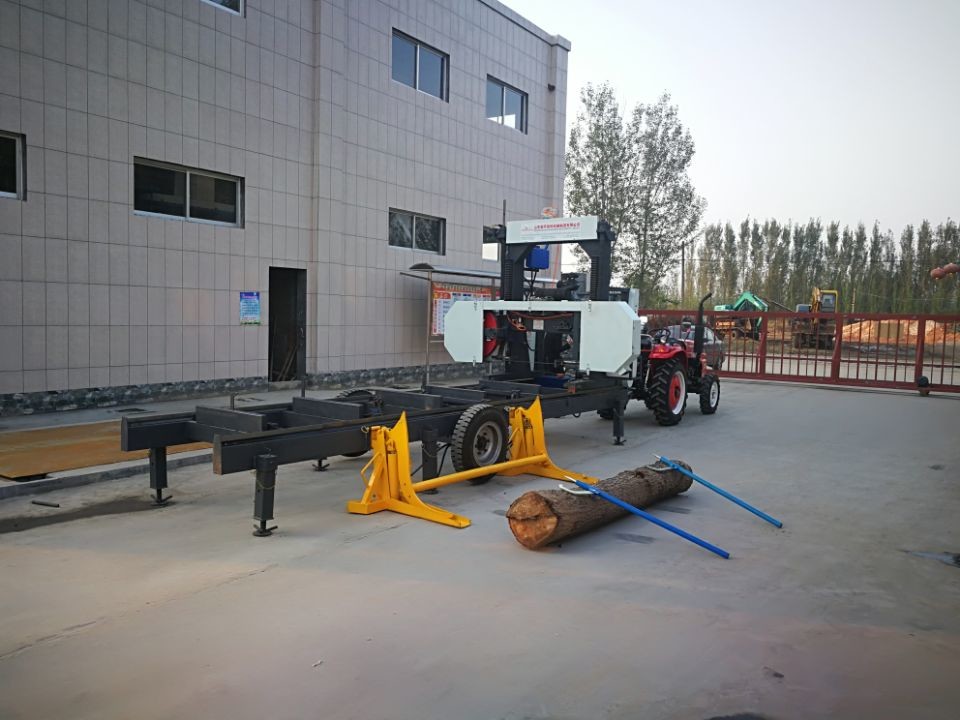

Image- Mobile Usage -optional

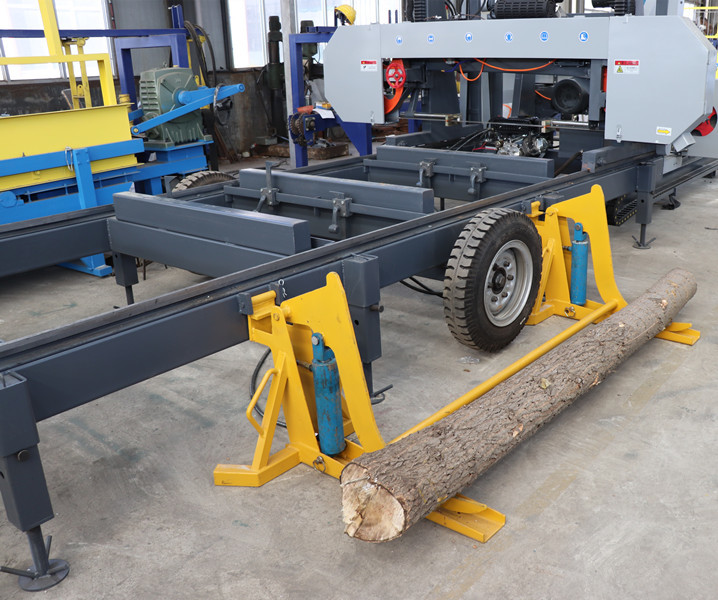

Image- Mobile Usage with hydraulic log loading arm - optional
PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL |
||||
|
Technical Parameter |
MJ700E | MJ1000E | MJ1300E | MJ1600E |
|
Max. Sawing Wood Diameter |
700MM | 1000MM | 1300MM | 1600MM |
|
Saw Wheel Diameter |
600MM | 700MM | 700MM | 700MM |
|
Sawn Thickness |
2-250MM | 2-300MM | 2-300MM | 2-300MM |
|
Sawing Wood Length MM |
1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
|
Main Motor Power |
15KW | 18.5KW | 22KW | 30KW |
|
Lifting Motor Power |
1.1KW | 1.1KW | 1.1KW | 1.1KW |
|
Total Weight (KG) |
1100 | 1100 | 1300 | 1500 |
Image -standard model
Image- extended sawmill track - optional
Image- CNC type - pneumatic log clamping - optional
Image- CNC type - board returning hook - optional
Image- feedback from abroad users
Sharpener
