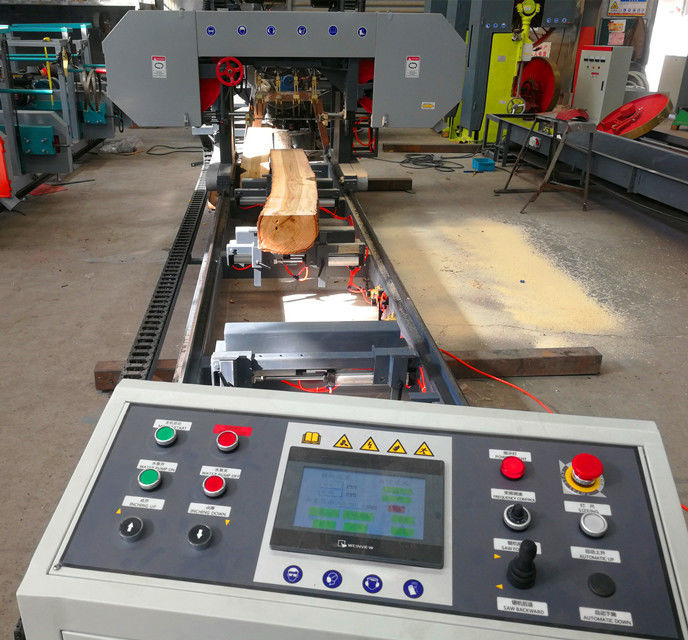

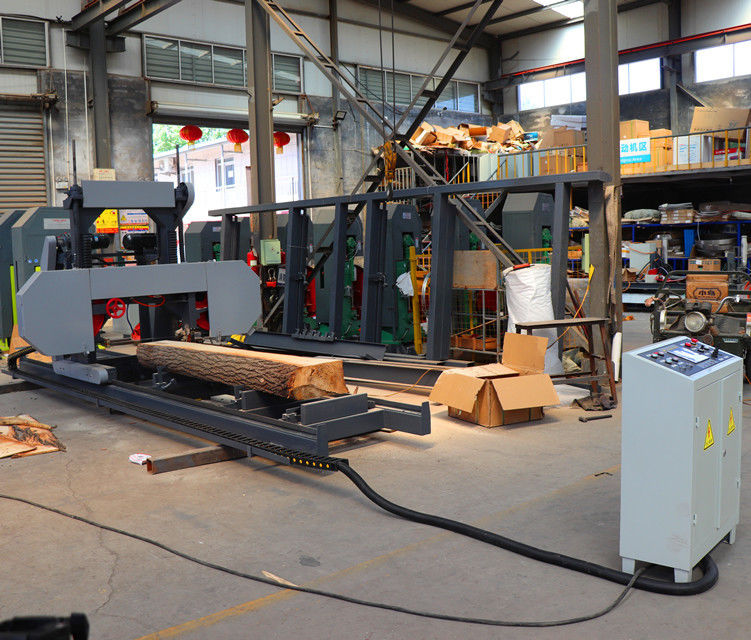

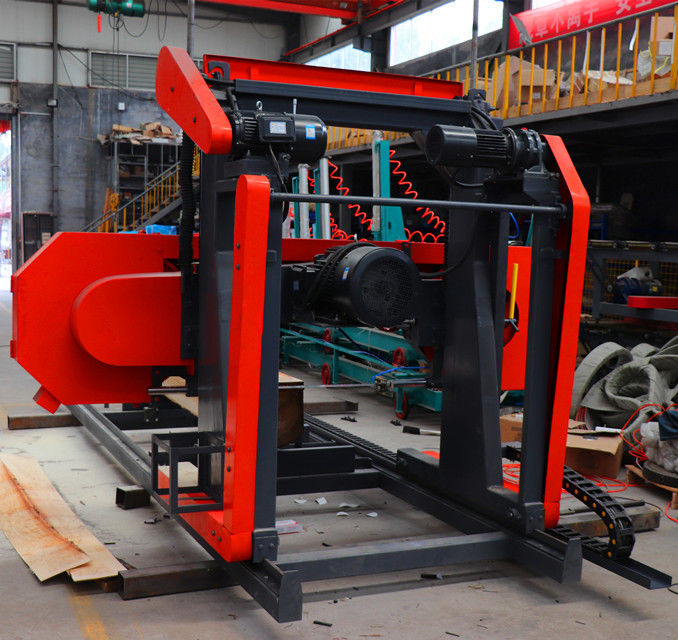

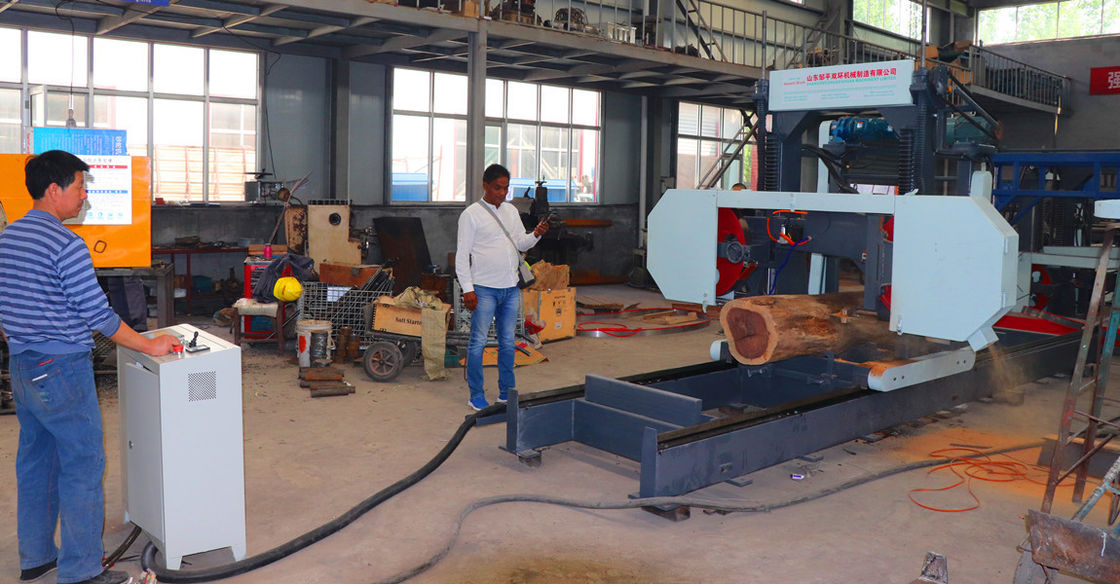

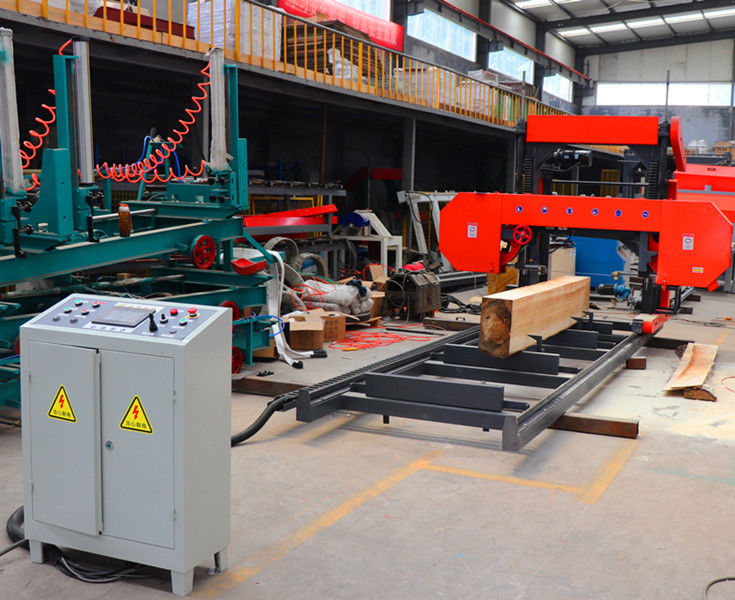

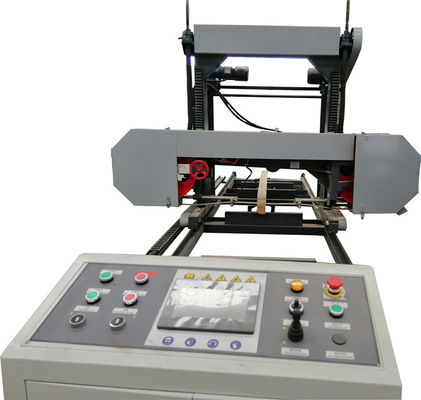

CNC Horizontal Band Sawmill Saw Machines, Wood Log Cutting Saws Bandsaw Mill
| Place of Origin | shandong province, China |
|---|---|
| Brand Name | SH |
| Certification | ISO9001 |
| Model Number | MJ1000AE,MJ1300AE,MJ1600AE |
| Minimum Order Quantity | 1 SET |
| Price | US $7,300 - 9,900 / set |
| Packaging Details | wooden crates or iron frame packings |
| Delivery Time | within 15 days |
| Payment Terms | T/T or L/C at sight, Western Union |
| Supply Ability | 1000sets/year |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Electric Portable Sawmill / Horizontal Band Saw Machine | Condition | New |
|---|---|---|---|
| Type | Band Saw | Usage | Wood Cutting |
| Voltage | 380V, 3phase,50HZ Or As Customer Needs | Main Motor Power | 22KW-30KW |
| Saw Head Walking | Frequency Speed Adjustable | Band Wheel Diameter | 700mm |
| Sawing Log Max Diameter | 1600mm | Sawing Log Length | 4500mm Or As Customer Needs |
| Keyword | Wood Cutting Band Saw,Horizontal Band Sawmill,sawmill | Warranty | 12 Months |
| After-sales Service Provided | Online Support,commissioning And Training |
Product Description
The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.
- It is simple installation,easy operation,labor saving,and high productivity.
- It is frequency variable auto feeding .
- It is PLC programmed and touching screen setting sawn sizes .
- Rail length can be extended
- It is distant automatic control .
- Working video link : https://youtu.be/GUfHEweLRbM / https://youtu.be/c28KlI38ERc / https://youtu.be/yC47TZMGU0U
- Specifications:
| Technical specifications | MJ1000AE | MJ1300AE | MJ1600AE |
| Cutting wood max. Diameter: | 1000mm | 1300mm | 1600mm |
| Cutting max. length, : | 4500mm | 4500mm | 4500mm |
| Sawn thickness range: | 2mm ~300mm | 2mm ~300mm | 2mm ~300mm |
| Band wheel diameter & width: | 700mm & 75mm | 700mm & 75mm | 700mm & 75mm |
| Main motor power,3phase | 18.5kw | 22KW | 30KW |
| Saw head lift up/down motor | 1.5kw | 1.5kw | 1.5kw |
| Saw walking forward/back | Frequency variable auto feeding | ||
| Operation of sawn sizes | Touching screen precision setting sizes | ||
| Sawmill track length: | 5.8meters | 5.8meters | 5.8meters |
| Band saw blade width | 40mm to 80mm | 40mm to 80mm | 40mm to 80mm |
| Band saw blade length | 6100 | 6600mm | 7100mm |
| Machine weight: | 1800kgs | 2000kgs | 2200kgs |
Auxiliary Parts for Bandsaw blade Sharpening Machine :
| Item | Auxiliary Equipment | ||||
| 1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
| 2 | Sand Wheel For MR1111 | ||||
| 3 | UN65 Flash Seal Welding Machine | ||||
| 4 | MR417 Roll Machine | ||||
| 5 | Dual Tooth Setter | ||||
| 6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
| USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
| 7 | Wood Cant Hook 48” Handle | ||||
