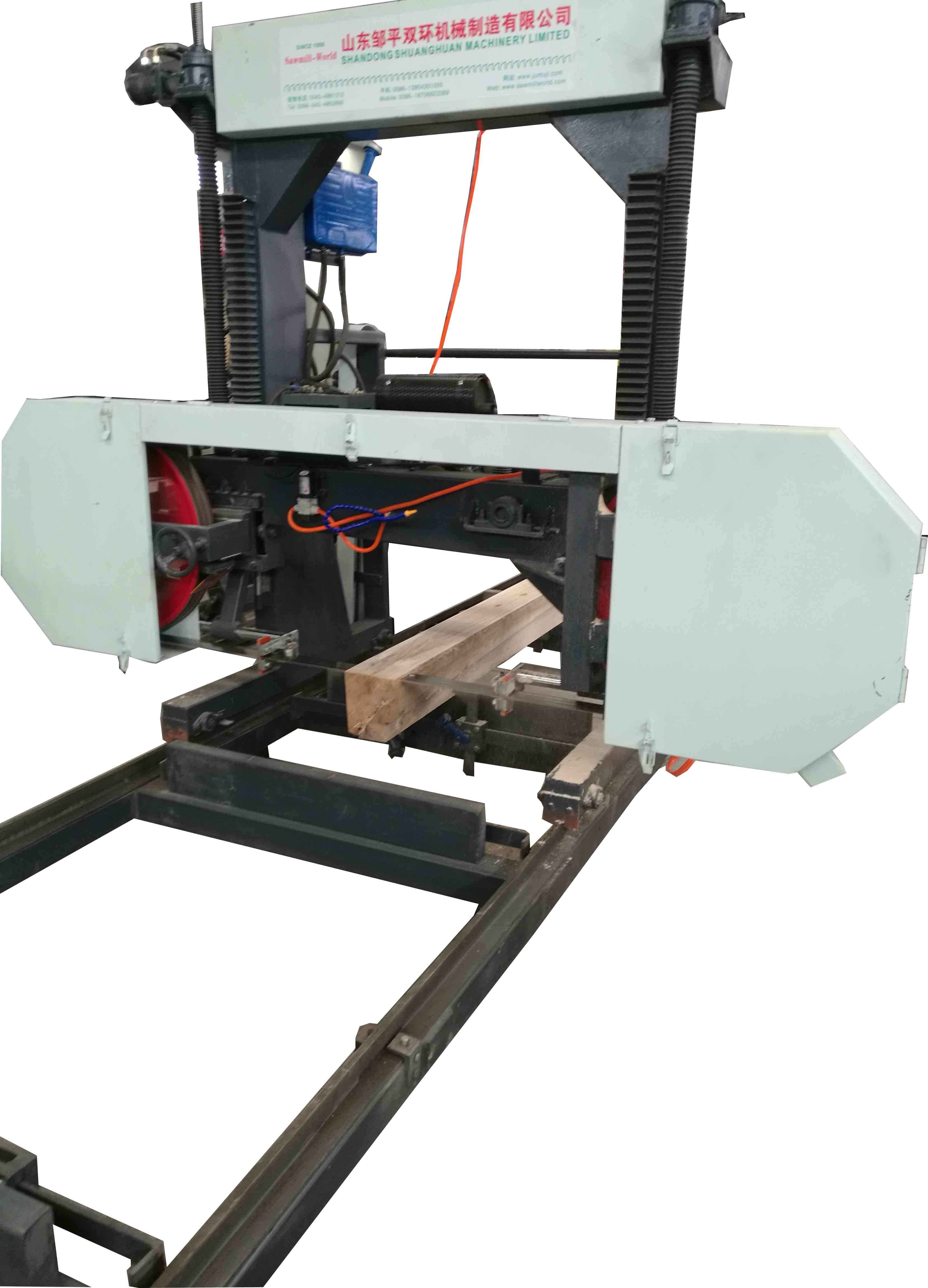

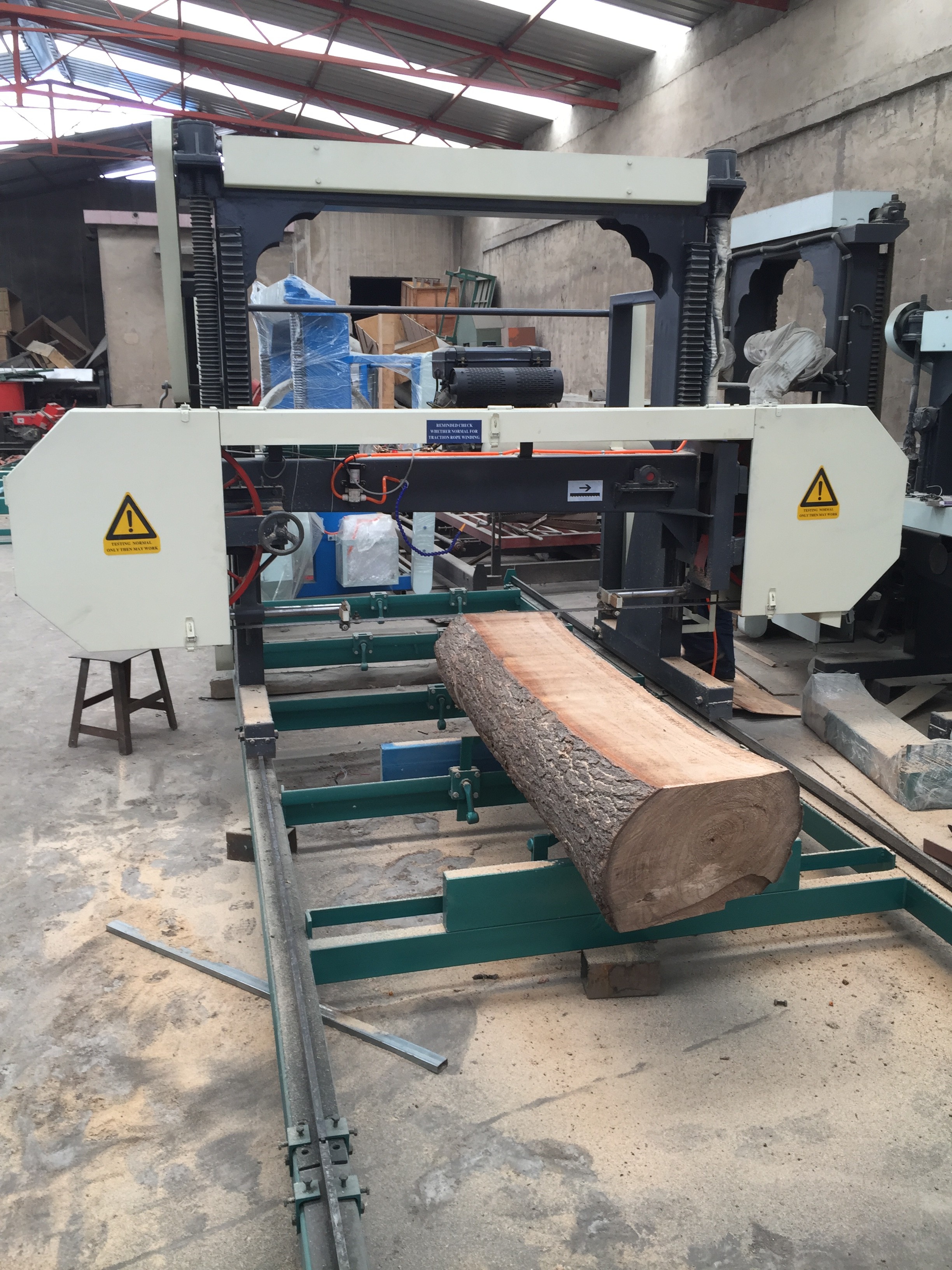

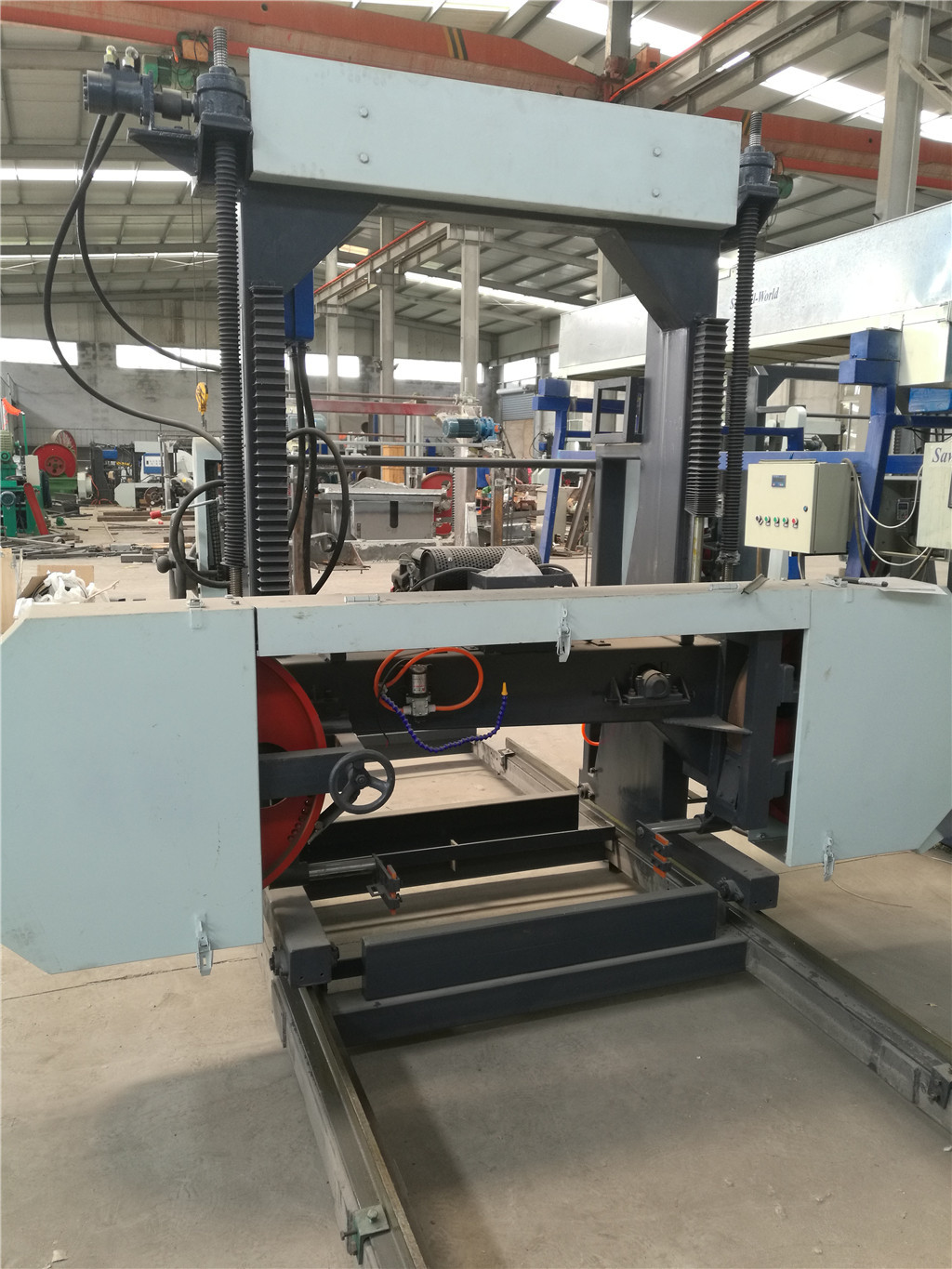

Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm

Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm

    • Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm
    • Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm
    • Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm
    • Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm
    • Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm
  • Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm

    Product Details:

    Place of Origin: shandong province
    Brand Name: SH
    Certification: ISO
    Model Number: MJ700,MJ1000,MJ1300,MJ1600

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 SET
    Price: US $5,200 - 12,200 / Set
    Packaging Details: iron frame pallet or paper carton packings
    Delivery Time: within 20 days
    Payment Terms: T/T or L/C at sight, Western Union
    Supply Ability: 1000sets/year
    Contact Now
    Detailed Product Description
    Condition: New Type: Horizontal Band Saw
    Use: Woodworking Voltage: 380/3phasae/50z Or As Customer Needs Or Diesel Engine
    Warranty: 12 Months Usage: Wood Tree Logs Cutting
    Power(W): 7.5-18.5kw Or As Customer Needs Engine: Electric Motor Or Diesel Or Gasoline Engine
    Operation: Manual Or PLC

    The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.



    It is simple installation,easy operation,labor saving,and high productivity.



    This machine can be drived by either electric motor or diesel engine.



    It is widely used by the timber processing enterprises in the virgin forests areas.

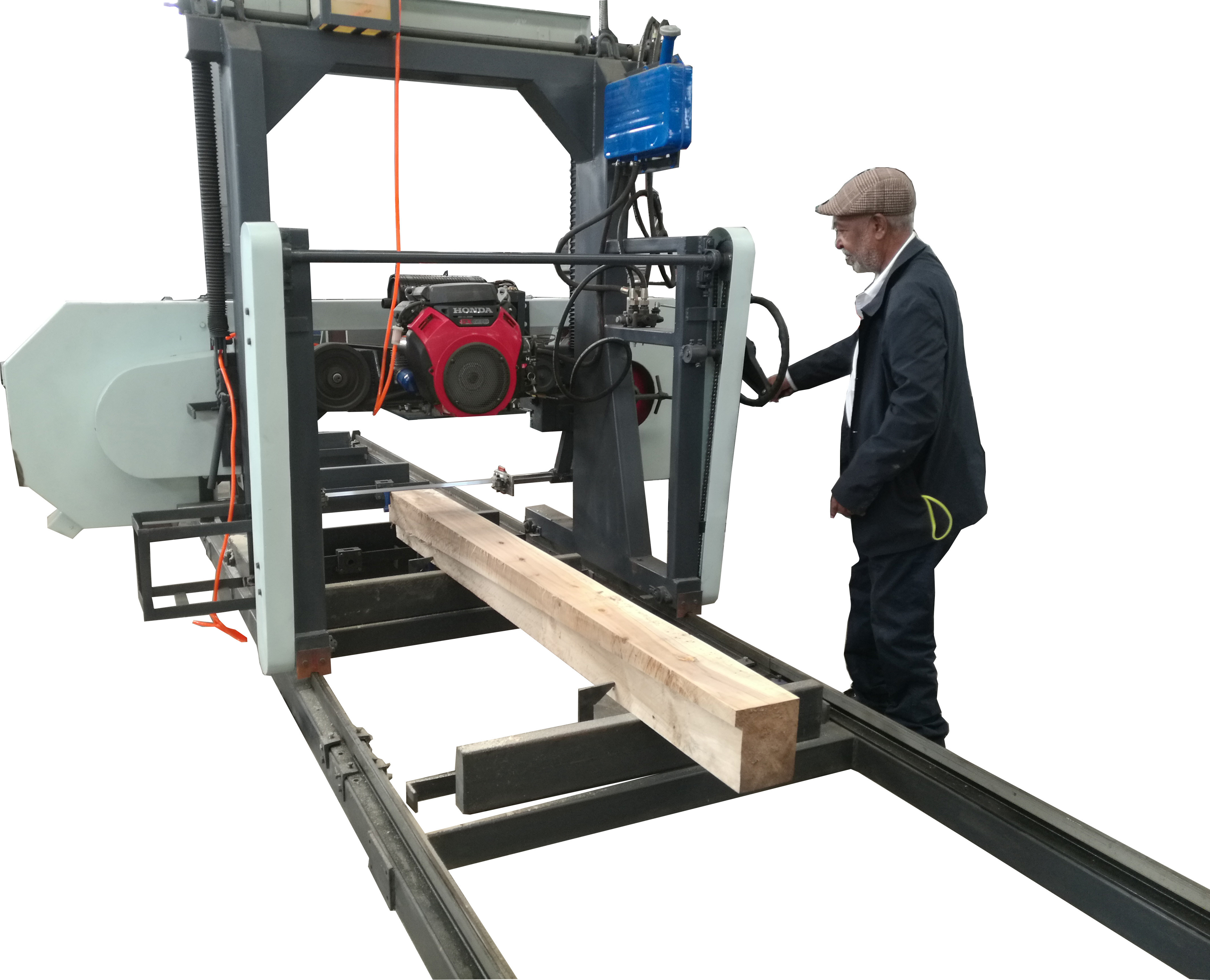

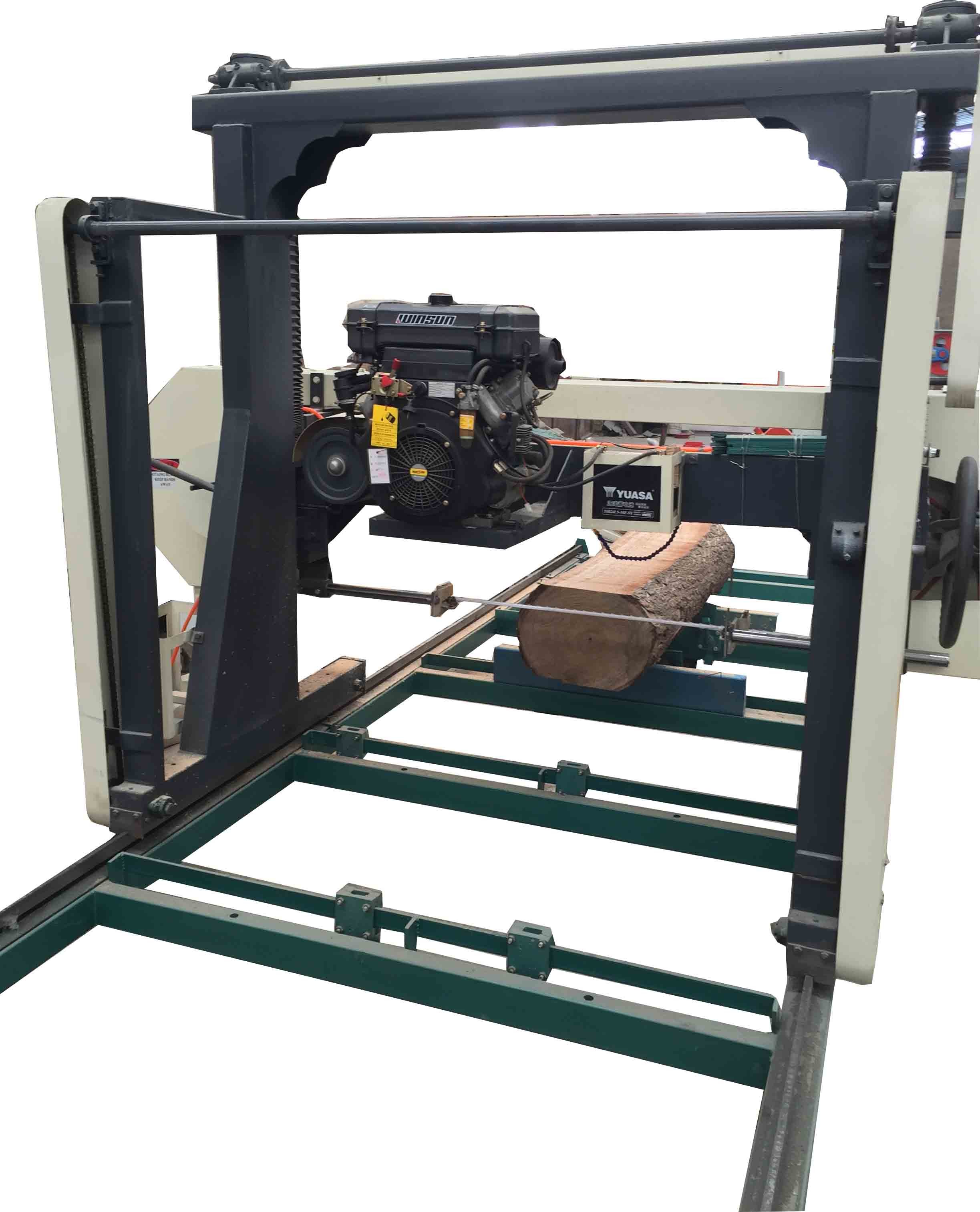

    Horizontal Portable Band Sawmill With Diesel Engine



    Technical Parameter

    MJ700D MJ1000D MJ1300D MJ1600D



    Sawing Wood Diameter

    700MM 1000 1300 1600



    Saw Wheel Diameter(MM)

    600 700 700 700



    Sawing Wood Thicknes

    10-200 10-300 10-300 10-300



    Sawing Wood Length (MM)

    1300-4500 1300-4500 1300-4500 1300-4500



    Engine

    14HP Diesel 22HP Diesel 25HP Diesel 27HP Diesel



    Band Saw Blade Length

    5500 6100 6600 7100



    Machine Length(MM)

    5800 5800 5800 5800



    Total Weight (KG)

    800 1100 1300 1500

    Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting ArmDiesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting ArmDiesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm



    PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL



    Technical Parameter

    MJ700E MJ1000E MJ1300E MJ1600E



    Max. Sawing Wood Diameter

    700MM 1000MM 1300MM 1600MM



    Saw Wheel Diameter

    600MM 700MM 700MM 700MM



    Sawing Wood Thickness

    10-200MM 10-300MM 10-300MM 10-300MM



    Sawing Wood Length MM

    1300-4500 1300-4500 1300-4500 1300-4500



    Main Motor Power

    7.5KW 11KW 15KW 18.5KW



    Lifting Motor Power

    1.1KW 1.1KW 1.1KW 1.1KW



    Total Weight (KG)

    600 1100 1300 1500

    Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm

    Diesel engine Hydraulic Motor Horizontal Band Saw Mills with Log lifting Arm


    Item Auxiliary Equipment
    1 MR1111 Automatic Band Saw Blade Sharpener
    2 Sand Wheel For MR1111
    3 UN65 Flash Seal Welding Machine
    4 MR417 Roll Machine
    5 Dual Tooth Setter
    6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
    USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
    USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
    USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
    7 Wood Cant Hook 48” Handle
