Forestry equipment horizontal wood portable band sawmill /Electric Wood Band Saw for Malaysia

1 SET
MOQ
US $5,200 - 19,200 / Set
Price
Forestry equipment horizontal wood portable band sawmill /Electric Wood Band Saw for Malaysia
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Use: Cutting Wood
Warranty: 12 Months
Voltage: 380V,3phase,50HZ Or As Customer Needs
Power: 7.5kw-30kw
Weight: 600-1500KG
Application: Cutting Soft/hard Log
Engine: Electric / Diesel / Petrol Engine
Control: Manual / Computer Control
Other: We Can Customize Machine According To Customer Needs
Basic Infomation
Place of Origin: shandong province
Brand Name: SH
Certification: ISO
Model Number: MJ700,MJ1000,MJ1300,MJ1600
Payment & Shipping Terms
Packaging Details: wooden crates or iron frame packing
Delivery Time: within 25 days
Payment Terms: T/T or L/C at sight, Western Union
Supply Ability: 1000sets/year
Product Description

Ultra portable horizontal band sawmill, smooth finishing, easy to move around, suitable to cut wood for the farm owners and DIY woodworking .



SH24 Small Portable Wood Horizontal Band Sawmill

Specifications: SH24P SH24D SH24E
Cutting maximum diameter 600mm 600mm 600mm
Band wheel diameter 480mm 480mm 480mm
Sawn maximum thickness 150mm 150mm 150mm
Width range of band saw blade 27mm-35mm 27-35mm 27-35mm
Cutting length 4meters 4meters 4meters
Motor 15HP gasoline 13HP diesel 11KW electric
Track length 5meters 5meters 5meters
Weight 500KG 500kg 500kg
Packing size 2000mm*800mm*1800mm

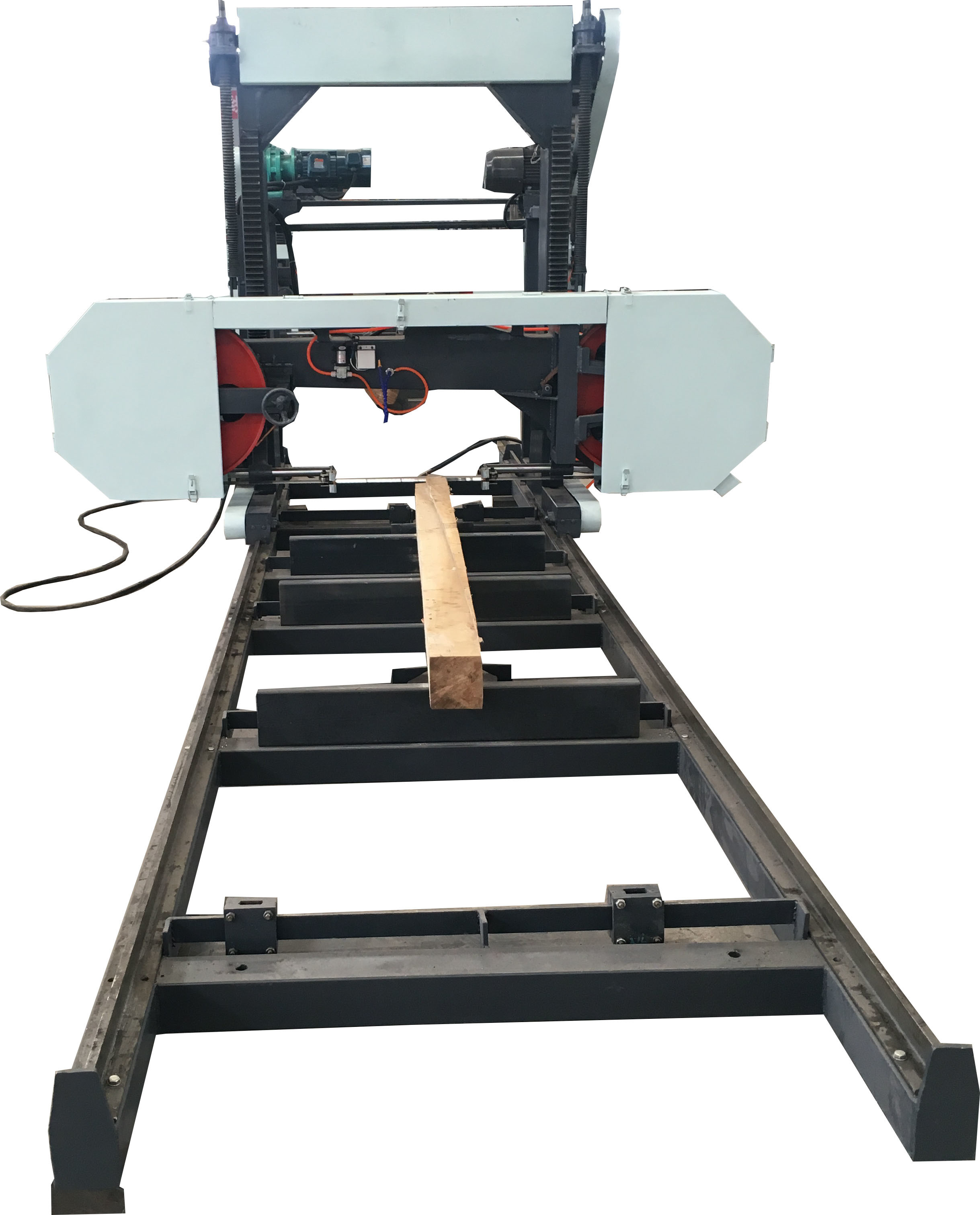

Forestry equipment horizontal wood portable band sawmill /Electric Wood Band Saw for Malaysia 0

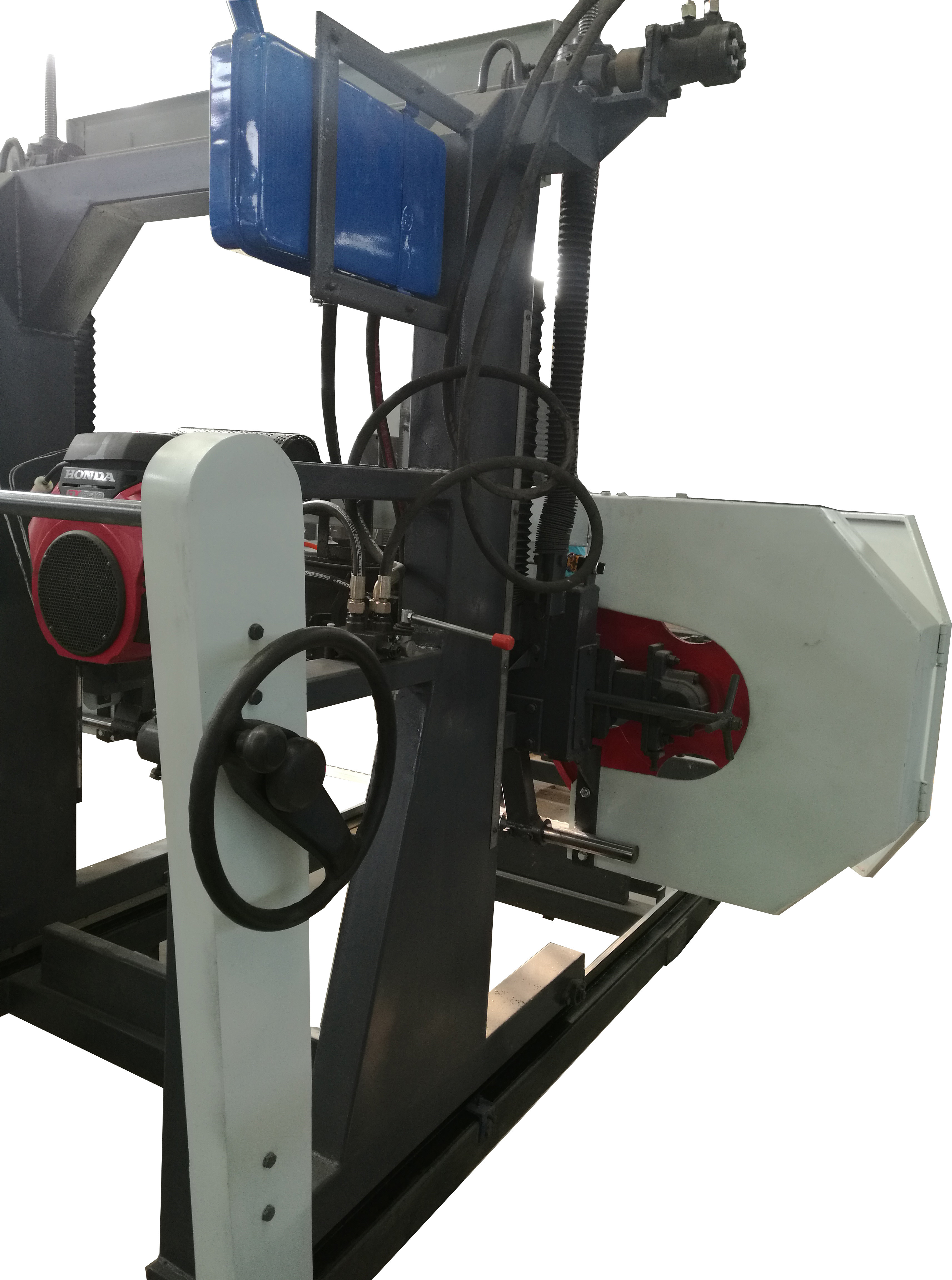

Forestry equipment horizontal wood portable band sawmill /Electric Wood Band Saw for Malaysia 1

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.



It is simple installation,easy operation,labor saving,and high productivity.



This machine can be drived by either electric motor or diesel engine.



It is widely used by the timber processing enterprises in the virgin forests areas.



Horizontal Portable Band Sawmill With Diesel Engine



Technical Parameter

MJ700D MJ1000D MJ1300D MJ1600D



Sawing Wood Diameter

700MM 1000 1300 1600



Saw Wheel Diameter(MM)

600 700 700 700



Sawing Wood Thicknes

10-200 10-300 10-300 10-300



Sawing Wood Length (MM)

1300-4500 1300-4500 1300-4500 1300-4500



Engine

14HP Diesel 22HP Diesel 25HP Diesel 27HP Diesel



Band Saw Blade Length

5500 6100 6600 7100



Machine Length(MM)

5800 5800 5800 5800



Total Weight (KG)

800 1100 1300 1500

Forestry equipment horizontal wood portable band sawmill /Electric Wood Band Saw for Malaysia 2Forestry equipment horizontal wood portable band sawmill /Electric Wood Band Saw for Malaysia 3



PORTABLE ELECTRIC HORIZONTAL BAND SAWMILL



Technical Parameter

MJ700E MJ1000E MJ1300E MJ1600E



Max. Sawing Wood Diameter

700MM 1000MM 1300MM 1600MM



Saw Wheel Diameter

600MM 700MM 700MM 700MM



Sawing Wood Thickness

10-200MM 10-300MM 10-300MM 10-300MM



Sawing Wood Length MM

1300-4500 1300-4500 1300-4500 1300-4500



Main Motor Power

7.5KW 11KW 15KW 18.5KW



Lifting Motor Power

1.1KW 1.1KW 1.1KW 1.1KW



Total Weight (KG)

600 1100 1300 1500

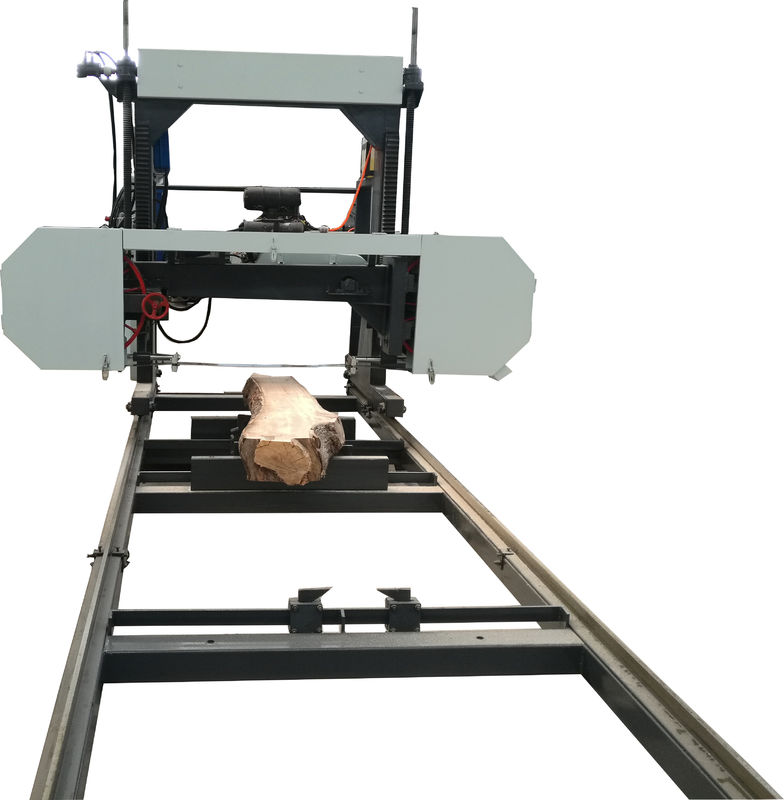

Forestry equipment horizontal wood portable band sawmill /Electric Wood Band Saw for Malaysia 4

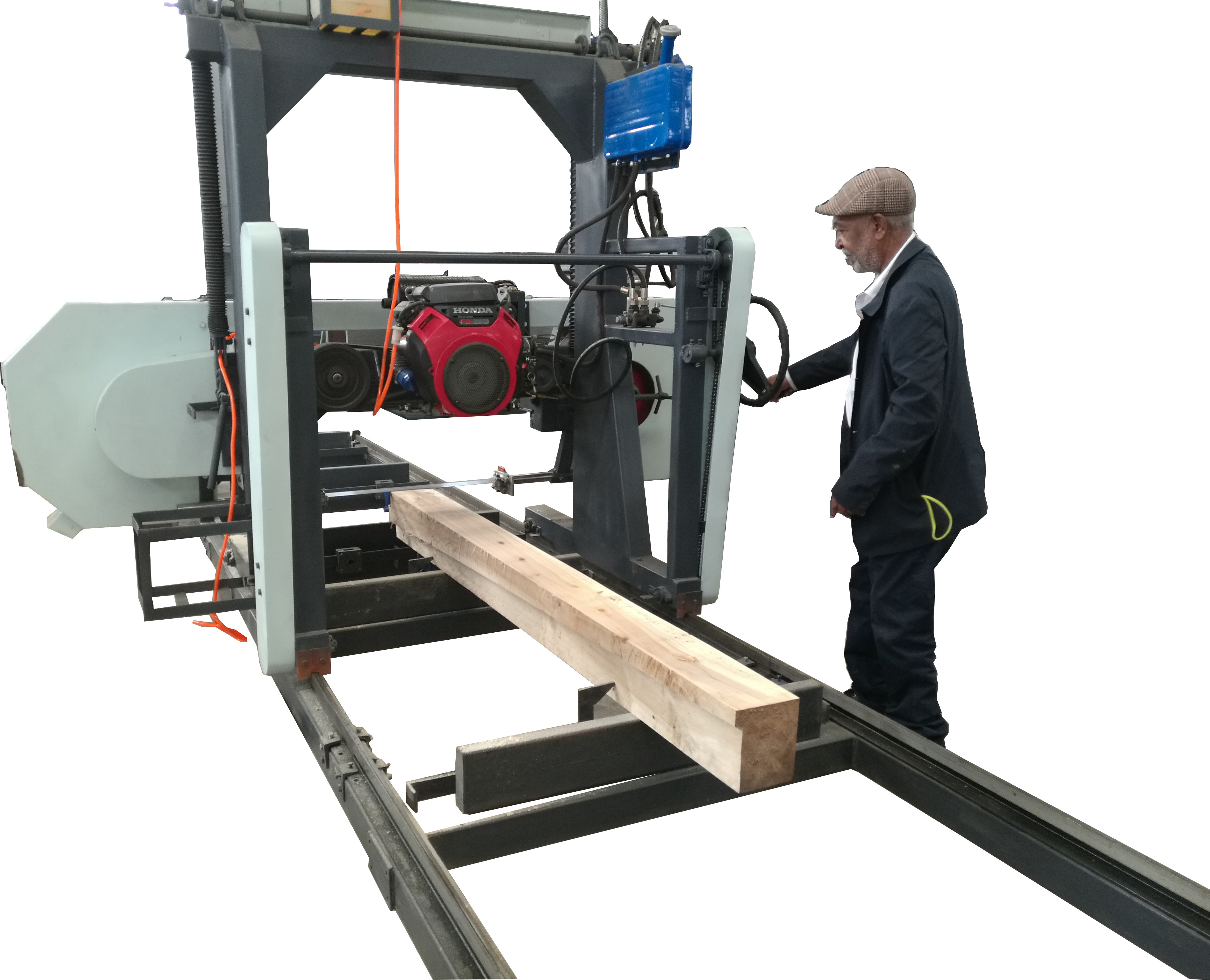

Forestry equipment horizontal wood portable band sawmill /Electric Wood Band Saw for Malaysia 5







Item Auxiliary Equipment
1 MR1111 Automatic Band Saw Blade Sharpener
2 Sand Wheel For MR1111
3 UN65 Flash Seal Welding Machine
4 MR417 Roll Machine
5 Dual Tooth Setter
6 USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm
USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm
7 Wood Cant Hook 48” Handle
