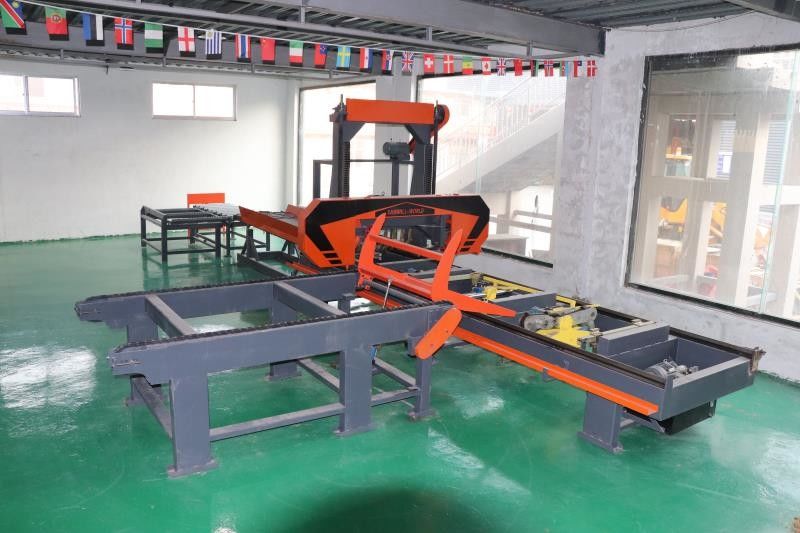

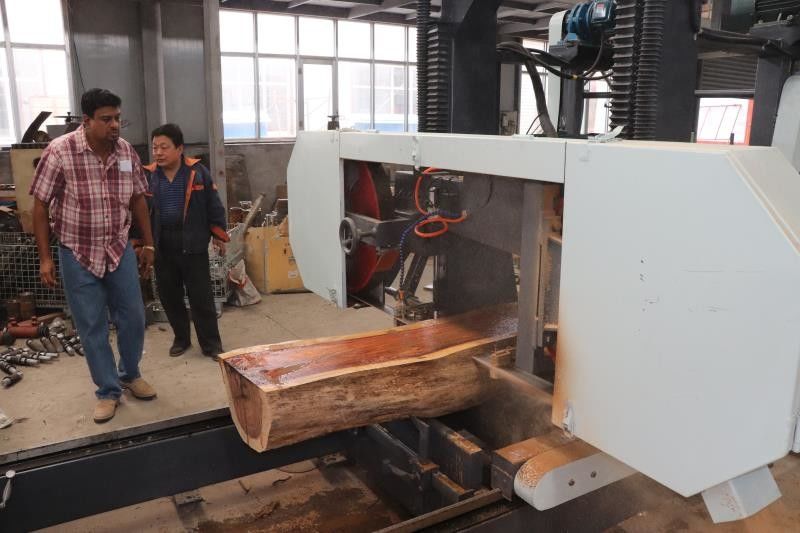

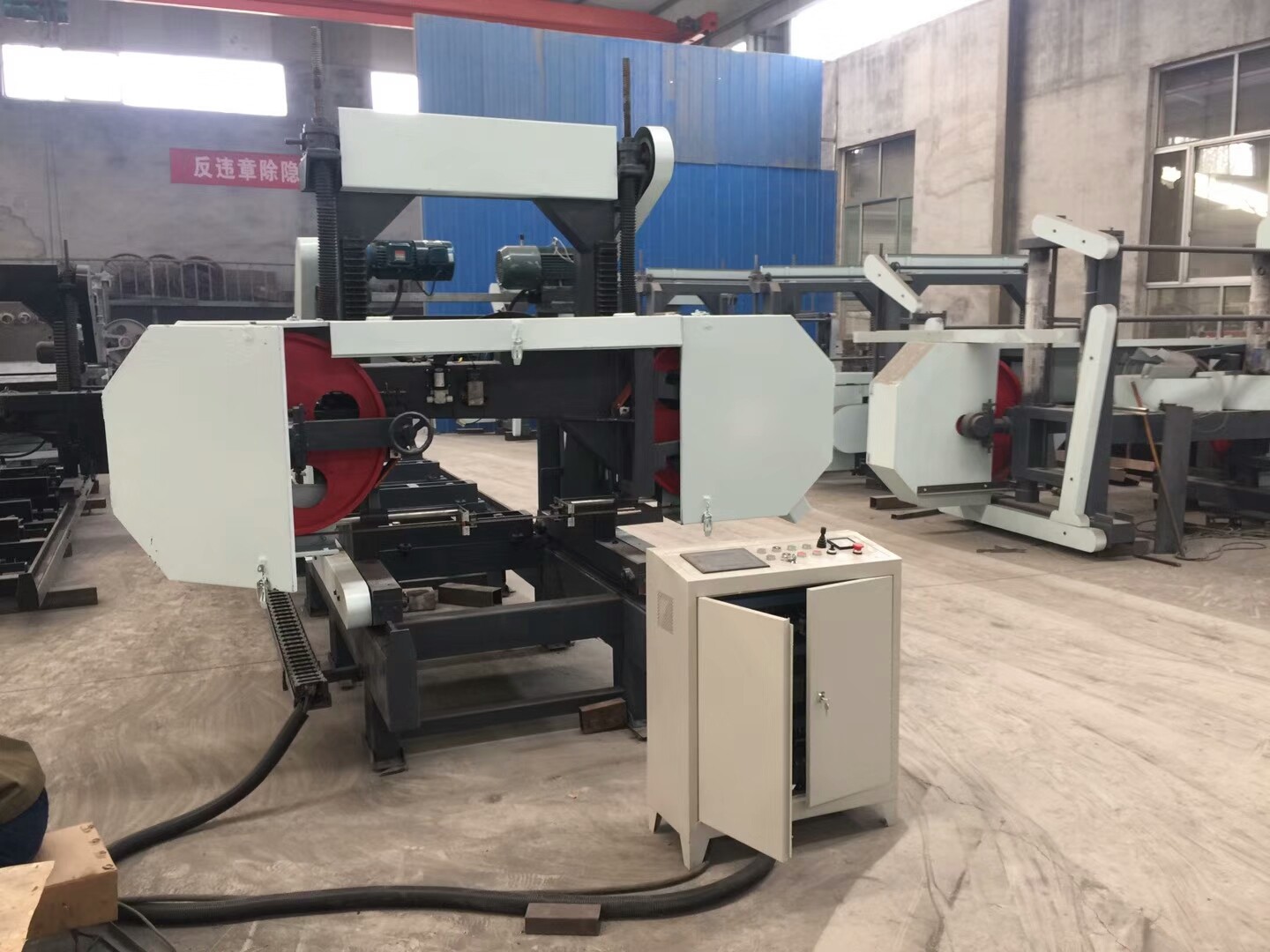

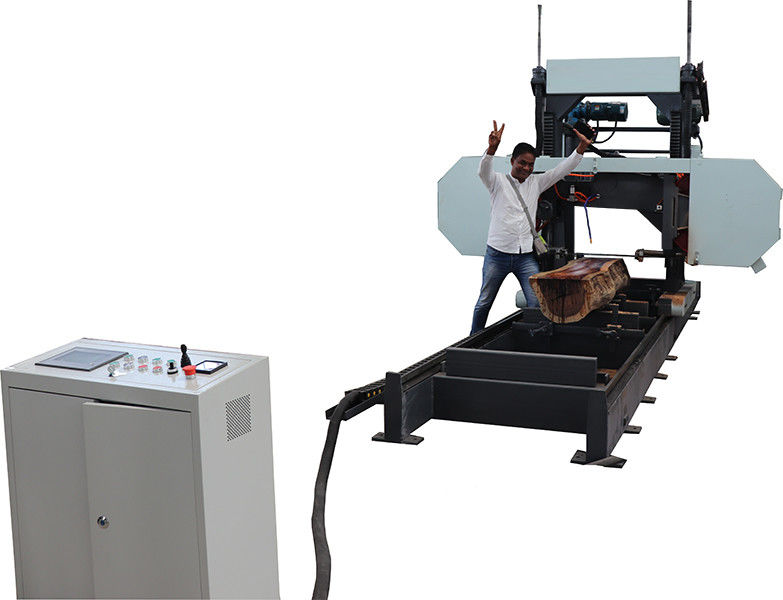

CNC Horizontal Band Sawmill
Introduction:
1.With Inverter auto feeding
2.With touching screen setting sawn sizes to reach high sawing precision.
3.With strong sawmill rail for heavy hardwood logs
4.With big motor power .
5.is sutiable for cutting expensive wood in the furniture factory .
Specifications:
| Specifications: | ||||
| Technical Parameter | MJ700AE | MJ1000AE | MJ1300AE | MJ1600AE |
| Max. Sawing Wood Diameter | 700MM | 1000MM | 1300MM | 1600MM |
| Saw Wheel Diameter | 600MM | 700MM | 700MM | 700MM |
| Sawn Thickness | 2-250MM | 2-300MM | 2-300MM | 2-300MM |
| Sawing Wood Length MM | 1300-4500 | 1300-4500 | 1300-4500 | 1300-4500 |
| Main Motor Power | 15KW | 18.5KW | 22KW | 30KW |
| Lifting Motor Power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Walking motor power | 1.5KW | 1.5KW | 1.5KW | 1.5KW |
| Total Weight (KG) | 1100 | 1100 | 1300 | 1500 |
| Item | Auxiliary Equipment | ||||
| 1 | MR1111 Automatic Band Saw Blade Sharpener | ||||
| 2 | Sand Wheel For MR1111 | ||||
| 3 | UN65 Flash Seal Welding Machine | ||||
| 4 | MR417 Roll Machine | ||||
| 5 | Dual Tooth Setter | ||||
| 6 | USA Lenox Bi-Metal Blade For MJ700 5500*54*1.07mm | ||||
| USA Lenox Bi-Metal Blade For MJ1000 6100*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1300 6600*54*1.07mm | |||||
| USA Lenox Bi-Metal Blade For MJ1600 7100*54*1.07mm | |||||
| 7 | Wood Cant Hook 48” Handle |
||||
