Home /Products/Wood Portable Sawmill/MJ1000D MJ1300D Portable Lumber Mill Wood Sawmill Machine, Gasoline Sawmill Portable Sawmill

MJ1000D MJ1300D Portable Lumber Mill Wood Sawmill Machine, Gasoline Sawmill Portable Sawmill

1 SET

MOQ

US $5,200 - 12,200 / Set

Price

MJ1000D MJ1300D Portable Lumber Mill Wood Sawmill Machine, Gasoline Sawmill Portable Sawmill

Features Gallery Product Description Request A Quote

Features

Specifications

Name: Horizontal Band Saw

Use: Woodworking

Usage: Wood / Log Cutting

Diesel Engine: 22HP, 25HP, 27HP

Weight: 1100 To 1500KG

Max. Sawing Width: 700 To 1600mm

Max. Sawing Length: 4500mm Or As Customer Needs

Application: Cutting Soft/hard Log

Other: We Can Customize Machine According To Customer Needs

Warranty: 12 Month

Highlight:

MJ1300D Portable Lumber Mill

,

MJ1000D Portable Lumber Mill

,

1300mm Wood Sawmill Machine

Basic Infomation

Place of Origin: Shandong Province, China

Brand Name: SH

Certification: ISO9001

Model Number: MJ700P,MJ700D, MJ1000D, MJ1300D, MJ1600D

Payment & Shipping Terms

Packaging Details: iron frame pallet or film wrapped packings

Delivery Time: within 20 days

Payment Terms: T/T or L/C at sight, Western Union

Supply Ability: 1500sets/year

Gallery

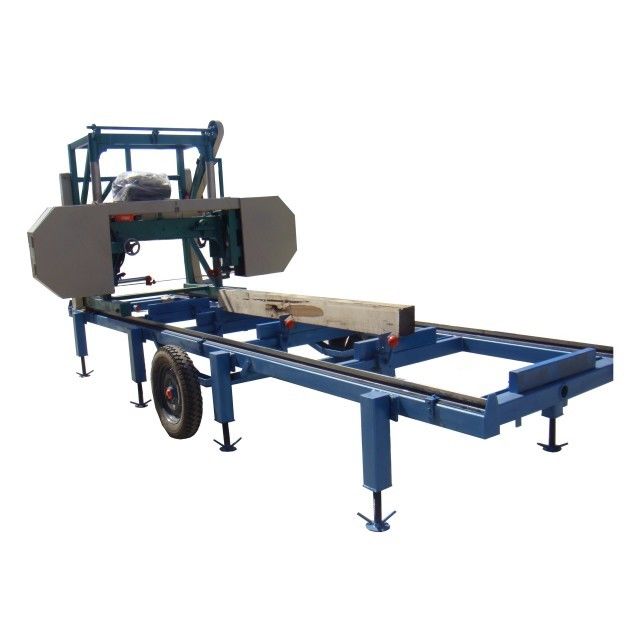

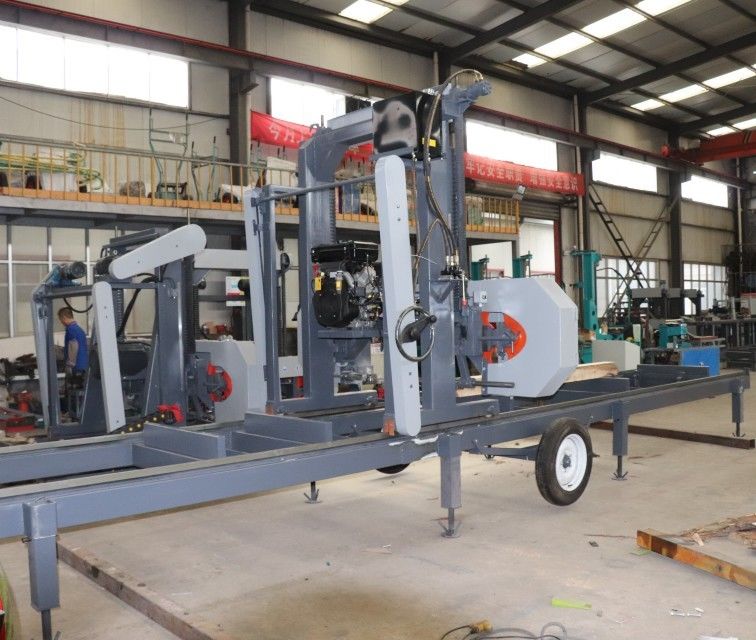

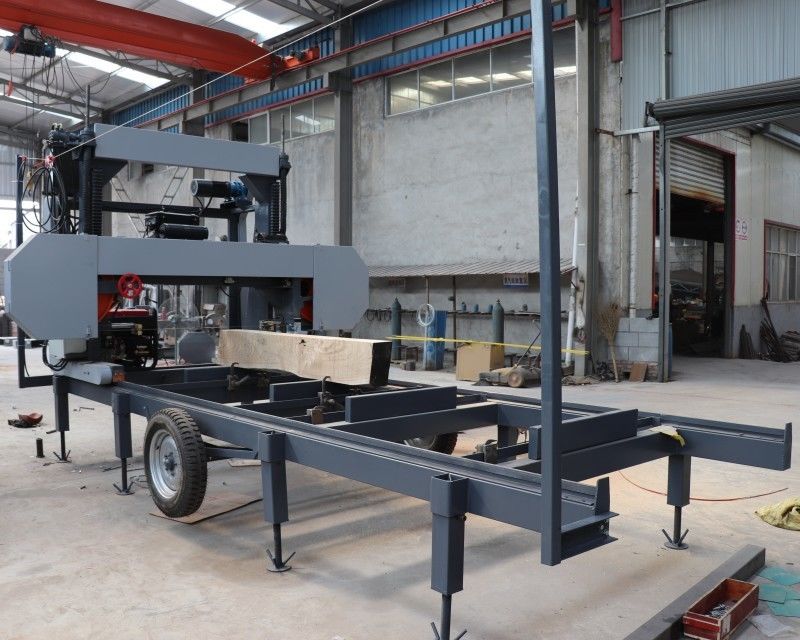

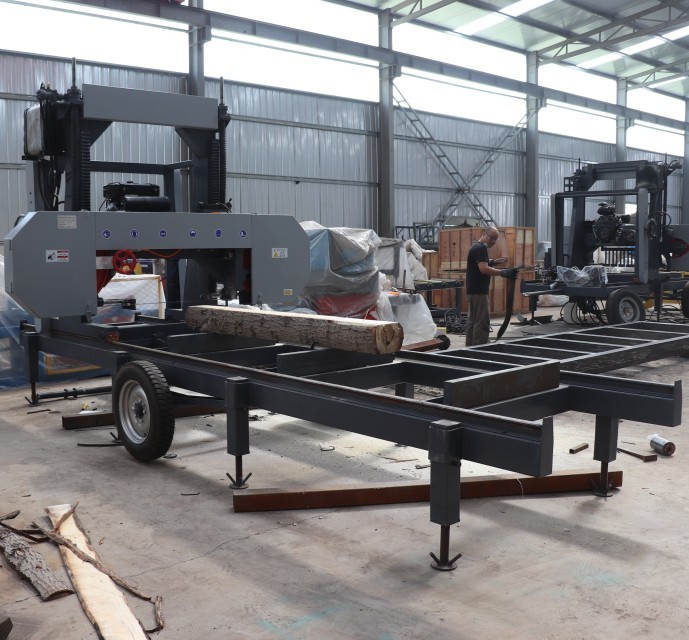

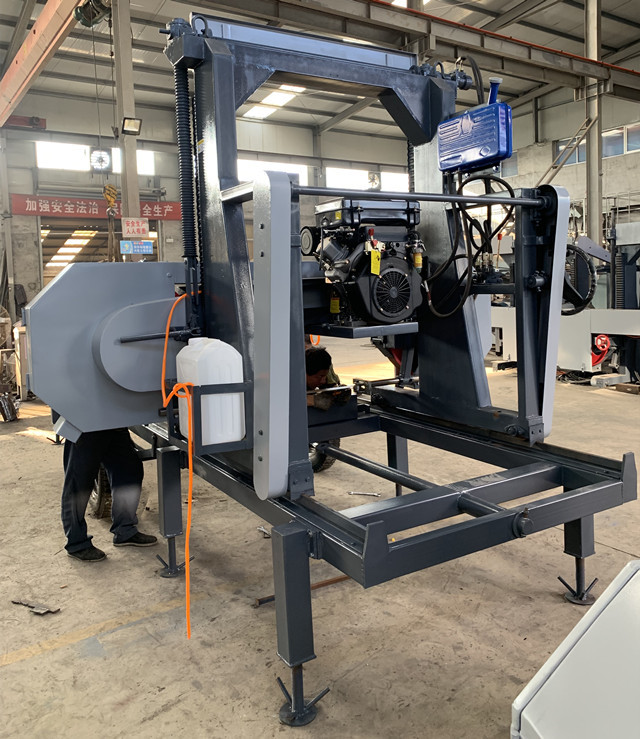

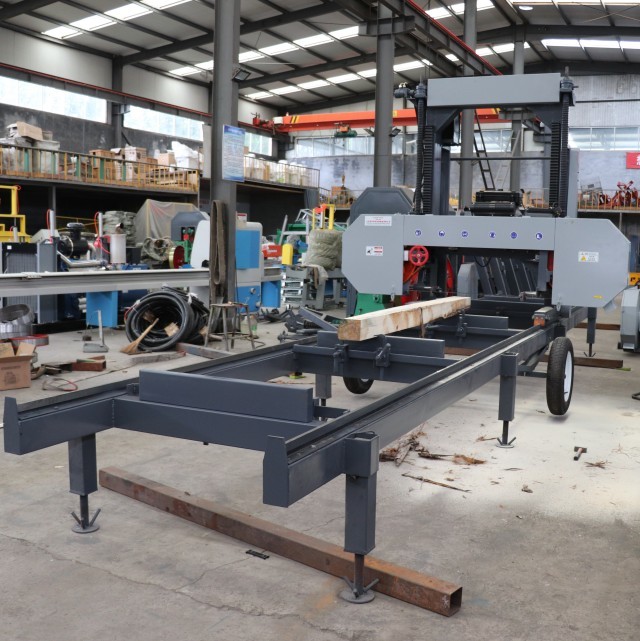

MJ1000D MJ1300D Portable Lumber Mill Wood Sawmill Machine, Gasoline Sawmill Portable Sawmill

Product Description

Lumber mobile saw mill with diesel engine of portable horizontal band sawmill

The portable horizontal band sawmill is designed to meet the requirements of customers in Africa ,South America and eastern europe.

It is simple installation,easy operation,labor saving,and high productivity.
This machine can be drived by either electric motor or diesel engine.
It is widely used by the timber processing enterprises in the virgin forests areas.

Diesel Engine Powered Horizontal Portable Band Sawmill

Technical Parameter	MJ700P	MJ1000D	MJ1300D	MJ1600D
Sawing Wood width max.	700MM	1000mm	1300mm	1600mm
Saw Wheel Diameter(MM)	600mm	700mm	700mm	700mm
Sawing Wood Thicknes	10-200mm	10-300mm	10-300mm	10-300mm
Sawing Wood Length (MM)	1300-4500	1300-4500	1300-4500	1300-4500
Engine	22HP Petrol	22HP Diesel	25HP Diesel	27HP Diesel
Band Saw Blade Length	5500mm	6100mm	6600mm	7100mm
Machine Length(MM)	5800	5800	5800	5800
Total Weight (KG)	1100	1100	1300	1500

MJ1000D MJ1300D Portable Lumber Mill Wood Sawmill Machine, Gasoline Sawmill Portable Sawmill 0

MJ1000D MJ1300D Portable Lumber Mill Wood Sawmill Machine, Gasoline Sawmill Portable Sawmill 1

Optional Parts: Extend sawmill track

Optional Parts: wheel for mobile usage

Optional Parts: Hydraulic log loading arm

Optional Parts: Hydraulic log loading arm +Inverter feeding +Touching screen auto setworks

Hydraulic Automatic Horizontal Band Sawmill

Combined with hydraulic automation technology, the hydraulic automatic horizontal band sawmill realizes all digital intelligent control.
Chinese and English operating systems, automatic wood rotation, sawing and cutting of large diameter wood, simple operation, precise cutting thickness to improve wood usage rate .

Technical Specifications:

Model	MJH1000A	MJH700A
Max Sawing Wood Diameter	1000mm	700mm
Saw Wheel Diameter	700mm	700mm
Max Sawn Thickness	300mm	300mm
Standard Sawing Wood Length	4.5 meters	4.5meters
Main Motor Power	22kw	18.5KW
Hydraulic motor power	4kw	3kw
Saw Blade Width	40mm-80mm	40mm-80mm
Machine Length	6000mm	6000mm
Weight	3500kg	3000kg

MJ1000D MJ1300D Portable Lumber Mill Wood Sawmill Machine, Gasoline Sawmill Portable Sawmill 7
