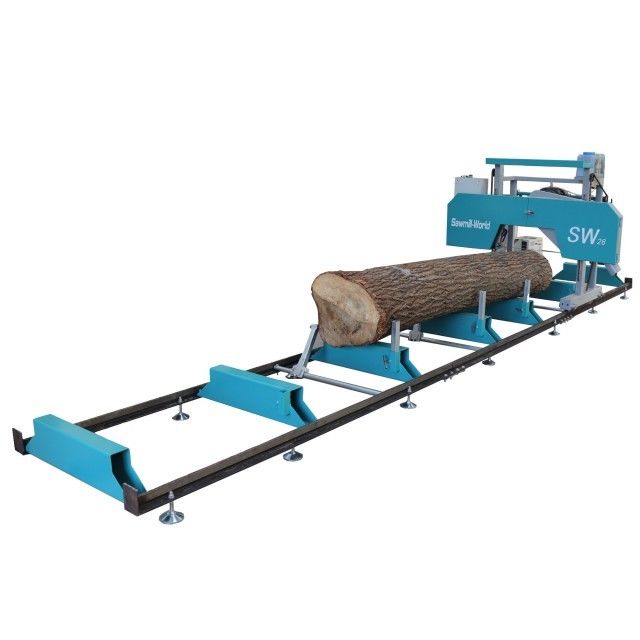

SW26G Portable Band Sawmill Machine For Wood Cutting, Horizontal Bandsaw Saw Mills
SW26 Sawmill
Technical Specifications:
| Model | SW26G | SW26E |
| Power |
Gasoline Egnine 9HP,
Manual start
|
Electric motor , 7.5kw |
| Max.sawing log diameter | 26'' or 660mm | 26'' or 660mm |
| Standard sawing wood length | 3000mm or 118'' | 3000mm or 118'' |
| Saw wheel diameter | 480mm | 480mm |
| Blade size | 1.07 or 0.9mm x35x3750mm | 1.07 or 0.9mm x 35x3750mm |
| Machine length | 4000mm or 157'' | 4000mm or 157'' |
| Feeding system | manually push | manually push |
| Weight | 500kg | 500kg |
Optional - Mobile Usage
SW31 Sawmill
| SW31 Model | SW31G | SW31E |
|
Power |
Gasoline Engine 15 PH (LONCIN, Manual start) |
Electric Motor 7.5KW |
|
Max Sawing Wood Diameter |
780mm(31”) | |
| Standard Sawing Wood Length | 3000mm(118”) | |
| Saw Wheel Diameter | 480mm(18.9”) | |
| Blade size | 4070 x 35x 0.9 mm | |
| Machine Length | 4000mm(157”) | |
| Weight | 500KG | |
SW36 Sawmill
| SW36 Model | SW36G | SW36E |
|
Power |
Gasoline Engine 15 PH (LONCIN, Manual start) |
Electric Motor 11KW |
|
Max Sawing Wood Diameter |
900mm(36”) | |
| Standard Sawing Wood Length | 4000mm(118”) | |
| Saw Wheel Diameter | 600mm(18.9”) | |
| Blade size | 4100 x 35x 0.9 mm | |
| Machine Length | 5000mm(196”) | |
| Weight | 700KG | |
Optional - extended sawmill track
Optional - log loading
Sawing effect
Optional - blade sharpener
Optional - Lenox bimetal blade
