1. No need installation, easy working with high efficienty, high precision.
2. Used to saw wood board/lumber into thin lumber/timber.
3. Re-saw working.
| Model | SHJM-400 | SHJM-650 | SHJM-800 | SHJM-1000 |
| Saw wheel diameter | 600MM | 700MM | 700MM | 700MM |
| Max. processing width | 400MM | 650MM | 800MM | 1000MM |
| Max. processing height | 110MM | 110MM | 110MM | 110MM |
| Sawn min.thickness | 2MM | 2MM | 2MM | 2MM |
| Feeding speed | 0.1-30m/min | 0.1-30m/min | 0.1-30m/min | 0.1-30m/min |
| Main motor power | 15KW | 18.5KW | 22KW | 30KW |
| Feeding motor power | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
| Sawn sizes setting | CNC digital | CNC digital | CNC digital | CNC digital |
| Machine weight | 1850kgs | 2550kgs | 2750kgs | 3150kgs |

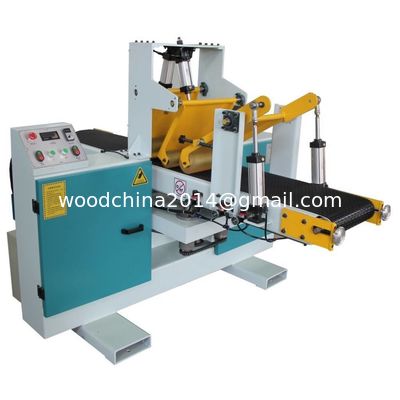

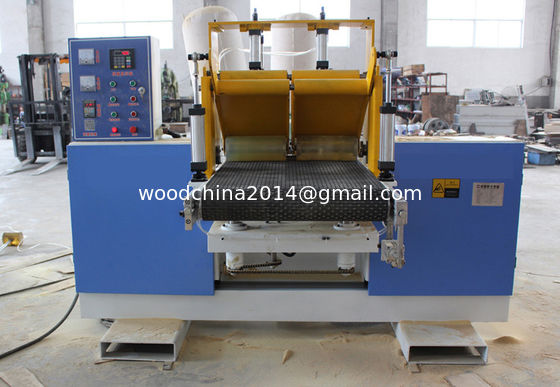

Detailed Image
Related Saw Machine
1.The head quantity from one to six is available.
2.Touch screen setting sawing thickness.
3.Variable Frequency Speed Adjustable Feeding Speed.
Technical data
| Technical specifications | DT300-1 | DT300-2 | DT300-3 | DT300-5 | DT300-6 |
| Sawing width | 300mm | 300mm | 300mm | 300mm | 300mm |
| Minimum wood thickness | 2mm | 2mm | 2mm | 2mm | 2mm |
| Maximum wood height | 260mm | 260mm | 260mm | 260mm | 260mm |
| Band wheel diameter | 700mm | 700mm | 700mm | 700mm | 700mm |
| Saw motor | 15kw | 15kw x 2 | 15kw x 3 | 15kw x 5 | 15kw x 6 |
| Saw machine length | 3500mm | 4500mm | 5800mm | 8500mm | 11000 |
| Weight | 900kg | 1500kg | 2200kg | 3500kg | 5000kg |
| Feeding | Variable frequency speed adjustable conveyor | ||||
| Operation | Touching screen auto setworks for sawn thickness | ||||

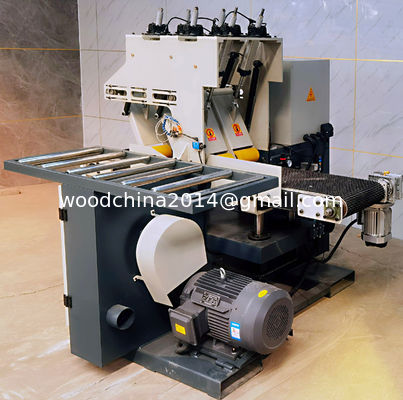

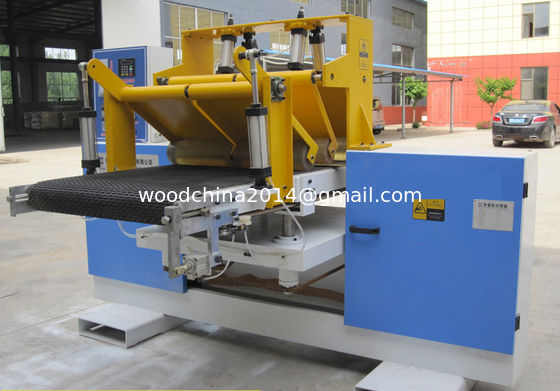

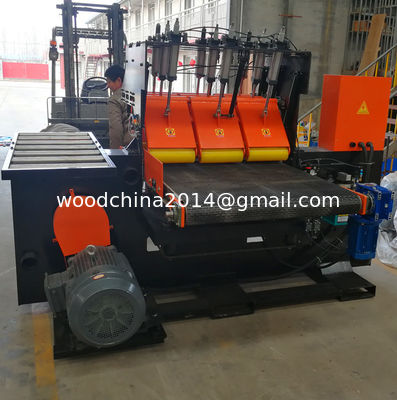

Detailed Image -6heads reaw equipment
Optional - board returning conveyor

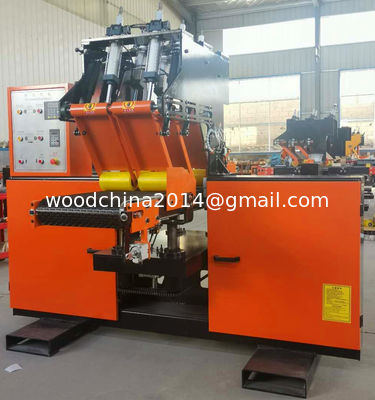

5heads reaw equipment
4heads reaw equipment
