Wooden Pallet Dismanling Sawmill/Pallet Dismantler
| Model |
TP1400 |
|
Working Table Length |
1700mm |
|
Horizontal table width |
1400mm |
|
Cutting Thickness |
5mm-150mm |
|
Saw Wheel Diameter |
600mm |
|
Motor Power |
7.5KW |
|
Processing Pallet Efficiecy |
40-60 pcs/min |
|
Band Saw Blade Size |
USA Blade 6900*41*1.3 mm |
|
Overall Size |
3300*1500*1500mm |
| Weight | 800KG |

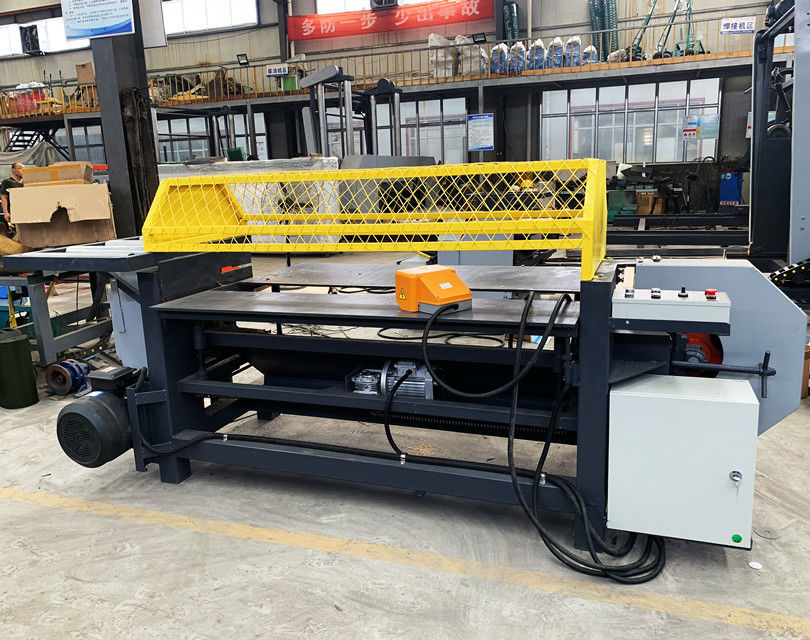

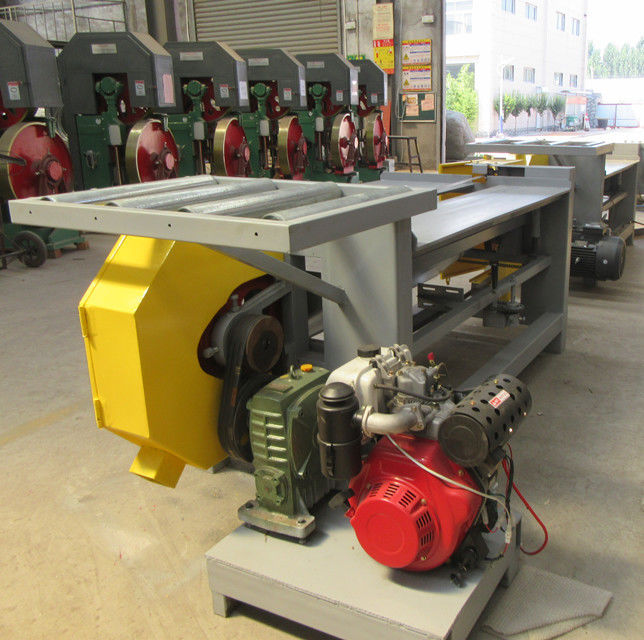

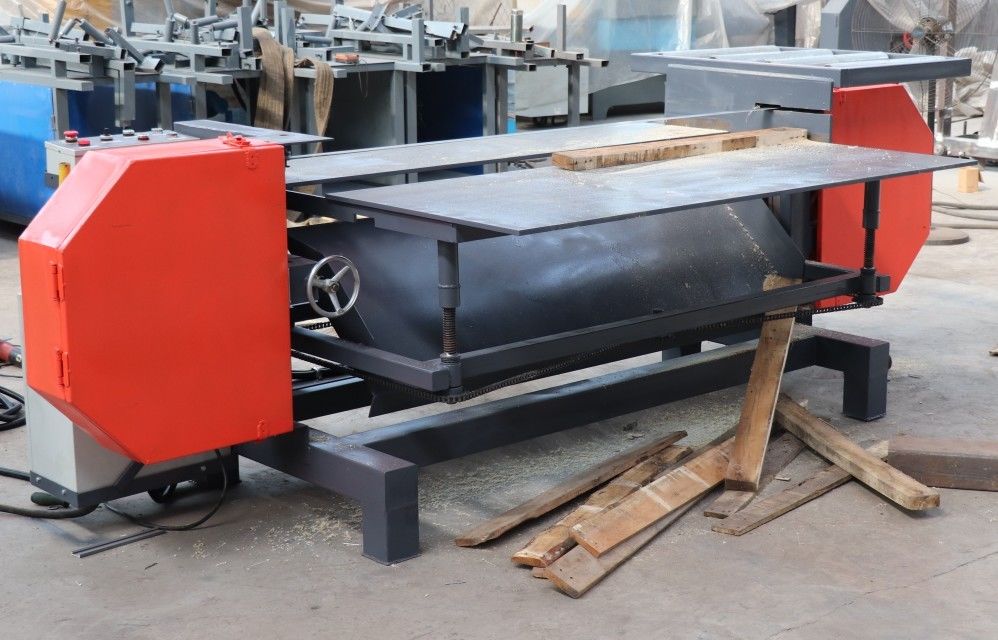

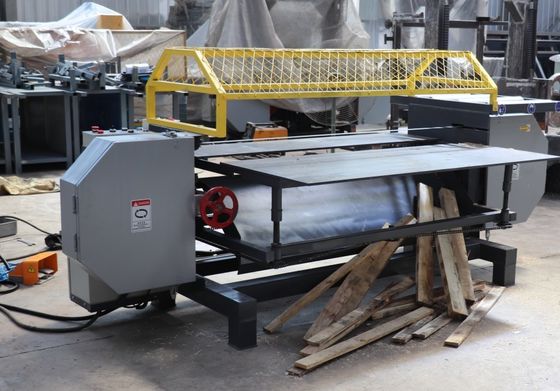

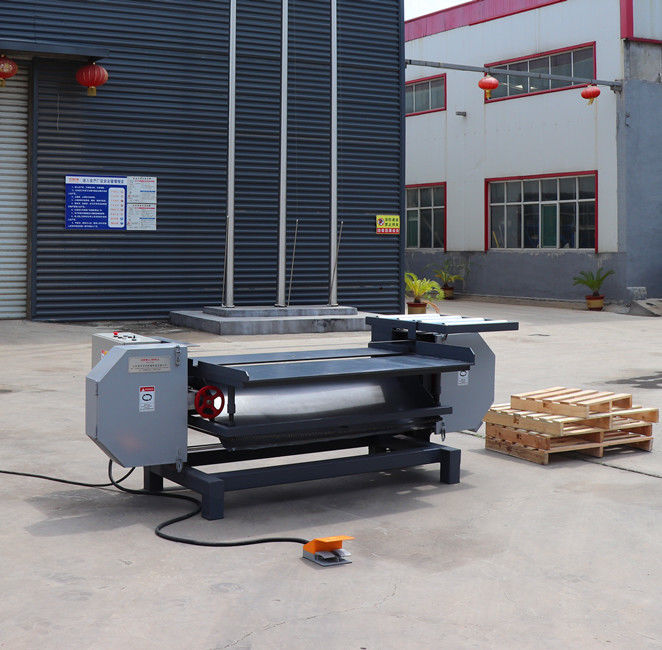

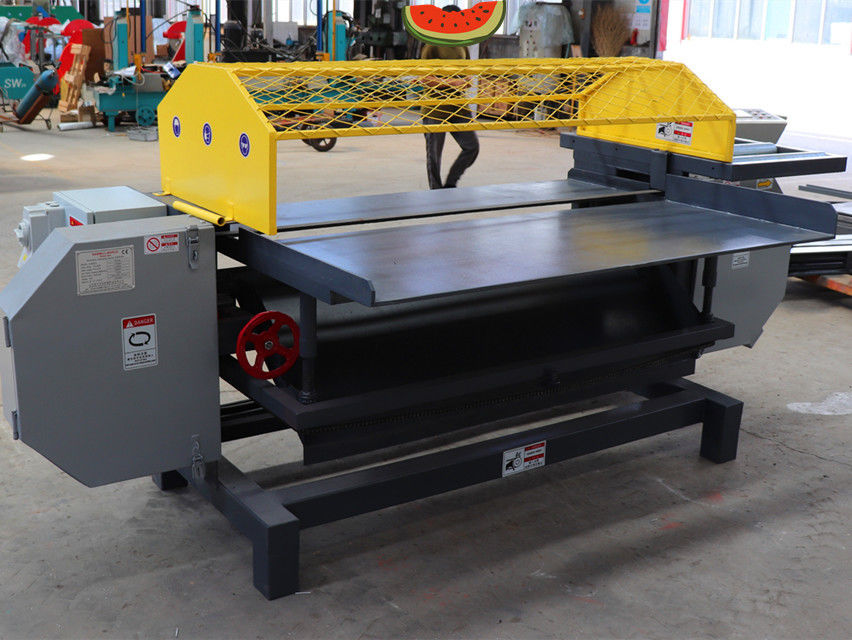

Detailed Image
Bi-Metal Woodworking Blade 6850mm*41mm*1.3mm
Spare parts Optional:
| Items | Qty/year usage |
| Bearings SKF307 on saw wheel | 2 |
| Right/left axis on saw wheel | 1 |
| Bearing house of axis | 2 |
| Contactor | 1 |
| Starting button | 2 |
| Lifting button | 2 |
| Saw Clip Skid | 10 |
| V-belt | 2 |
| Potentiometer | 3 |
| USA Starrett Bi-Metal Woodworking Blade 6850mm*41mm*1.3mm | 10 |
| Auto blade sharpener | 1 |
